Every time a tempered glass panel shatters on a construction site or in a newly renovated building, the first phone call is usually directed at the manufacturer: "Your glass exploded! It must be a quality issue."
As a top-tier architectural glass manufacturer, we meticulously track our defect rates. The truth? While spontaneous breakage due to Nickel Sulfide (NiS) does exist, over 80% of unexplained glass failures are caused by improper installation.
The devil is always in the details—specifically, in the edges. Today, we take you off the factory floor and onto the job site to reveal the two deadliest installation mistakes: missing setting blocks and improper sealing.
To understand why installation matters, you must understand how tempered glass works.
During the tempering process, the glass surfaces are put into a state of high compression, while the core is in tension. This makes the face of the glass incredibly strong—it can withstand heavy impacts and high wind loads.
However, the edges are highly vulnerable. A strong blow to the center of the glass might bounce off, but a slight tap on the edge with a hard object will release the internal tension, causing the entire panel to shatter instantly into thousands of pebbles.
In our factory, we use advanced CNC machines to perfectly polish every edge, eliminating micro-cracks. But if the installation team ruins that edge on-site, the glass is doomed.

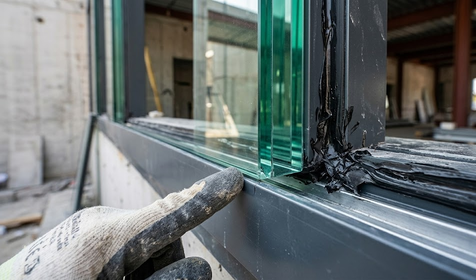

The Rule: Glass must NEVER touch the metal frame.
Aluminum framing expands and contracts with temperature changes. If a heavy glass panel is sitting directly on the bottom aluminum track, the hard metal will grind against the fragile glass edge. One slight building shift or temperature drop, and the glass shatters.
How to Inspect It: Look at the bottom of the window frame before it is fully sealed. You should see Setting Blocks .
Material: They should be made of dense Neoprene, EPDM, or Silicone (usually 80-90 Shore A hardness). Never use wood or cheap plastic.
Positioning: They are typically placed at the quarter points (1/4 of the way in from each corner) to distribute the weight evenly.
Width: The block must be slightly wider than the glass thickness to ensure the edges are fully supported.
The Verdict: If the installer skipped the setting blocks to save time, reject the installation immediately.
Buildings breathe. Glass expands in the summer heat and contracts in the winter cold.

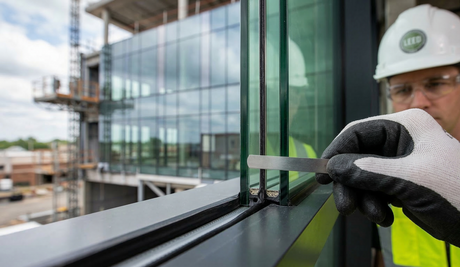

When applying structural silicone or installing rubber gaskets, there must be a calculated Edge Clearance around the entire perimeter of the glass.
The Danger of Over-Sealing: If the installer jams the glass tightly into the frame and fills every single millimeter with hard caulk, the glass has nowhere to go when the sun heats it up. The resulting thermal stress has only one escape route: breaking the glass.
How to Inspect It:
Check the specifications for the required "bite" and "clearance." There should be a visible gap between the edge of the glass and the inside of the frame channel.
Press the perimeter gaskets. They should provide a weather-tight seal but still allow for micro-movements.
A high-performance facade is a partnership between the manufacturer and the glazing contractor.
We do our part by using premium raw materials, state-of-the-art tempering furnaces, and rigorous Heat Soak Testing (HST) to deliver structurally flawless glass to your site. By using this inspection guide, you can ensure that the installation team does their part, protecting your investment and ensuring long-term safety.
Encountering persistent glass issues on your projects? It might be time to upgrade your glass supplier. Talk to our engineering team today for technical support and world-class architectural glass.
