If you are looking to build a modern home, renovate an office, or upgrade your architectural projects, you’ve likely come across the term "Insulated Glass." But what exactly is insulated glass, and why has it become the gold standard in modern architecture? In this comprehensive guide, we will break down everything you need to know about this energy-saving marvel.
Insulated Glass, often abbreviated as IGU (Insulated Glass Unit) or commonly referred to as double/triple glazing, is a combination of two or more glass panes separated by a spacer and sealed to form a single unit with an air or gas space between them.
Unlike traditional single-pane glass, which easily transfers heat and cold, insulated glass is specifically designed to reduce thermal transfer, making buildings more energy-efficient and comfortable.

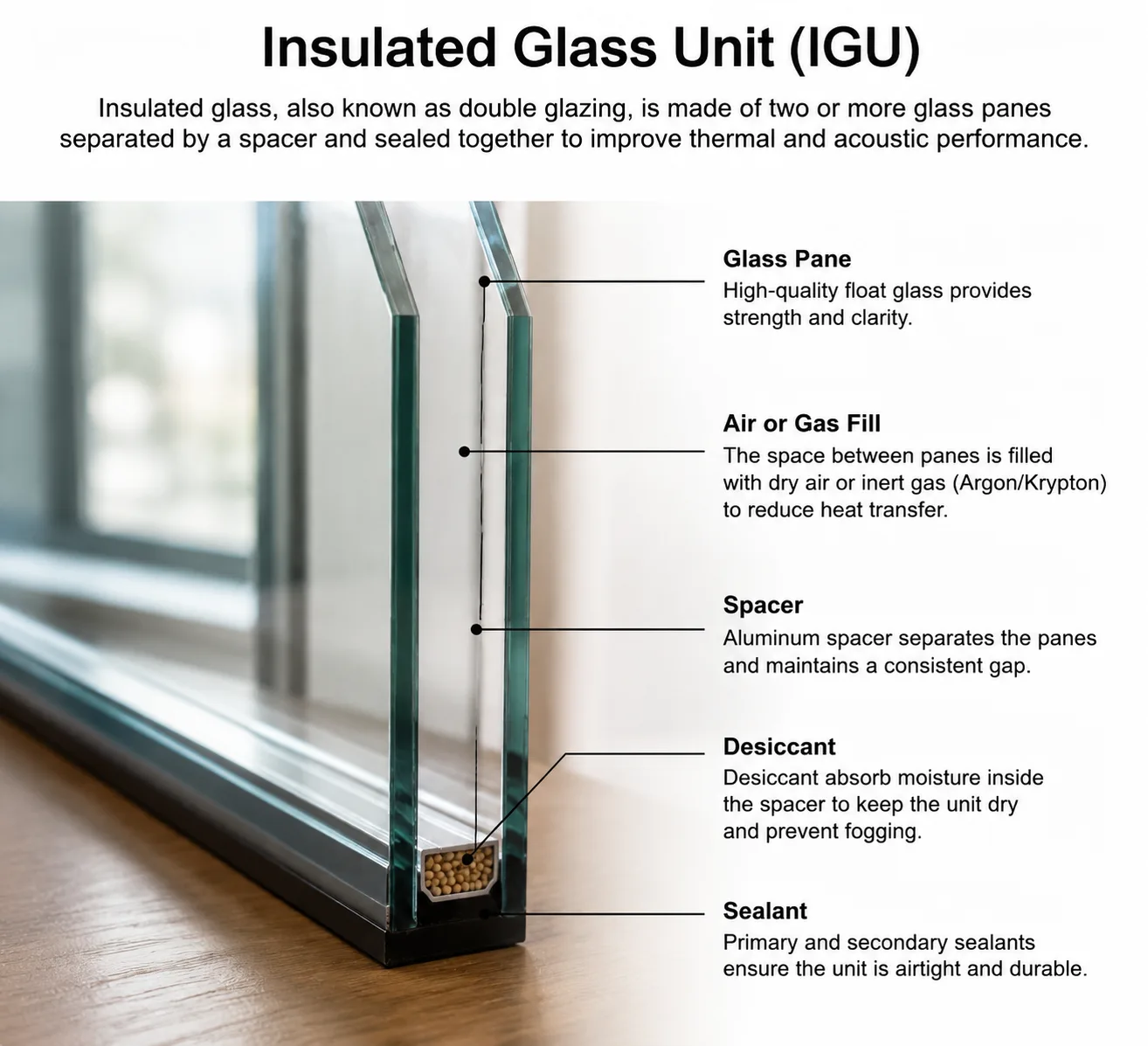

To understand why insulated glass is so effective, we need to look at its anatomy. A standard IGU consists of several key components:
Glass Panes: Two or more sheets of glass. These can be standard float glass, tempered safety glass, or laminated glass depending on security and strength requirements.
The Spacer Bar: A frame (usually made of aluminum or warm-edge materials) that separates the glass panes and holds them at a precise distance.
The Gas Fill: The space between the panes isn't just "empty air." It is often filled with noble gases like Argon or Krypton, which have much lower thermal conductivity than regular air, providing superior insulation.
Desiccant: Hidden inside the spacer bar, this moisture-absorbing material prevents condensation from forming inside the unit.
Sealants: High-performance dual sealants (usually polyisobutylene and silicone) bind the structure together, ensuring the gas stays in and moisture stays out.
Investing in high-quality insulated glass offers a wide range of advantages for both residential and commercial properties:
The primary function of an IGU is to block heat transfer. In the summer, it keeps the blazing heat outside; in the winter, it traps the warmth indoors. This drastic reduction in thermal exchange means your HVAC system doesn't have to work overtime, leading to significant savings on electricity bills.
Tired of traffic noise, sirens, or noisy neighbors? The multi-layer construction of insulated glass acts as an acoustic barrier, significantly dampening external noise and creating a peaceful indoor environment.
With single-pane glass, moisture often builds up on the inside during cold weather, leading to mold and damage. Insulated glass prevents this by eliminating the temperature differential on the inner pane.
By incorporating Low-E (Low-Emissivity) coatings, insulated glass can block harmful UV rays that fade your furniture and carpets. Furthermore, using tempered or laminated glass in the IGU makes it much harder to break, enhancing building security.
Because of its versatility and performance, insulated glass is widely used in modern construction:
Residential Windows and Doors (Sliding doors, French doors, sunrooms)

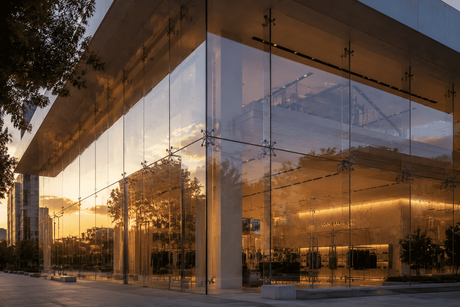

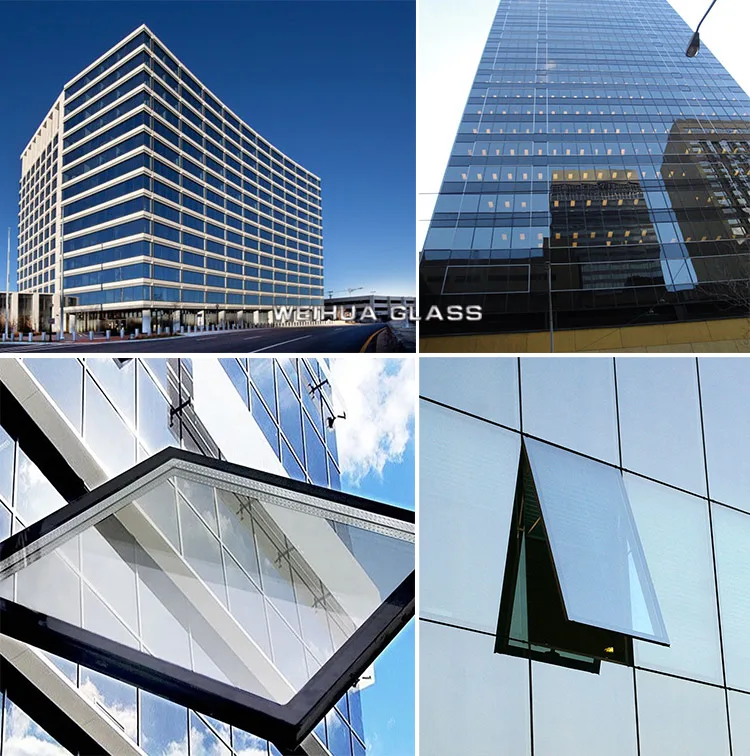

Commercial Curtain Walls and glass facades for skyscrapers
Skylights and overhead glazing
Refrigeration glass doors (for commercial freezers)
When it comes to sourcing insulated glass, quality and precision are non-negotiable. A poorly sealed IGU will lose its gas fill, fog up, and lose its insulating properties within a few years.
At Shandong Weihua Glass Co., Ltd., we bring decades of manufacturing expertise to the table.

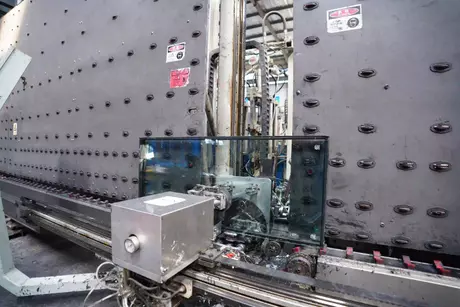

State-of-the-Art Production: We utilize fully automated glass processing lines to ensure flawless cutting, edging, washing, and dual-sealing.
Customization Options: Whether you need Low-E insulated glass, tempered safety IGUs, laminated insulating glass, or triple-glazed units, we tailor the sizes, thicknesses, and coatings to your exact specifications.
Strict Quality Control: Every single unit undergoes rigorous testing to comply with international standards (such as CE, SGCC, and ISO), ensuring long-lasting durability and clear vision.
Factory-Direct Pricing: Based in Shandong, China, we offer premium-grade glass solutions at highly competitive factory-direct prices, helping you maximize your project budget.
Whether you are a glass wholesaler, a window manufacturer, or a construction contractor, Shandong Weihua Glass is here to support your business with reliable lead times and world-class products.
[Contact Our Experts Today] to get a free quote, request samples, or discuss your customized insulated glass requirements!
