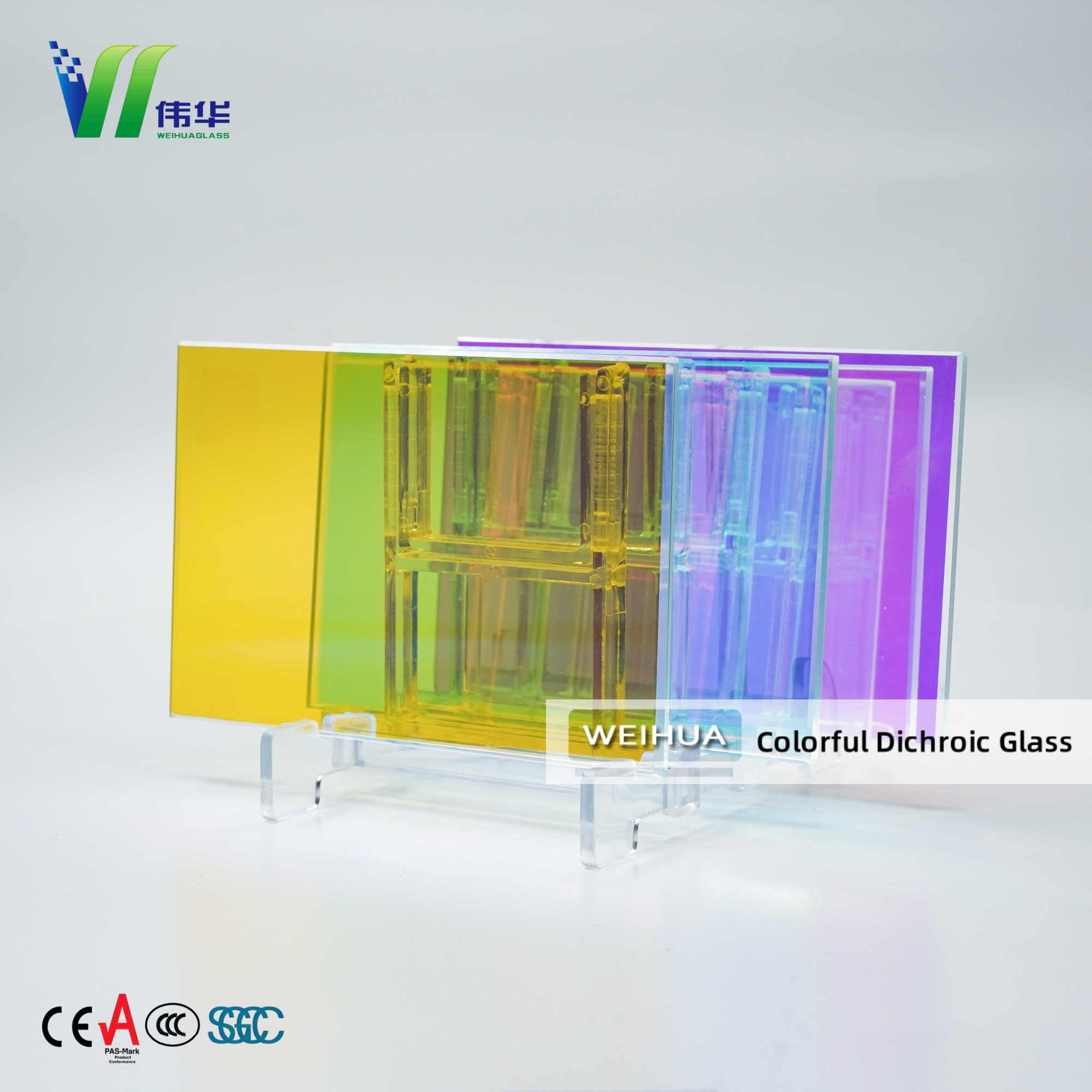

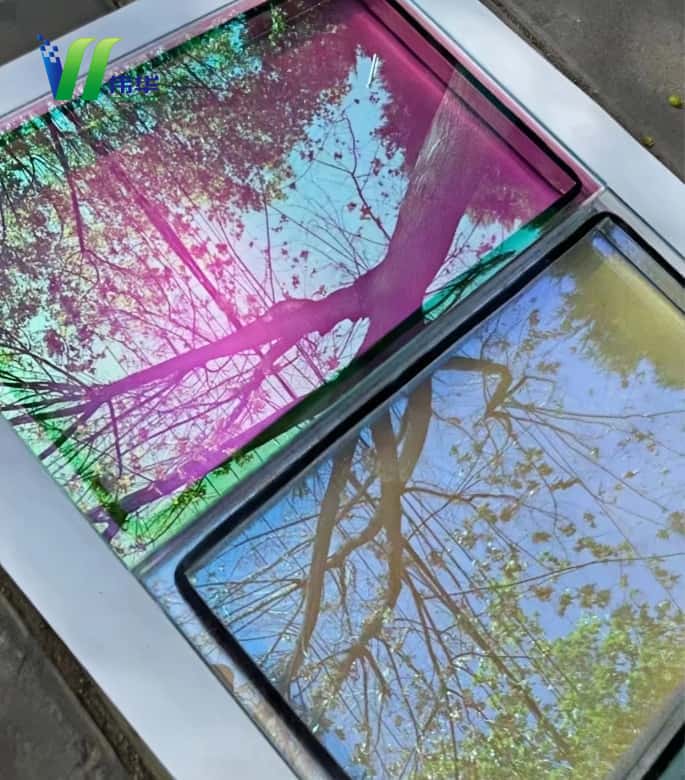

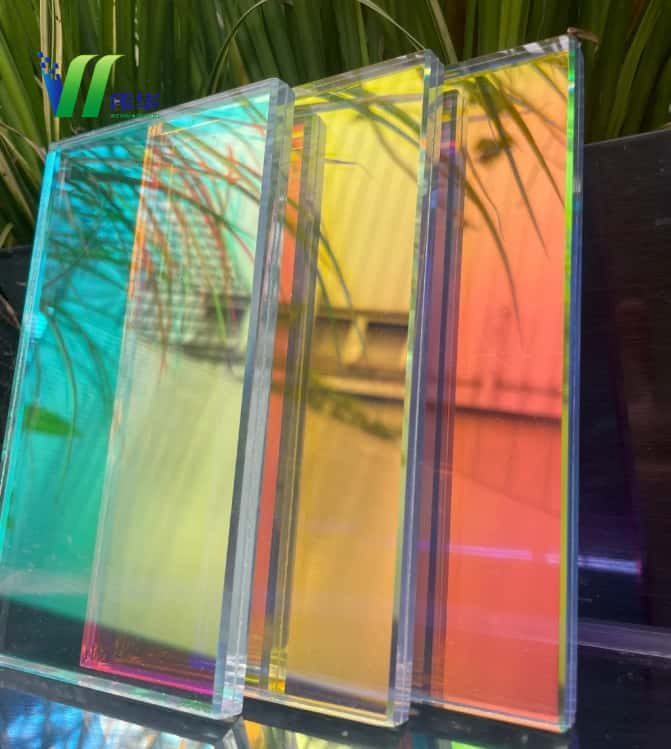

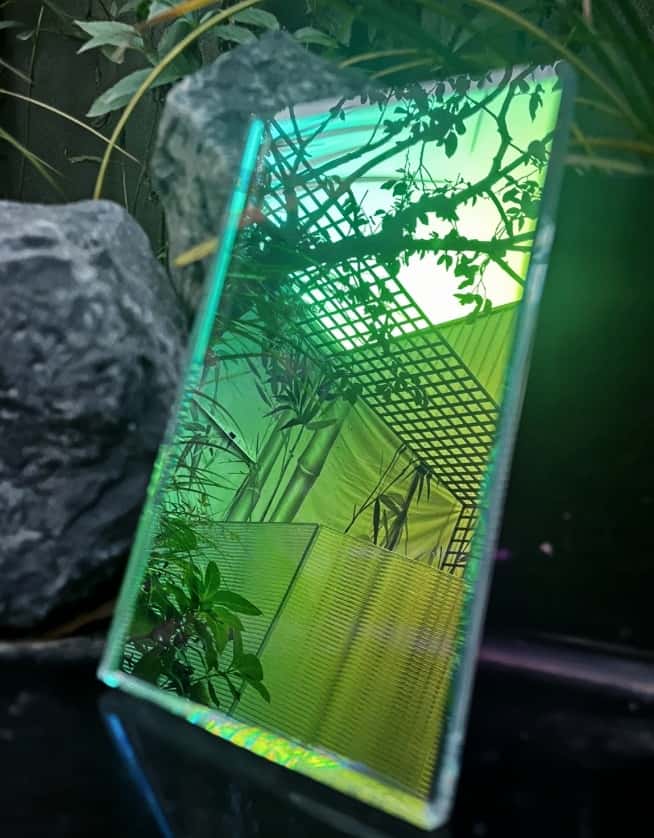

Dynamic Iridescent Visual Effects: Utilizes advanced optical dichroic film interlayers. The glass shifts seamlessly across a vibrant spectrum of colors depending on the viewing angle and ambient light conditions.
Architectural Safety Compliance: Laminated with premium PVB or SGP interlayers, meeting global safety glazing standards (CE/SGCC). Shards remain bonded to the interlayer upon impact to prevent injury.
Permanent UV & Fade Resistance: Unlike surface-printed alternatives, the color-changing optical layer is hermetically sealed within the glass, protecting it from UV degradation, moisture, and scratching.

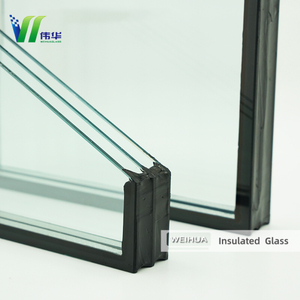

Bespoke Structural Customization: Fully compatible with thermal tempering, CNC precision drilling, and multi-layer insulated glass units (IGUs) to meet complex structural facade submittals.

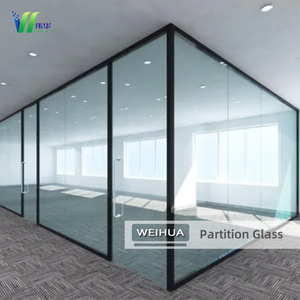

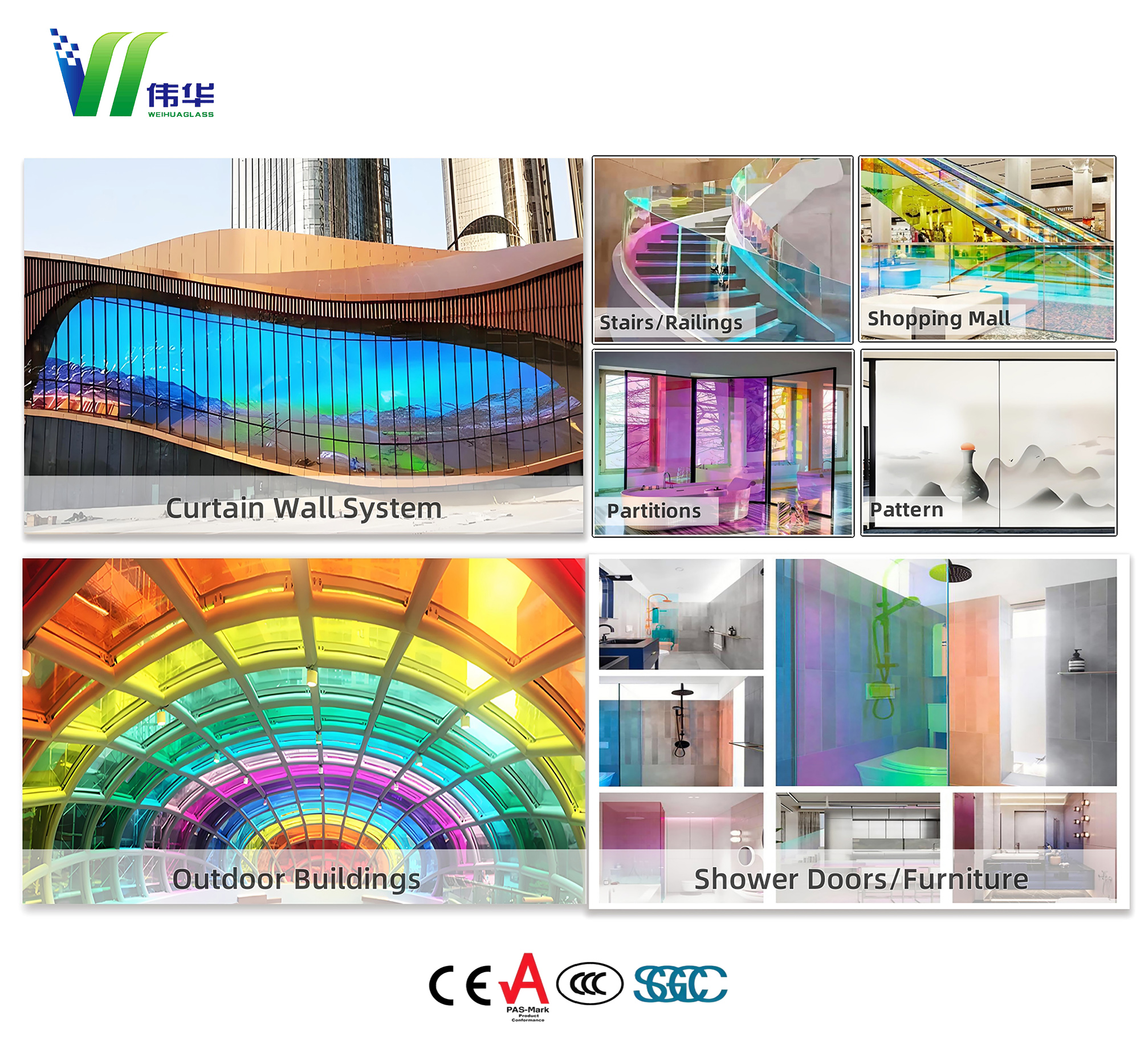

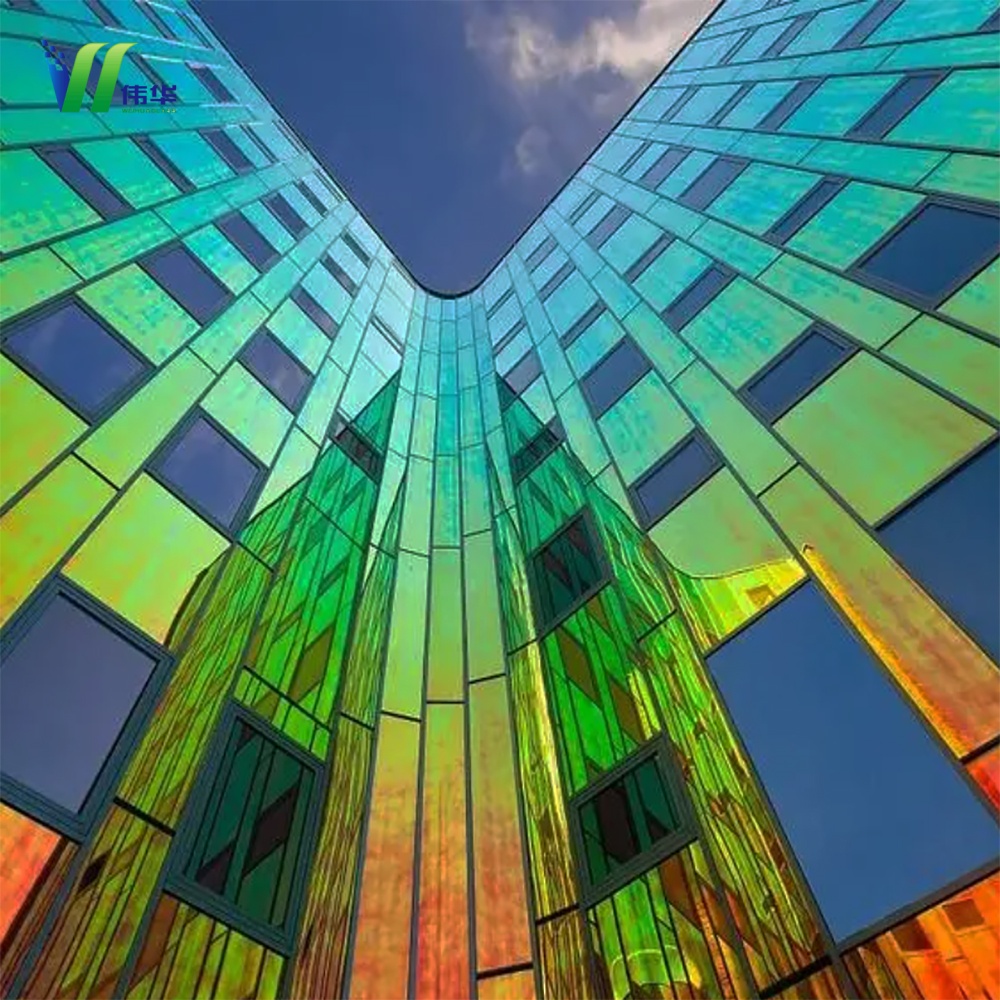

Premium Architectural Applications: The definitive choice for high-end commercial facades, interior partitions, art installations, balustrades, luxury retail storefronts, and skylights.
| Quantity: | |
|---|---|
Are you looking to make a bold design statement or integrate landmark aesthetic features into your next commercial project? Shandong Weihua Glass manufactures premium industrial-grade Custom Dichroic Laminated Glass Panels—a high-performance architectural art glass designed to manipulate light and captivate viewers.
By encapsulating state-of-the-art optical interference films within our heavy-duty laminated glass configurations, we deliver an iridescent, color-changing medium that shifts tones organically as shadows and sunlight cross the building envelope. For architects, facade engineers, and interior designers, Weihua provides a structurally sound, code-compliant safety glass that transforms standard structures into shifting optical sculptures.
| Technical Feature (技术特性) | Available Specifications (供应与定制规格) |
| Optical Color Shifts | Cyan/Blue/Magenta, Gold/Blue, Fire/Earth Tones, Rainbow/Iridescent (Custom spectrums available) |
| Glass Combination Options | Fully compatible with Annealed, Heat-Strengthened, or Fully Tempered Glass substrates |
| Substrate Clarity | Standard Clear or Premium Low-Iron (Ultra-Clear) Float Glass (Low-iron recommended for optimal color purity) |
| Interlayer Type & Thickness | Dichroic Optical Interlayer + Premium Structural PVB (0.76 mm, 1.14 mm,1.52 mm) or SGP (SentryGlas) |
| Total Thickness Limits | 6.38 mm, 8.76 mm, 12.76 mm, 17.52 mm, 21.52 mm up to heavy-duty multi-layer custom specifications |
| Processing Capabilities | CNC Precision Flat Polished Edges, Water-jet Structural Cutouts, Countersunk Hole Drilling, Curved/Bent Lamination |

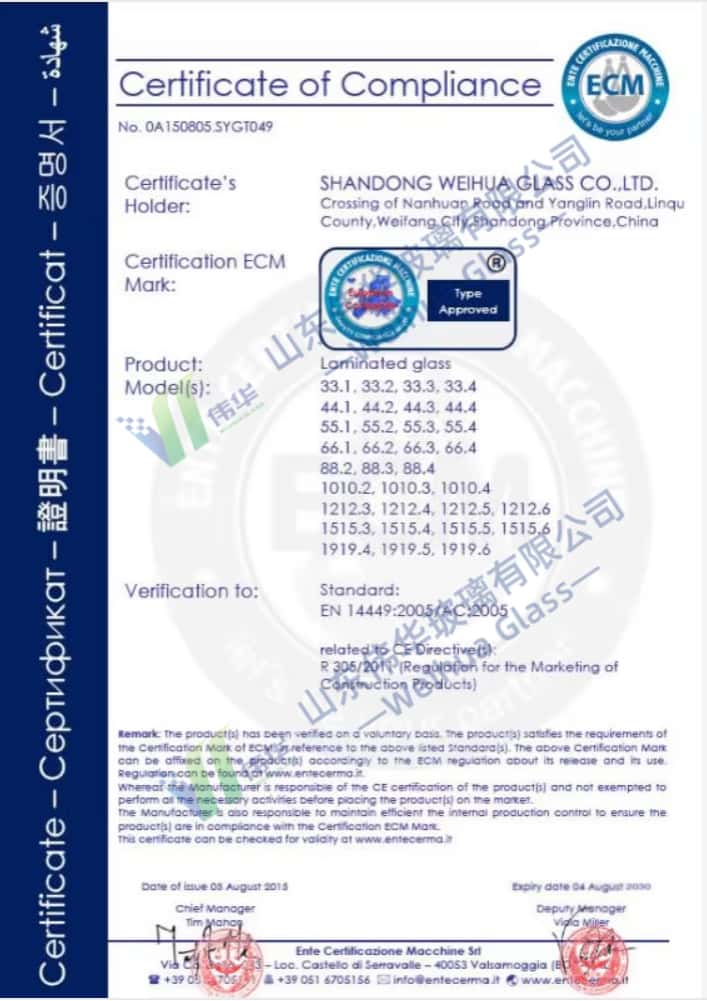

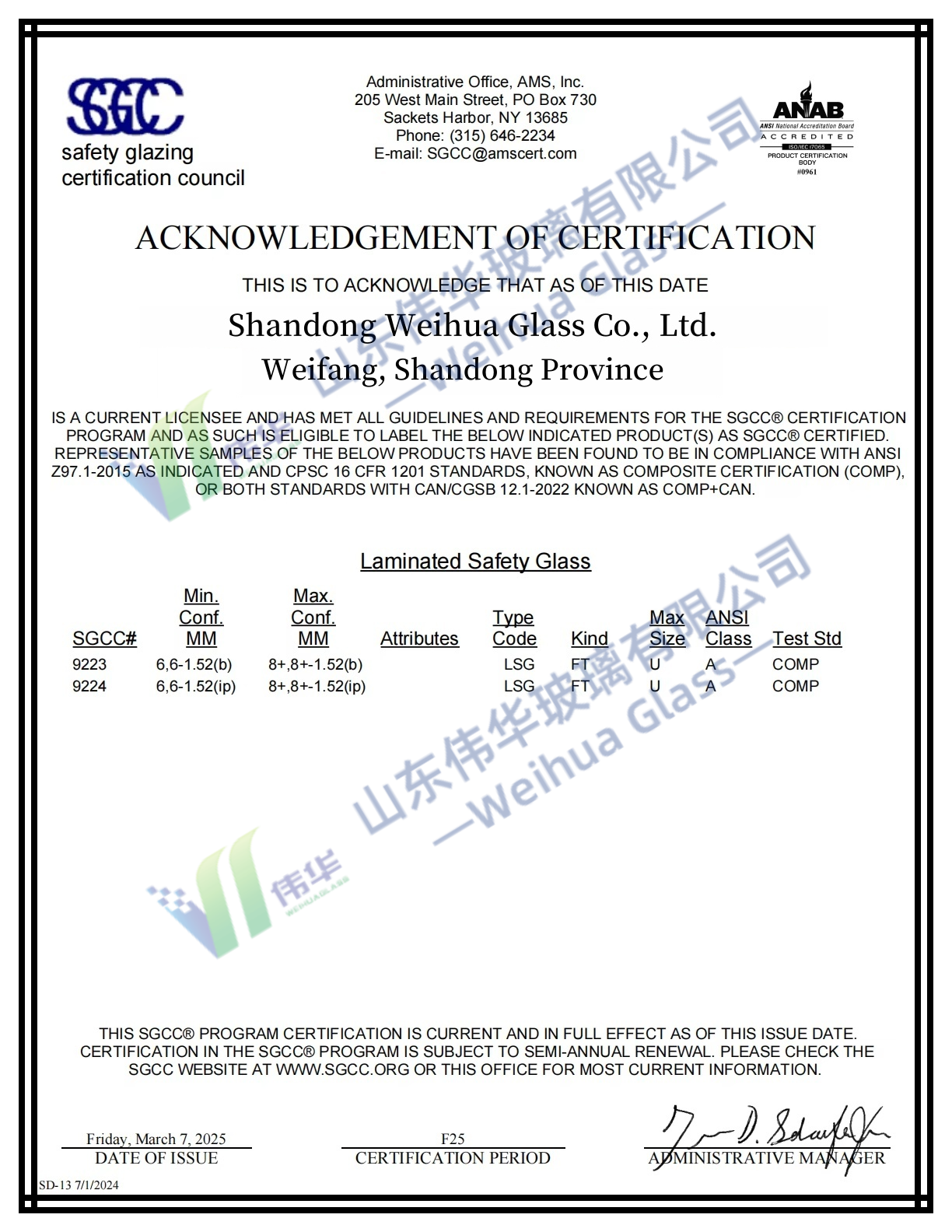

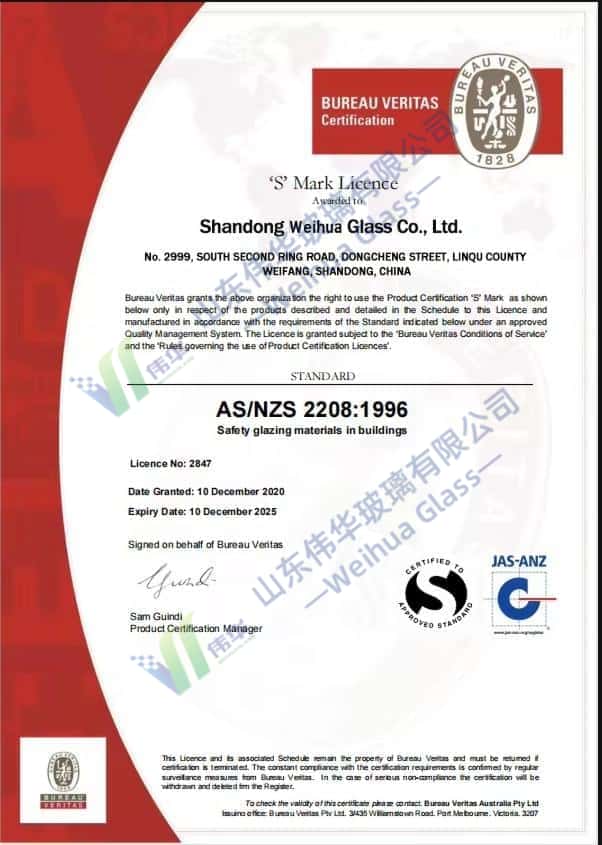

| Compliance & Quality Assurance | Fully certified to CE (EN14449), ISO9001, CCC, and SGCC (ANSI Z97.1) architectural safety metrics |

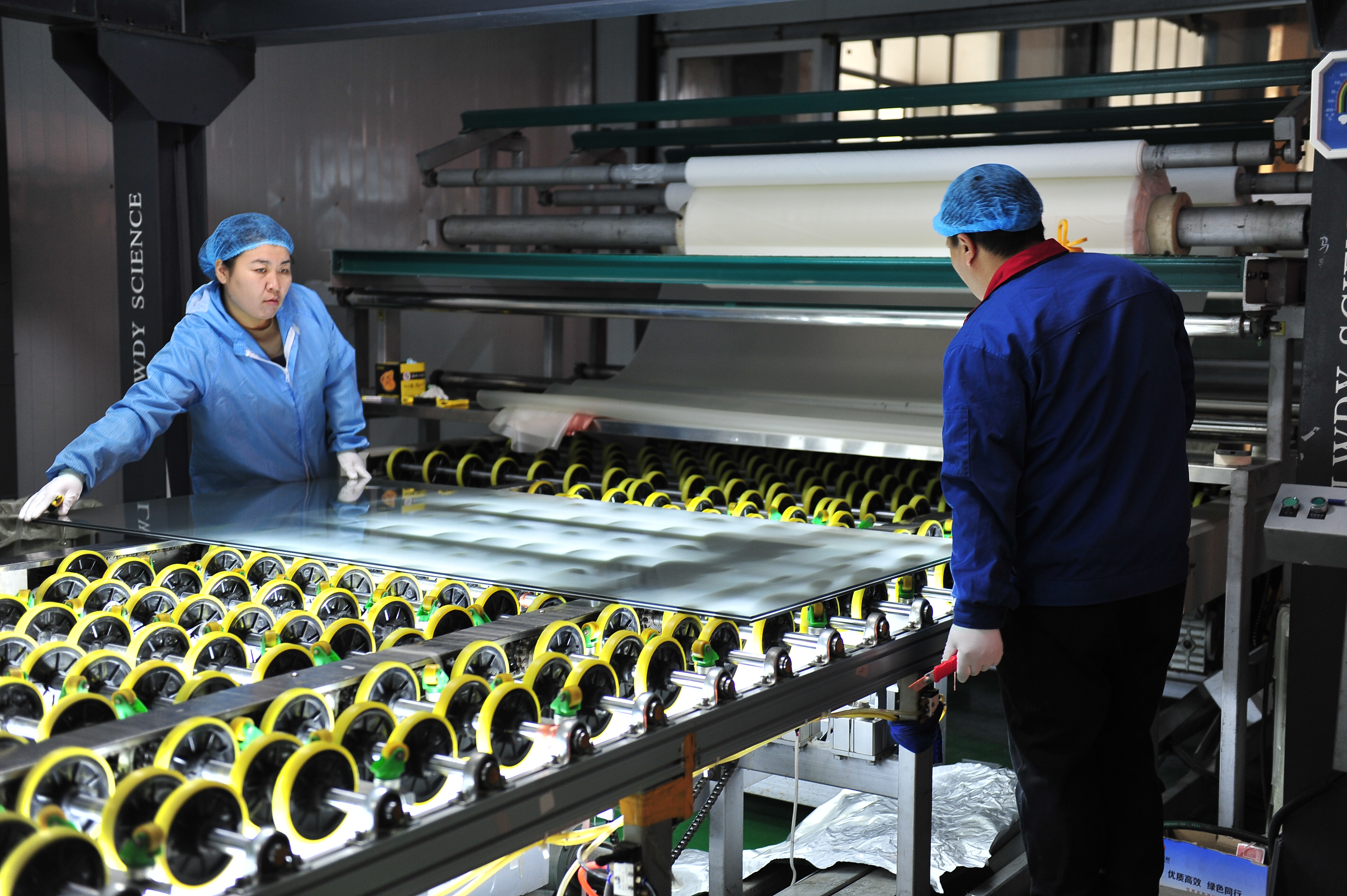

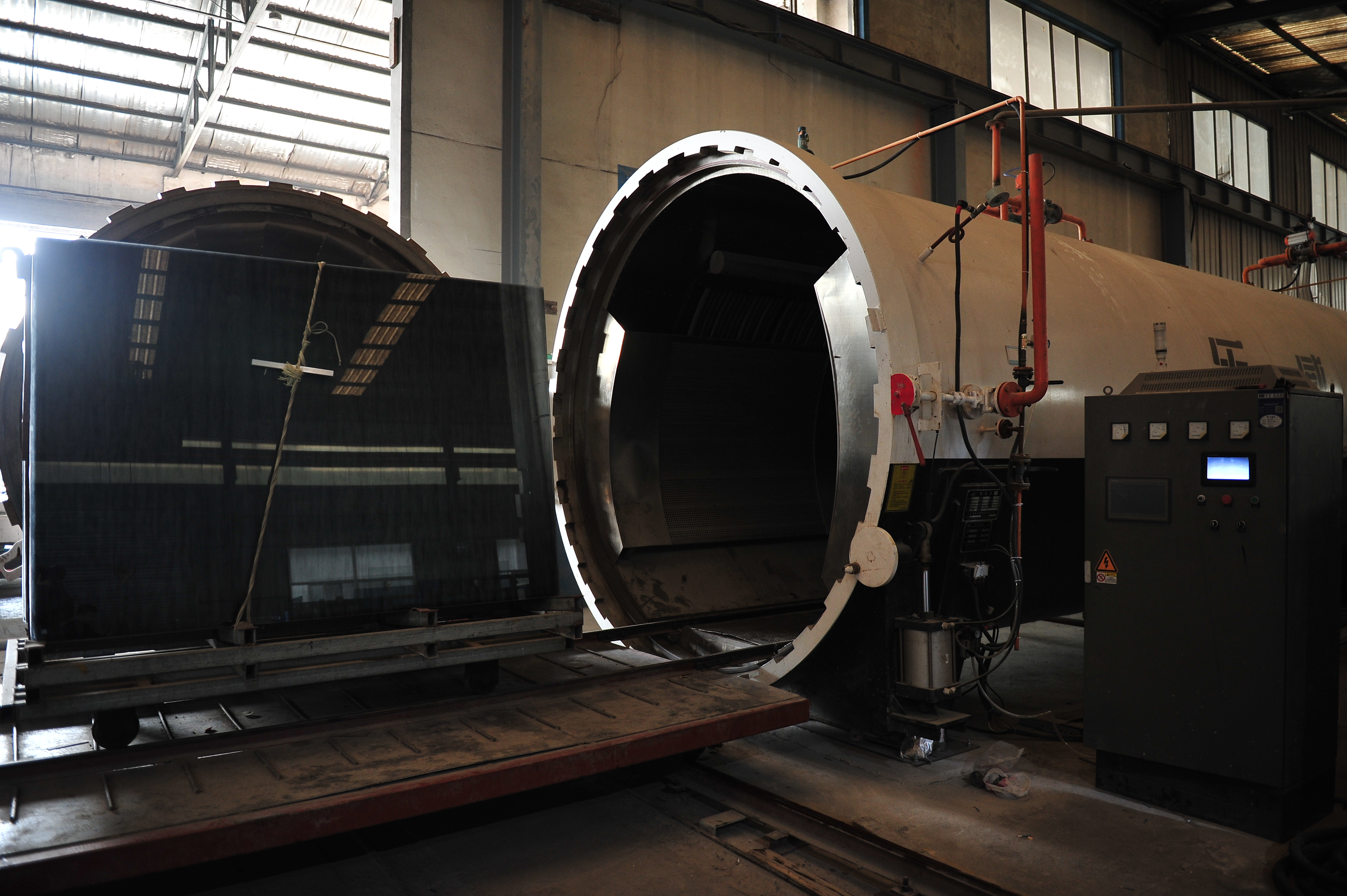

Zero Delamination Risk: Our clean-room autoclaving process ensures an flawless chemical bond between the optical layers and glass substrates, preventing edge delamination even when exposed to demanding outdoor exterior curtain walls.
Precise Color Matching & Uniformity: We enforce strict batch-to-batch quality controls over the optical interference coatings, guaranteeing consistent color transmission and reflection values across large-scale commercial facades.
Engineering-to-Order Support: From custom radius curves to intricate structural bolt-fixing holes, our CNC processing center executes your exact CAD schematics with a tight ±0.5 mm fabrication tolerance.
Define Visual Requirements: Select your preferred shifting color profile and specify whether the panels are for interior decorative use or exterior structural glazing.
Submit Structural Parameters: Provide your exact sizing schedules, glass thickness combinations, and engineering load requirements (PVB vs SGP interlayer specification).
Technical & Blueprint Review: Our structural glass engineers review your CAD files, verify hole boundaries, and optimize cutting configurations within 24 hours.

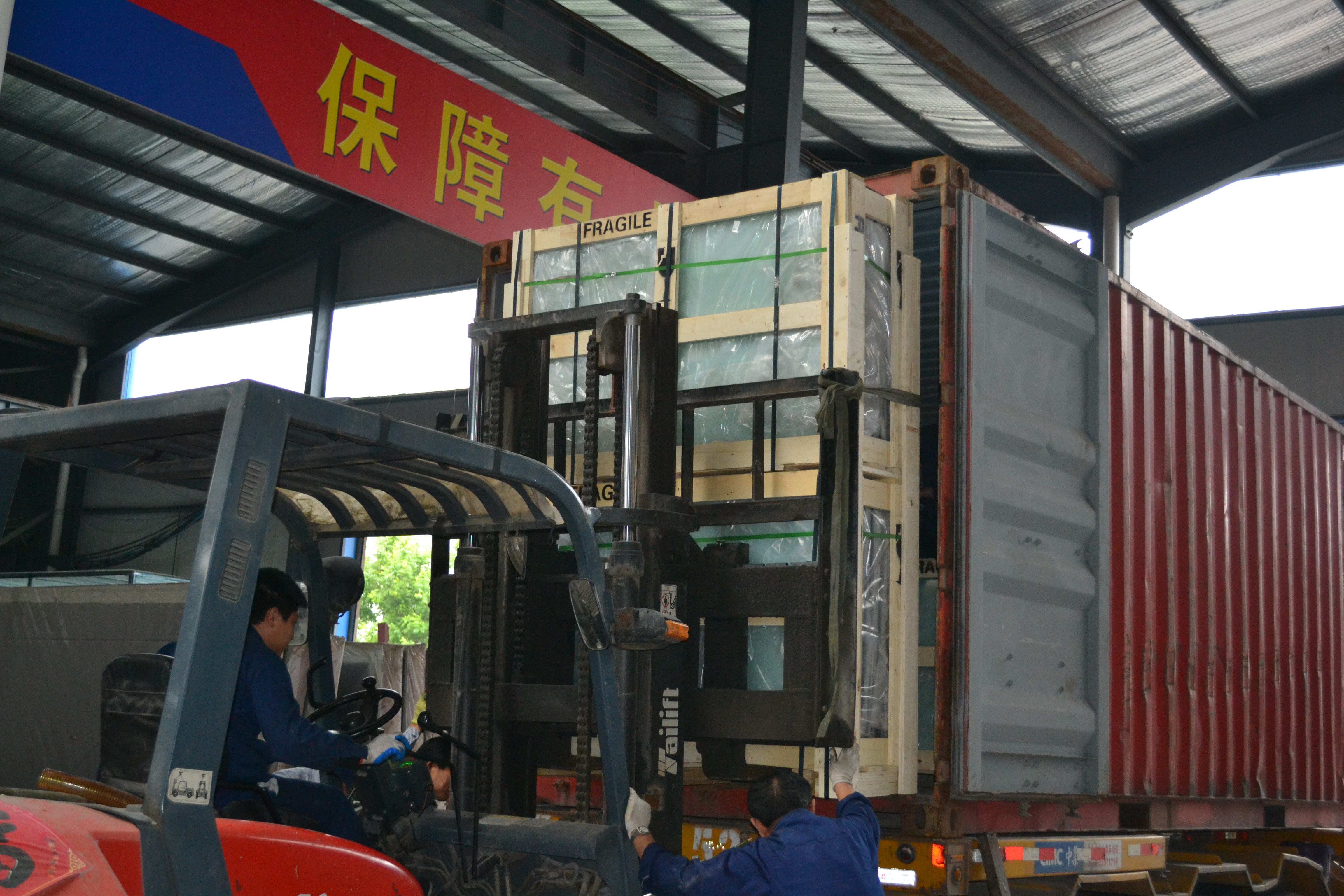

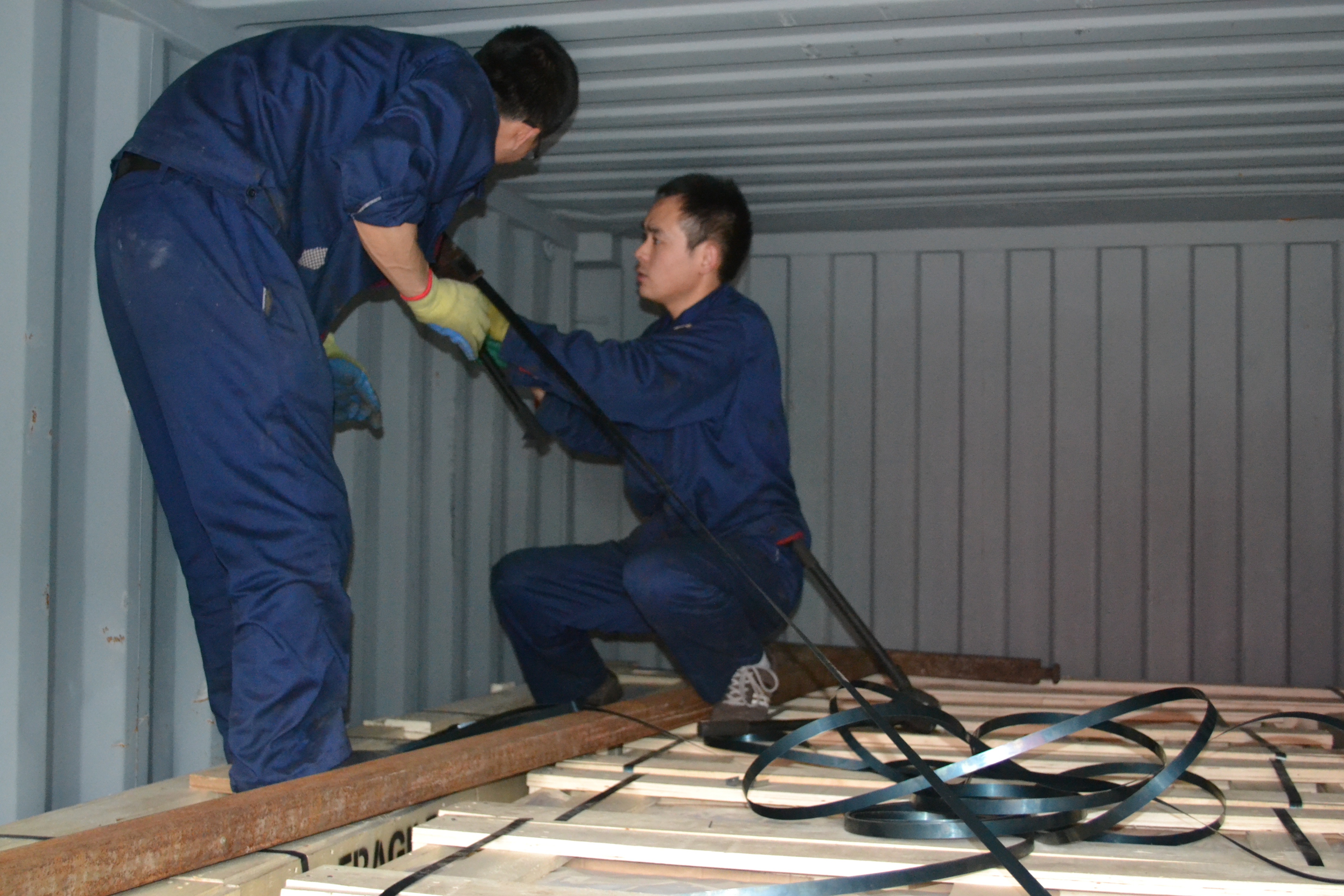

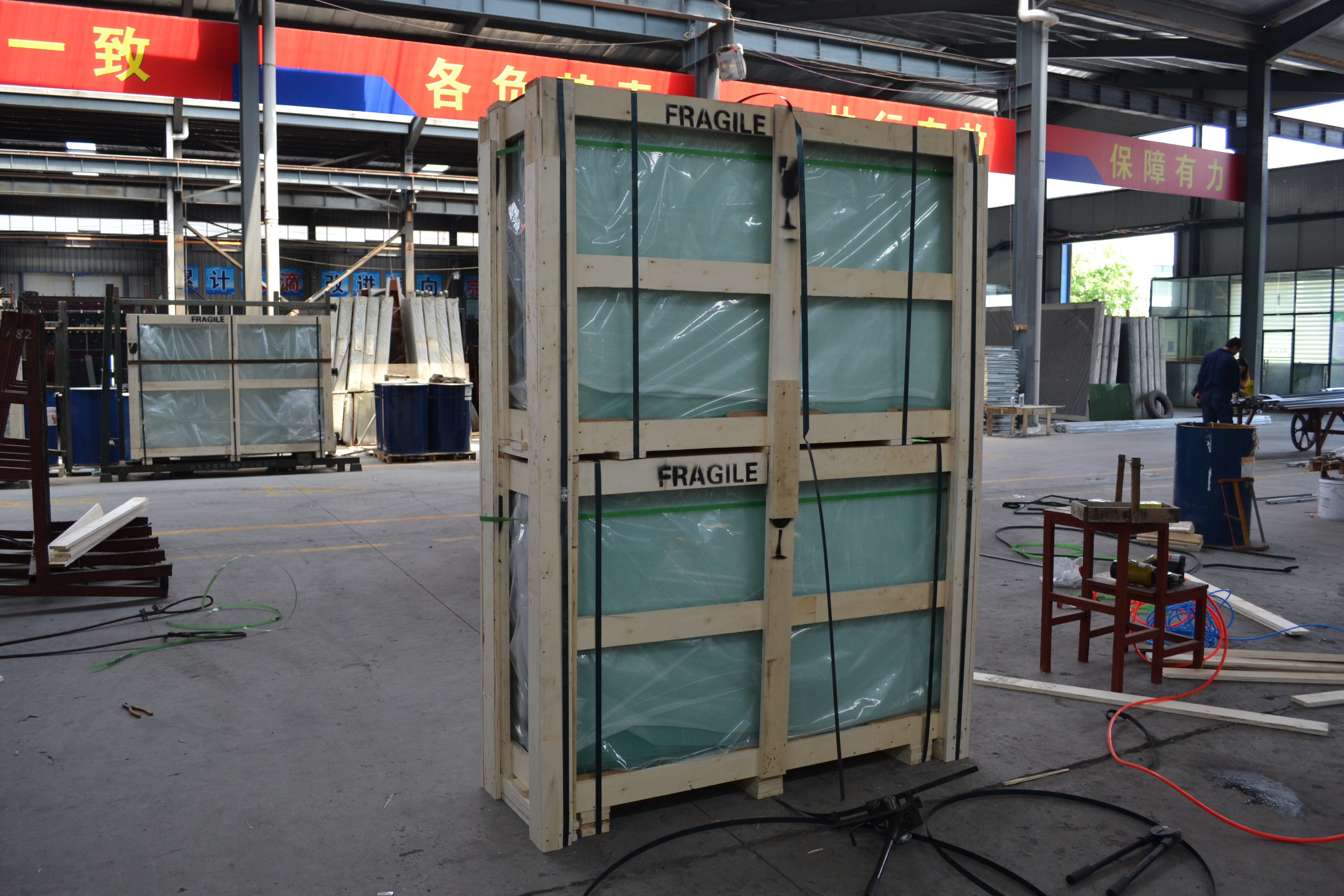

Secure Timber Racking & Export: Finished panels are packed into heavy-duty, moisture-sealed end-cap wooden crates engineered for secure international sea freight and container handling.
