In modern architecture, interior design, and industrial manufacturing, Tempered Glass (Safety Glass) has become an indispensable cornerstone due to its exceptional strength and safety profiles. While most recognize it for its structural resilience and blunt, honeycomb-shaped fracture patterns upon impact, few truly understand the transformation a standard float glass sheet undergoes to become a "guardian of safety."
Today, the engineering experts at Shandong Weihua Glass Co., Ltd. invite you inside our digitized manufacturing facility to trace the six definitive stages of the glass tempering process.
Every masterpiece begins with a flawless canvas. At Weihua, the tempering process initiates with premium-grade, distortion-free float glass sheets.
The Operation: Utilizing state-of-the-art CNC automatic cutting systems, the raw glass is sliced precisely according to custom specifications.
The Weihua Standard: We strictly limit dimensional tolerances to the millimeter level, laying a perfect foundation for all downstream processing.
Freshly cut glass exhibits razor-sharp edges and microscopic fissures—vulnerabilities that would trigger catastrophic shattering under high thermal stress.

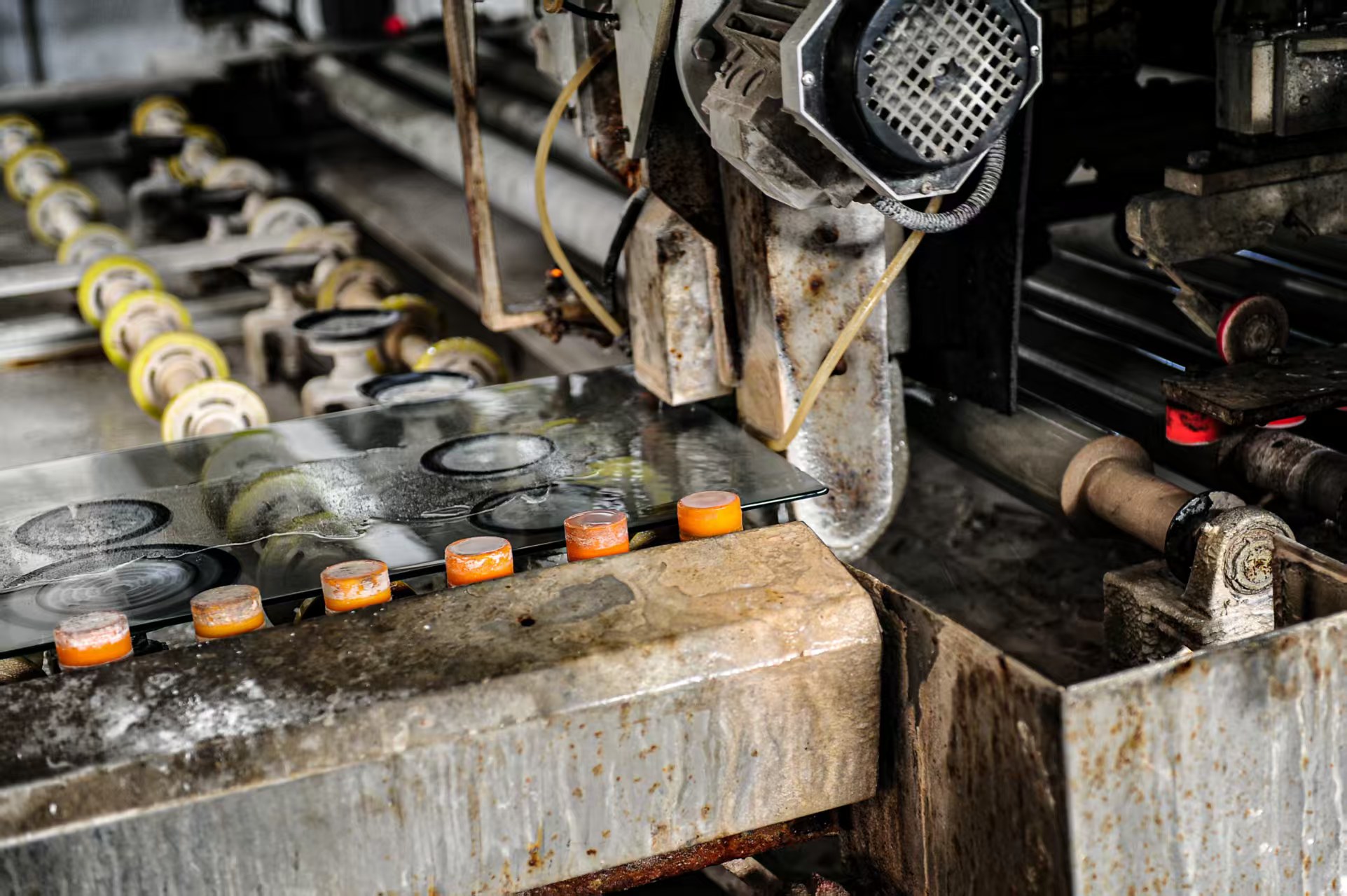

The Operation: The glass undergoes extensive edge-work via double-edging machines or advanced 5-axis machining centers. Options include seam, ground, or brilliant polished edges. Concurrently, any required holes, notches, or cutouts for showers or curtain walls are drilled with absolute coordinate precision.
Why It Matters: This eliminates localized stress concentration points, boosting both mechanical handling safety and thermal endurance.
At temperatures exceeding 600°C, any residual dust, oil, or microscopic glass particulates will permanently fuse into the glass matrix, creating irreversible optical defects.
The Operation: The fabricated glass passes through an industrial, multi-stage washing unit using deionized water and heavy-duty cylindrical brushes, followed by a high-velocity air-knife drying system.
Quality Gate: Once cleaned, the glass is strictly handled via specialized vacuum suction or protective gear; bare-hand contact is completely prohibited prior to heating.
This is the crucible where ordinary glass begins its molecular evolution.
The Operation: The pristine glass sheets enter a state-of-the-art tempering furnace (utilizing advanced forced convection heating) where they are uniformly heated to a critical range between 620°C and 650°C.
Physical State: At this juncture, the glass approaches its softening point—becoming highly visco-elastic while maintaining its structural form.
The secret to tempering lies not in the heat itself, but in the speed of the subsequent cooling.
The Operation: The molten glass exits the furnace and is instantly subjected to a high-pressure blast of cold air from symmetric upper and lower nozzles.
The Science:
The sudden thermal shock causes the outer surfaces of the glass to contract and solidify instantly, while the inner core cools at a slower rate. As the interior eventually cools and contracts, it pulls the outer layers inward, creating a permanent state of high compressive stress on the surface balanced by tensile stress in the center. This internal equilibrium enhances the glass's impact resistance by 4 to 5 times compared to annealed glass.
The Operation: Every single piece of tempered glass undergoes a comprehensive final audit covering aesthetic defects, dimensional conformity, and a polariscope evaluation to verify optimal stress distribution patterns.
Optional Enhancements: For high-specification architectural projects, we offer an optional Heat Soak Test (HST). This process deliberately accelerates the failure of any panes containing microscopic nickel sulfide inclusions within our controlled facility, driving the post-installation spontaneous breakage rate virtually down to zero.
As a premier, deeply rooted glass manufacturer, Shandong Weihua Glass blends technical prowess with uncompromising quality management:
Advanced Technological Footprint: Our production lines feature high-precision cutting-grinding integration and top-tier convection furnaces, ensuring flawless flatness and negligible optical distortion.
Certified Compliance: All products conform strictly to national 3C certifications and rigorous international quality standards (including CE and ASTM), making them ready for global deployment.
Comprehensive Customization: Beyond monolithic tempered glass, we specialize in high-tier value-added products, including Laminated Glass, Insulated Glass Units (IGUs), and Low-E Energy-Saving Glass to fulfill diverse architectural and decorative needs.
From a grain of silica to a high-strength architectural shield, the journey of tempered glass is one defined by extreme thermal precision and meticulous craftsmanship. Shandong Weihua Glass engineers safety and elegance into every pane, protecting your projects and your vision.
Ready to elevate your next project? [Contact Our Engineering Team Today] for a tailored quote, technical consultation, or to request a product sample.
