In commercial construction, industrial manufacturing, and large-scale architectural projects, structural safety and material durability are non-negotiable. When sourcing glass solutions that balance mechanical strength with rigorous safety compliance, tempered glass (or toughened glass) remains the industry standard.
However, for professional buyers, procurement managers, and wholesalers, sourcing tempered glass involves much more than just understanding its definition. It requires a deep dive into manufacturing precision, compliance certifications, and supply chain logistics.
This comprehensive guide covers everything your engineering and procurement teams need to know.
Tempered glass is a type of high-strength safety glass processed through controlled thermal or chemical treatments.
Standard float (annealed) glass is structurally fragile and poses severe liability risks upon failure. Tempered glass, by contrast, is engineered specifically to withstand intense mechanical loads and extreme thermal stress. It is categorized globally as a safety glazing material because its failure mechanism minimizes the risk of human injury.

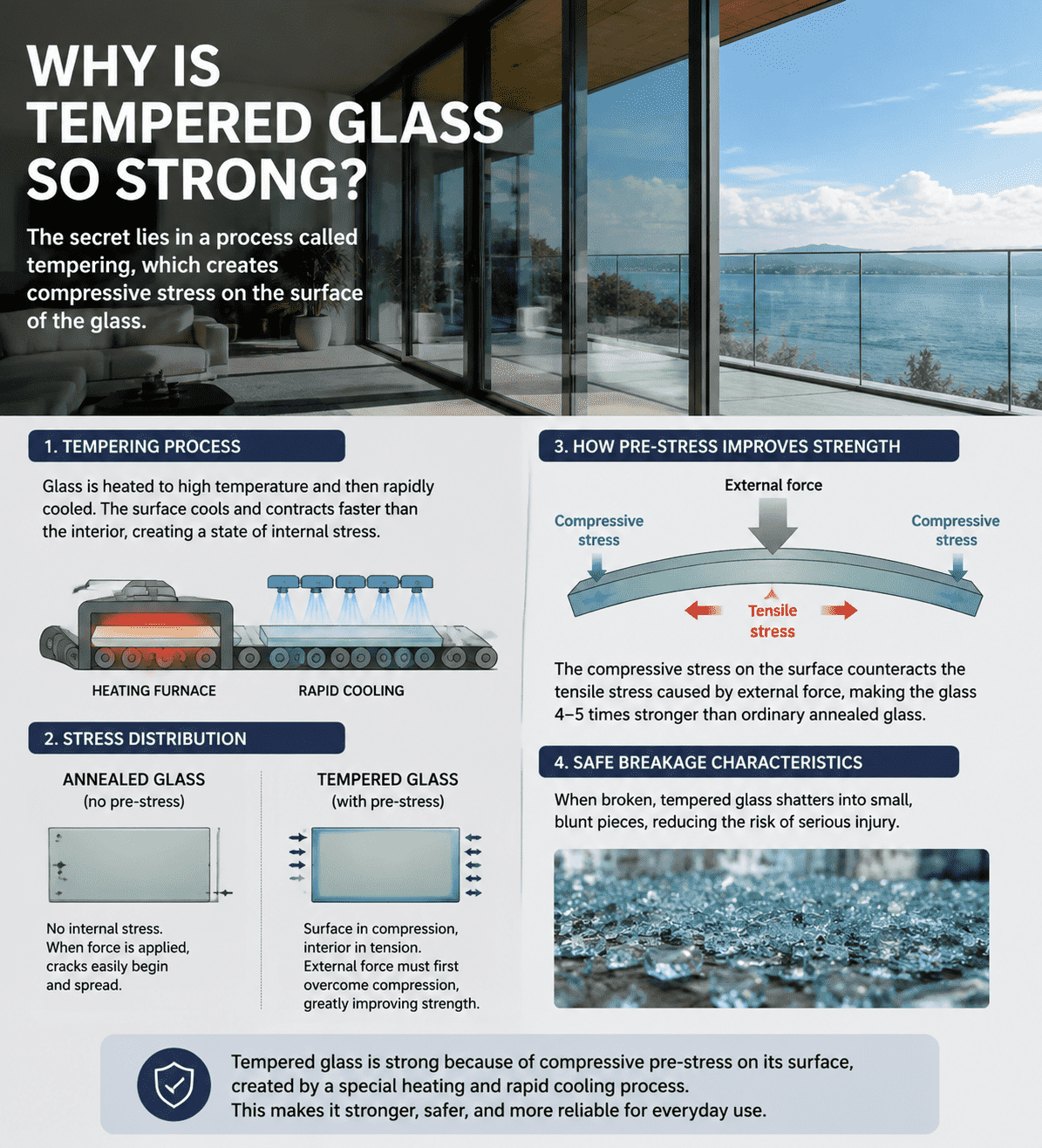

The exceptional mechanical properties of tempered glass are achieved through a precise thermodynamic alteration called thermal tempering.
Precision Fabrication: The raw float glass is first cut to the exact shop-drawing dimensions, and all edge-work (such as flat polished, pencil, or beveled edges) and holes are drilled. Industrial Law: Tempered glass cannot undergo any structural modifications post-tempering.
High-Heat Treatment: The fabricated glass runs through a continuous tempering furnace, where it is uniformly heated to approximately 620°C (1,148°F), bringing it close to its softening point.
Rapid Air Quenching: The glass instantly exits the furnace into a quenching chamber, where high-pressure air blasts both surfaces simultaneously via synchronized nozzles.
The Physics of Strength:
Rapid quenching forces the outer surfaces to cool and solidify much faster than the inner core. As the interior slowly cools and contracts, it pulls inward on the already-rigid exterior surfaces. This creates a permanent state of high （compressive stress ≥ 90MPa or 10,000psi） on the outer layers, perfectly counterbalanced by internal tensile stress.
For industrial and architectural applications, tempered glass offers three critical performance upgrades over traditional annealed glass:
Superior Mechanical Strength: It is 4 to 5 times stronger than standard annealed glass of equivalent thickness, offering exceptional resistance to high wind loads, seismic activity, and direct impacts.

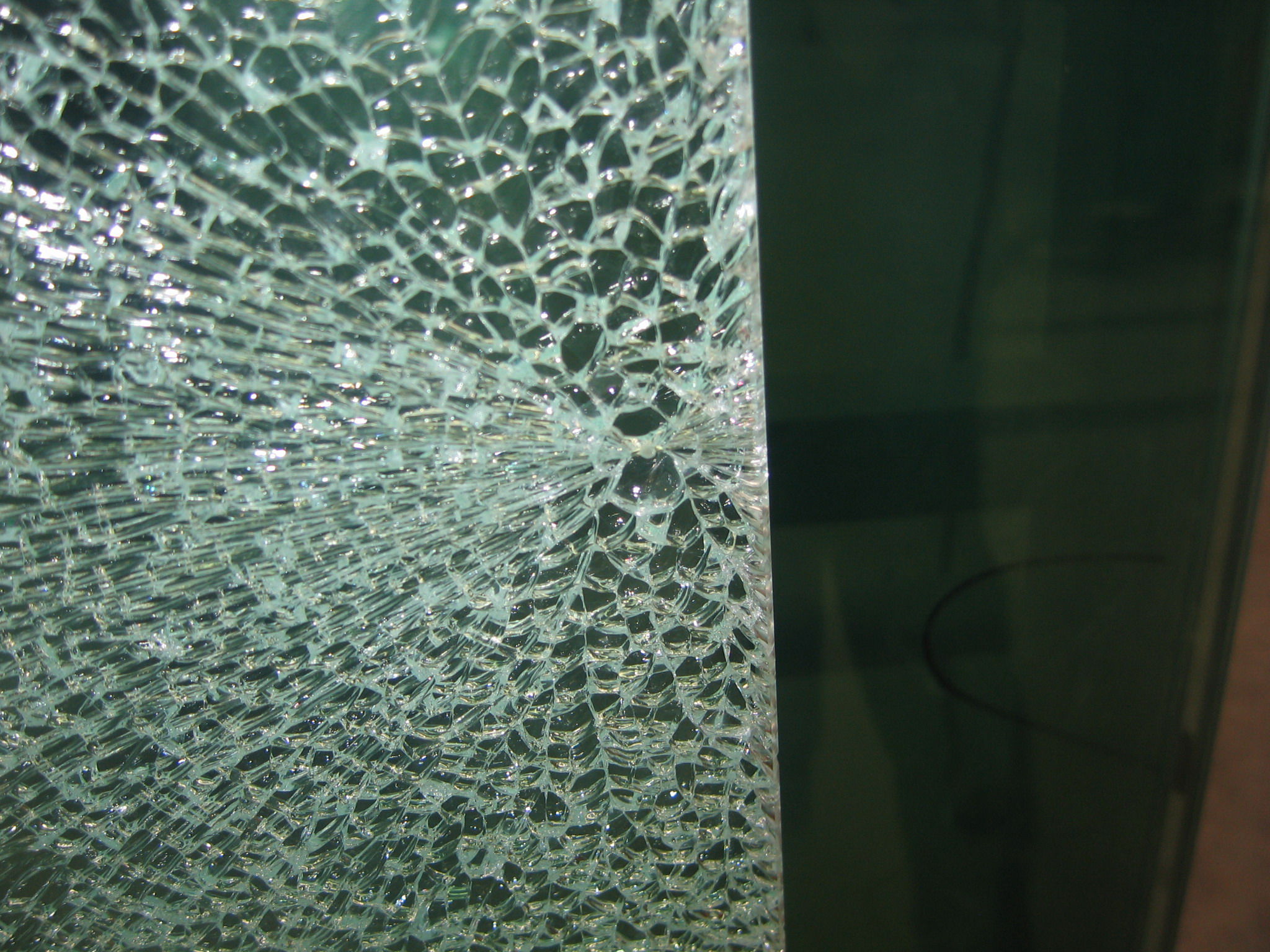

Engineered Safety Breakdown: When standard glass fails, it shards into sharp, dangerous daggers. When tempered glass reaches its breaking point, the internal stress tension releases instantly, fracturing the entire pane into small, blunt, pebble-like fragments (dicing) that prevent severe lacerations.
Thermal Shock Resistance: Tempered glass can withstand drastic temperature differentials up to 250°C (482°F). It remains highly stable under intense solar radiation, industrial heating, or sudden environmental thermal shifts.
Technical Specification | Standard (Annealed) Glass | Tempered Safety Glass | Laminated Safety Glass |
Impact Resistance | Low (Fragile) | Very High (4-5x stronger) | High (Structural retention) |
Breakage Pattern | Sharp, hazardous shards | Small, blunt pebbles | Cracks but adheres to interlayer |
Post-Processing Capacity | Can be cut/drilled on-site | Zero on-site modification | Highly restricted cutting |
Primary B2B Use Cases | Picture frames, interior mirrors | Facades, storefronts, shower enclosures, partitions | Skylights, curtain walls, high-security glazing |
To effectively manage quality control and assess supplier capabilities, procurement teams must look past the surface level.
The "Achilles' Heel" of Tempered Glass (Vulnerable Edges): While the face of a tempered glass pane can easily withstand a heavy direct blow, a minor, sharp impact to its edges or corners will trigger immediate, catastrophic shattering. This occurs because the internal tensile stress is closest to the surface along the perimeter. Proper edge protection during transit is critical.
The Anisotropy Phenomenon (Strain Patterns): Under certain polarized light conditions or when viewed through polarized lenses, faint dark spots or geometric lines may appear on the glass. This optical effect is called anisotropy or "strain patterns." It is a natural byproduct of uneven cooling during the air-quenching phase and is not a product defect, but premium suppliers minimize it through advanced furnace airflow engineering.
The Risk of Spontaneous Breakage (NiS Inclusions): On rare occasions, tempered glass can shatter unexpectedly without any external force. This is caused by microscopic Nickel Sulfide (NiS) stone inclusions present in raw float glass. Over time, these microscopic particles expand. Premium B2B suppliers mitigate this risk by running the glass through a Heat Soak Test (HST)—a destructive secondary process that forces unstable panes to break in the factory rather than on your construction site.
Sourcing glass internationally requires rigorous oversight. Ensure your supplier evaluations address the following four pillars to safeguard your project budget and timeline:
Legitimate safety glass must feature a permanent, indelible ceramic logo (the "bug") fired into one corner of the pane. Verify that your supplier complies with your region’s specific legal codes:
North America: SGCC / ANSI Z97.1
Europe: CE EN 12150
Australia/New Zealand: AS/NZS 2208
Procurement Tip: If the safety logo can be scraped off with a razor blade, the glass is counterfeit or improperly processed, which can halt your project during building inspections.
Because tempered glass cannot be cut, drilled, or notched after it passes through the furnace, any dimensional discrepancy will render the batch completely useless. Ensure your engineering team signs off on 100% of the CAD fabrication drawings before authorizing mass production.

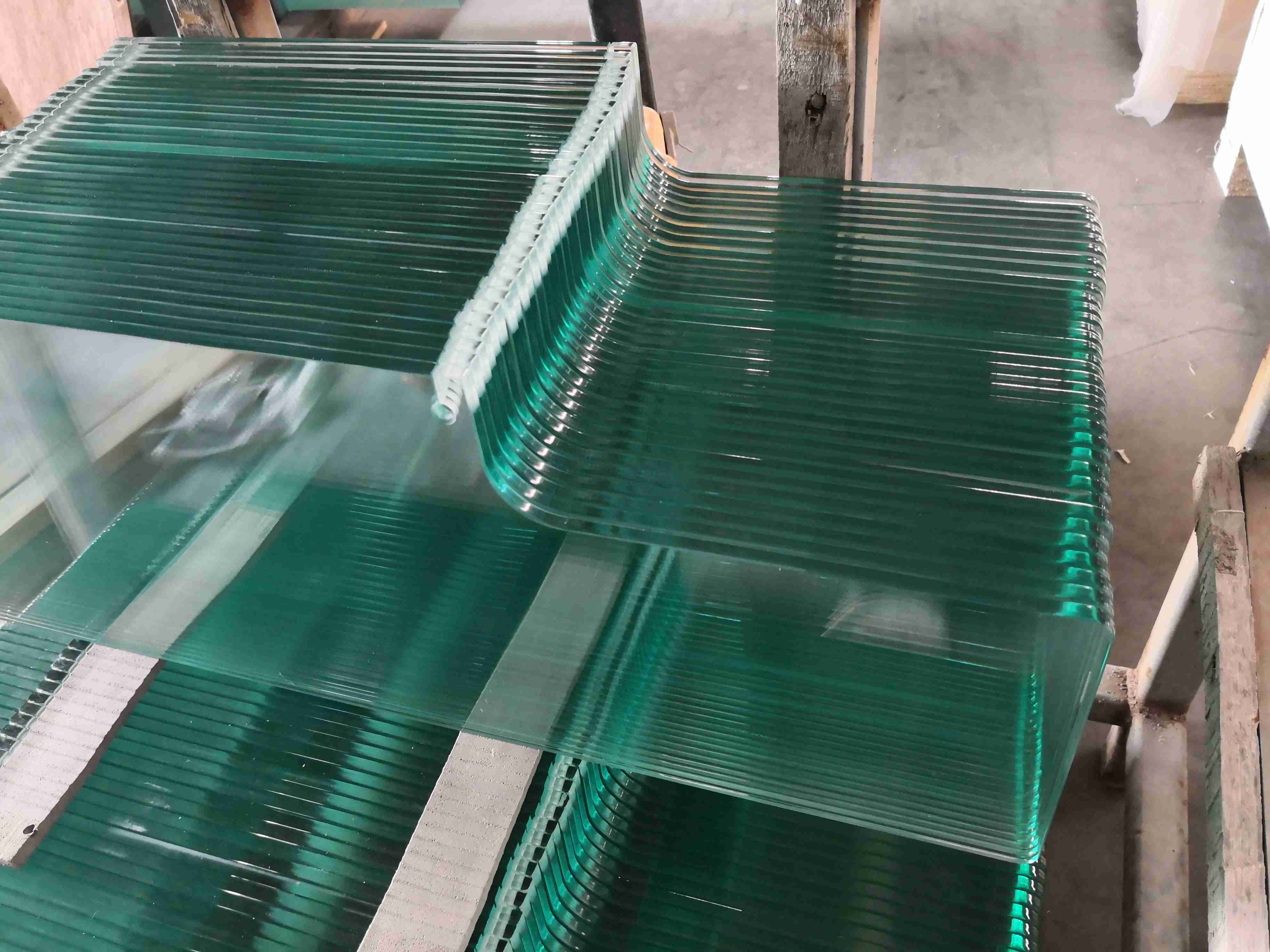

The intense heat of a tempering furnace naturally introduces minor distortions, known as "bow and warp." High-end B2B manufacturers utilize precision roller beds and computerized cooling controls to keep flatness tolerances well below international tolerances (typically $\le 0.2\%$). Always specify your required edge-work (e.g., flat polished, arris, or pencil edges) in the RFQ.
Tempered glass panels are incredibly heavy, and their edges are susceptible to chipping. Never compromise on logistics packaging. Demand that your supplier uses custom-engineered, heavy-duty ISPM-15 certified wooden crates equipped with rubber/cork spacing pads and corner protectors to eliminate glass-to-glass friction during sea freight and local handling.
Navigating the technical complexities of commercial tempered glass sourcing requires an experienced manufacturing partner. We deliver precision-engineered safety glass tailored to your exact architectural submittals, strict international standards, and custom volume demands.
Accelerate your project timeline today. [Contact our engineering and procurement team] for comprehensive technical consultation, certification verifications, and custom volume quotes.
