Product Description

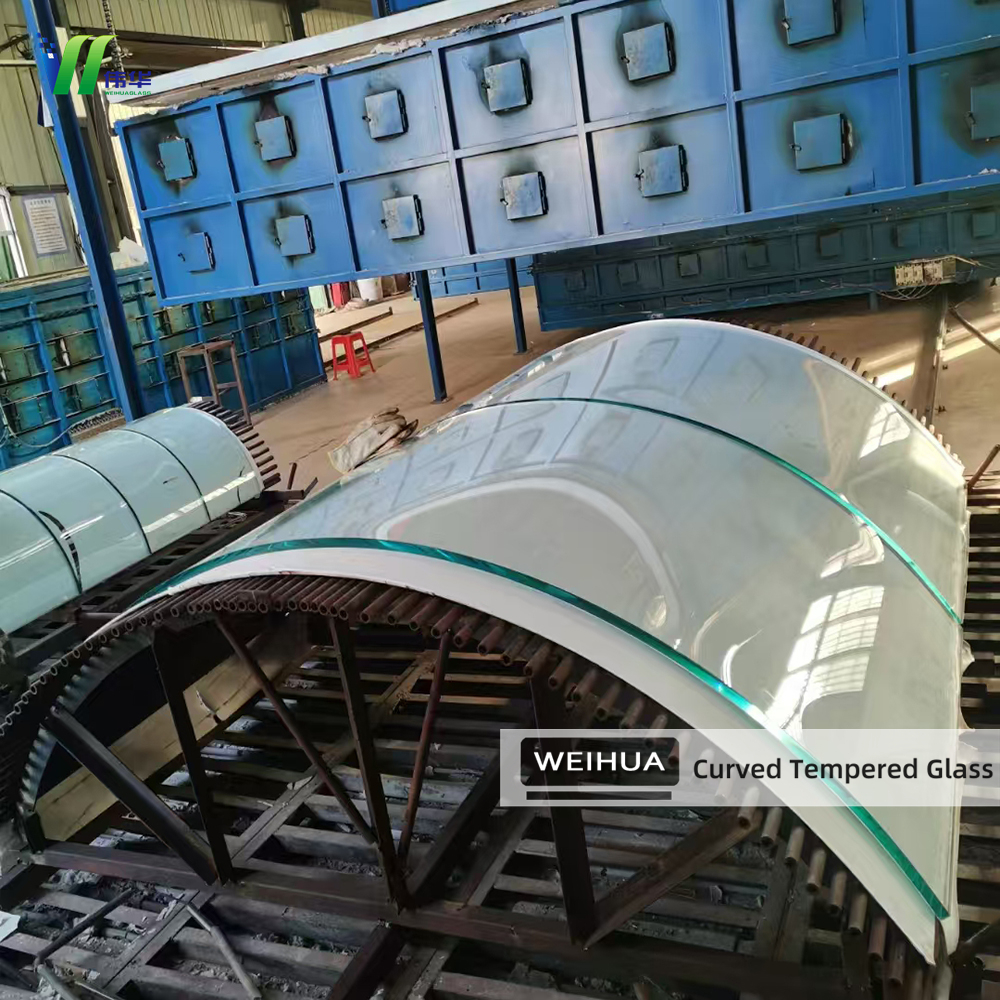

Custom Hot Bent Tempered Curved Glass (Single, Laminated, Insulated)
We specialize in manufacturing high-precision Curved Safety Glass for architectural landmarks. Unlike standard flat glass, our Hot Bent Glass is shaped in advanced molding furnaces to achieve precise radii without compromising structural integrity or optical clarity.
We offer three types of curved solutions:

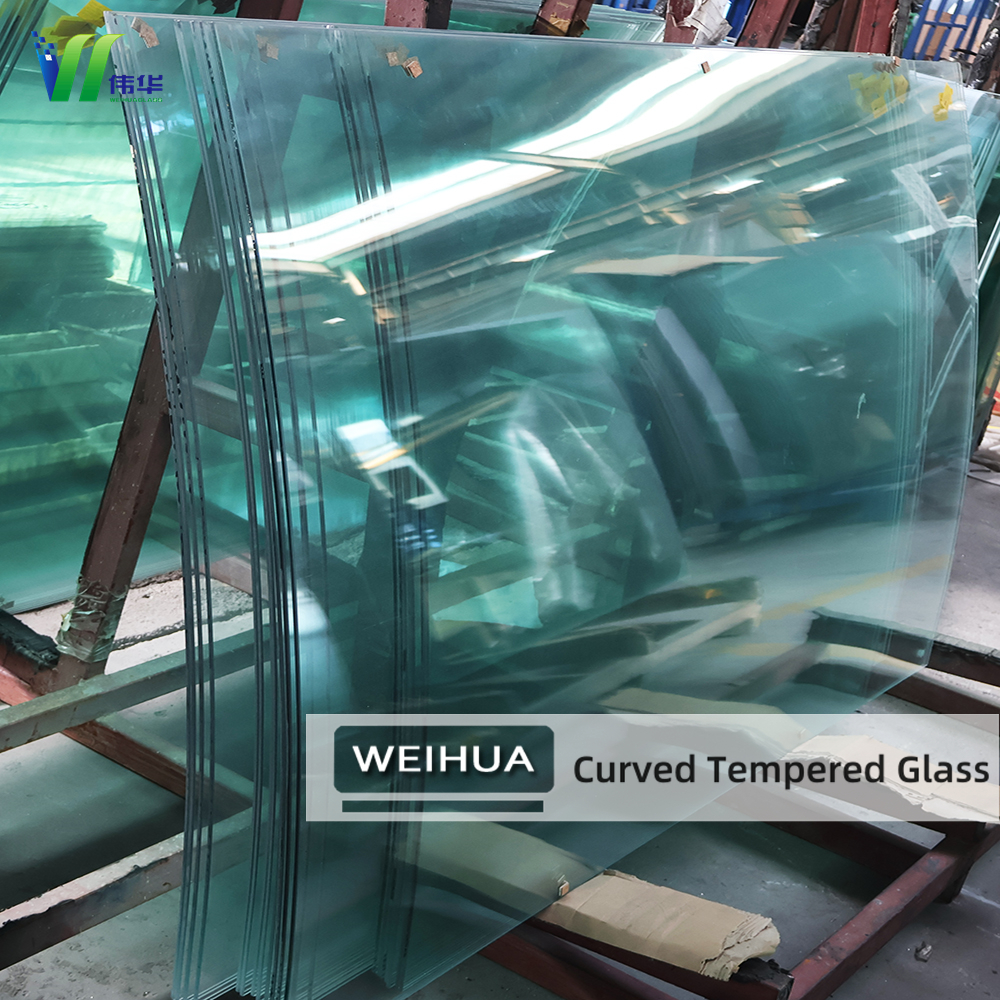

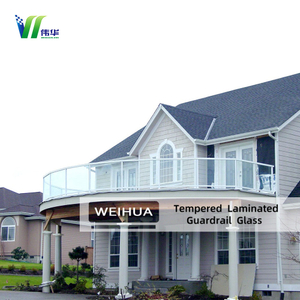

Single Curved Tempered Glass: High strength for balustrades and shower screens.

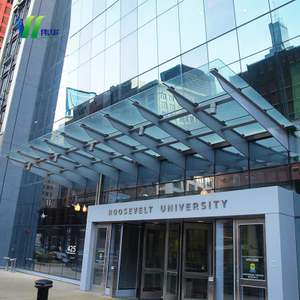

Curved Laminated Glass: Safety-focused for canopy and skylight applications (PVB/SGP Interlayer).

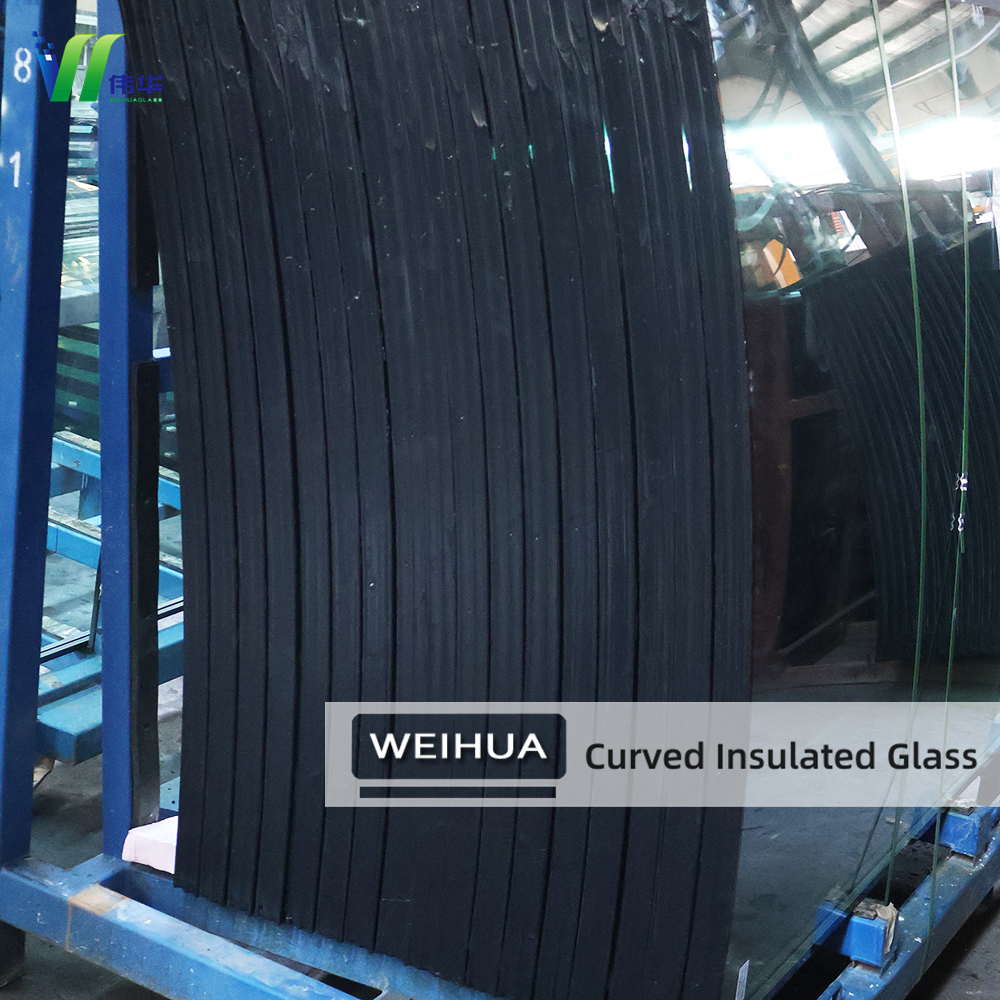

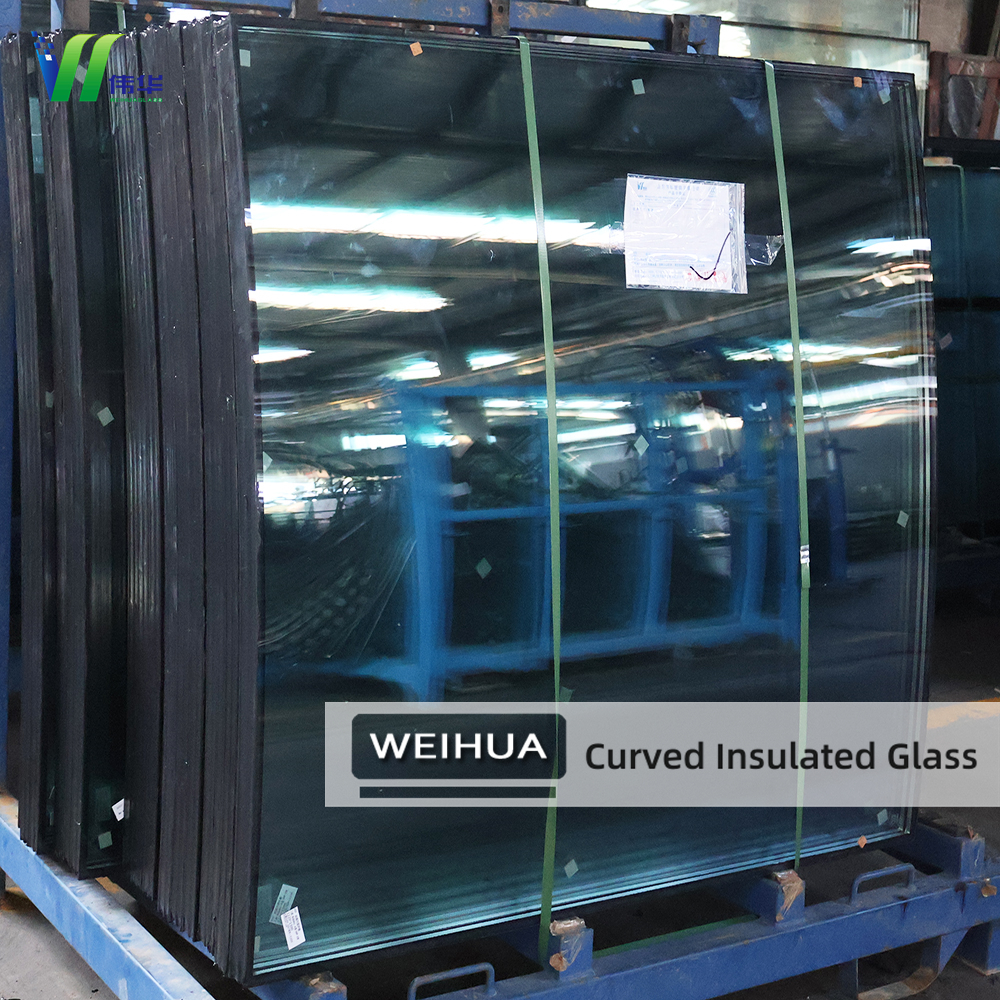

Curved Insulated Glass (IGU): As shown in our gallery, we produce double-glazed curved units for energy-efficient curtain walls and facades.
|

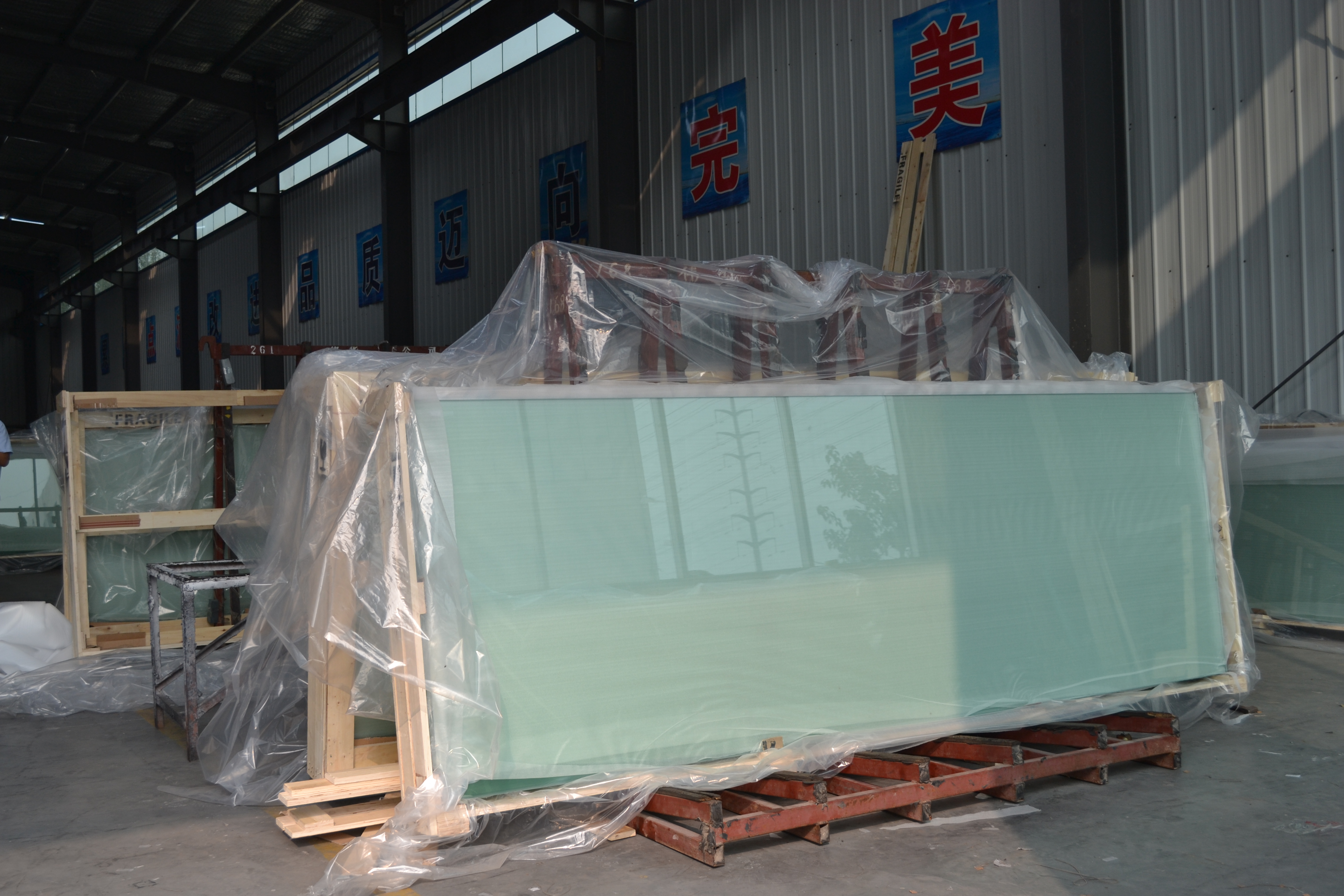

Product Packaging

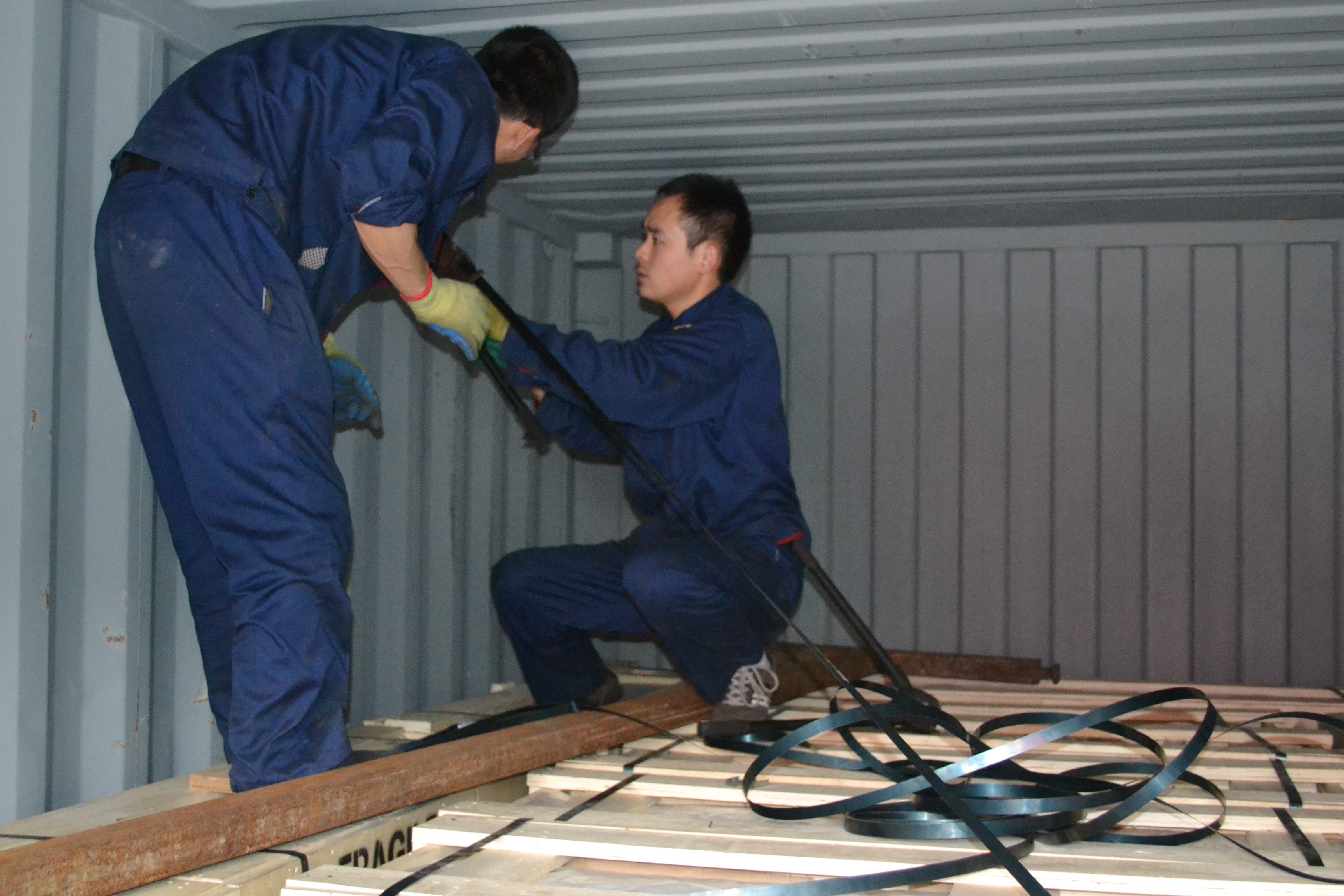

Custom-built crates that support the curve of the glass to prevent stress during transport.
Cork pads or foam buffers between each sheet.

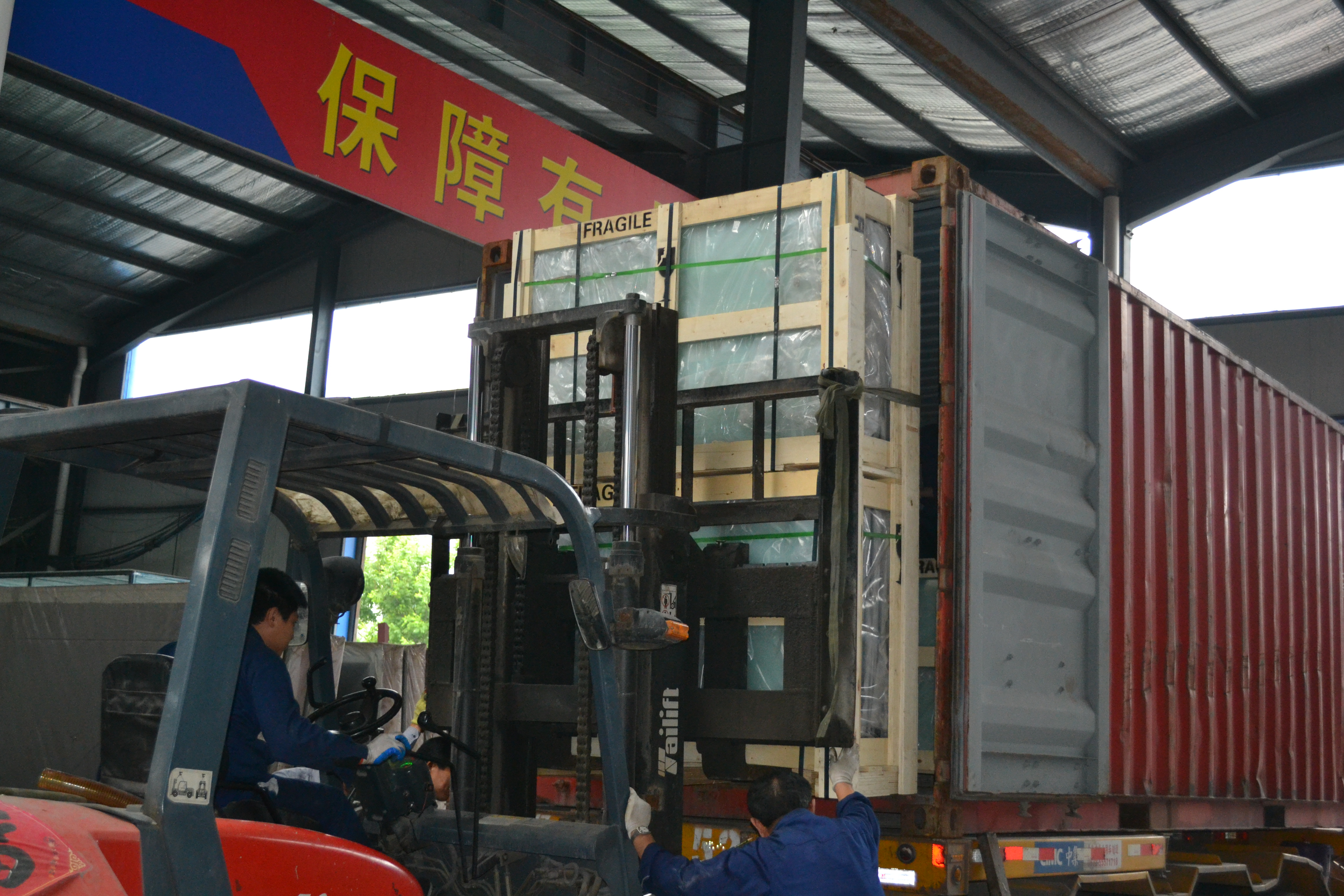

Expert loading strategy to maximize space while ensuring stability on rough seas.
|
Comment & FAQ
Q1: What information do you need for a quote?
A: Please provide the Glass Thickness, Size (Arc Length x Height), Radius, and quantity. A CAD drawing is preferred.
Q2: Can you do "J-Shape" or "Cone Shape" glass?
A: Yes, we have advanced furnaces capable of multi-radius and irregular shaping. Please send drawings for evaluation.
Q3: What is the lead time?
A: Curved glass takes slightly longer than flat glass. typically 15-20 days depending on the mold setup and quantity.
Q4: Is there a mold charge?
A: For standard radii, we may have existing molds. For unique custom shapes, a one-time mold fee may apply.
|

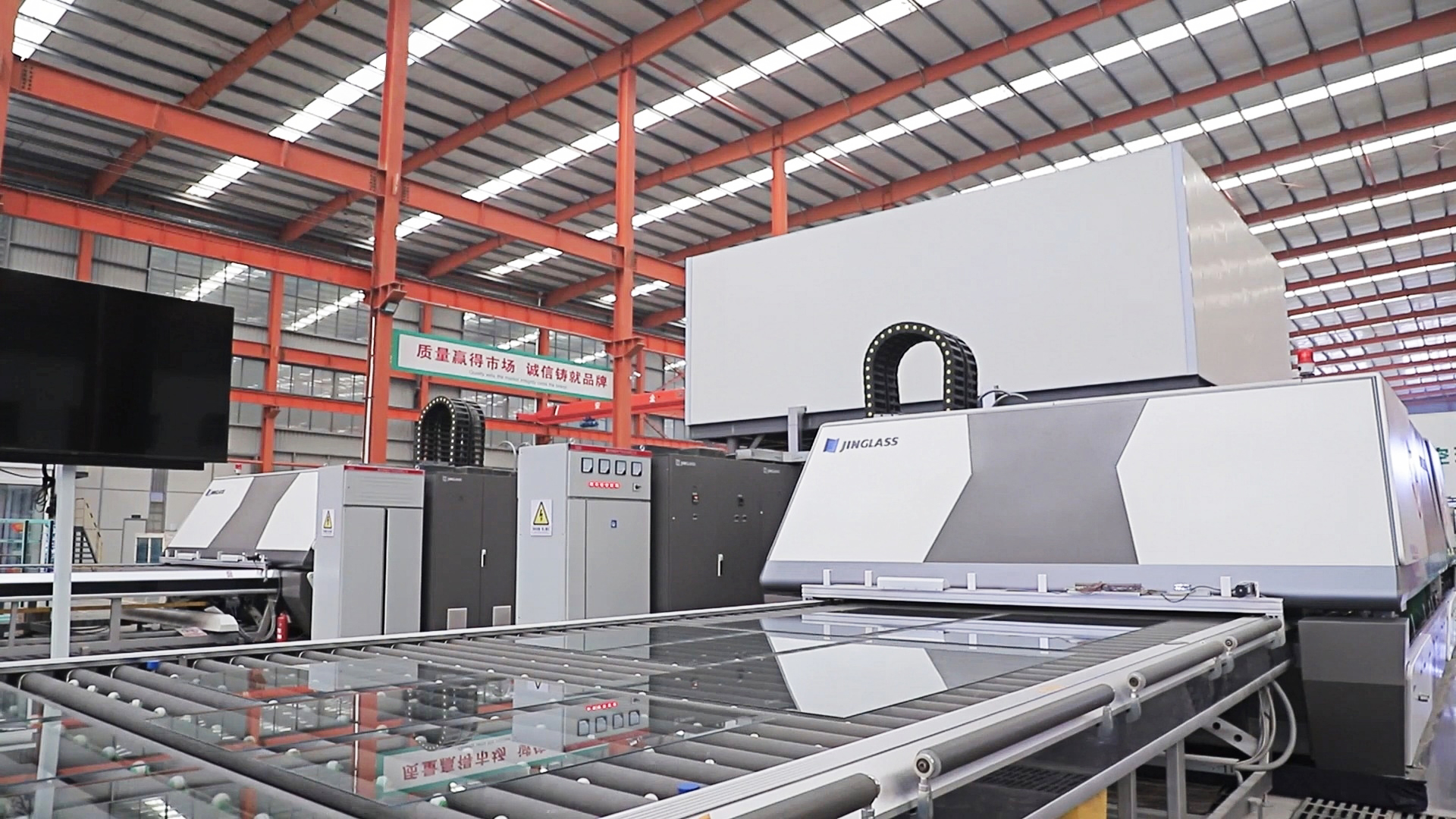

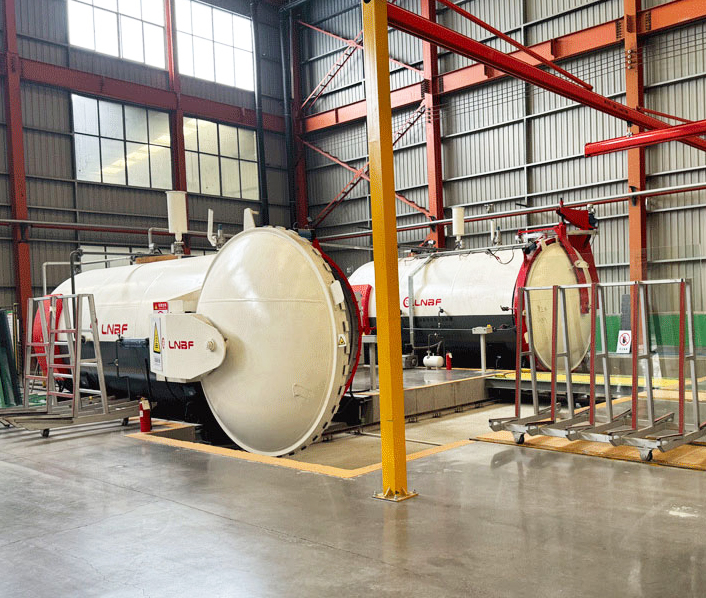

Production Process
|
Certifications

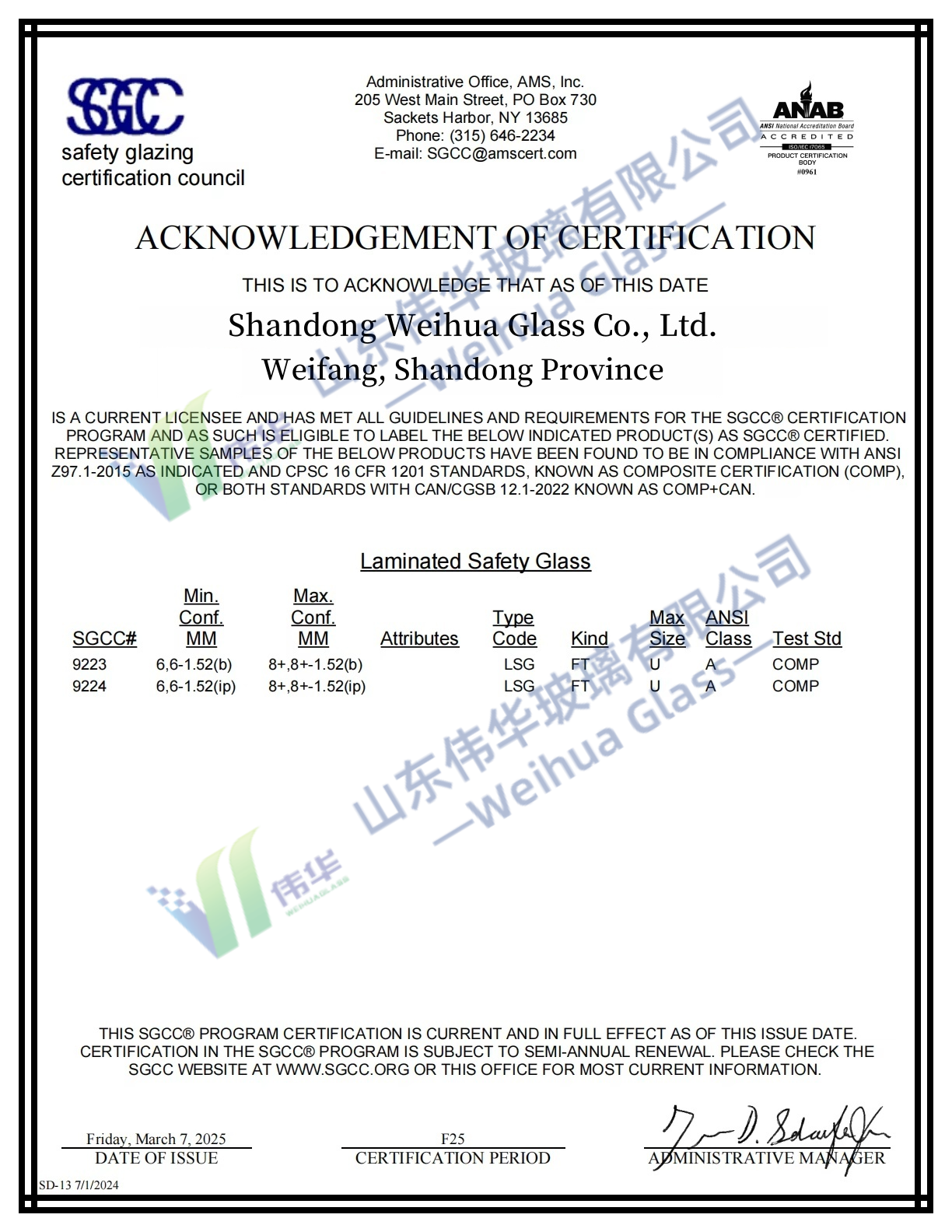

USA/Canada: SGCC (ANSI Z97.1), IGCC (for Insulated units)

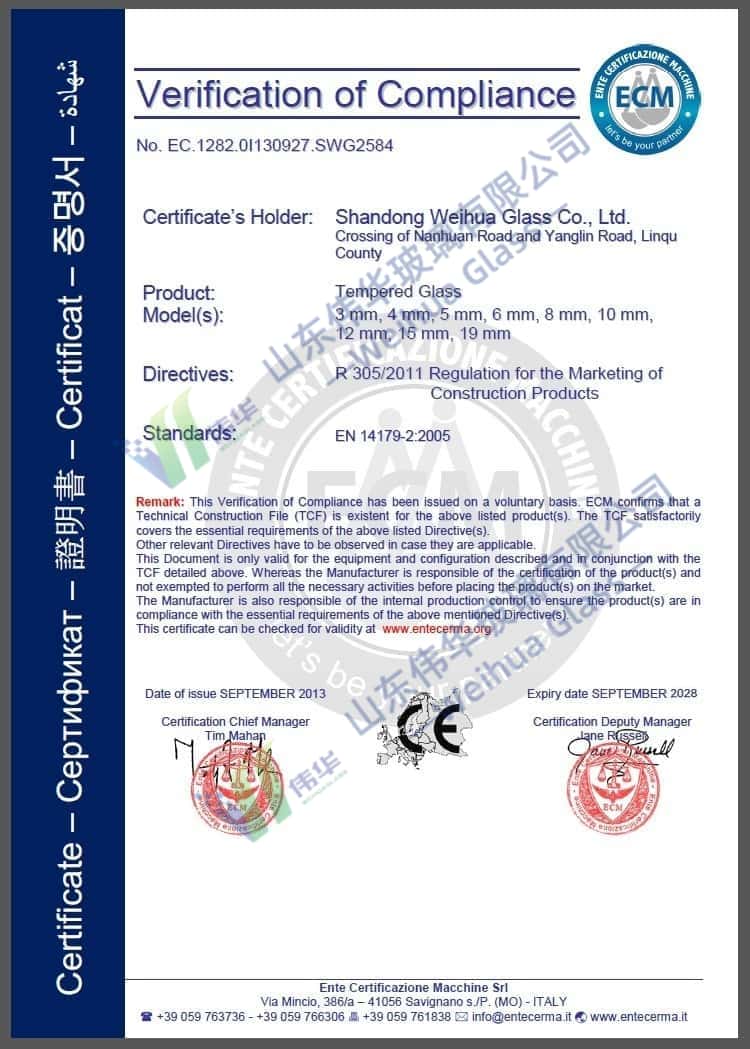

Europe: CE (EN12150, EN14449)

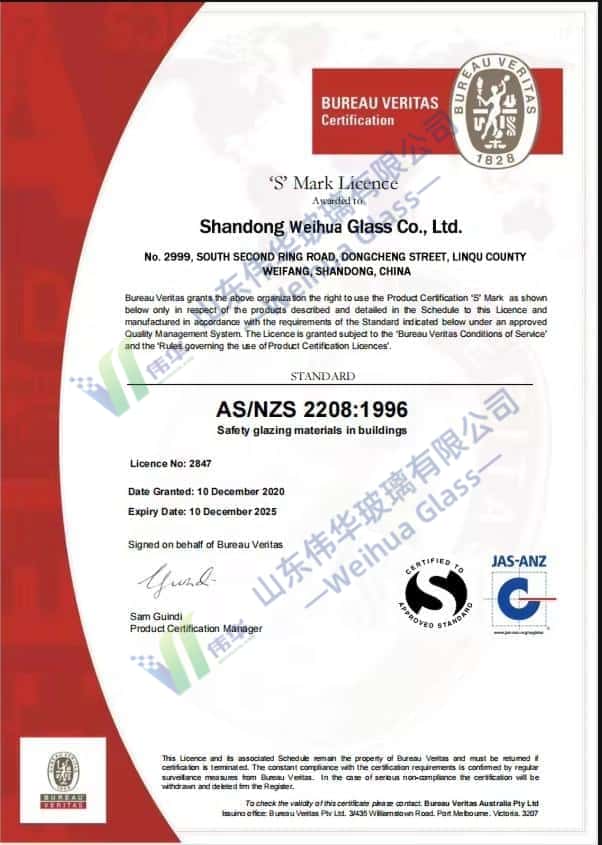

Australia: AS/NZS 2208:1996

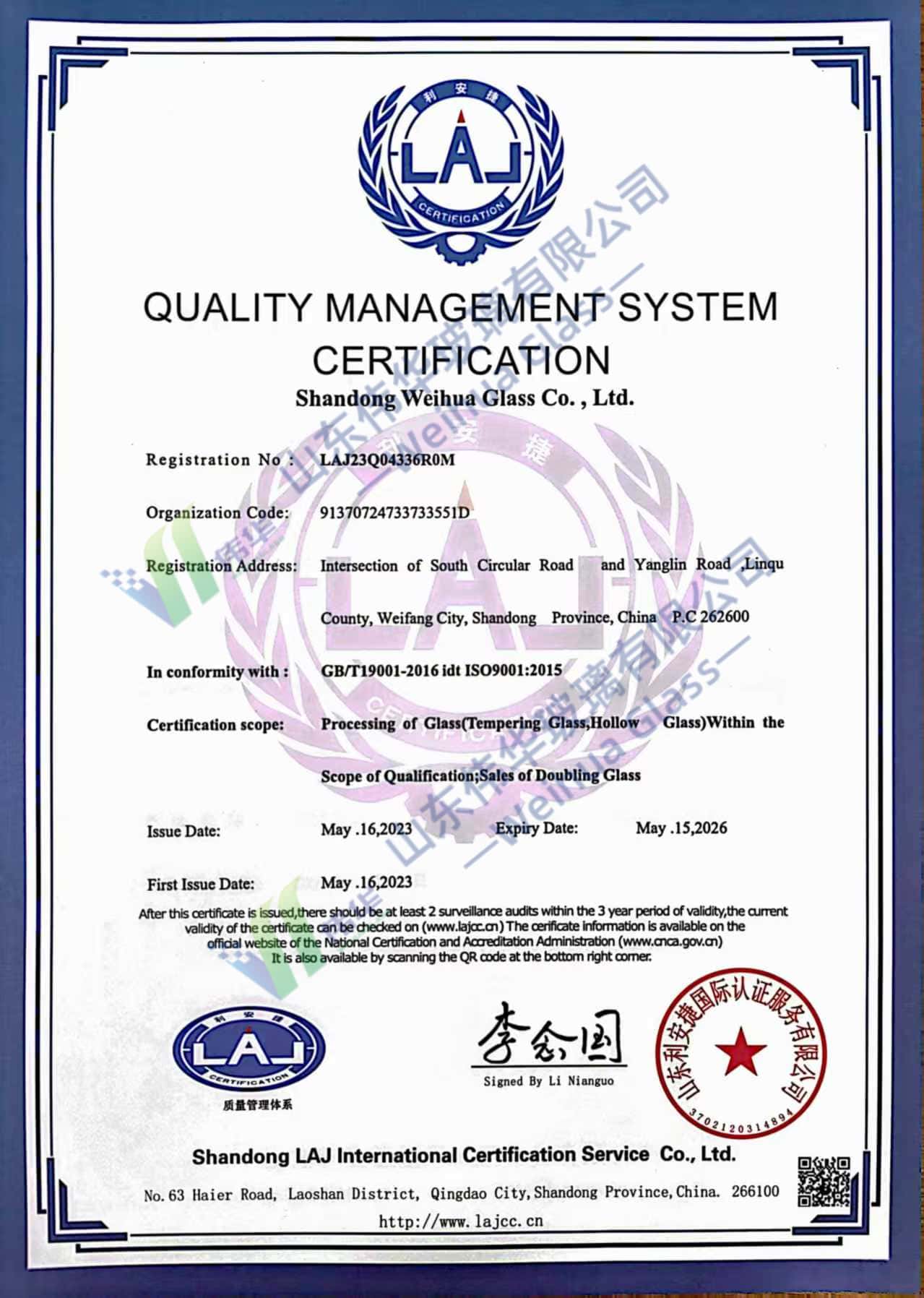

Quality System: ISO 9001:2015
|
Data Sheet
| Specification | Technical Details |
| Glass Types | Clear, Ultra Clear (Low Iron), Tinted, Low-E Coated |
| Structure | Monolithic (Single), Laminated (VSG), Insulated (DGU/IGU) |
| Thickness | 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm |
| Max Size | Arc: Up to 3660mm |
| Min Radius (R) | 450mm (Depends on glass thickness and height) |

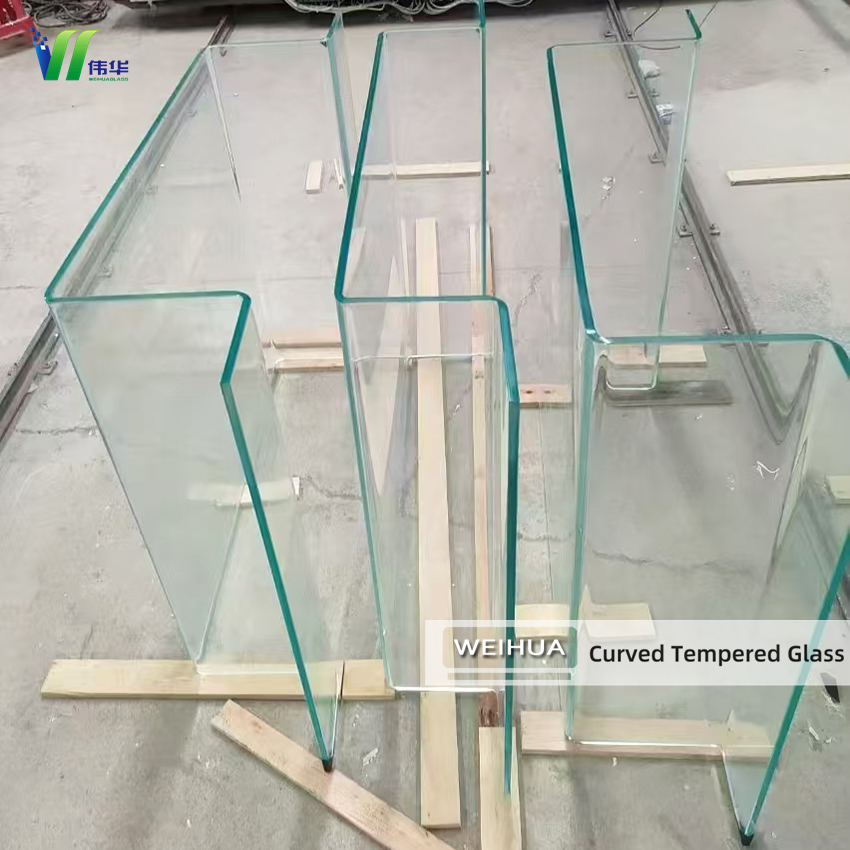

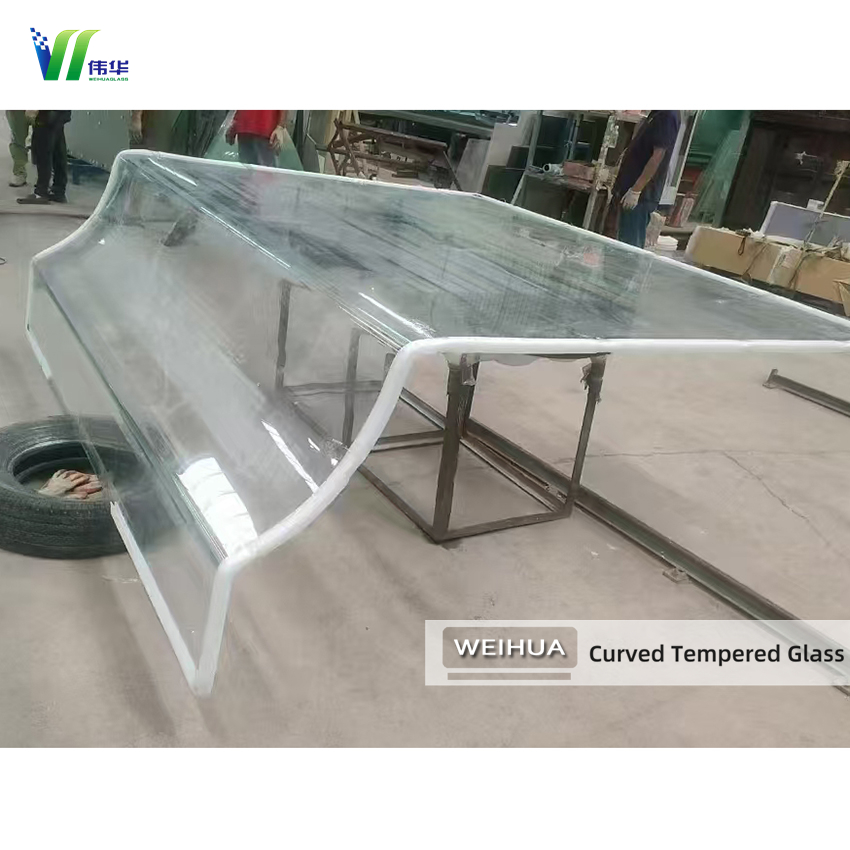

| Shape Types | Cylindrical (Regular Radius), J-Shape, Cone Shape |
| Processing | Polished Edges, Drilled Holes, CNC Cutouts |
|
Optional Surface
Customize your curved glass to meet design and privacy needs:
Low-E Coating: Soft-coated Double Silver Low-E for superior thermal insulation (Curved IGU).
Ceramic Fritting: Silk-screen printed patterns (dots/lines) for decoration or solar control.
Frosted/Acid Etched: Full or partial privacy for partitions.
Interlayers: Clear PVB, Colored PVB, or SGP (SentryGlas) for hurricane-proof strength.
|

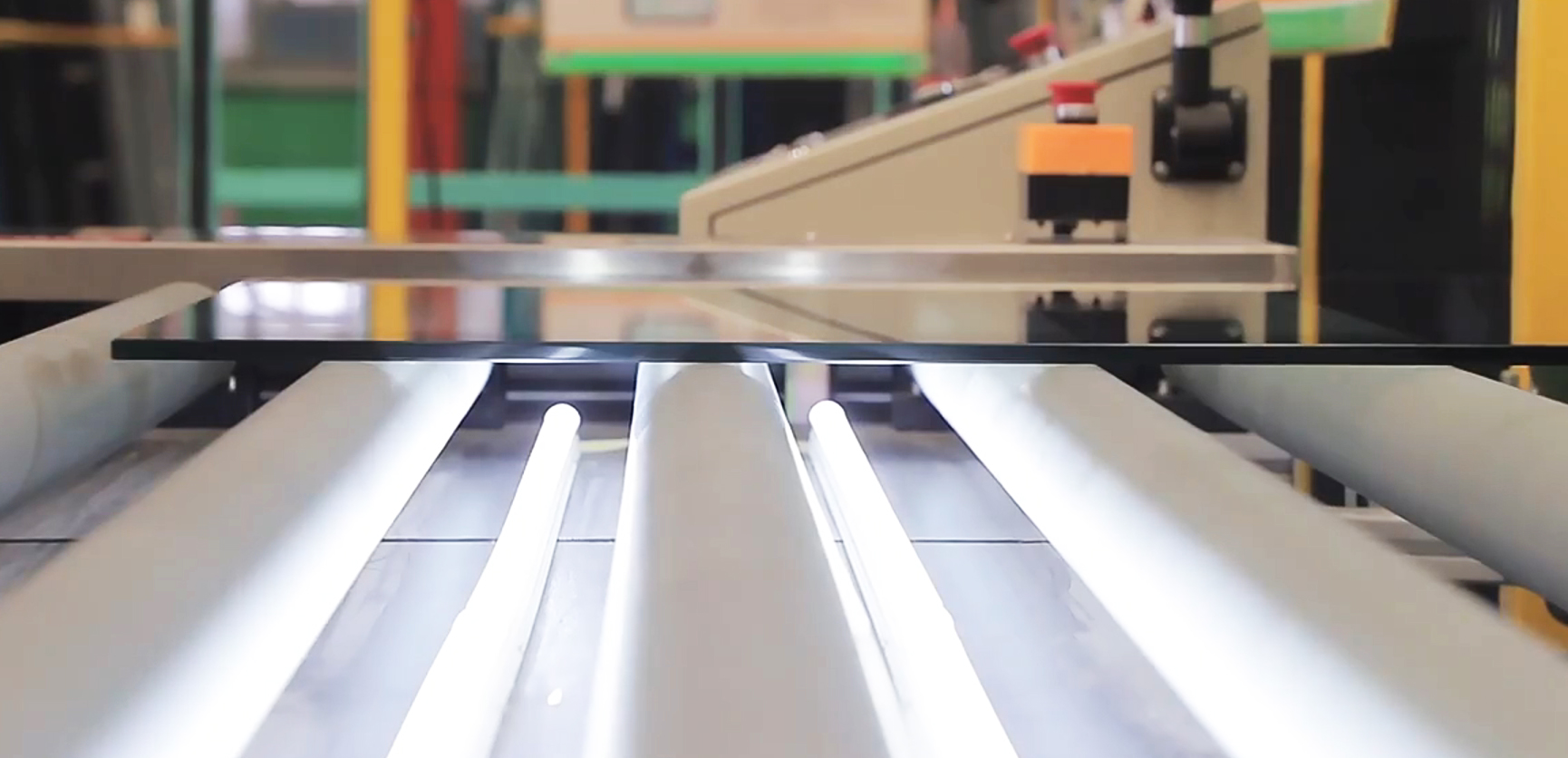

Testing Quality
We guarantee geometric accuracy and optical quality:
Contour Check: Every pane is checked against a 1:1 template or laser scanned to ensure the radius tolerance is within ±2mm.
Optical Distortion Check: Visual inspection to minimize roller waves and ensures clear visibility.
Stress Test: Surface stress measurement to confirm tempering standards (Surface compression > 90MPa).
Fragment Test: Ensuring safe breakage patterns according to EN12150.
