Product Description

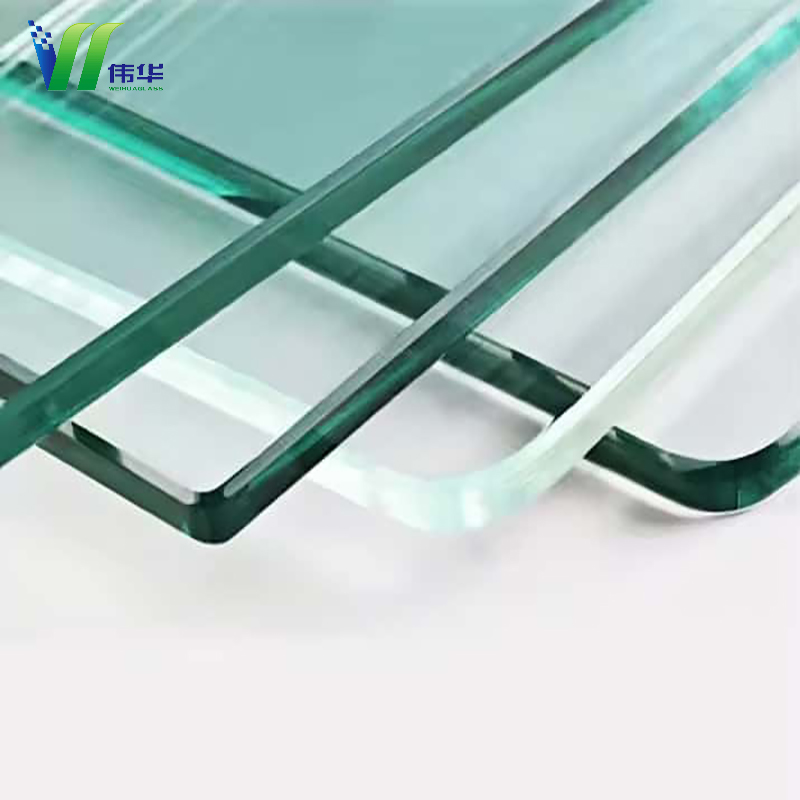

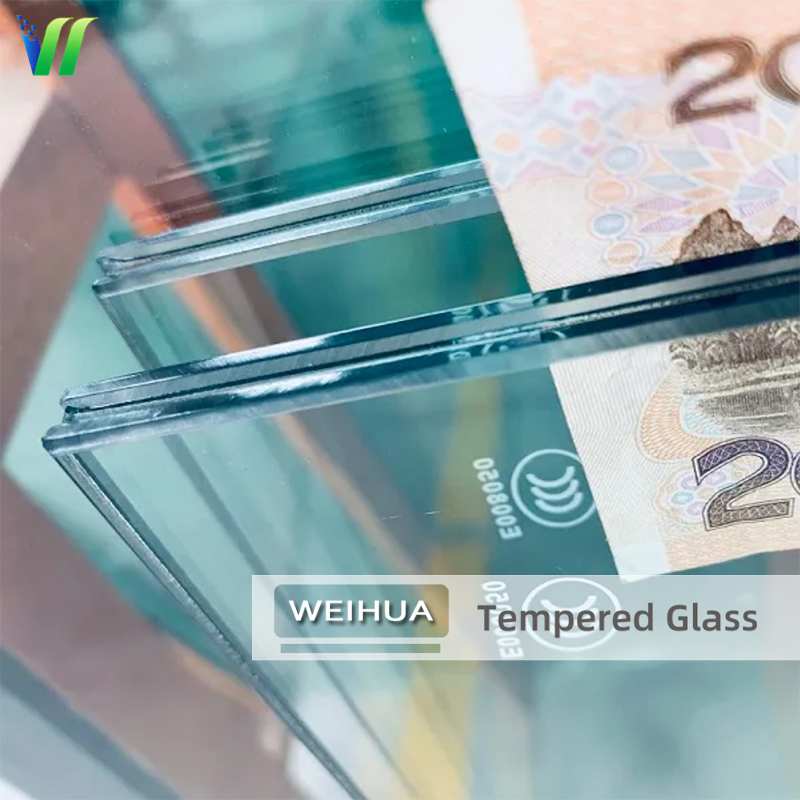

Premium Custom Tempered Glass: Precision Processed for Your Project
As a foundational material for modern construction and furniture, our Flat Tempered Safety Glass offers superior strength and optical clarity. We process high-quality float glass through advanced tempering furnaces, creating glass that is 4-5 times stronger than annealed glass.
Why Buy from Us?
Precision Cutting: We utilize CNC cutting and water-jet technology to handle complex shapes, notches, and hinge cutouts with millimeter precision.
Perfect Edges: From high-gloss flat polish to beveled edges, our finishing ensures safety and aesthetics for frameless applications like shower doors and tabletops.
Versatile Inventory: We stock a wide range of raw glass substrates, including Clear, Ultra Clear (Low Iron), and various Tinted options to ensure fast lead times.
|

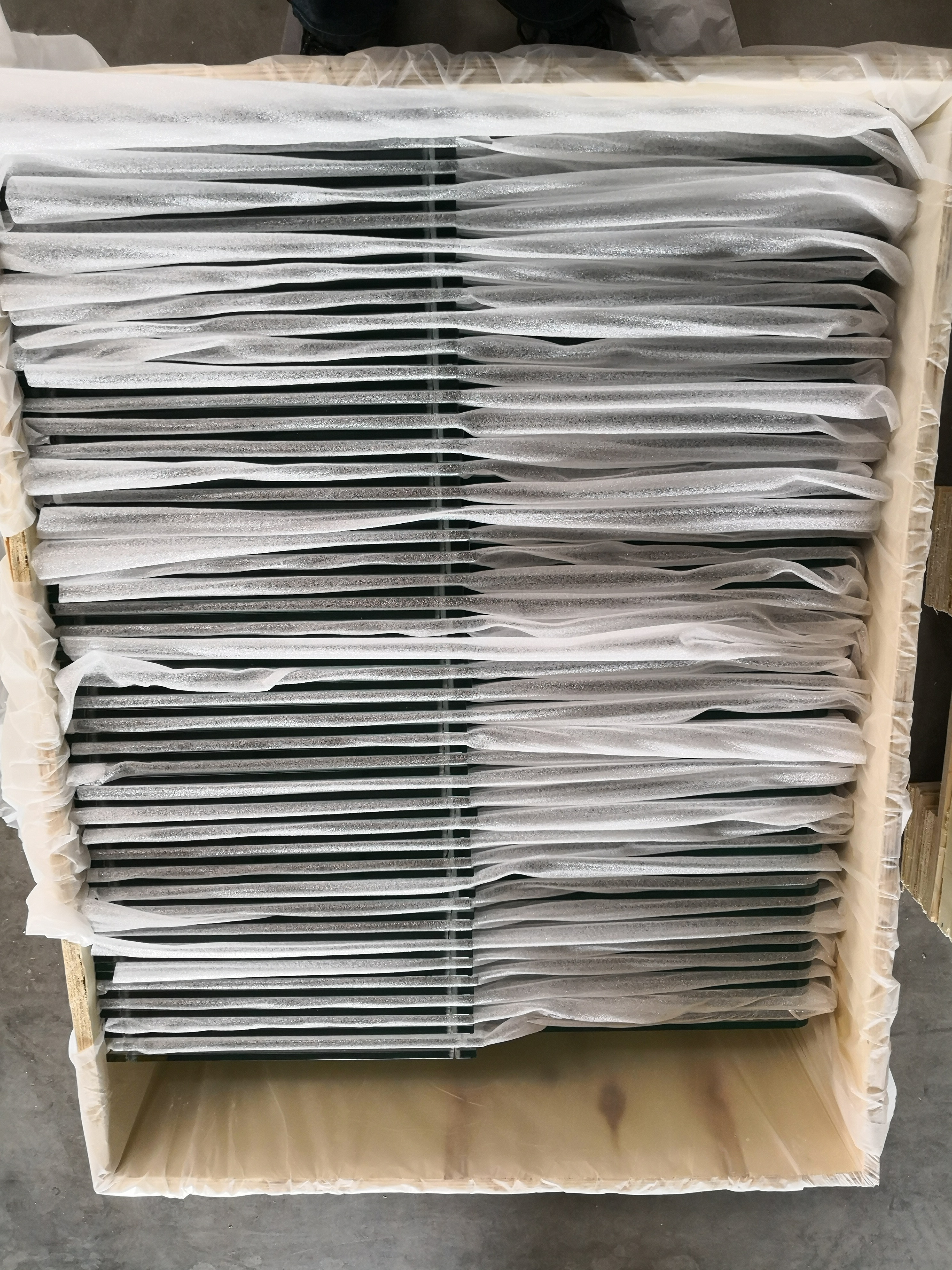

Product Packaging

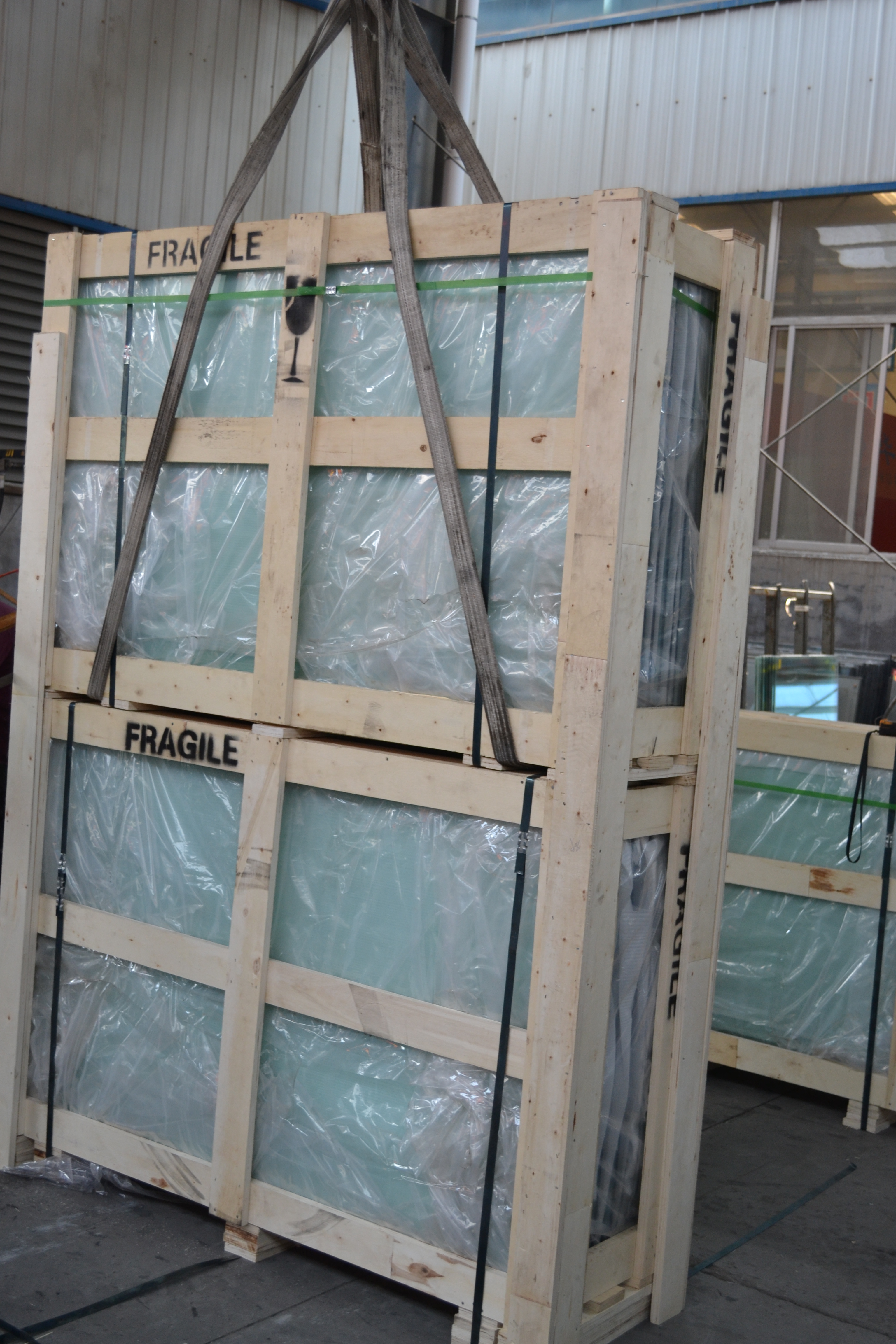

Strong plywood crates with steel banding.

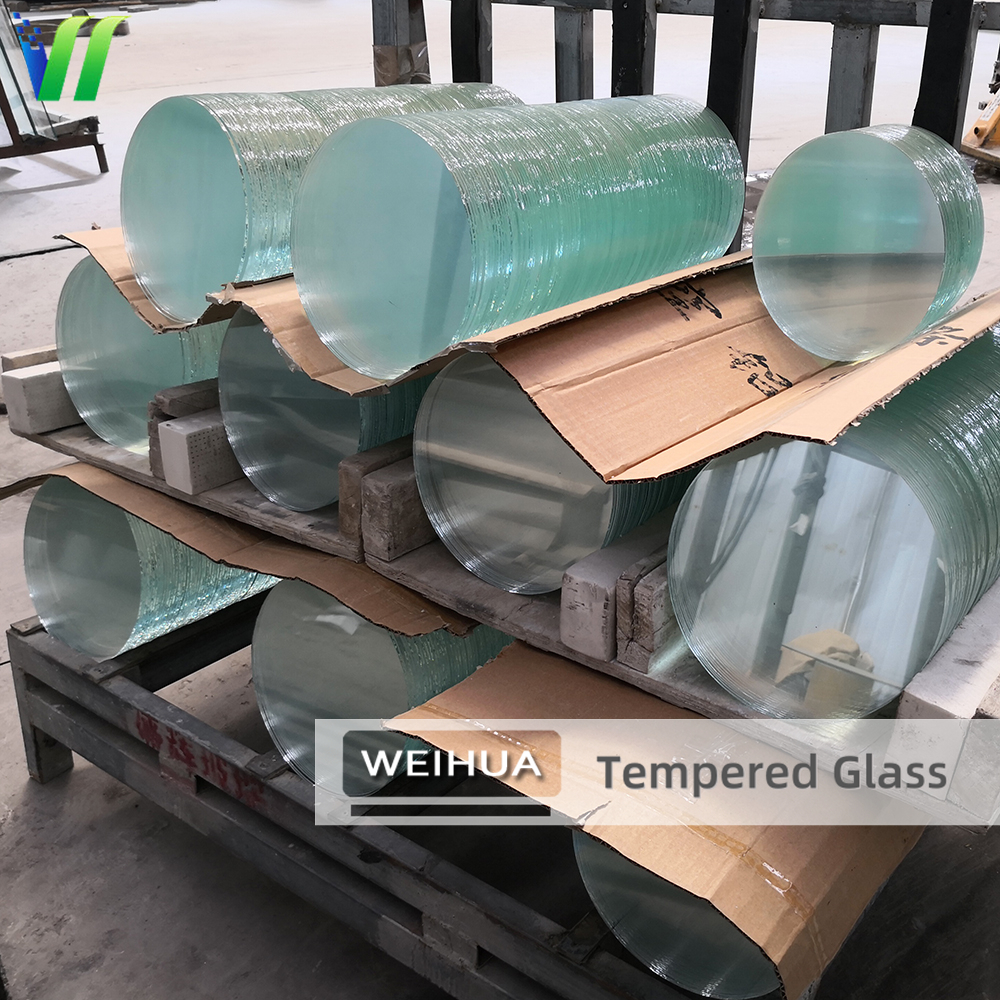

Individual carton packing available for furniture glass (e.g., table tops) for direct retail.
Cork pads or powder interleaving to prevent friction scratches.
|
Comment & FAQ
Q1: Can you drill holes for hinges and handles?
A: Yes, we have CNC drilling centers to create countersunk holes and precise cutouts for all hardware types.
Q2: What is the difference between Clear and Ultra Clear glass?
A: Standard Clear glass has a slight green edge due to iron content. Ultra Clear (Low Iron) glass is crystal clear with neutral edges, recommended for high-end displays and light-colored walls.
Q3: What is your MOQ?
A: Generally 1 crate (approx. 100 sqm) ensures the safest transport, but we can discuss specific project requirements.
Q4: How do you prevent glass from breaking during shipping?

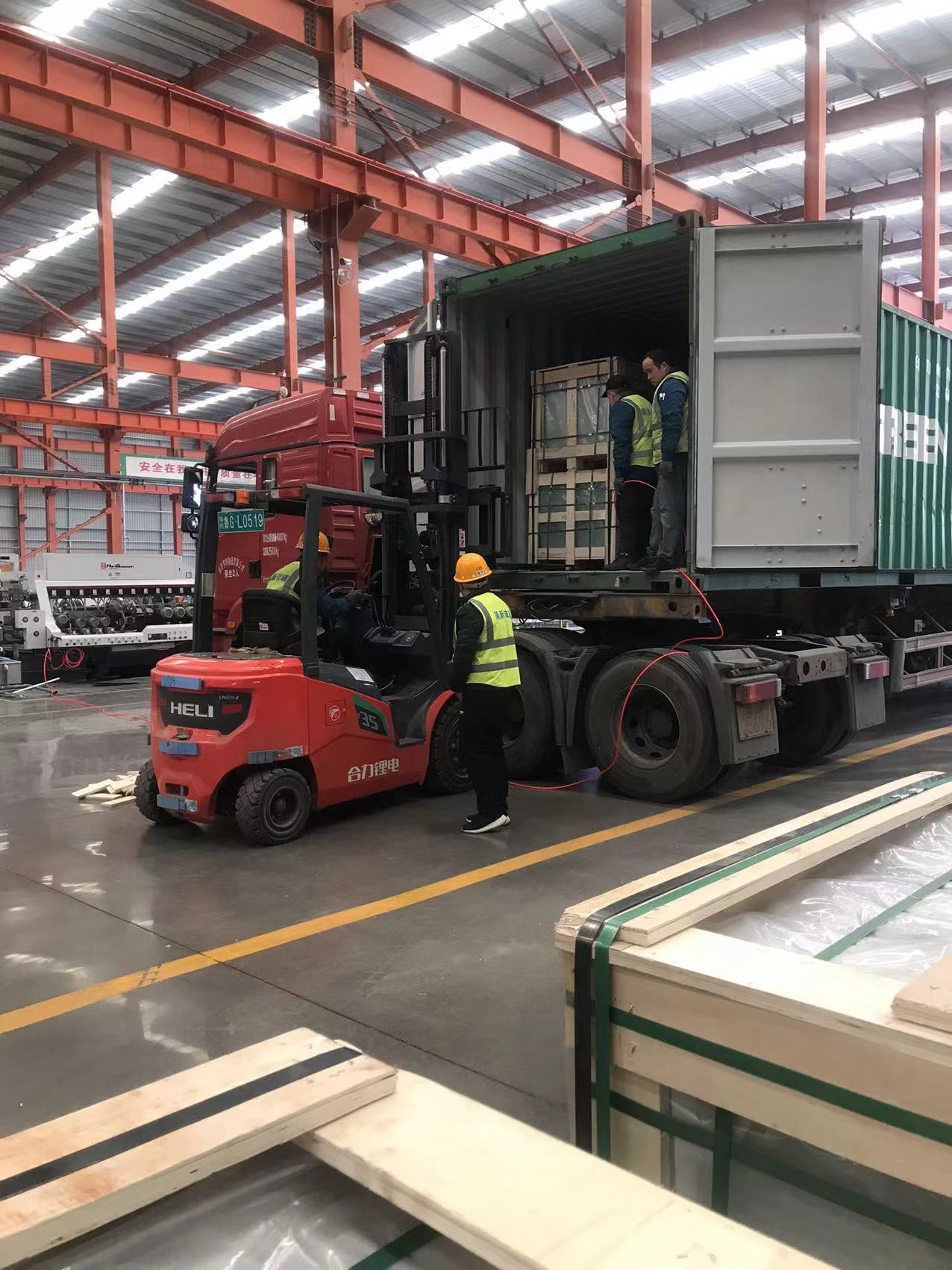

A: We use professional A-frame seaworthy wooden crates and load containers compactly to prevent any movement inside the container.
|
Production Process

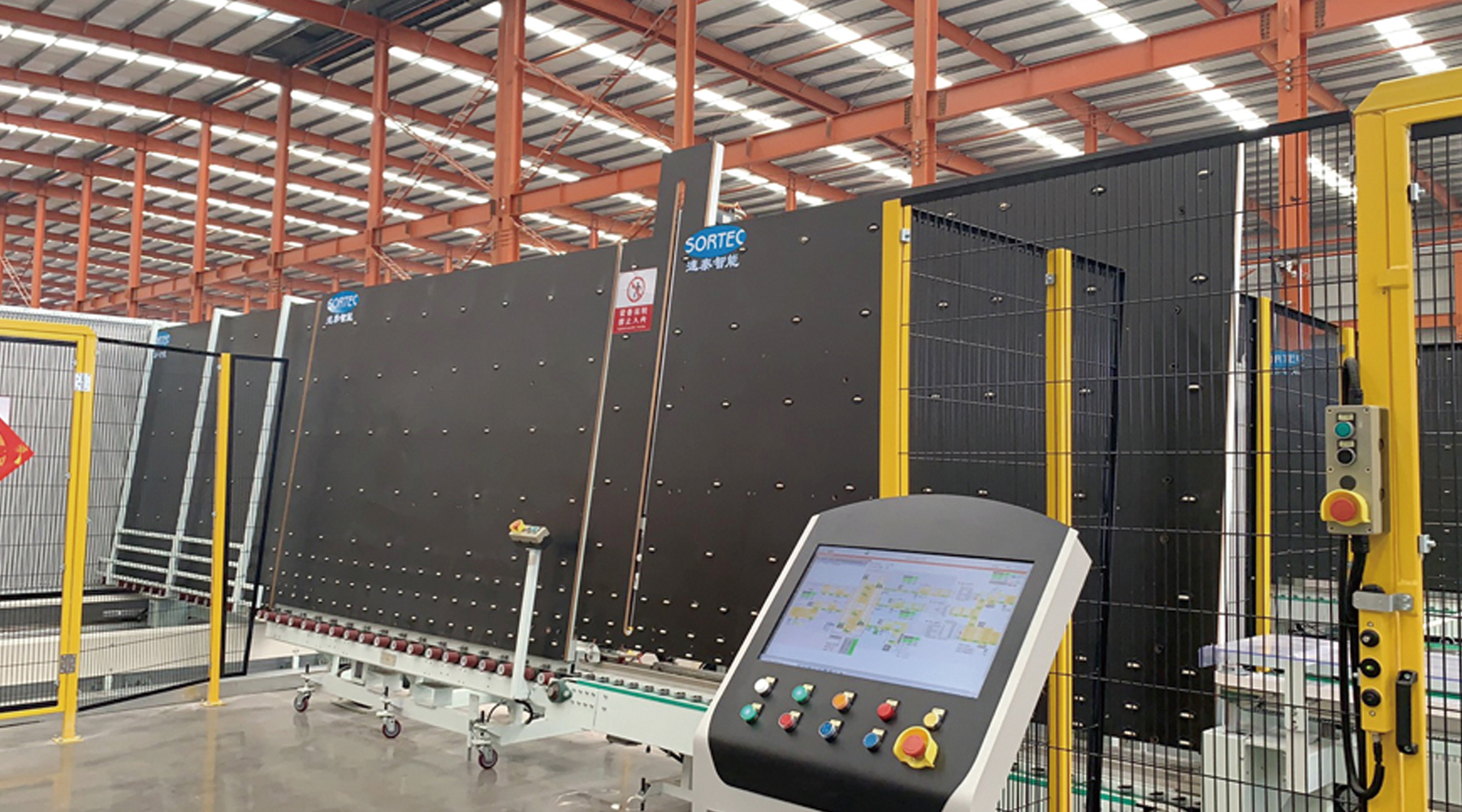

Computer-optimized cutting to minimize waste.

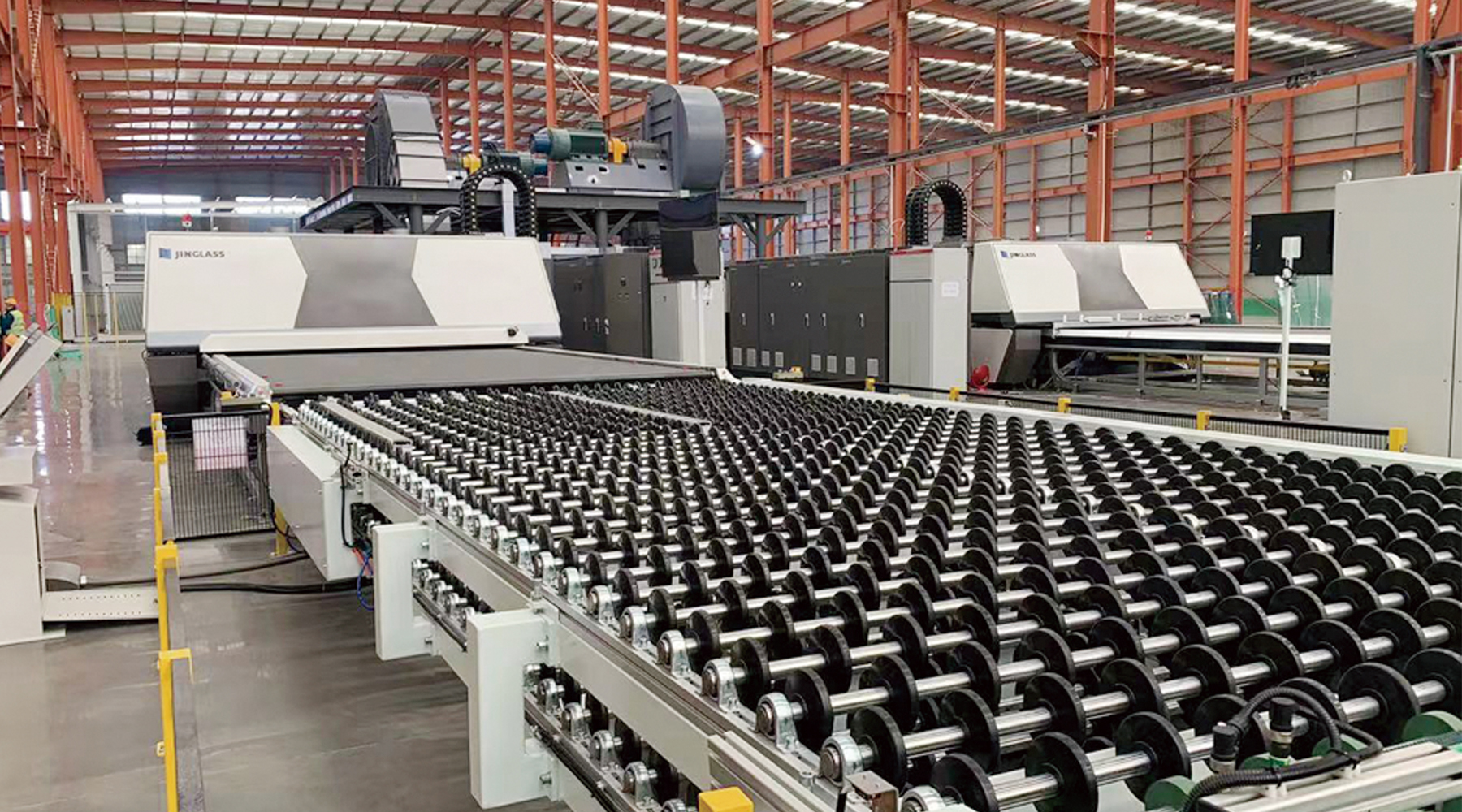

Heating to ~620°C and rapid air quenching.
Checking for scratches, bubbles, and edge defects.
|
Certifications

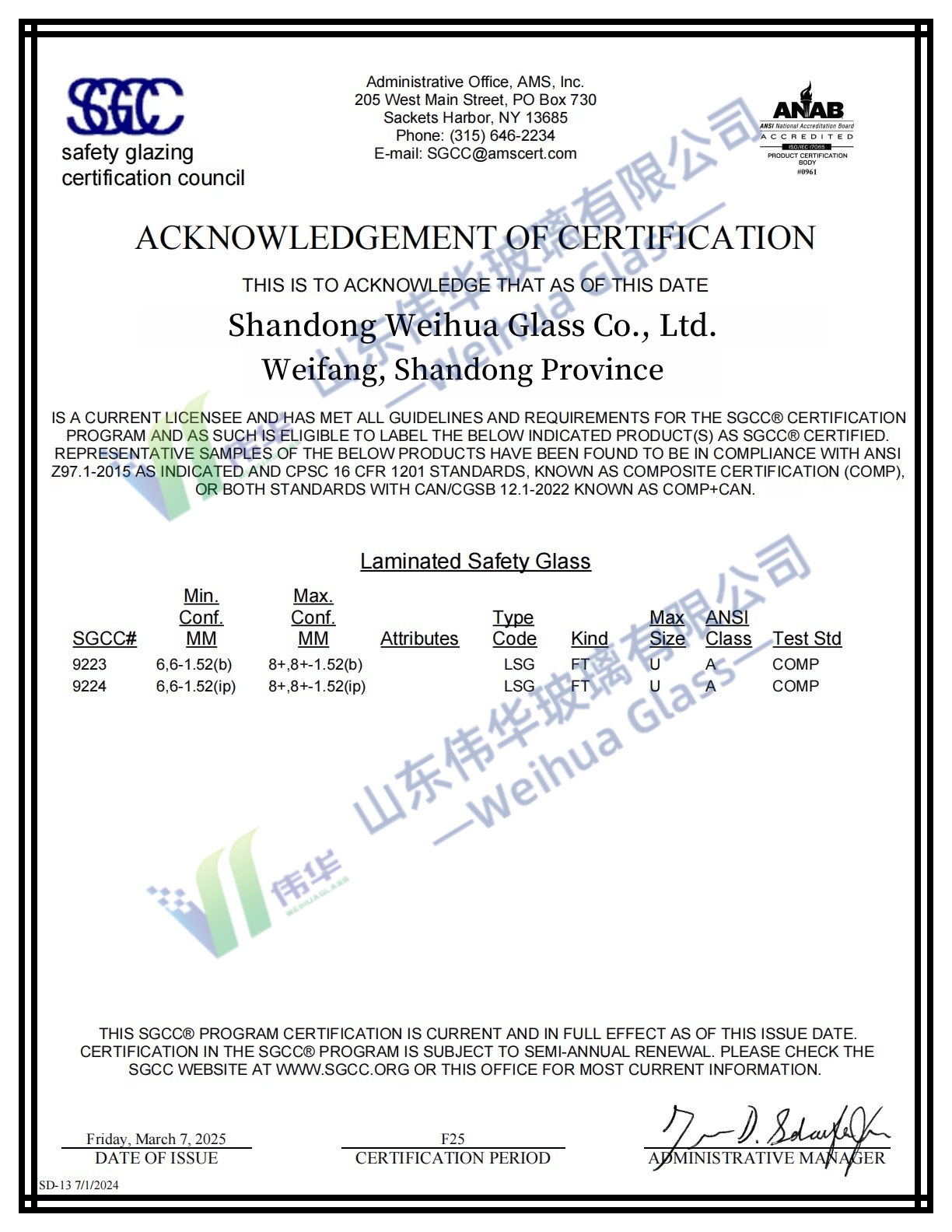

SGCC (ANSI Z97.1)

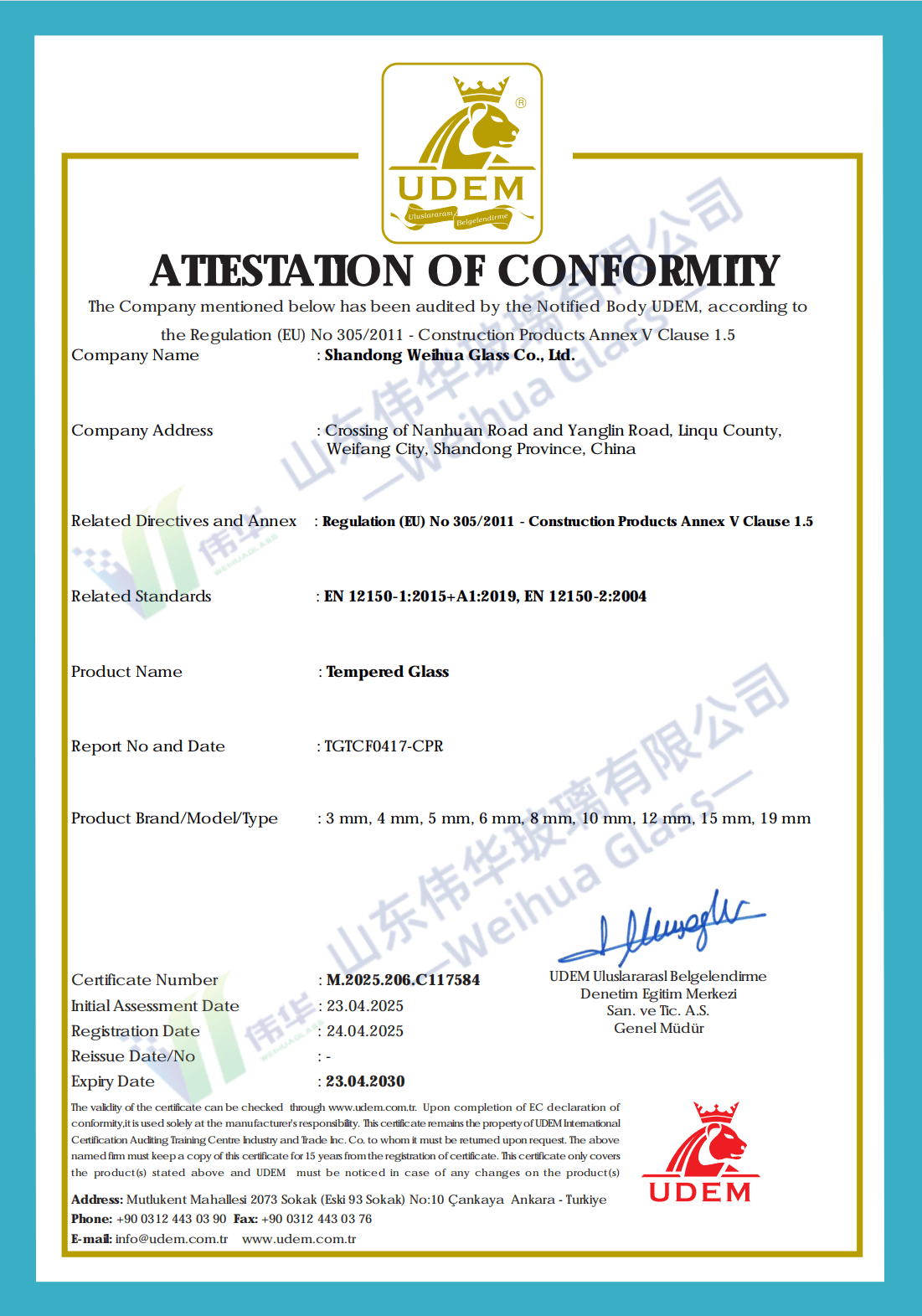

CE (EN12150)

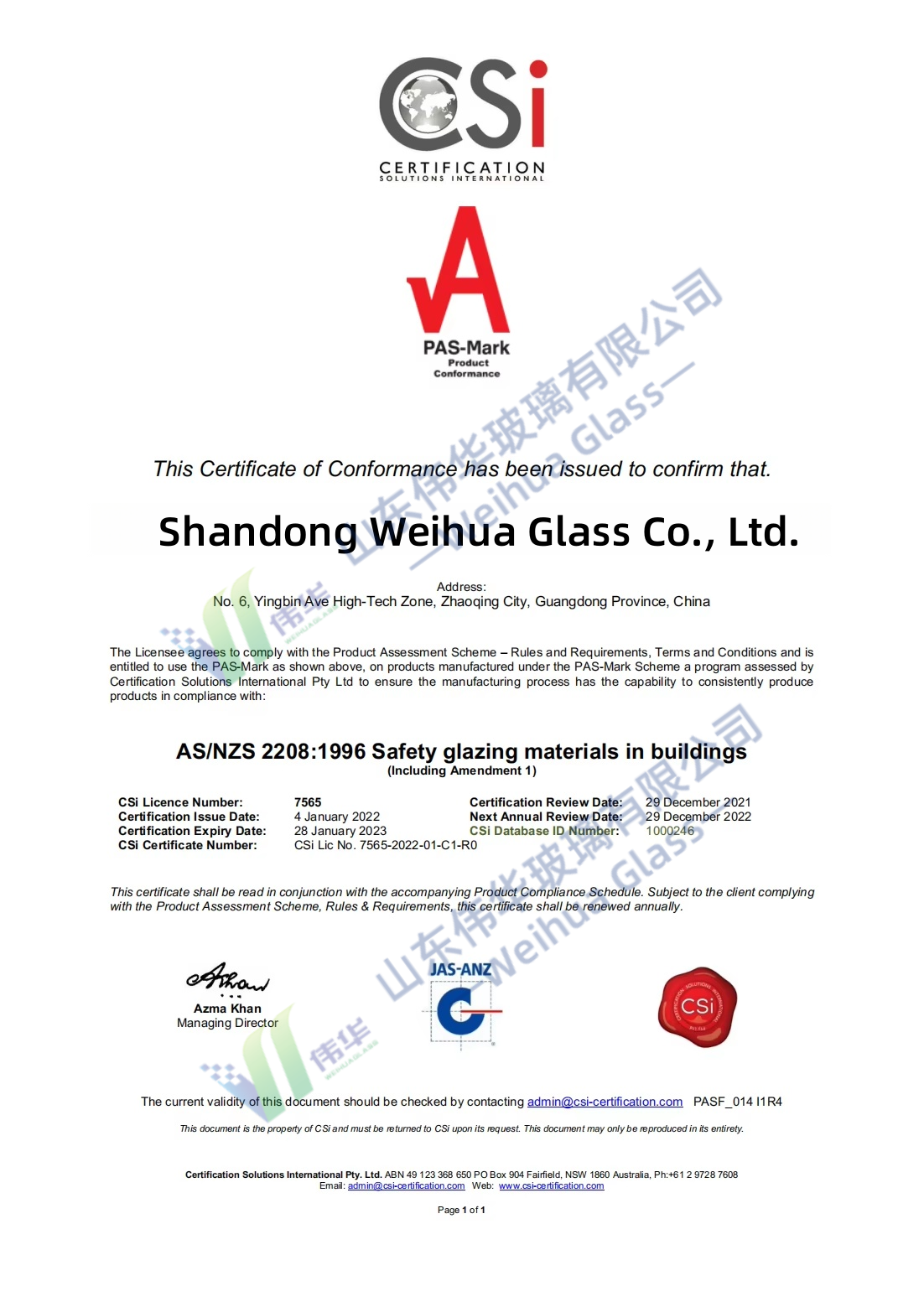

AS/NZS 2208

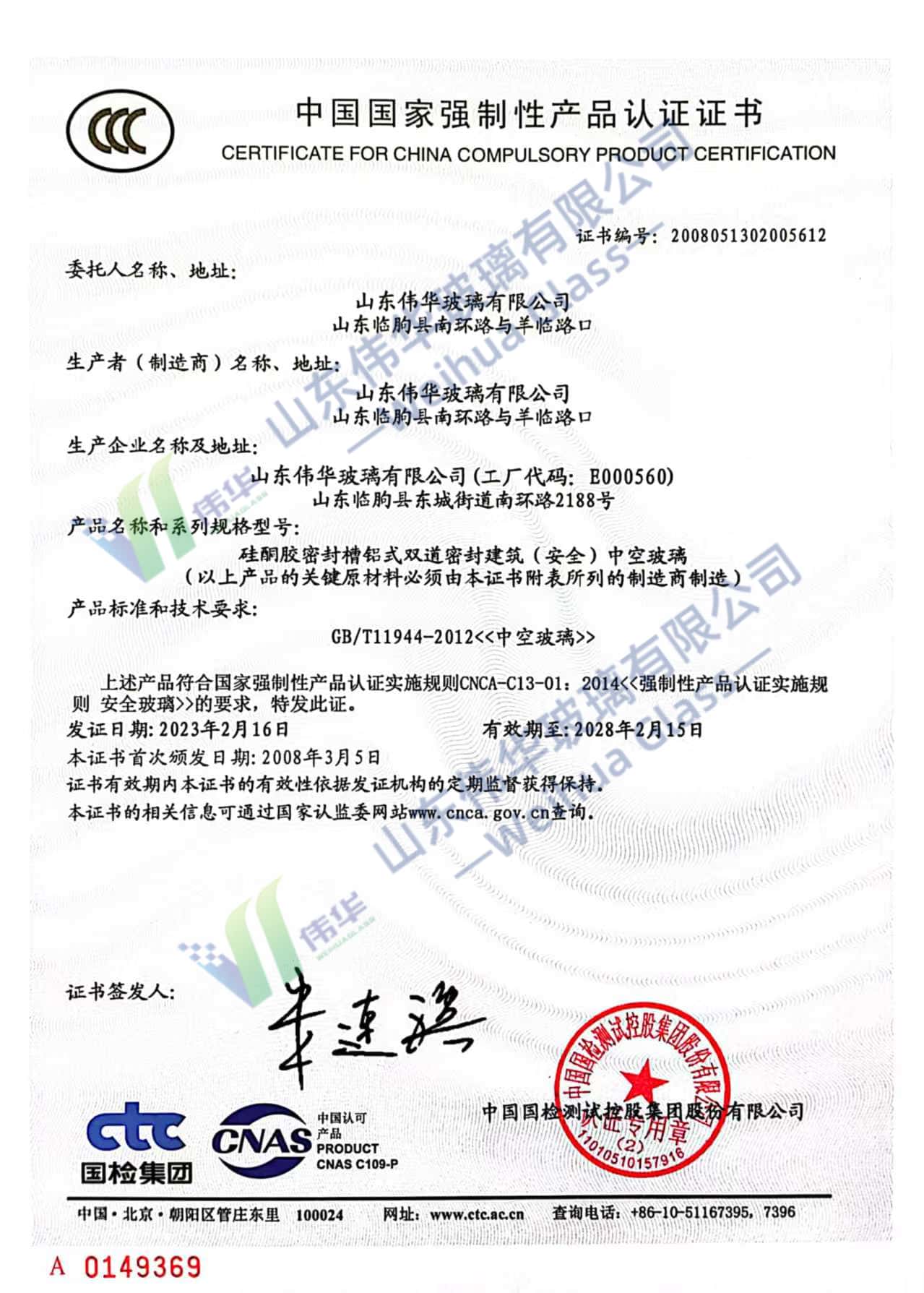

CCC
|
Data Sheet
| Category | Scope | Standard Example | Technical Description |
| Basic Properties | Glass Type | Clear Tempered, Ultra-Clear Glass, Low-E Coated, Patterned Glass, Curved Glass | Customizable color, pattern, and coatings |

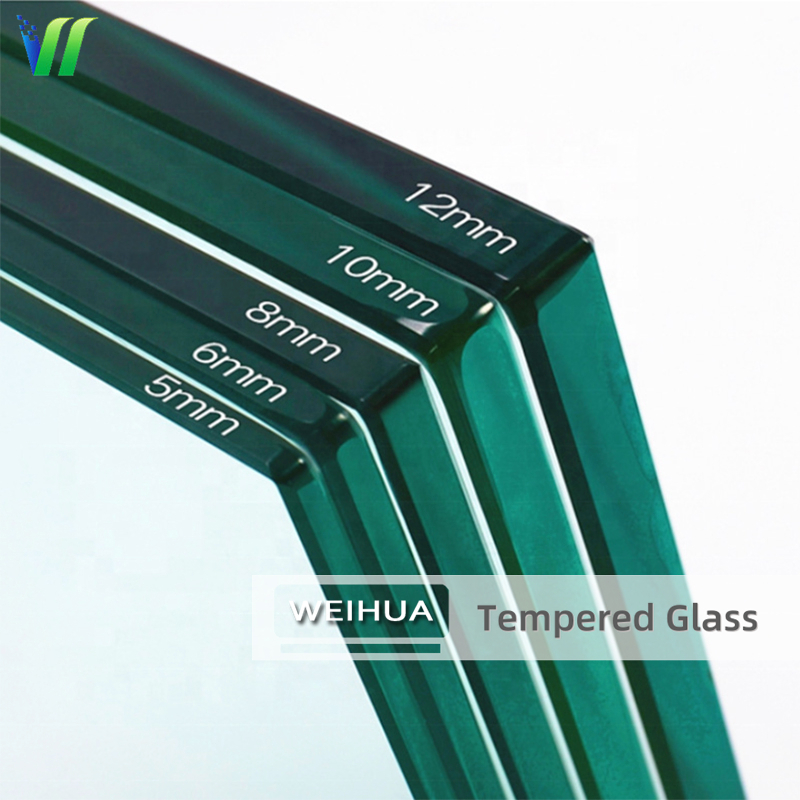

| Thickness Range (mm) | 4-19 (Common: 5/6/8/10/12/15/19) | Thickness Tolerance: ±0.2mm (GB 15763.2) | |
| Surface Stress (MPa) | ≥ 95 (Standard) / ≥ 150 (High Strength) | Thermal Cycling: 24–69 MPa | |
| Mechanical Performance | Bending Strength (MPa) | 3–5 Times of Float Glass / ≥ 70.8 MPa | Testing Method: Complies with ASTM C1048 |
| Impact Resistance (Steel Ball) | 5mm: 1040g steel ball unbroken @ 1m height; 10mm: 2270g ball @ 2m (EN 12600) | Complies with GB 17841 safety requirements | |
| Safety Features | Fragmentation Pattern | 40–100 fragments in 50x50mm area (5mm); Max fragment weight: ≤ 0.5g/piece (GB 15763.2) | Fractures into blunt, granular pieces |
| Thermal Shock Resistance (ΔT) | Withstands ≥220°C temperature change (e.g., 300°C→Room Temp) | No cracks (Tested per GB 15763.2) | |
| Optical Properties | Light Transmittance (%) | Clear: ≥89% (4mm); Ultra-Clear: ≥ 91% (6mm) | Low-E coating can adjust light transmittance to 50%–80% |
| UV Blocking Rate (%) | Clear: <60; Low-E: ≥90 | Dependent on coating type | |
| Dimensions | Minimum Size | 300 x 300 mm | Minimum dimensions are customizable |
| Maximum Size | 3300 x 13000 mm | Maximum dimensions are customizable | |
| Min Hole/Slot Edge Distance | Edge distance ≥ 2x Glass Thickness (e.g., 5mm glass→≥ 10mm) | Prevents edge stress concentration | |
| Heating Phase | Furnace Temperature (°C) | 700–720 (Near softening point) | Heating Time: 40–60 sec/mm (≤ 6mm), 60–80 sec/mm (> 8mm) |
| Cooling Air Pressure (%) | 4mm: 95% – 100%; 10mm: 85%–90% | Rapid cooling induces surface stress | |
| Quenching Phase | Grinding/Polishing | CNC Precision Polished Chamfer (Tolerance ≤ 0.5mm); Mirror/Matte Finish | Reduces risk of spontaneous breakage |
| Edge Processing | Grinding/Polishing | Polished edge, beveled edge, rounded edge, and custom edge processing options | All edge processing options are available; Reduces risk of spontaneous breakage |
|
Optional Surface

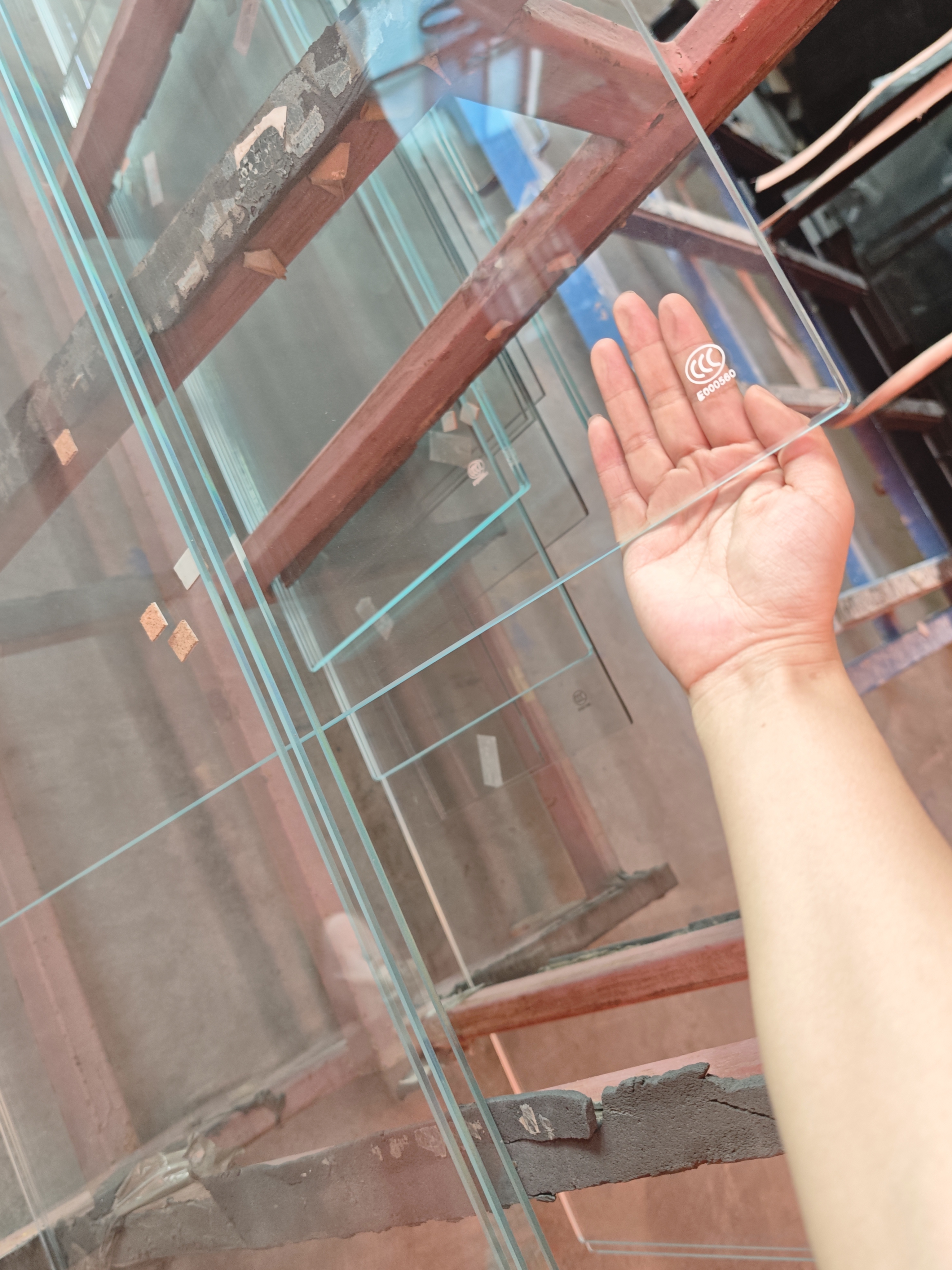

Removes the green tint for true color representation, ideal for luxury shopfronts.

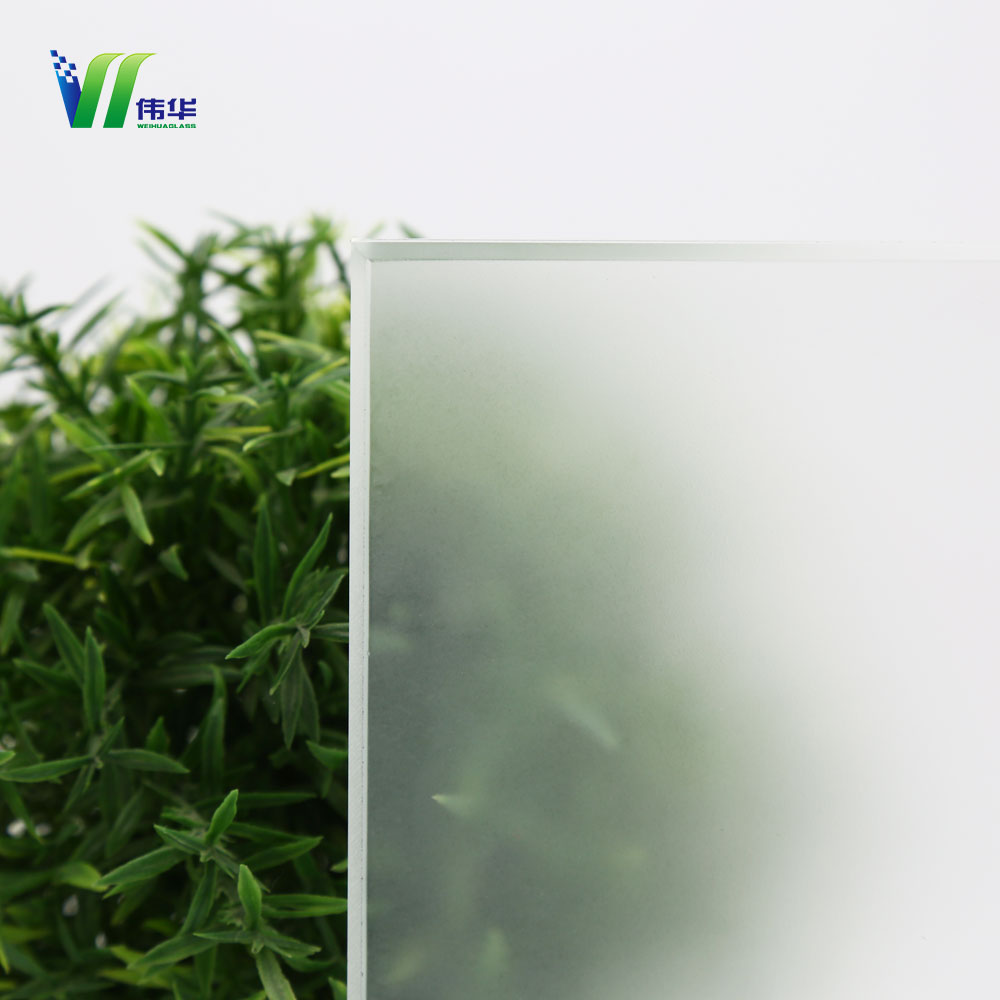

Satin finish for privacy in bathrooms or office partitions.

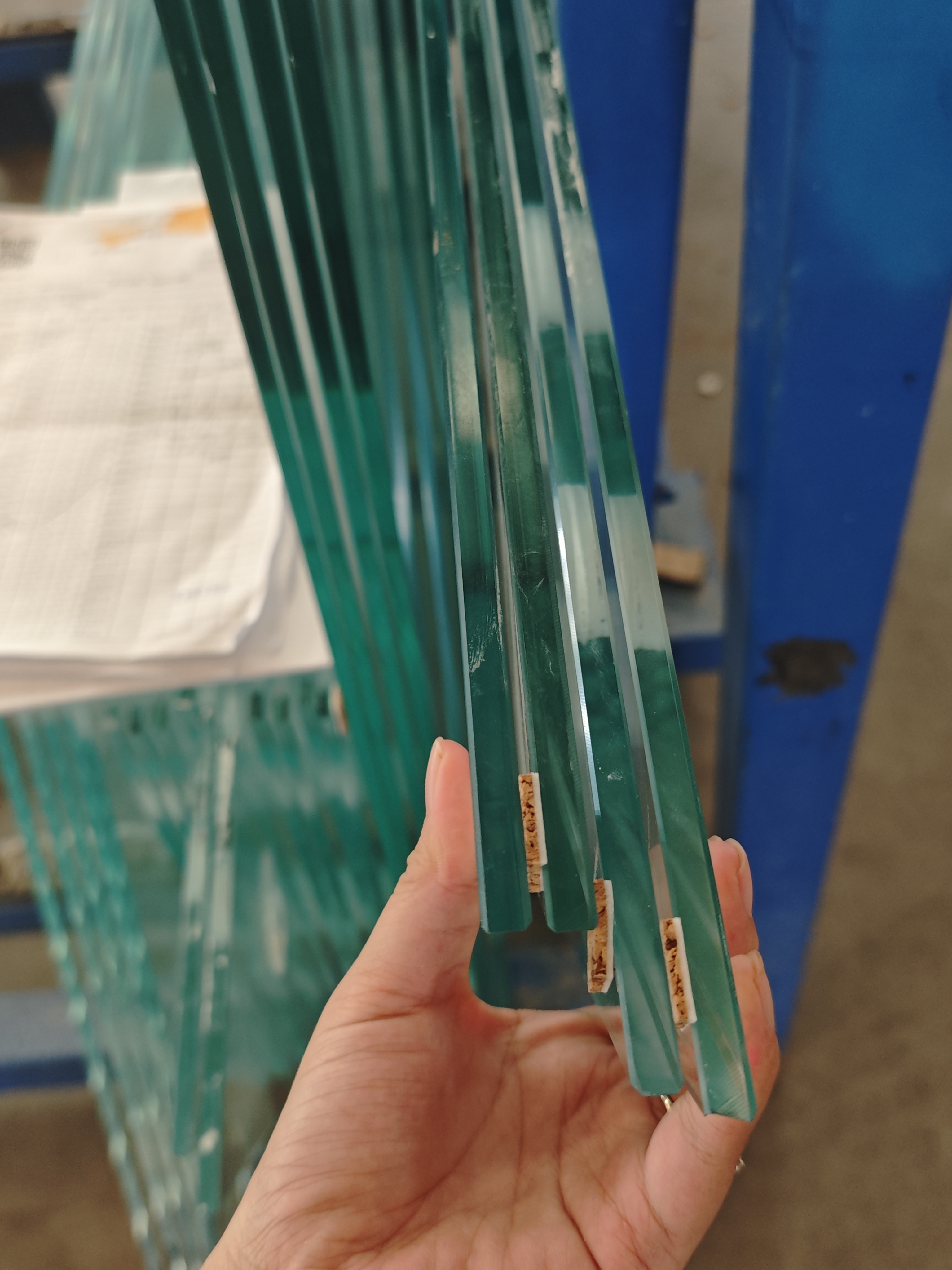

Hydrophobic coating for easy maintenance.
|

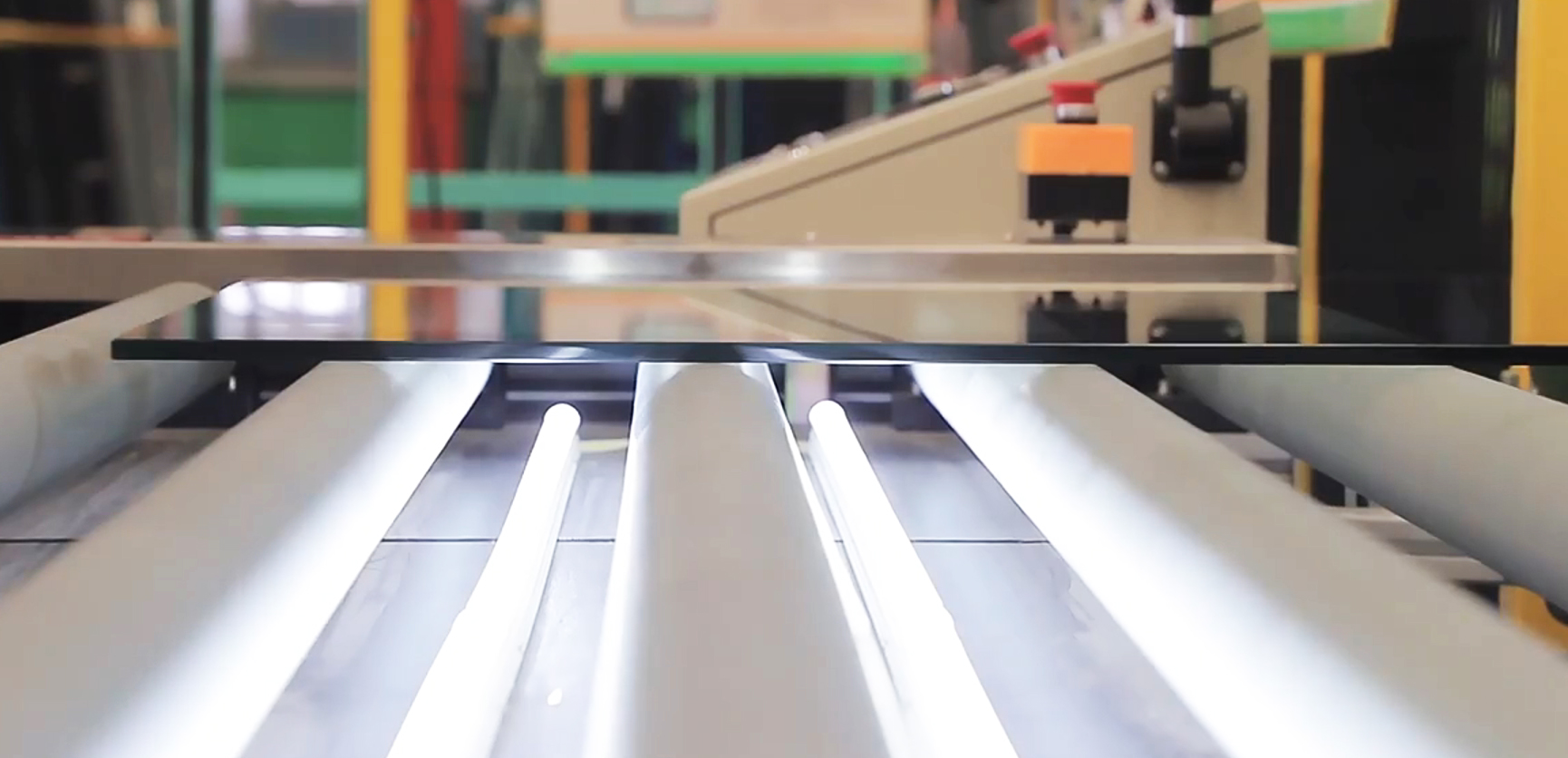

Testing Quality
Impact Test: Steel ball drop tests to verify impact resistance.

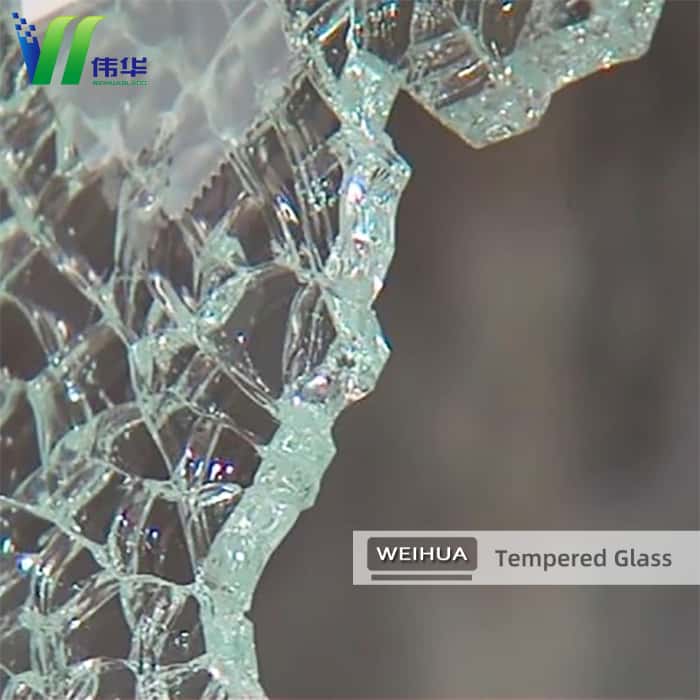

Fragmentation Test: Confirming breakage patterns meet safety standards (40+ fragments per 50x50mm area).
Stress Analysis: Using stress meters to ensure uniform surface compression.
Flatness Check: Ensuring no roller waves or bowing (Bow < 0.2%).
