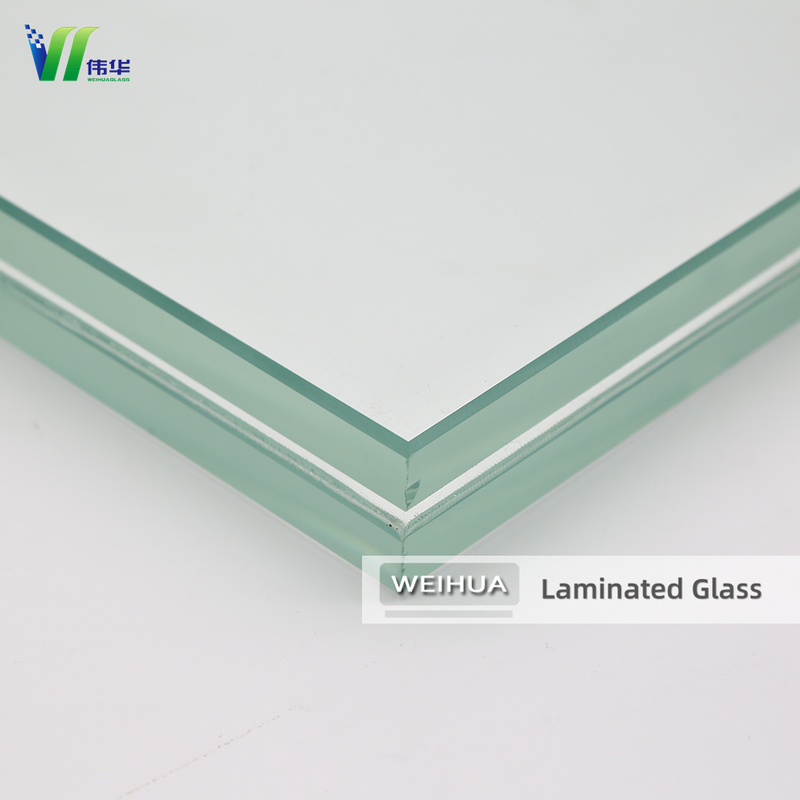

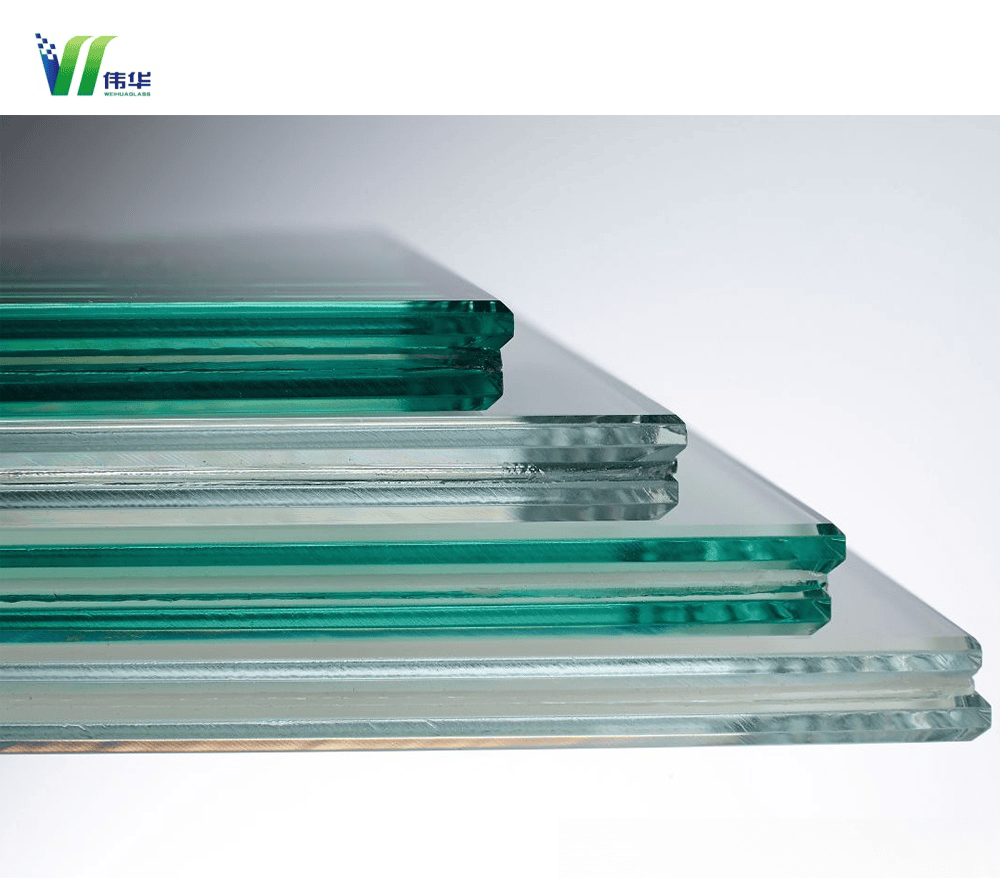

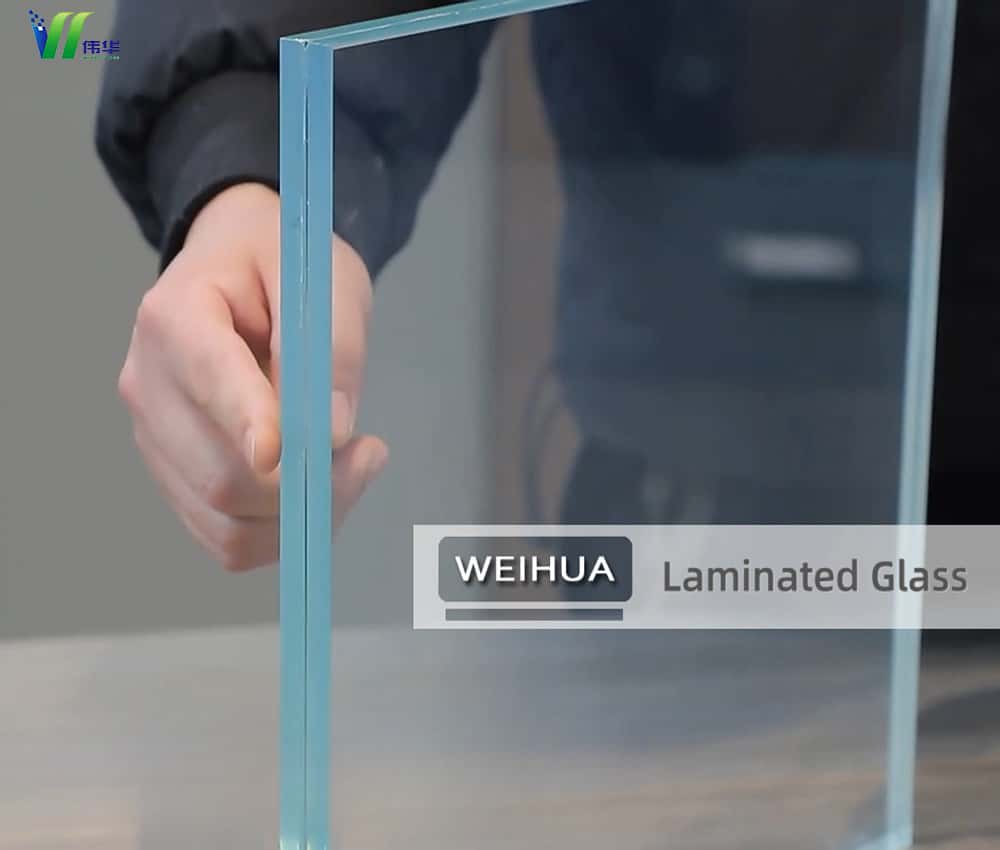

6.38mm - 12.38mm Clear PVB Laminated Safety Glass (Cut to Size / Stock Sheets)

|

 Product Description

Our Standard PVB Laminated Glass is the most versatile safety glazing solution for residential and commercial use. Comprising two layers of glass bonded with a tough PVB interlayer, it offers three key benefits:

1. Safety: Keeps intruders out and holds together if broken (Anti-theft & Injury-proof).

2. Sound Control: Significantly reduces noise pollution compared to single glazing.

3. UV Protection: Blocks 99% of harmful UV rays, protecting furniture from fading.

Popular Specifications (Stock Available):

• 6.38mm (3mm + 0.38 PVB + 3mm) - Best seller for windows.

• 8.38mm (4mm + 0.38 PVB + 4mm) - For larger panels.

• 10.38mm / 12.38mm - For partitions and shopfronts.

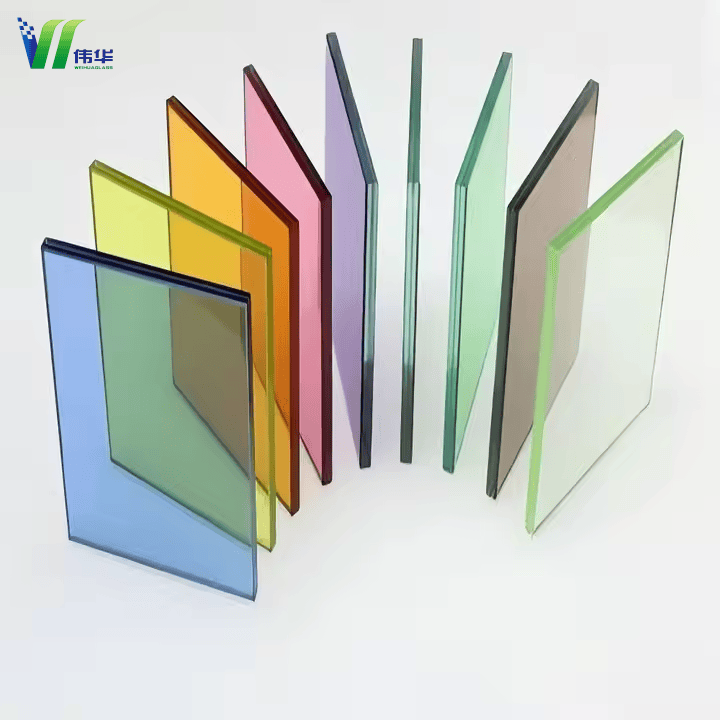

• Colors: Clear, Milky White (Opal), Bronze, Grey, Green.

|

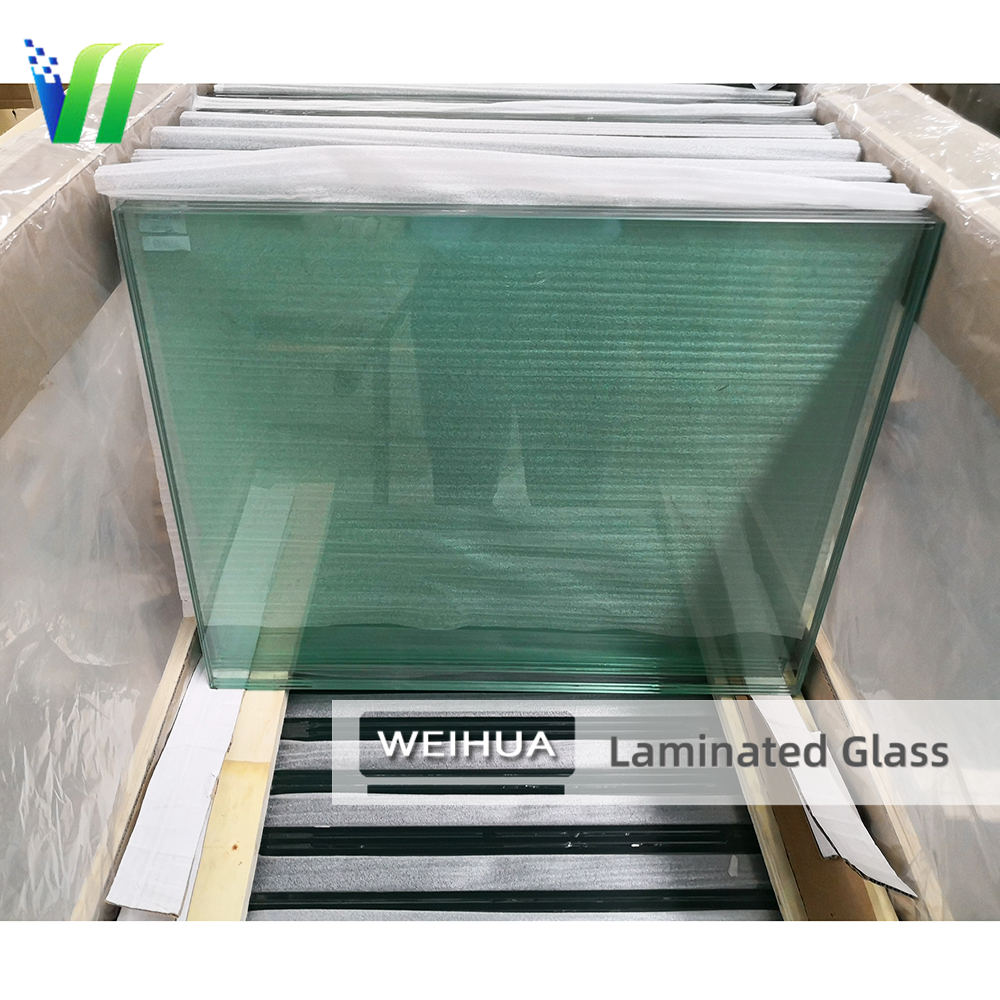

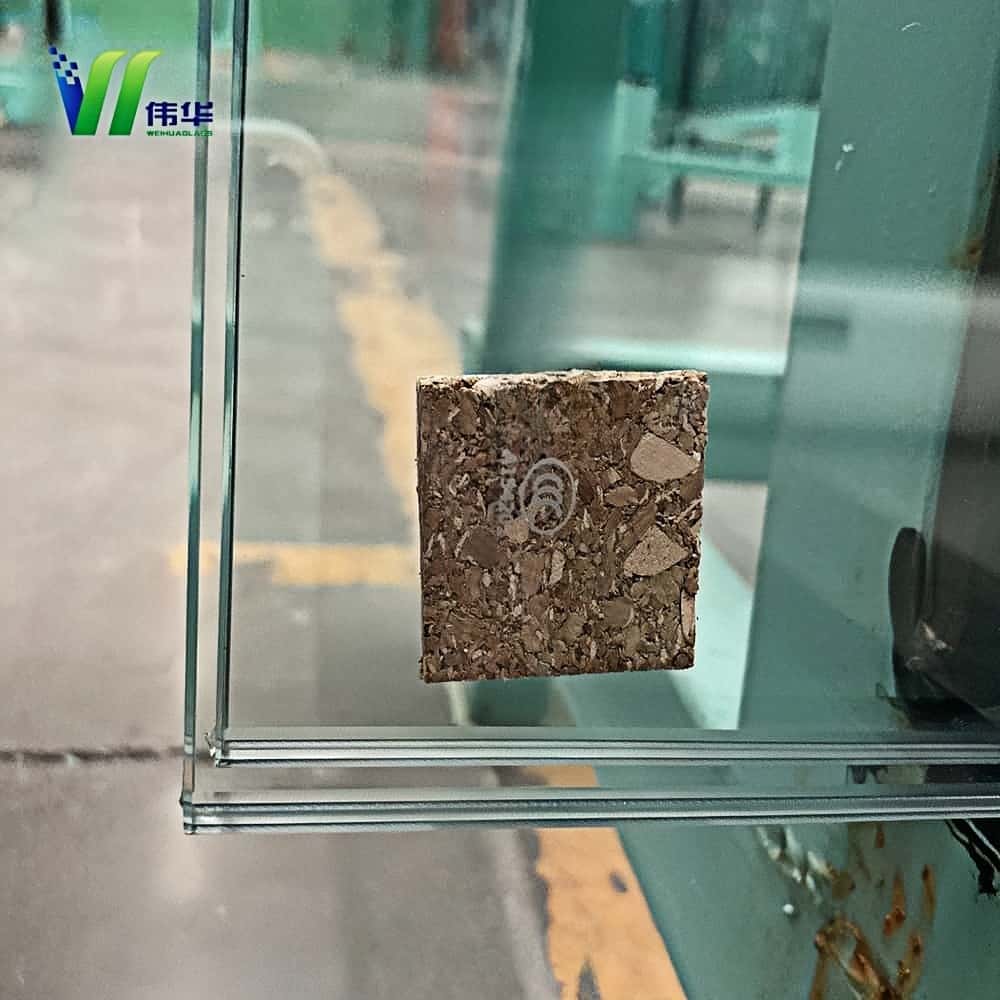

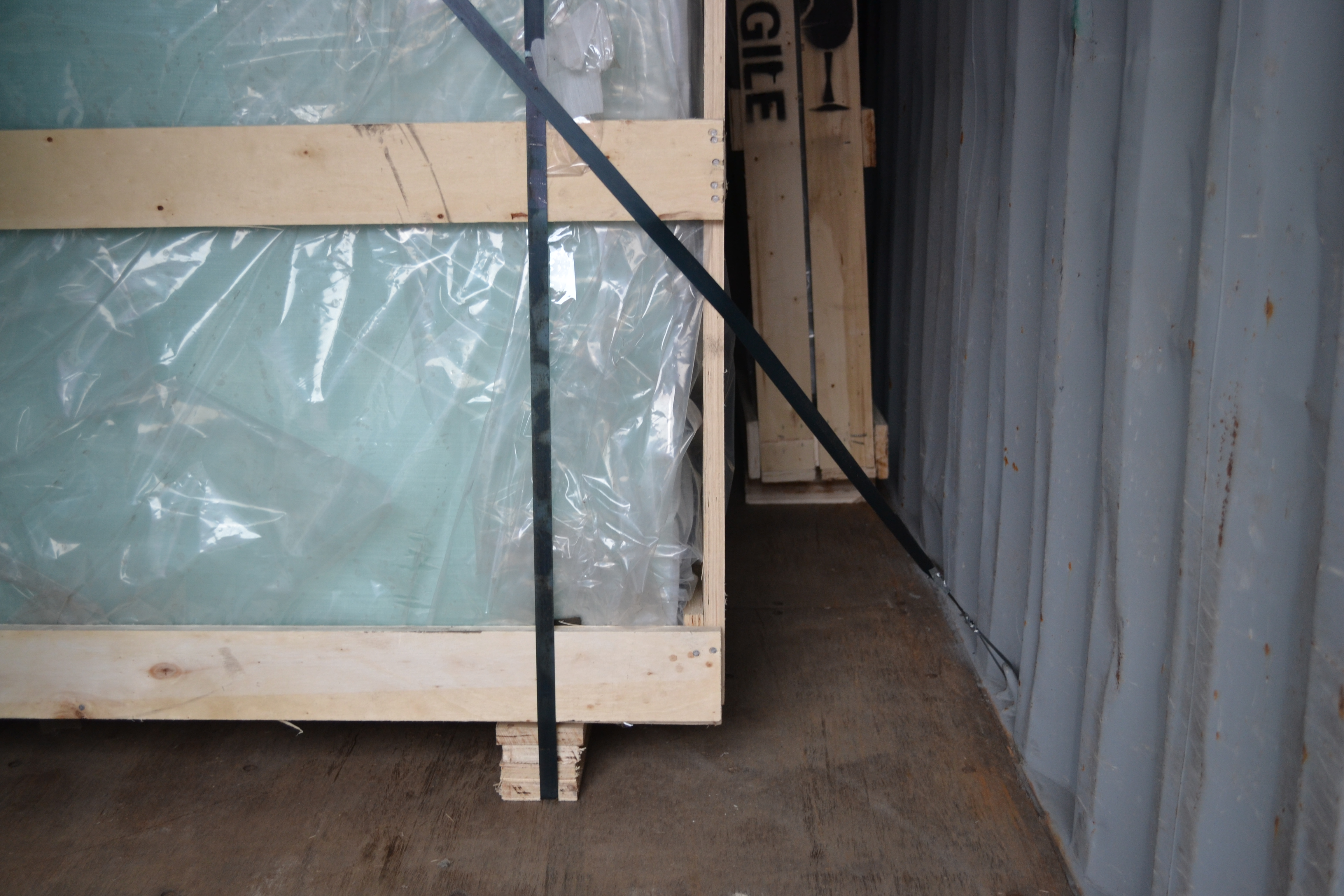

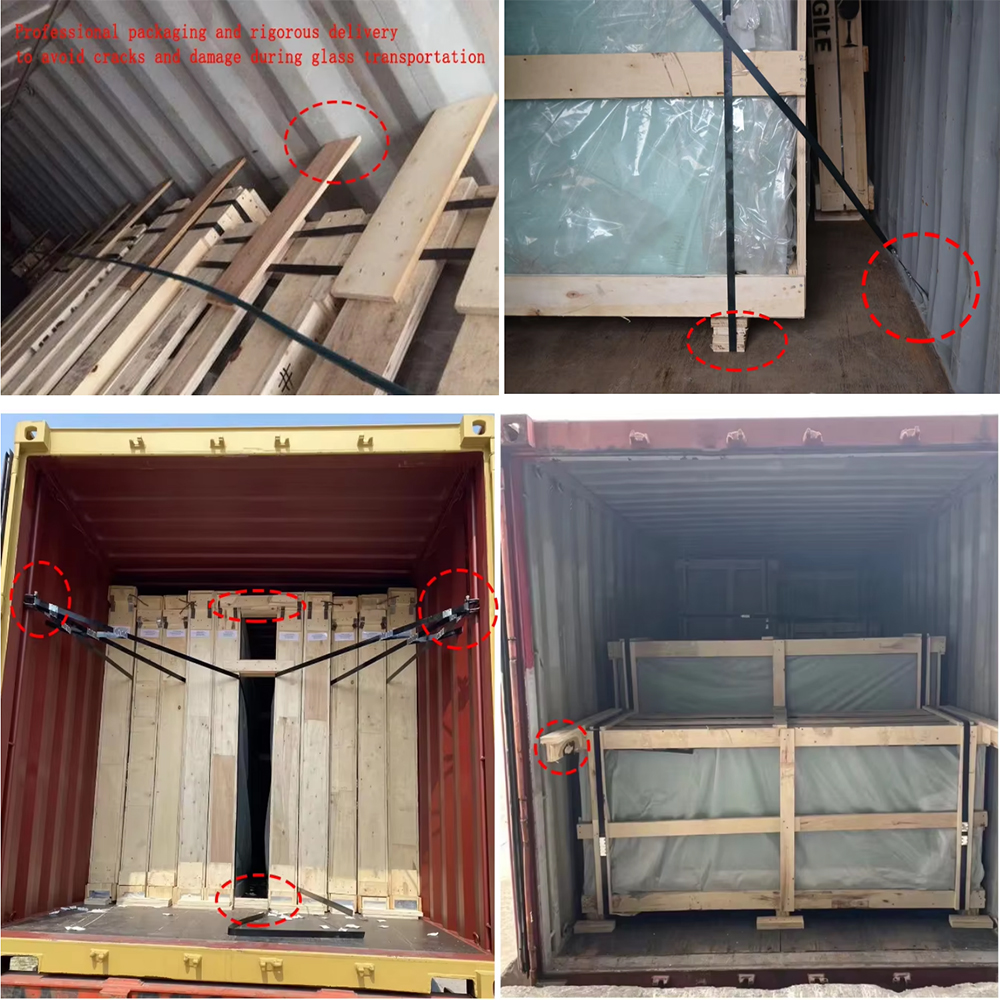

 Product Packaging

|

 Comment & FAQ

Q1: What is the difference between PVB and SGP?

A: PVB is standard for most safety needs. SGP (SentryGlas) is much stiffer and clearer; if SGP glass breaks, it stands upright without collapsing, making it safer for frameless railings.

Q2: Can you drill holes for glass standoffs?

A: Yes, we precisely drill countersunk or straight holes before tempering and laminating to fit your mounting hardware perfectly.

Q3: What is the standard thickness for balcony glass?

A: Typically 13.52mm (6+1.52+6) or 17.52mm (8+1.52+8) tempered laminated glass, depending on building codes and wind loads.

Q4: How do you handle edge misalignment?

A: We use advanced alignment techniques during assembly to keep the offset <1mm, ensuring a smooth edge for frameless applications.

|

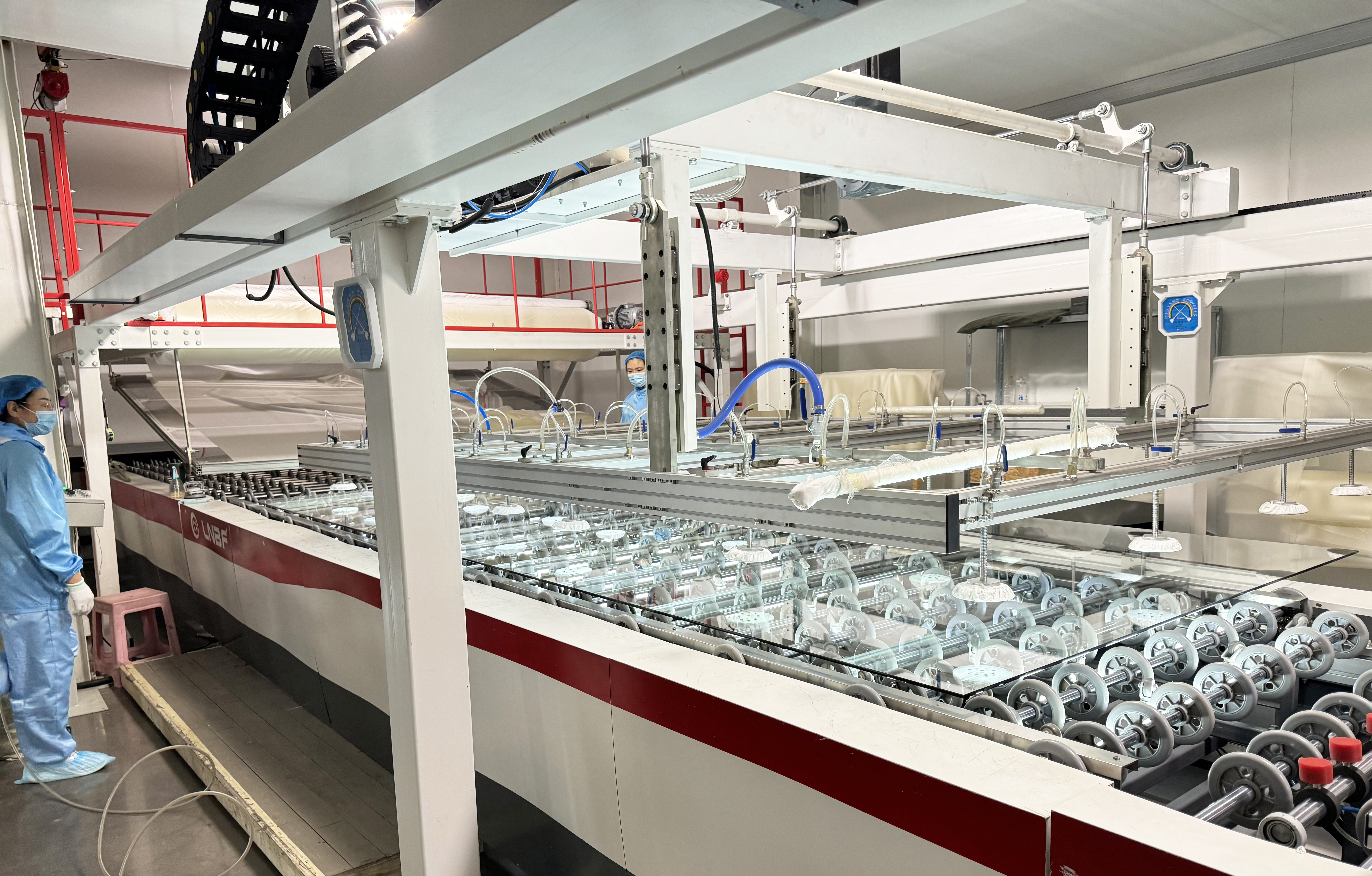

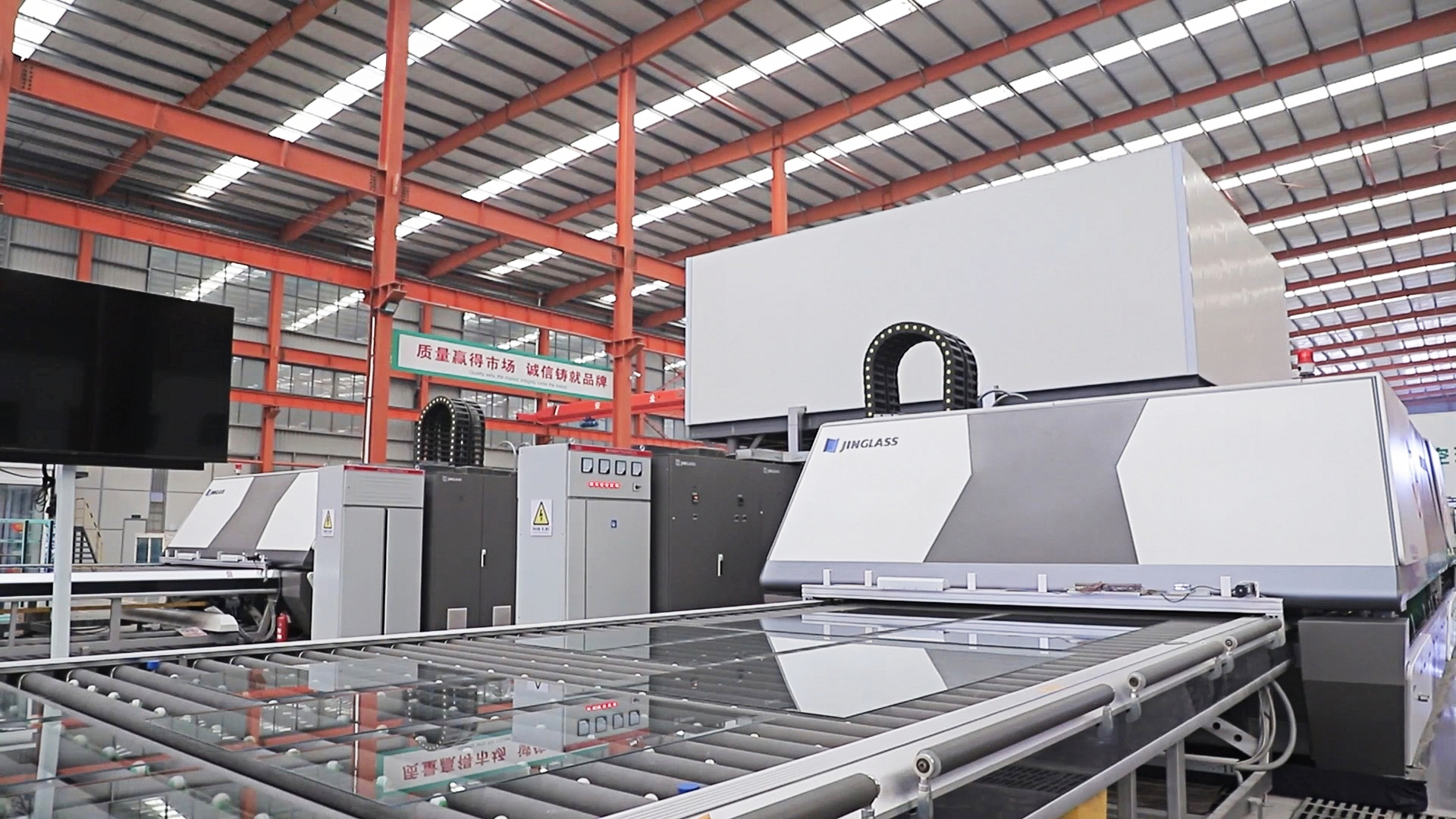

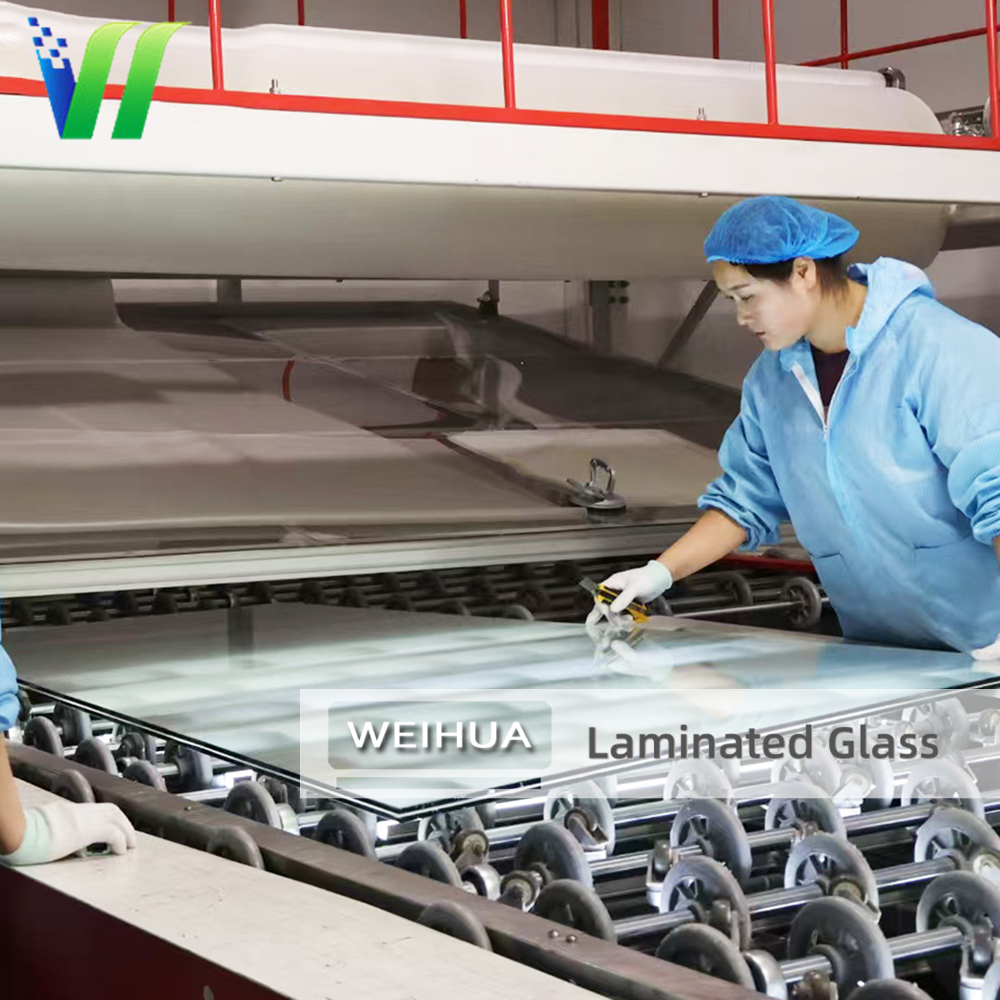

 Production Process

|

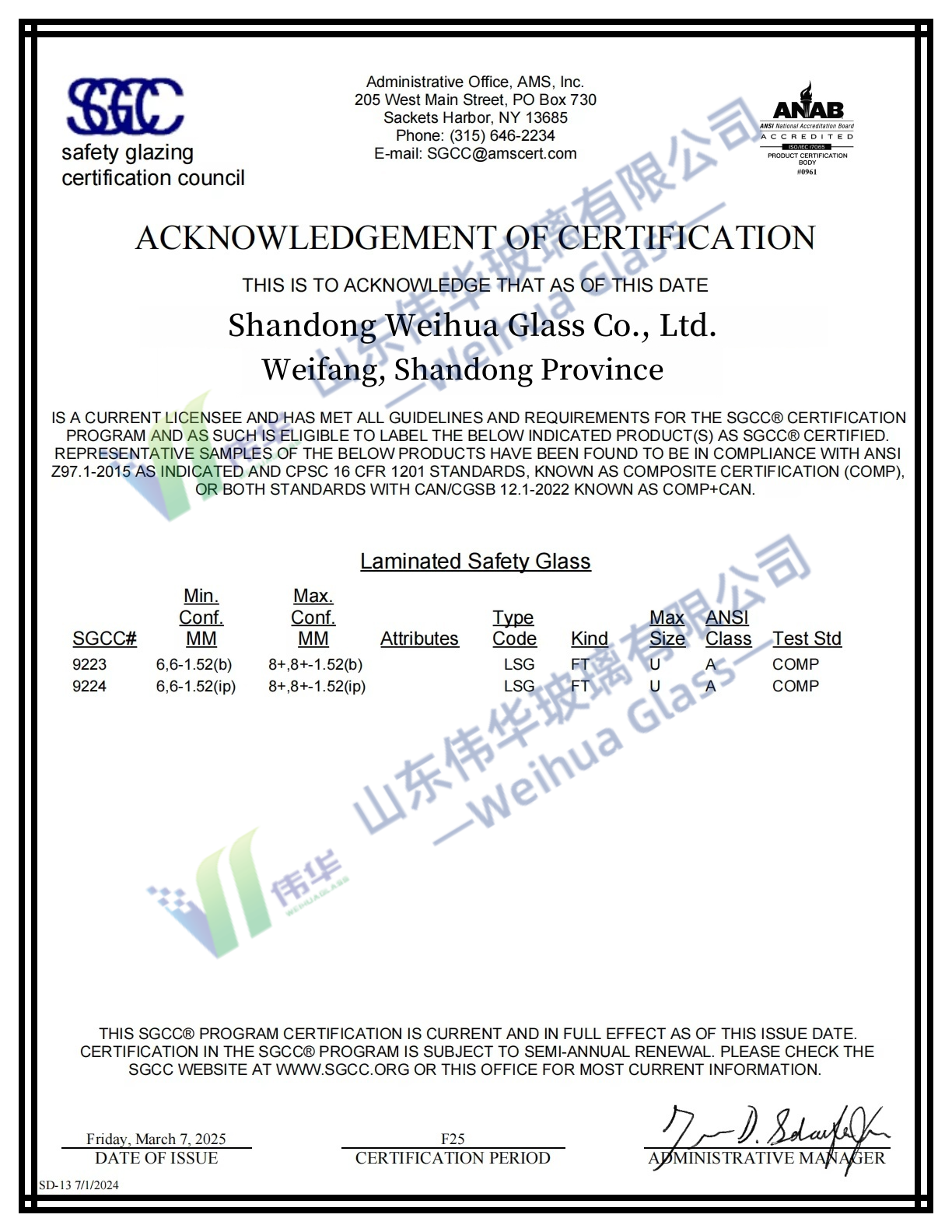

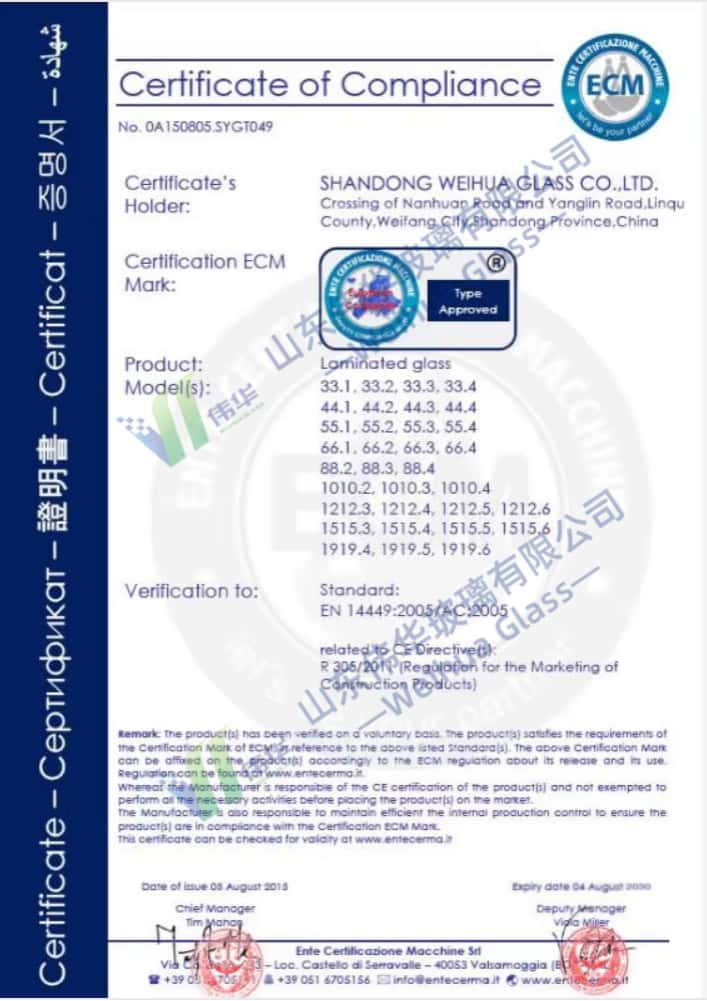

 Certifications

|

 Data Sheet

Category	Property	Value / Example	Technical Description
Size	Minimum	300 x 300 mm	Most sizes can be customized
	Maximum	3300 x 13000 mm
Material Type	Glass Substrate	Tempered, Laminated, Double-glazed (IGU)	High strength, high safety, and insulation capabilities
	Interlayer Type	PVB (Standard), SGP (High Strength), EVA (Flexible)	SGP is 5 times stronger than PVB
Composition & Thickness	Single Layer (mm)	3, 5, 5, 6, 6	Thickness affects load capacity and impact resistance
	Double Layer (mm)	6+6, 8+8
	Interlayer Thicknesses	PVB: 0.38/0.76/1.52 mm; SGP: 1.52/2.28 mm
	Laminated Thickness (Examples)	3+0.38+3 mm to 10+1.52+10 mm
Optical Performance	Visible Light Transmittance (VLT)	Clear: 88%~92%; Colored: 40%~70%; Frosted: 50%~60%	Customizable color/pattern
	UV Blockage Rate	Standard PVB: >= 99%; Specialty Interlayer: >= 99.9%	Prevents fading of indoor items
	Optical Distortion	<= 0.1% (Meets ASTM C1048)	High-precision lamination reduces deformation
Color	Examples	Clear, Extra clear, Green, Grey, Blue, Bronze	Customized
Safety & Security	Impact Level (EN 12600)	1B1 (5mm+0.76mm PVB); 2B2 (8mm+1.52mm PVB)	1B1 (1kg drop @ 1.2m); 2B2 (2kg drop @ 1.2m)
	Post-Breakage	PVB: Fragments adhere; SGP: Cracks without shattering	Complies with BS 6206 safety standard
Mechanical & Durability	Bending Strength (MPa)	6mm Laminated: >= 50; 8mm: >= 70	Static load test (ASTM C1172)
	Edge Delamination Strength (N/mm)	PVB: >= 15; SGP: >= 25	Strength remains >= 90% after humidity aging test
Processing Details	Pre-Press Temp/Pressure	PVB: 120~140 C / 1.2~1.5 MPa	Ensures bubble-free bonding
		SGP: 135~150 C / 1.5~2.0 MPa
	Autoclave Cycle	PVB: 2~4 hrs (12~14 Bar); SGP: 4~6 hrs

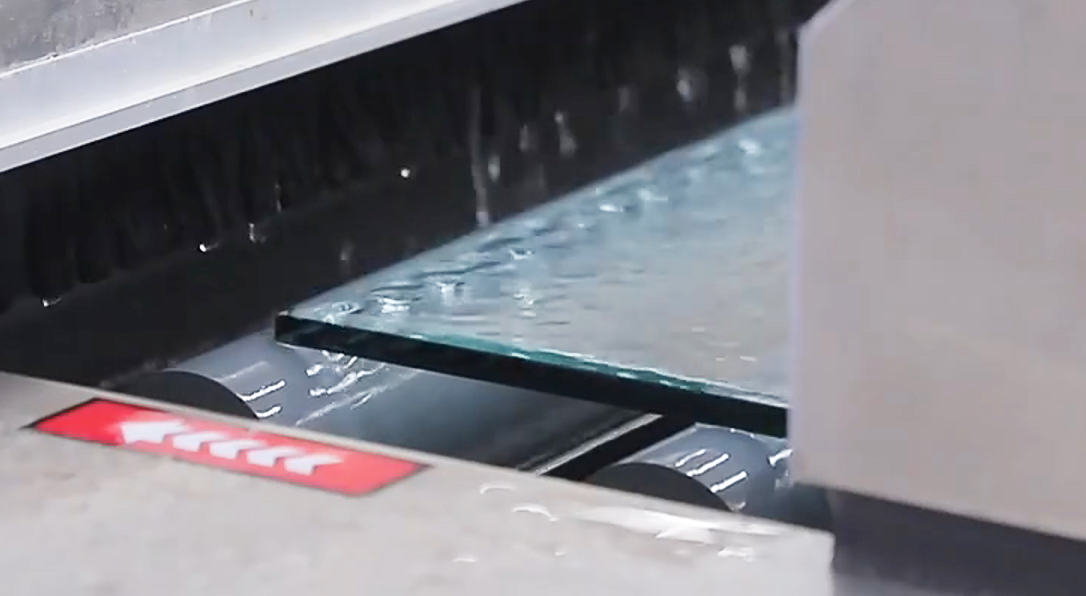

Finishing & Support	Edge Treatment	Fine grinding (R angle <= 0.5 mm), Mirror polishing	Reduces stress concentration during installation
	Surface Treatment	Sandblasted, Frosted, Low-E	Enhances privacy or energy efficiency
	Support Structure	Stainless steel, Aluminum alloy, Steel frame	Provides structural support
Building Performance	Basic Shatter Resistance	6mm T + 0.76mm PVB + 6mm T	U-value 2.8, Rw 34
	High Insulation	6mm Low-E + 1.52mm SGP + 6mm Low-E	U-value 1.6, SHGC 0.35
	Sound Insulation (Laminated + IGU)	5mm + 1.52mm (IGU) + 0.76mm PVB + 5mm	Rw 42, STC 38
Quality Standard	Certification	CE, SGS, CCC, ISO9001	Ensures compliance with safety and quality requirements

|

 Optional Surface

• SGP (SentryGlas): 5 times stronger and 100 times stiffer than PVB. Recommended for frameless exterior railings in high-wind areas.

• Translucent White (PVB): Provides privacy for balconies while allowing light to pass through.

• Colored Laminated: Custom colors available using Vanceva PVB interlayers.

|

 Testing Quality

• Boil Test: Samples are boiled for 2 hours to ensure no delamination occurs (meeting durability standards).

• Impact Test: Shot bag or pendulum tests to verify safety performance.

• Visual Inspection: 100% check for bubbles, dirt, or edge misalignment under strong light.
