Product Description

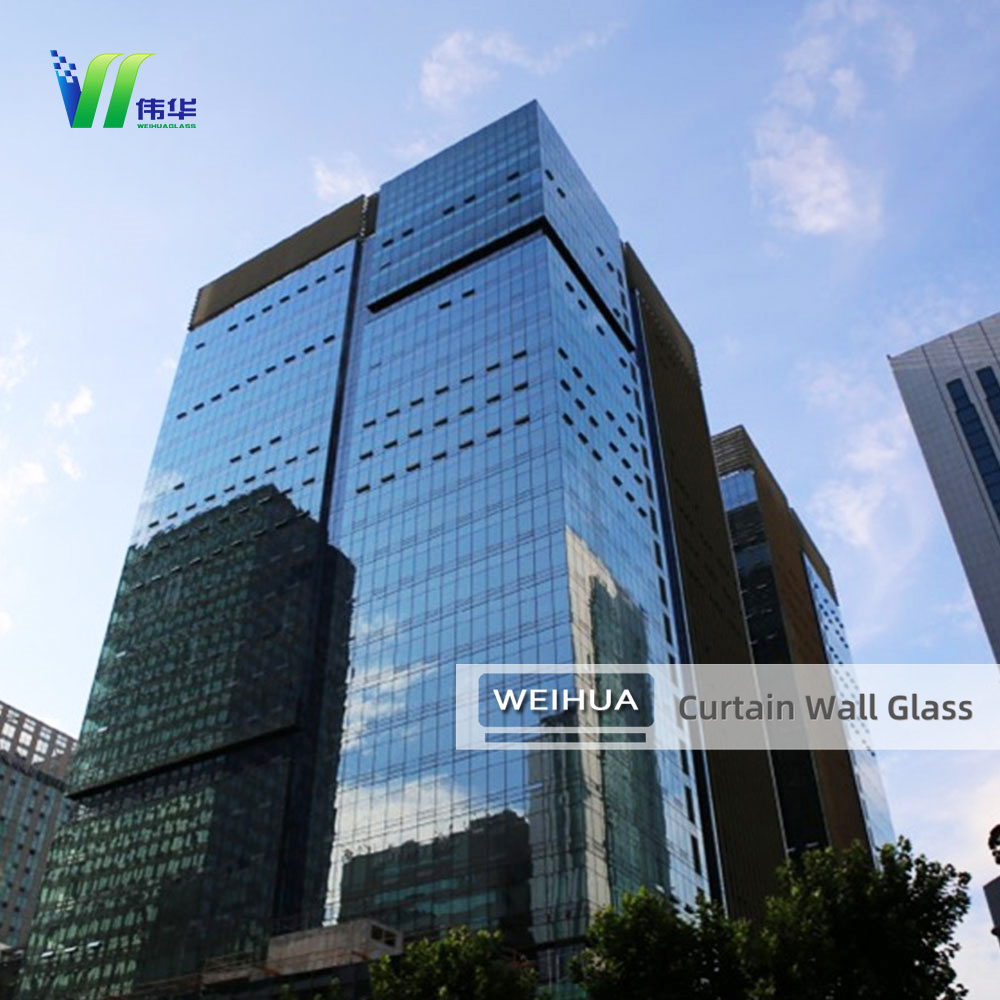

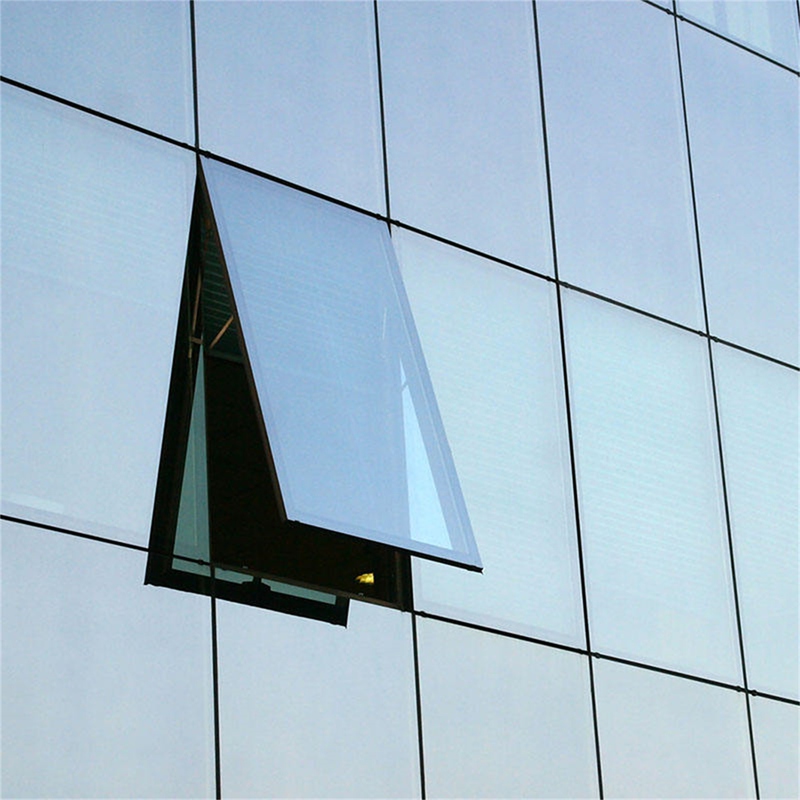

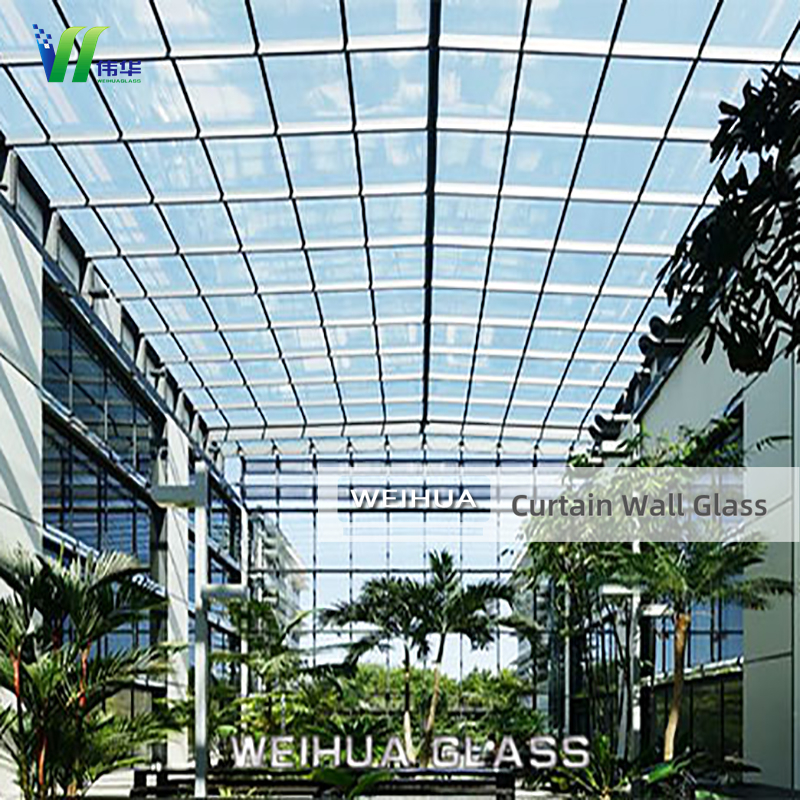

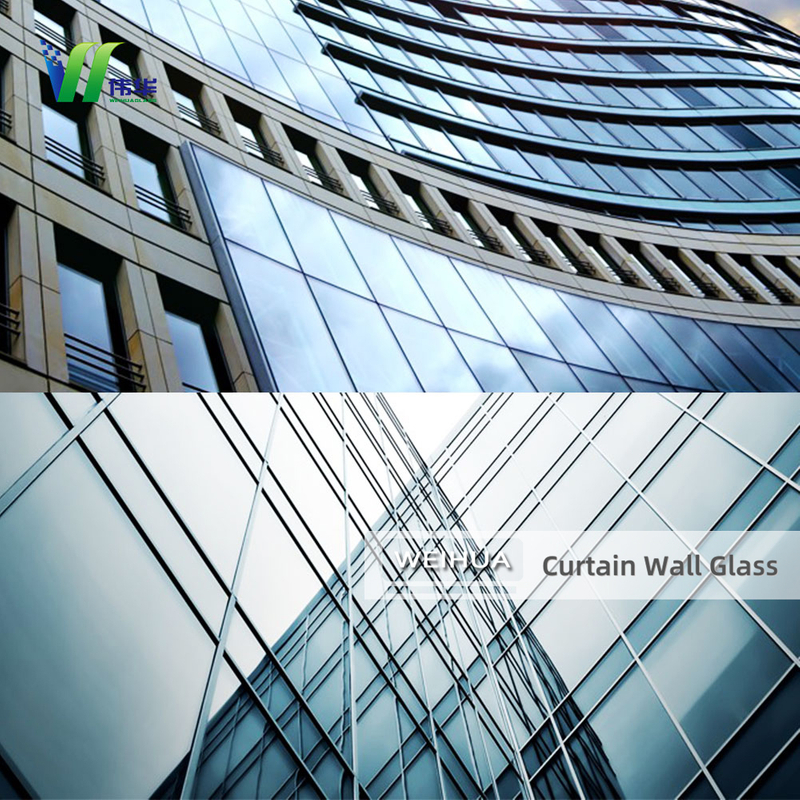

High-Performance Aluminum Glass Curtain Wall System for Commercial Facades
Engineered for modern skyscrapers, hotels, and shopping malls, our curtain wall systems offer the perfect balance of aesthetic versatility and structural performance. We provide end-to-end solutions including Unitized Facades, Stick Curtain Walls, and Spider (Point-Fixed) Systems.
Energy Efficiency: Featuring thermally broken aluminum profiles and Low-E insulated glass to minimize heat transfer (Low U-Value).
Design Flexibility: Customizable visible or invisible frames (Hidden Frame) to match architect visions.
Weather Resistance: Superior waterproofing and wind load resistance designed for extreme climates (Typhoon/Hurricane areas).
|

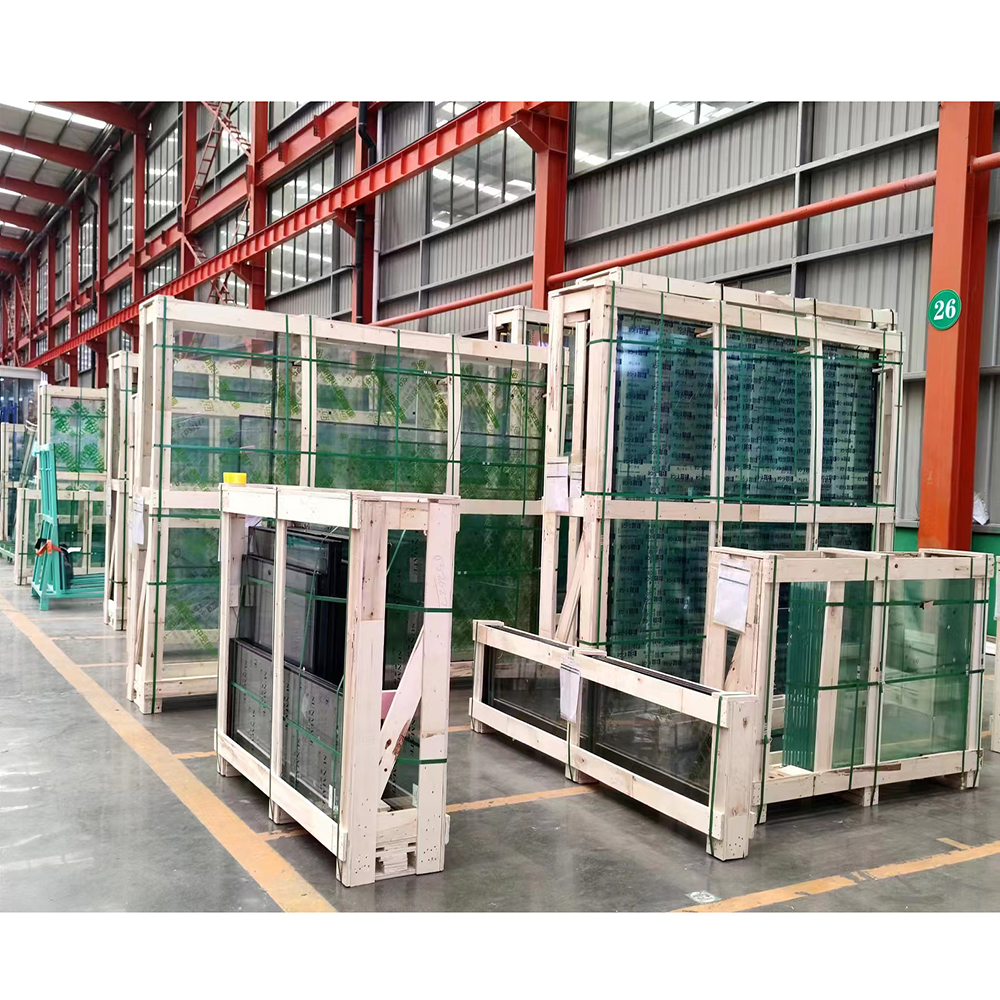

Product Packaging

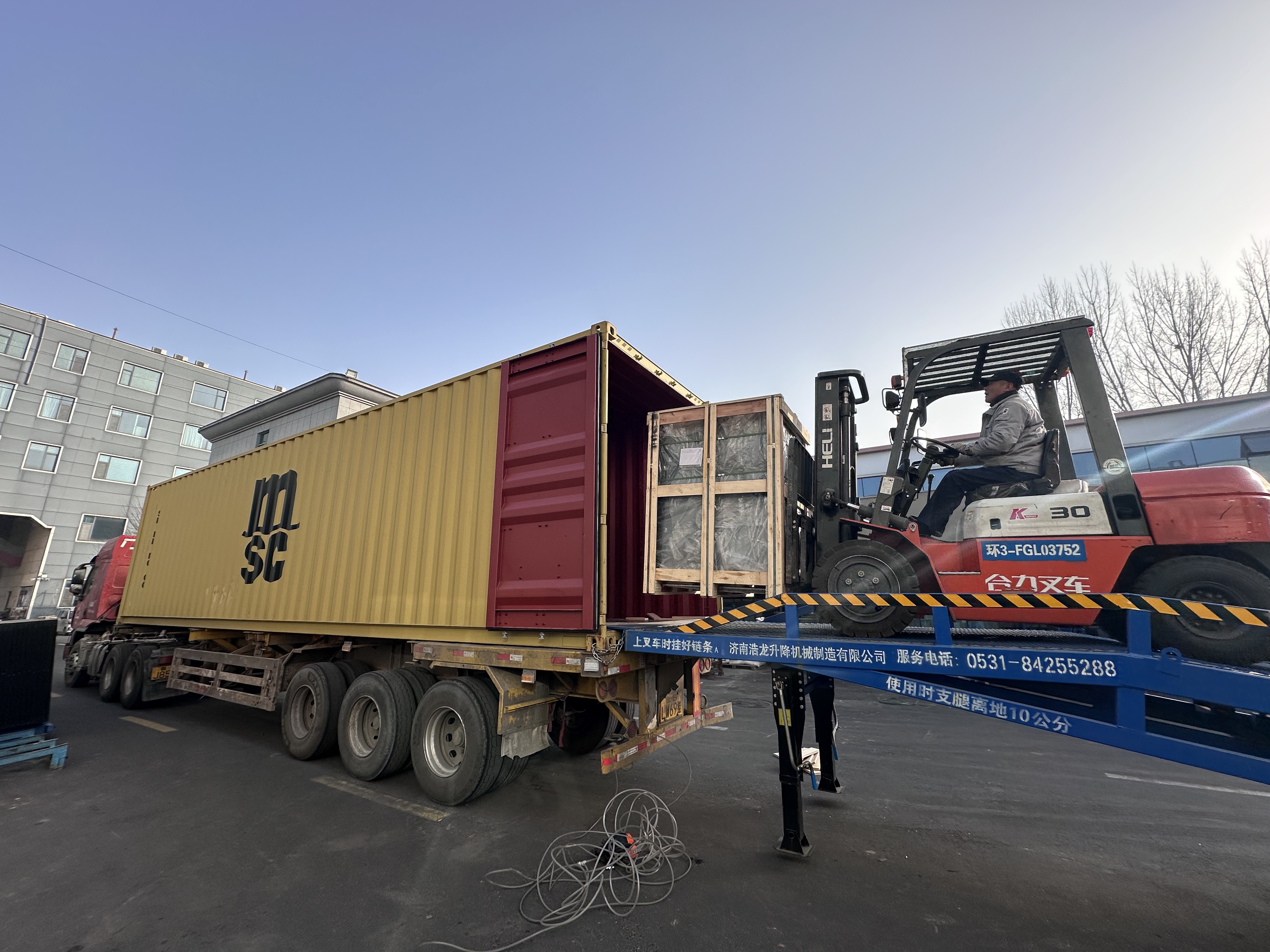

We use seaworthy export packaging to guarantee safe arrival:
Profiles wrapped in protective film and bundled in steel pallets.
Packed in steel stillages (A-frames) for vertical loading/unloading.

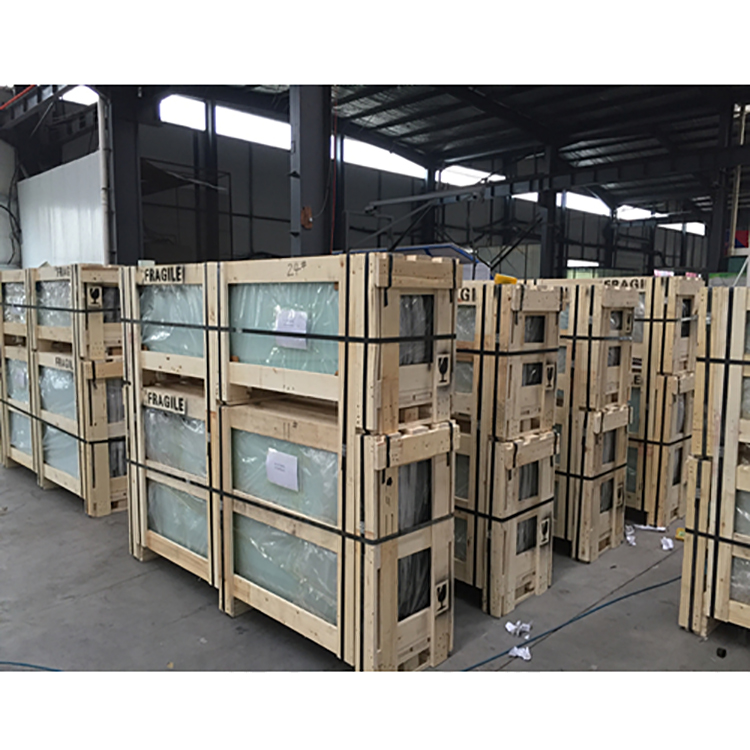

Plywood crates with mildew-proof powder and cork pads
|
Comment & FAQ
Q1: Can you provide design and shop drawings?
A: Yes, we have a dedicated engineering team to provide system design, node details, and shop drawings based on your architectural plans.

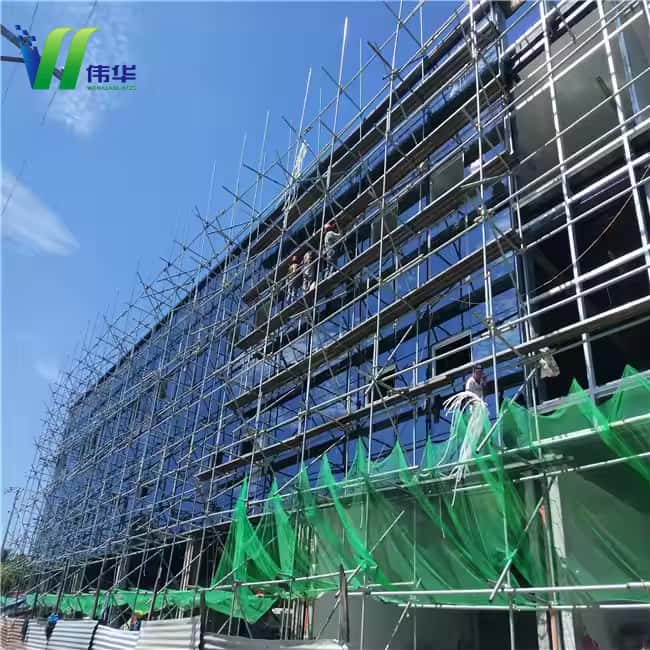

Q2: How do I install the curtain wall? Do you provide installation services?
A: We provide detailed installation manuals and videos. For large projects, we can send engineers on-site for technical supervision.
Q3: What is the lead time for a project?
A: Typically 25-35 days for production after drawing approval.
Q4: Is your system compatible with local building codes?
A: We design systems to meet specific local wind load and thermal requirements (e.g., U-value < 1.8 W/m²K).
|

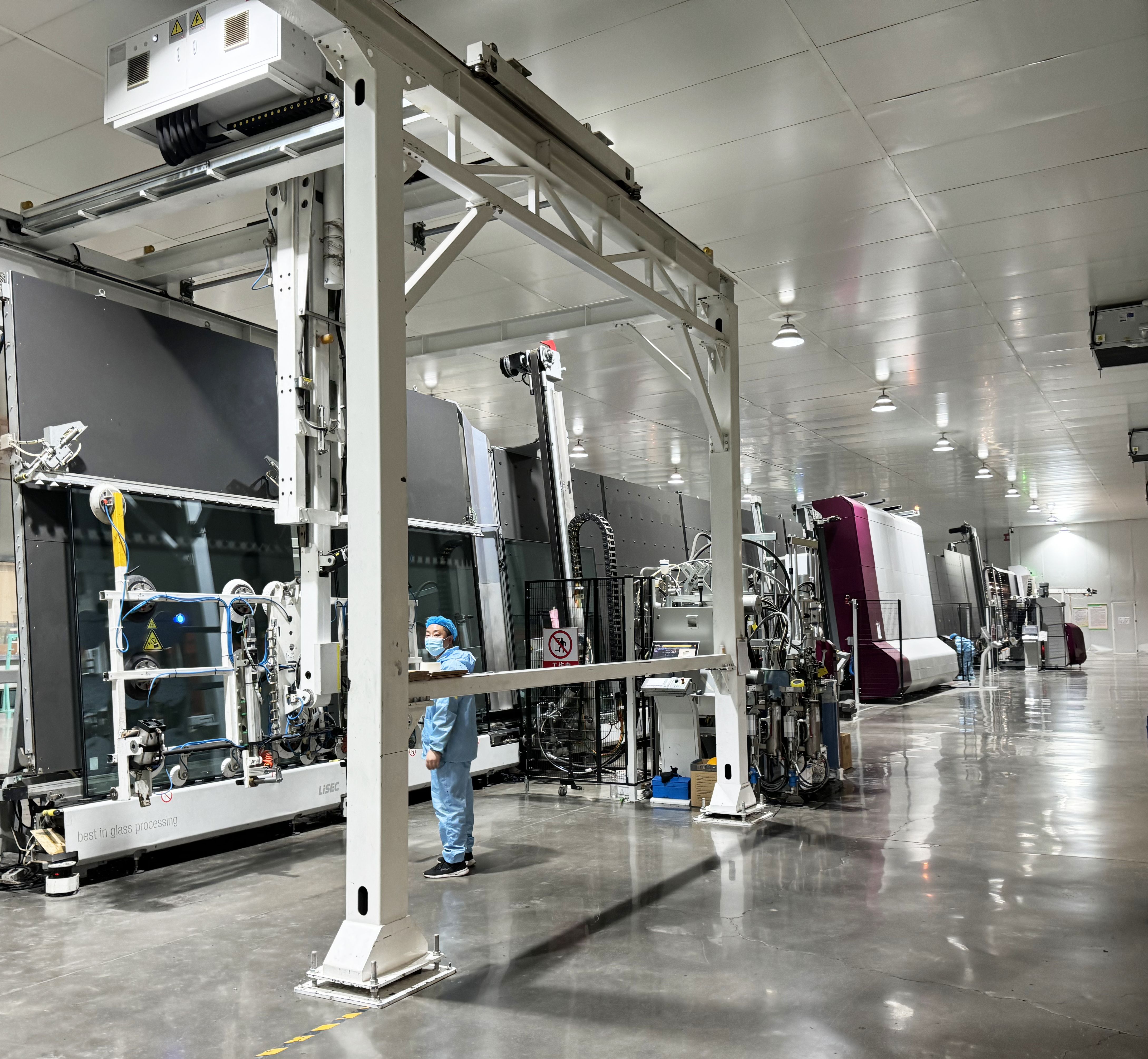

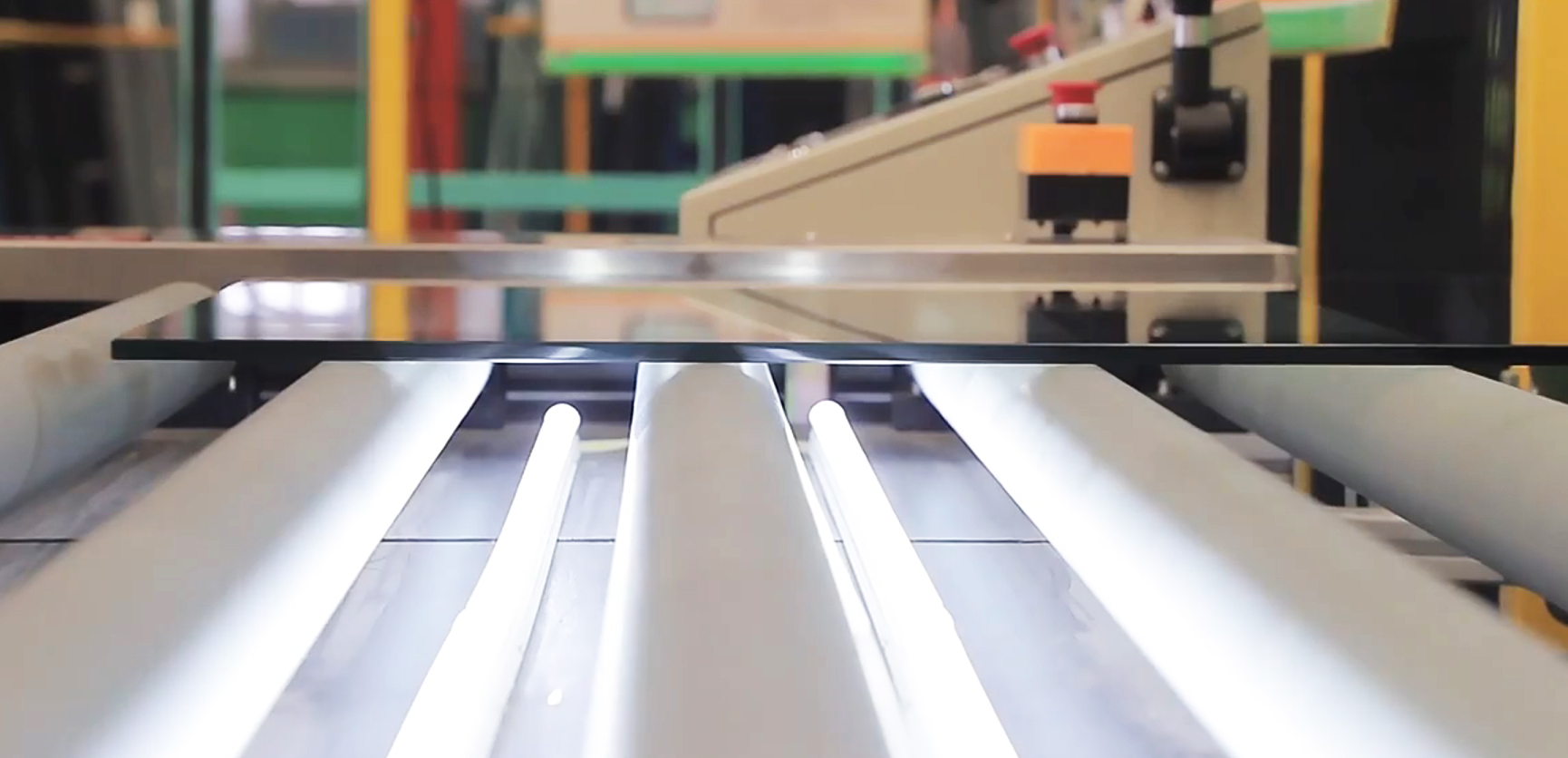

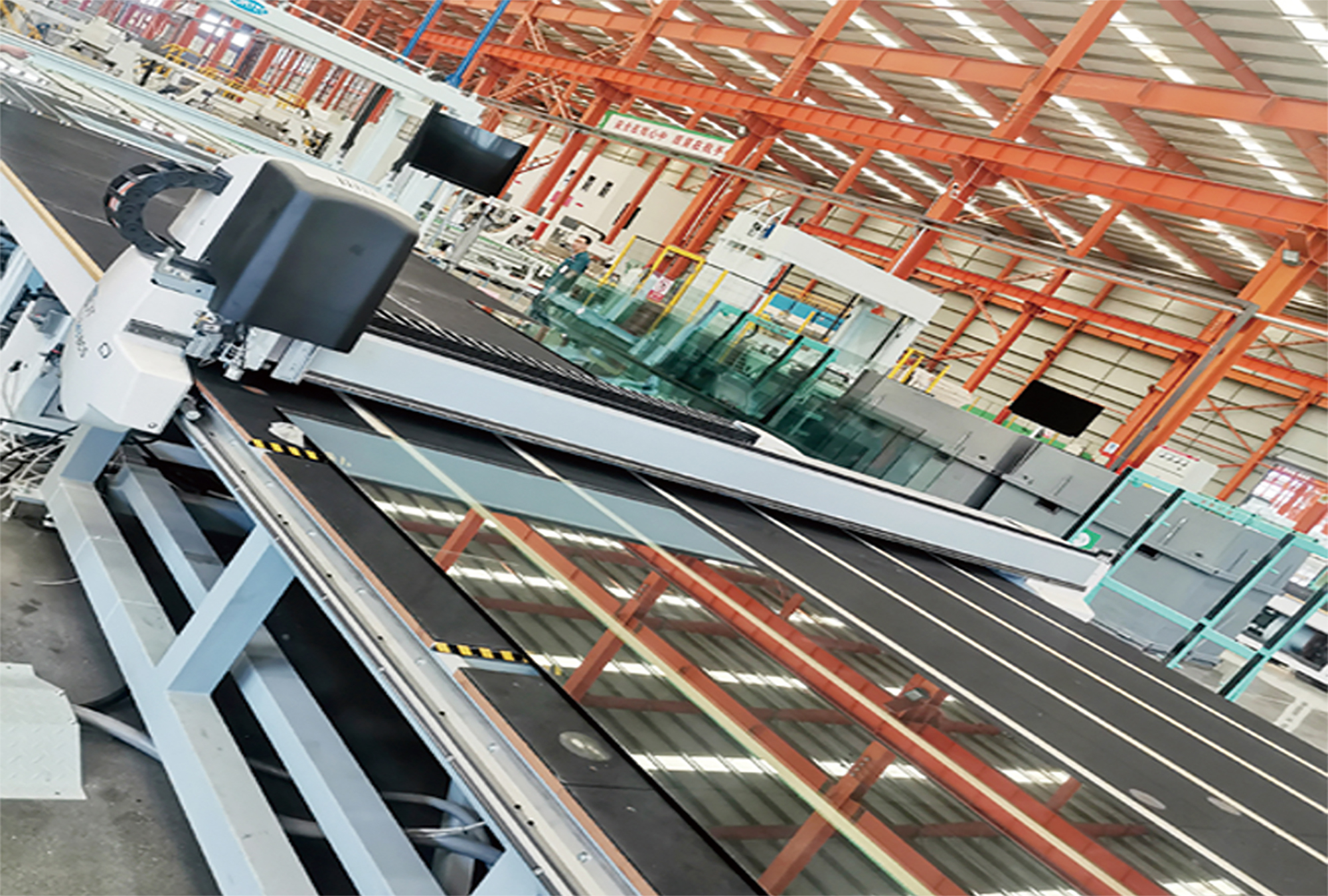

Production Process
|
Certifications

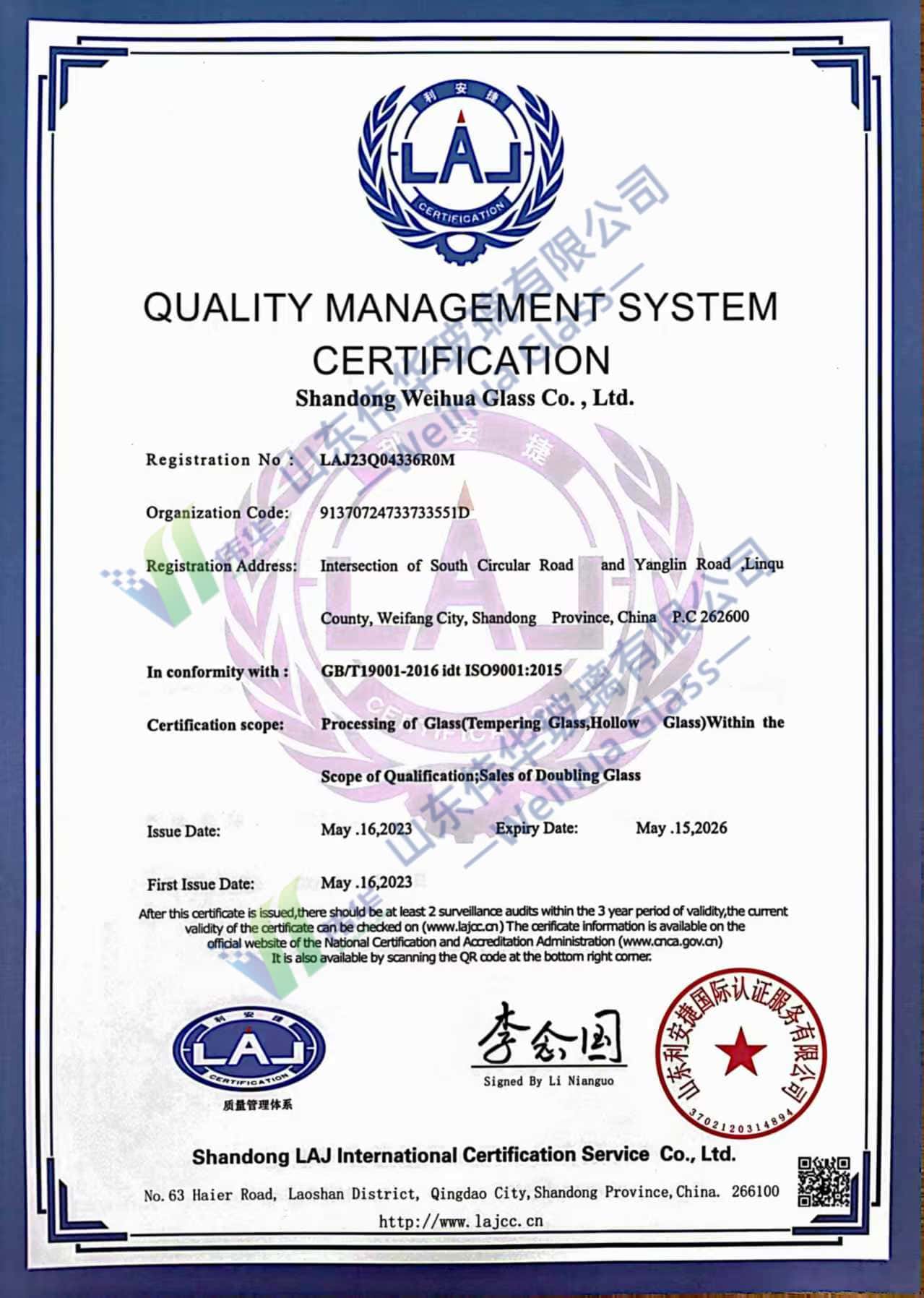

ISO 9001:2015, ISO 14001

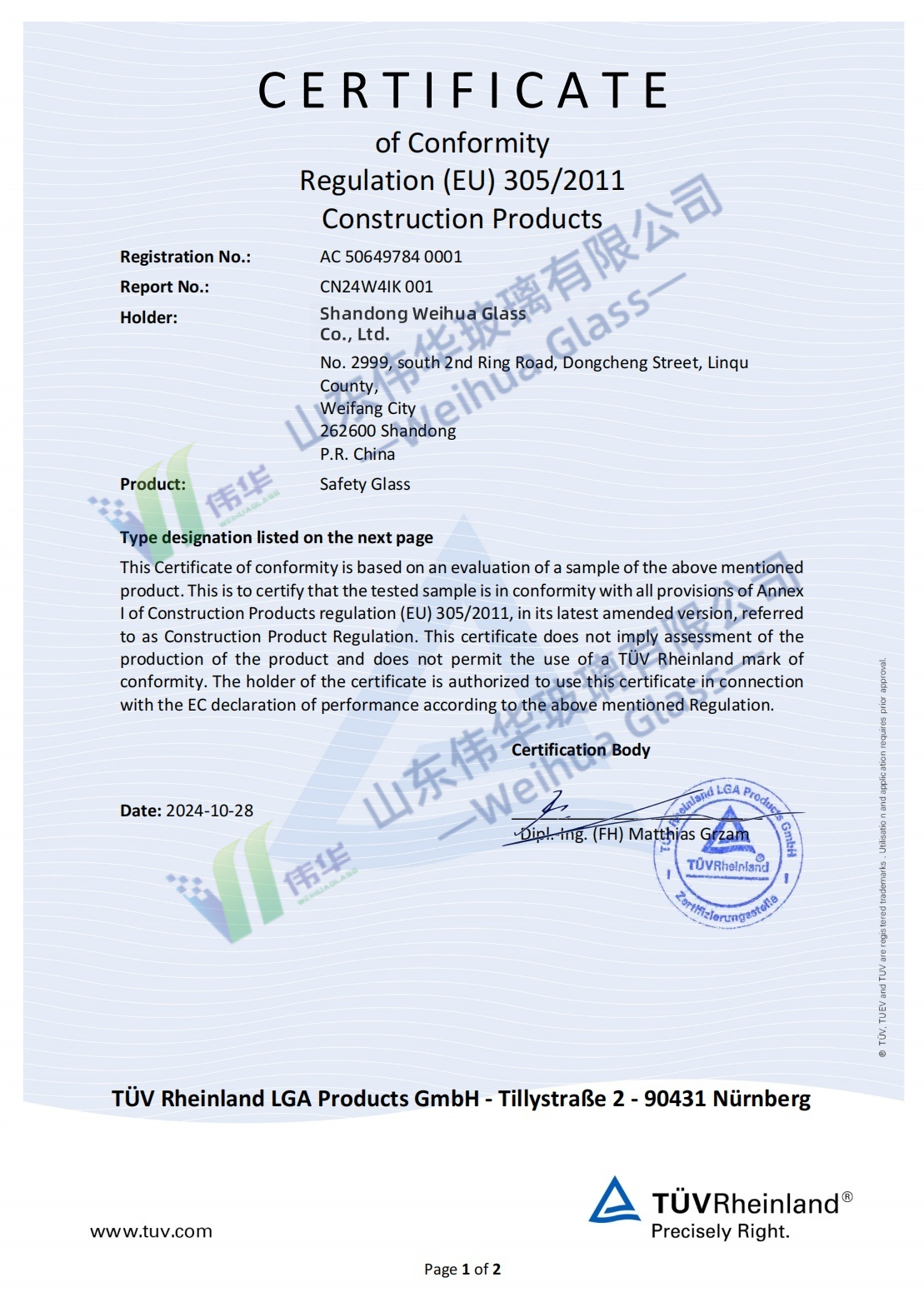

CE (EN1279)

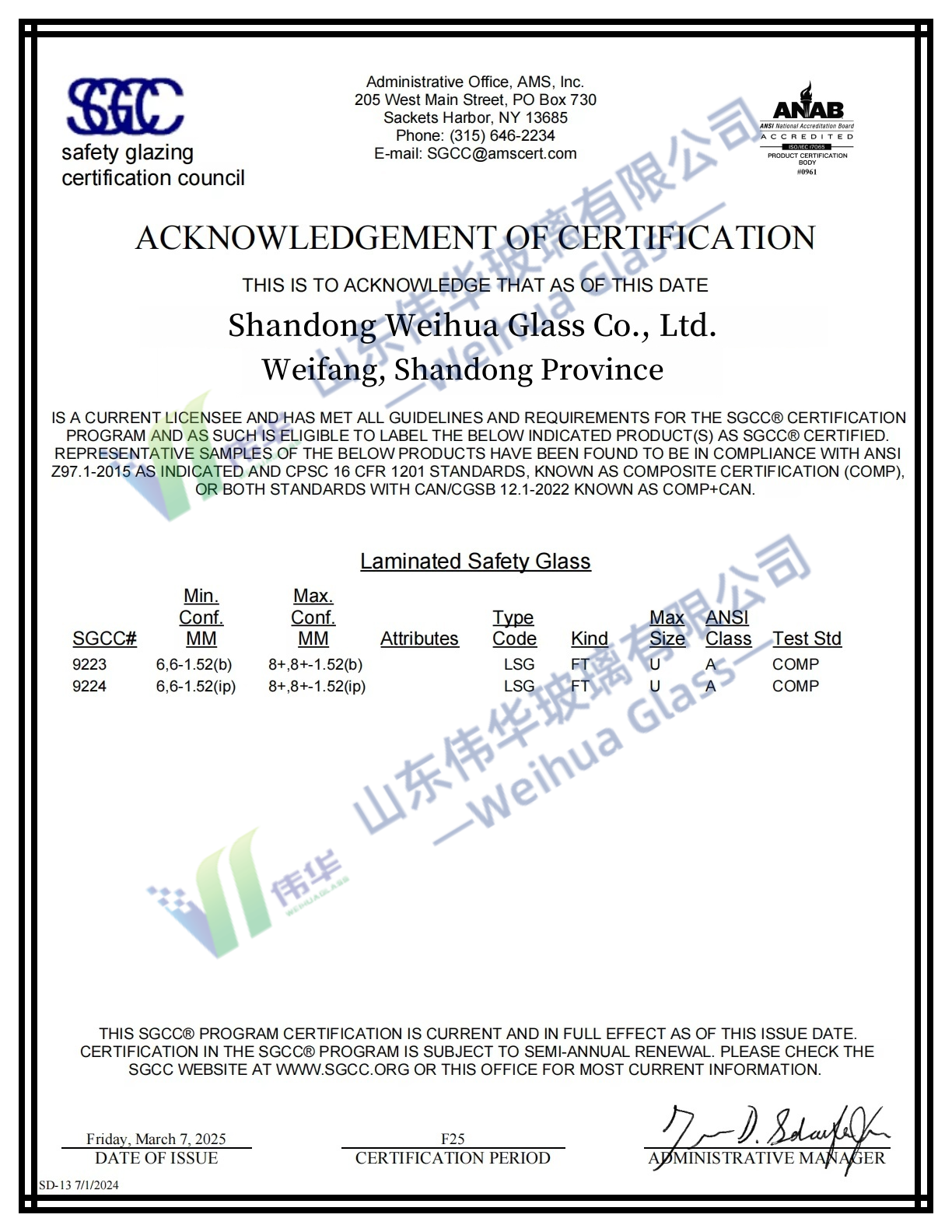

SGCC (ANSI Z97.1)

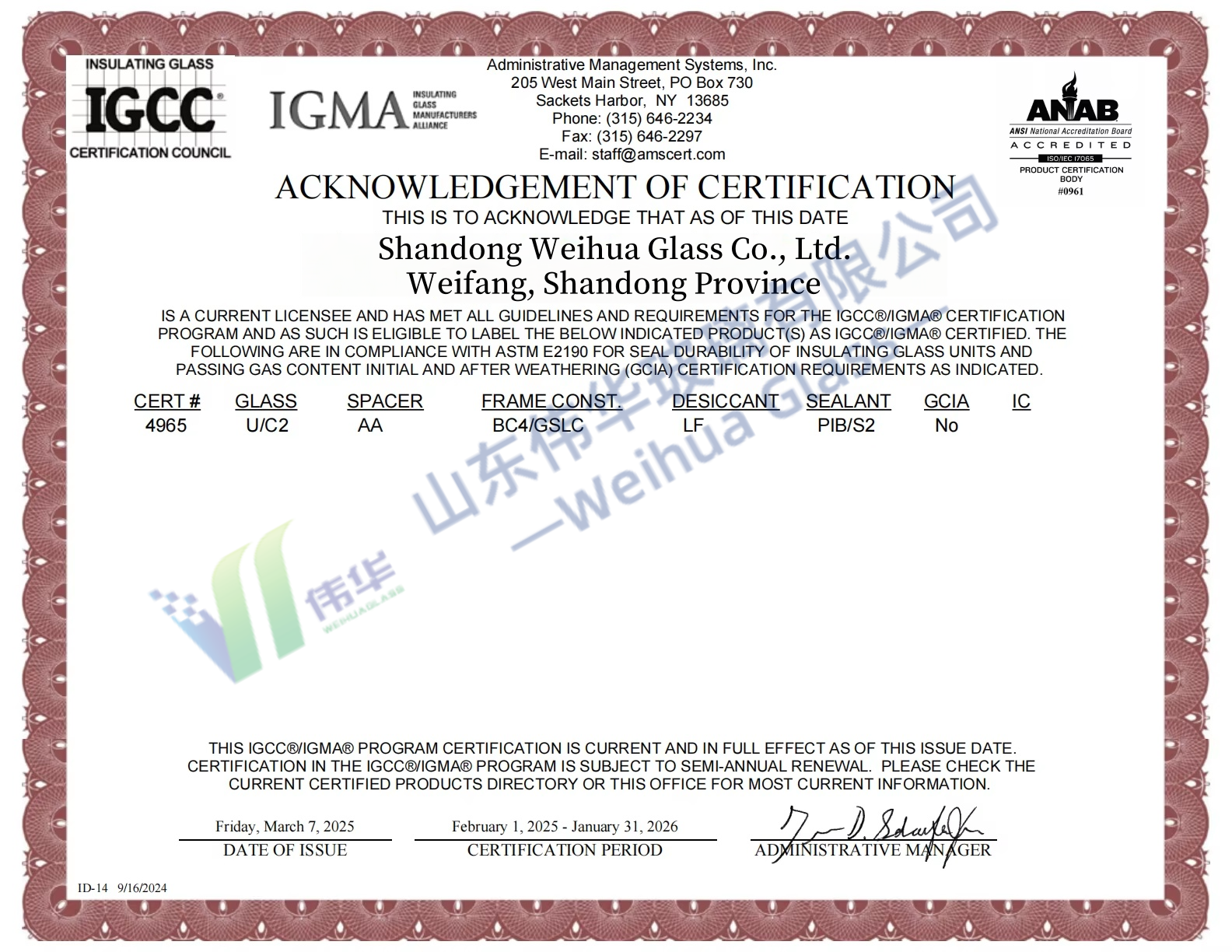

IG
|
Data Sheet
| Specification | Technical Details |
| System Type | Unitized System, Stick System, Semi-Unitized, Spider Fitting |
| Aluminum Profile | Alloy 6063-T5/T6; Thermal Break Strip: PA66 (Technoform) |
| Profile Thickness | 2.5mm - 4.0mm (Customized based on structural calculation) |
| Surface Finish | PVDF (Kynar 500), Powder Coating, Anodizing |

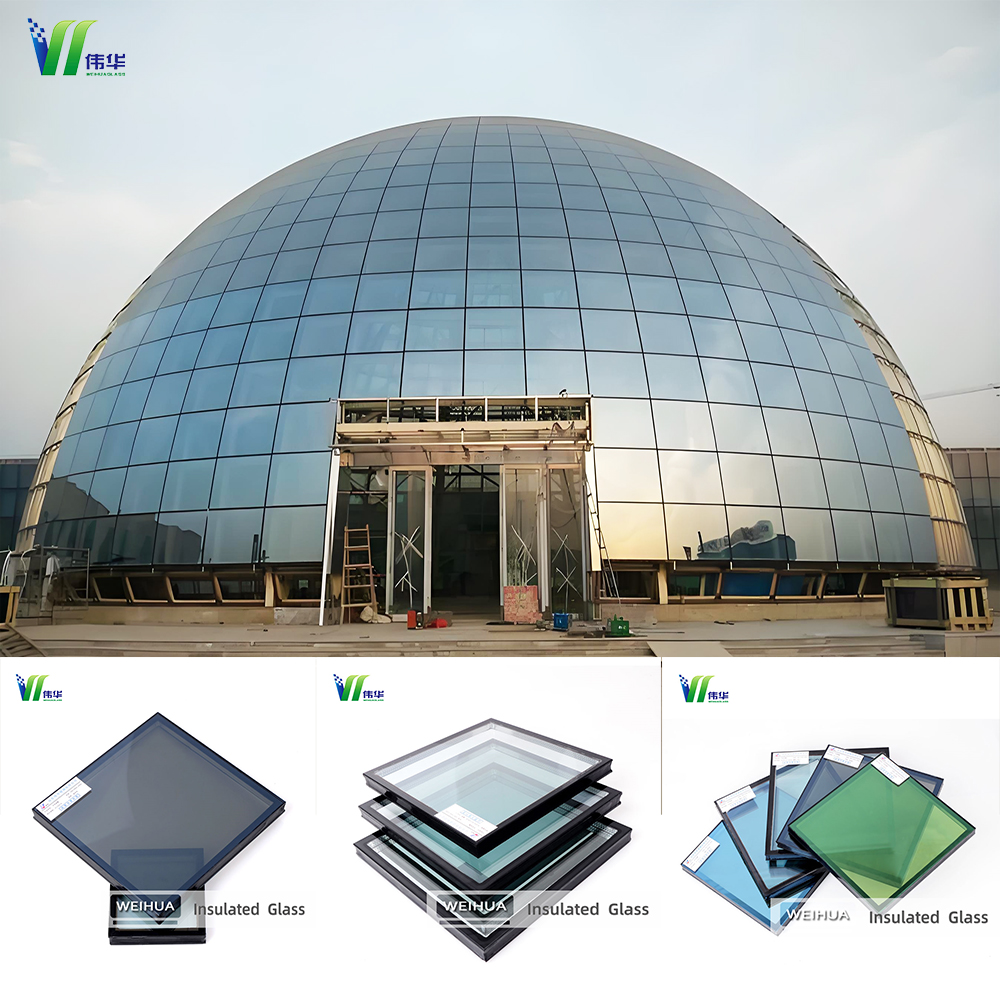

| Glass Config | Double/Triple Glazed Low-E Units (e.g., 6mm+12A+6mm) |
| Hardware | Brands: Kinlong, Roto, Siegenia, or Customer Specified |
| Wind Load | Designed up to 4000-6000 Pa (ASTM/AAMA Standards) |
| Water Tightness | Class 5 / RE1200 (Customizable) |
|
Optional Surface
We offer extensive customization for both the aluminum frame and glass appearance:1. Aluminum Finishes:
PVDF Coating: Best for corrosion resistance and color retention (20-year warranty).
Powder Coating: Wide range of RAL colors.
Anodizing: Metallic look (Silver, Champagne, Black) for a premium feel.
2. Glass Options:
Reflective Glass: For privacy and reducing solar heat gain.
Ultra Clear (Low Iron): For maximum transparency (Apple Store style).
Tinted Glass: Grey, Bronze, Blue, Green.
|
Testing Quality
Every system undergoes rigorous performance testing before mass production:
Air Infiltration Test: To ensure HVAC efficiency (ASTM E283).
Static & Dynamic Water Penetration: Simulating heavy rain storms (ASTM E331).
Structural Performance: Wind load testing to verify deflection limits (ASTM E330).
Adhesion Test: Structural silicone tensile testing for glass safety.
