Product Description

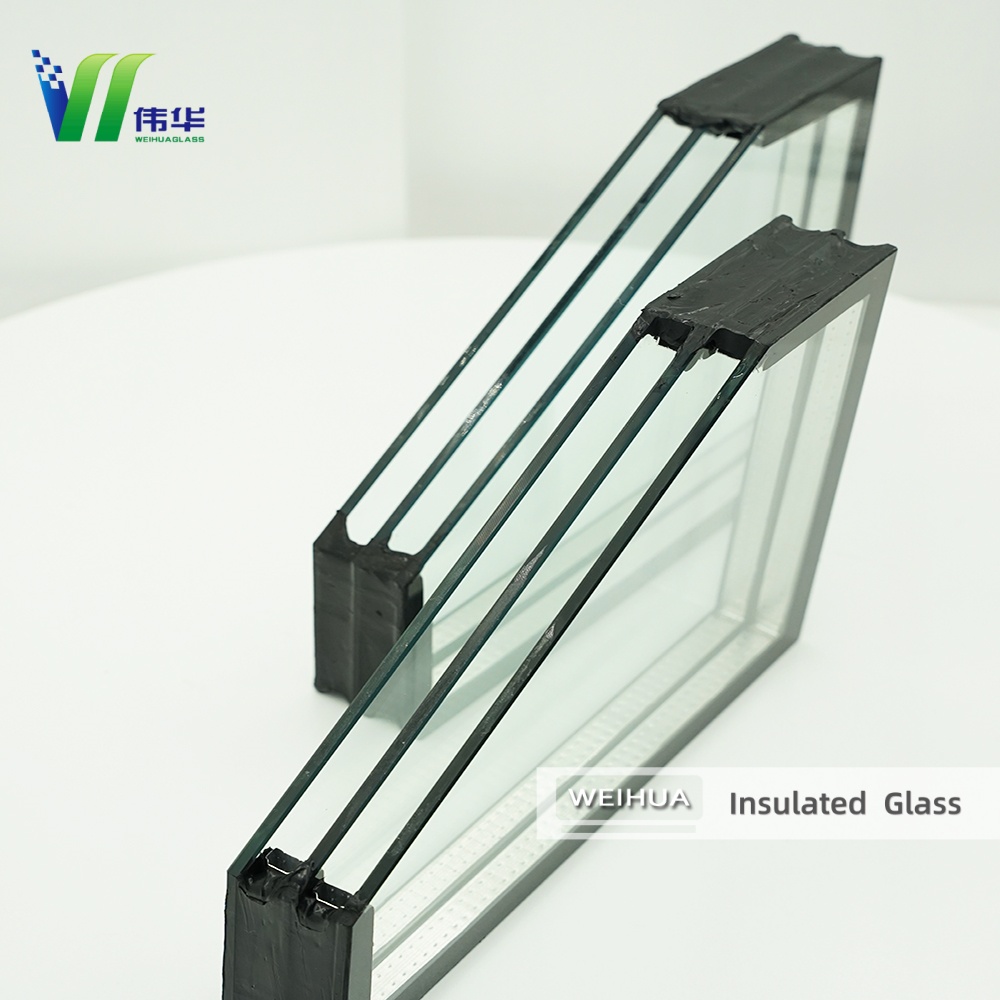

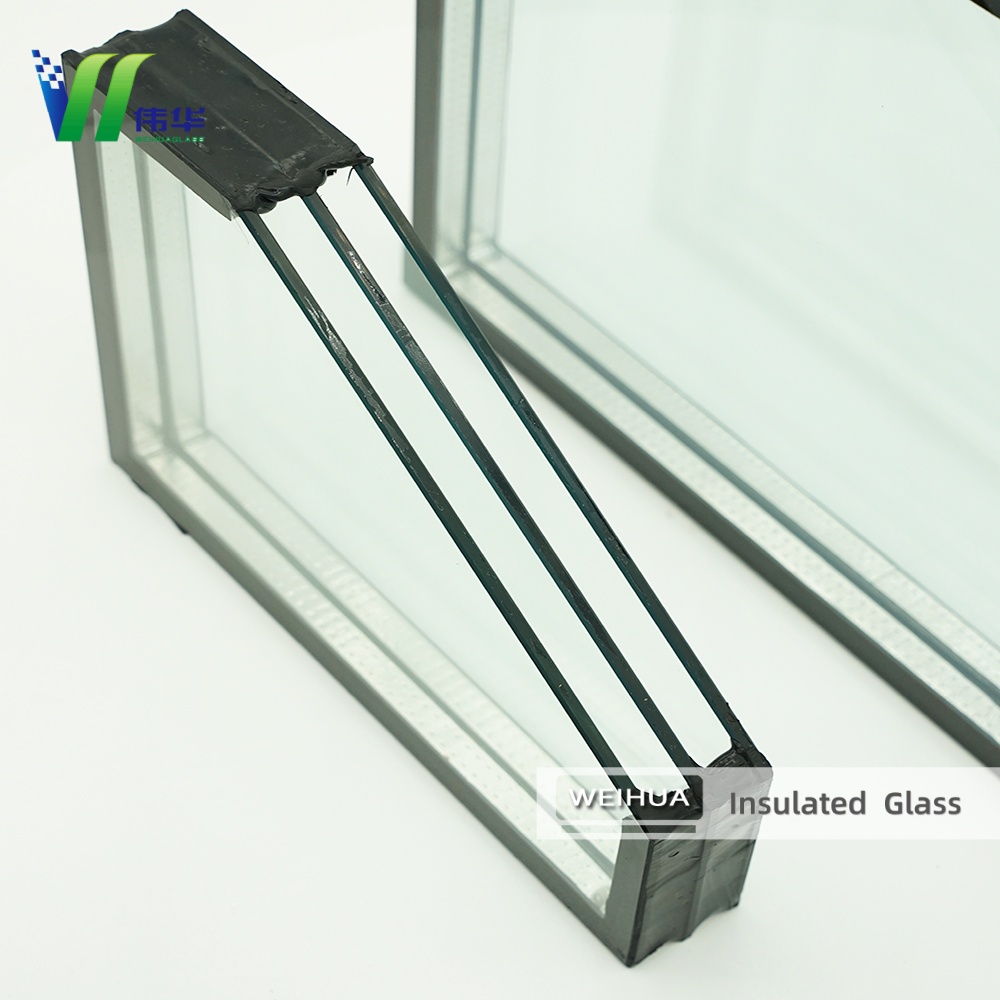

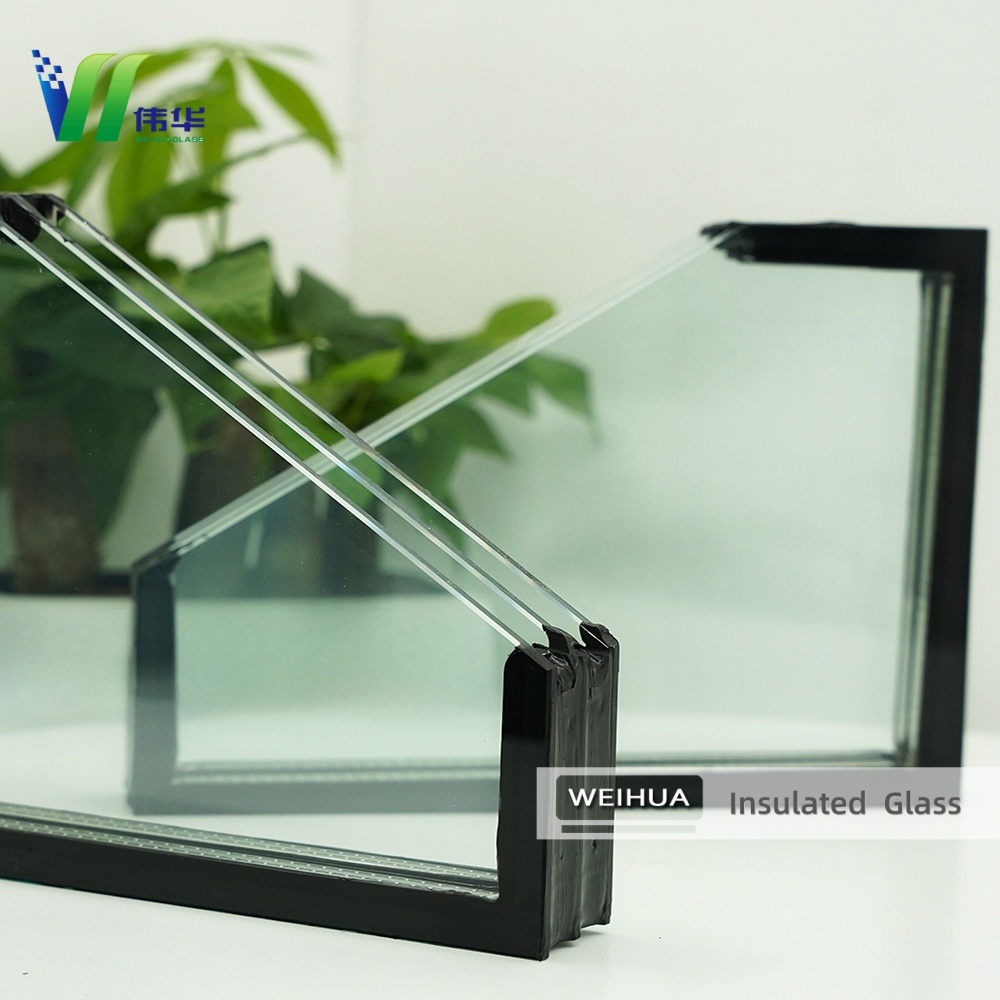

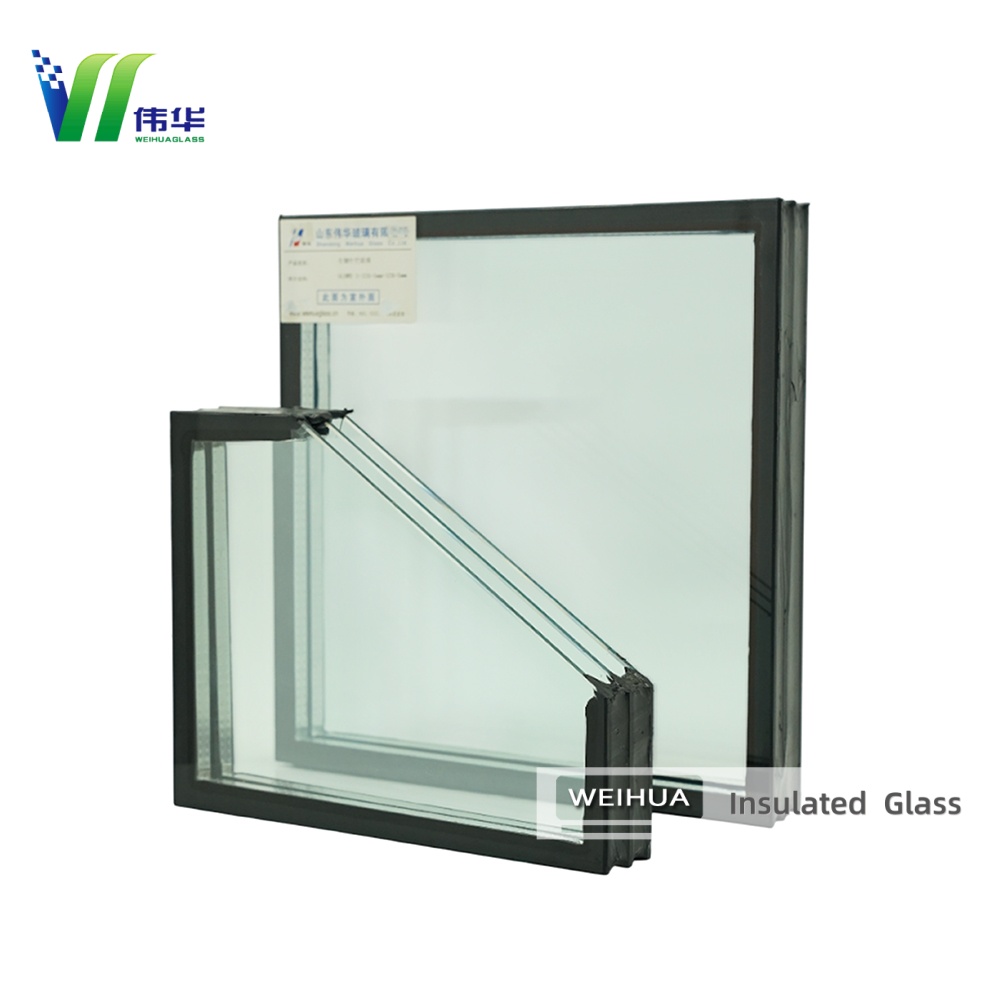

Equipped with two chambers filled with Argon gas and high-performance Low-E coatings, our triple glazing effectively blocks heat transfer. It keeps interiors warm in winter and cool in summer, significantly reducing HVAC energy costs.
Designed for modern sustainable architecture. The ultra-low U-value meets the rigorous standards of Passive House certification, making it the ideal choice for eco-friendly building projects.
The triple-pane structure creates multiple barriers against noise. Perfect for buildings near airports, highways, or busy city centers, providing a peaceful indoor environment.
Using Warm Edge Spacers drastically reduces the temperature difference at the glass edge, preventing condensation and mold growth even in extremely cold climates.
|

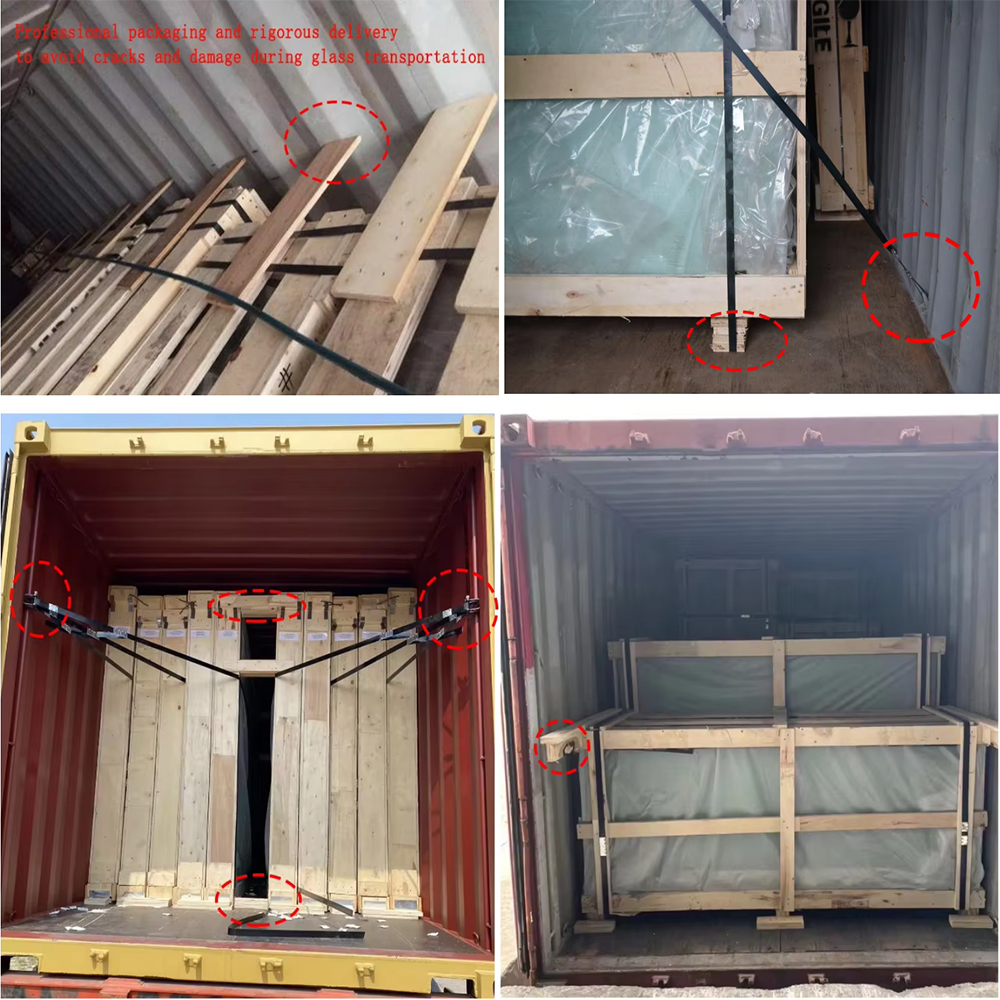

Product Packaging
|
Comment & FAQ
1. Q: Will the triple glazing be too heavy for my frames?
A: Triple glazing is approx 50% heavier than double glazing (approx 30-40kg/m²). Ensure your window profiles/hardware are rated for this load.
2. Q: What is the benefit of Argon gas?
A: Argon is denser than air, slowing down thermal transfer and improving the U-value by roughly 10-15%.
|
Data Sheet

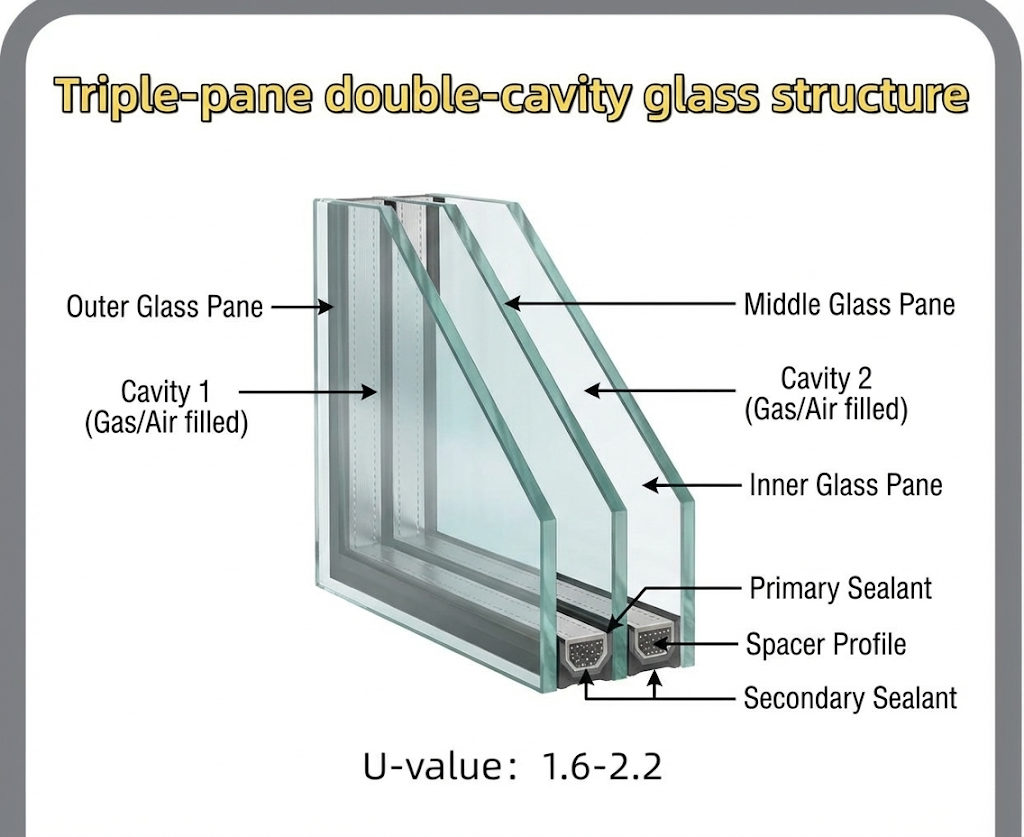

Sample Configuration: 6mm Low-E + 12A (Argon) + 6mm Clear + 12A (Argon) + 6mm Low-E
| Technical Property | Unit | Performance Value | Notes |
| Visible Light Transmission (VLT) | % | 60% - 72% | Depends on Low-E coating type |
| Visible Light Reflection (VLR) | % | 15% - 20% | External / Outdoor side |
| U-Value (Ug) | W/m²·K | 0.55 - 0.70 | Argon Filled + Double/Triple Silver Low-E |
| Solar Heat Gain Coeff. (SHGC) | - | 0.35 - 0.50 | Customizable solar control performance |
| Sound Insulation (Rw) | dB | 38 - 45 dB | Can be enhanced with laminated layers |
| Max Processing Size | mm | 2440 x 6000 | Subject to production capability |
| Total Thickness | mm | 42mm - 52mm | Common standard thickness |
