Product Description
Factory Direct: Cut-to-Size Low-E Insulated Glass for Windows & Facades

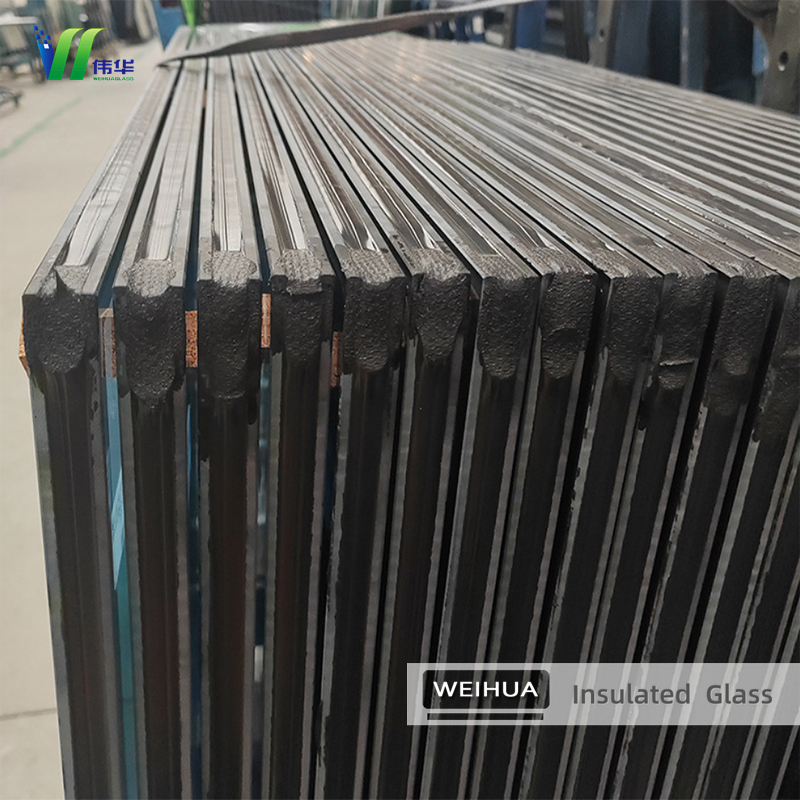

We specialize in supplying high-volume, custom-sized Low-E Hollow Glass (Insulated Glass Units) for window fabricators and building contractors. By combining high-quality Soft-Coat Low-E glass with automatic Argon Gas Filling, we deliver double glazing units that meet modern energy codes at a competitive wholesale price.
Why Choose Our Basic Custom Series?
Cut-to-Size Precision: We produce exact dimensions based on your window schedule or CAD drawings, ready for immediate installation.
Argon Gas Filled: We fill units with 90%+ Argon gas as a standard feature to improve thermal insulation (U-Value) and soundproofing.
Fast Turnaround: Optimized production lines for standard 5mm+12A+5mm and 6mm+12A+6mm configurations ensure quick delivery for your projects.
|
Product Packaging

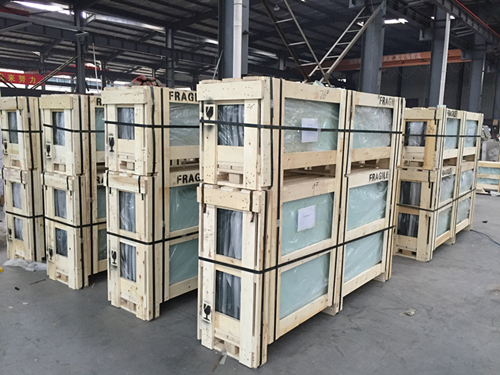

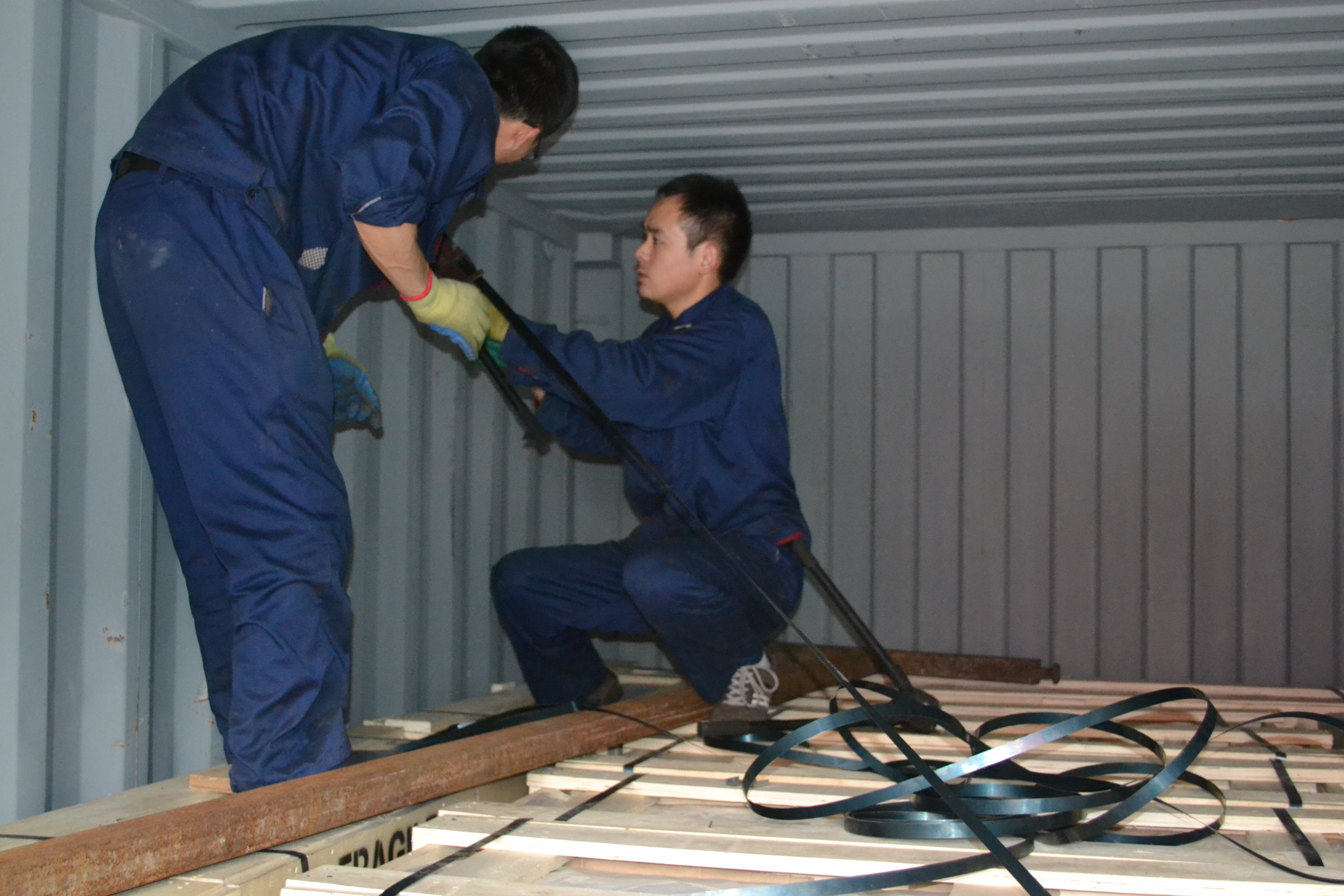

Sturdy plywood crates designed for container loading and forklift handling

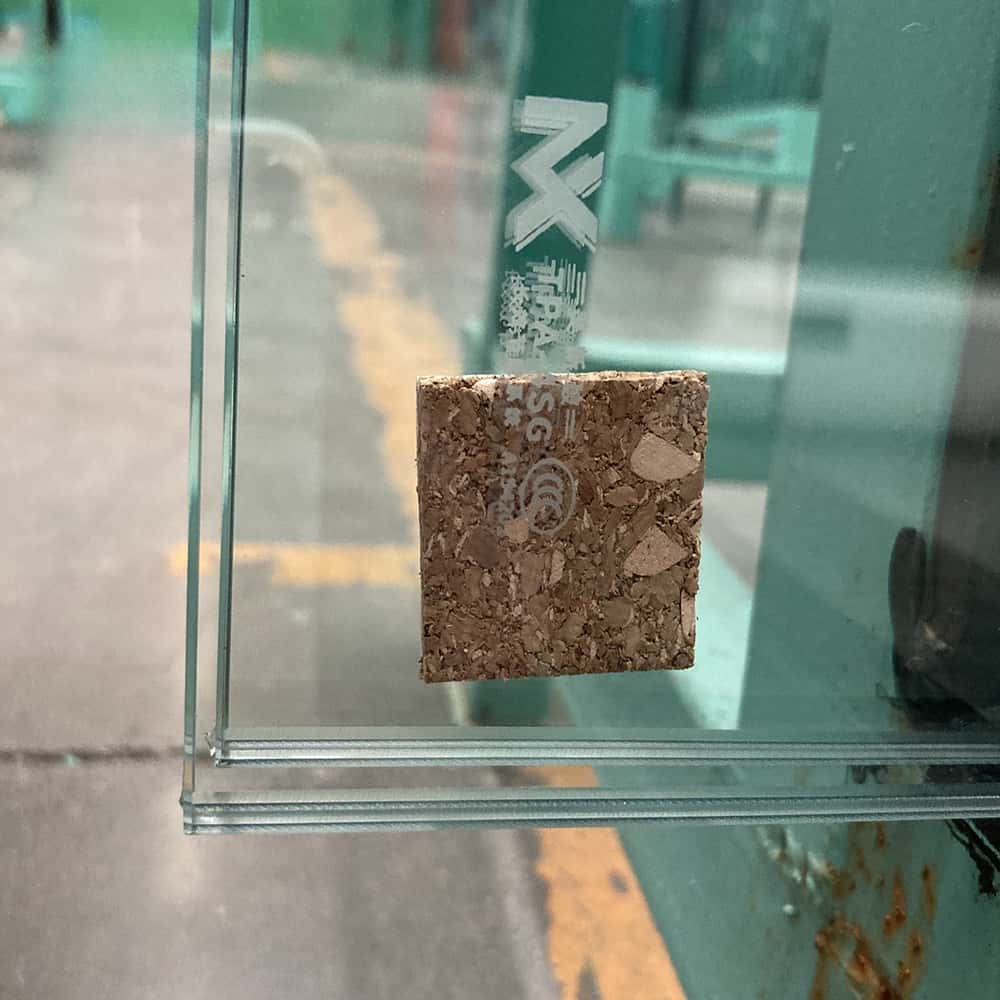

Cork pads separate each unit to prevent friction scratches during transport
Each unit can be labeled with size and window ID for easy on-site sorting
|
Comment & FAQ
Q1: What is your Minimum Order Quantity (MOQ)?
A: Our preferred MOQ is 1 crate (approx. 100 sqm) to ensure shipping safety, but we support mixed size orders.
Q2: Does your Low-E glass come with Argon gas?
A: Yes, for this product line, Argon Gas is included to provide better thermal performance at no extra huge cost.
Q3: What is the warranty period?
A: We provide a 10-Year Warranty against seal failure (internal fogging) and dust contamination.
Q4: Can you produce irregular shapes?
A: Yes, we can cut shapes like triangles, arches, or circles for custom window designs.
|
Production Process

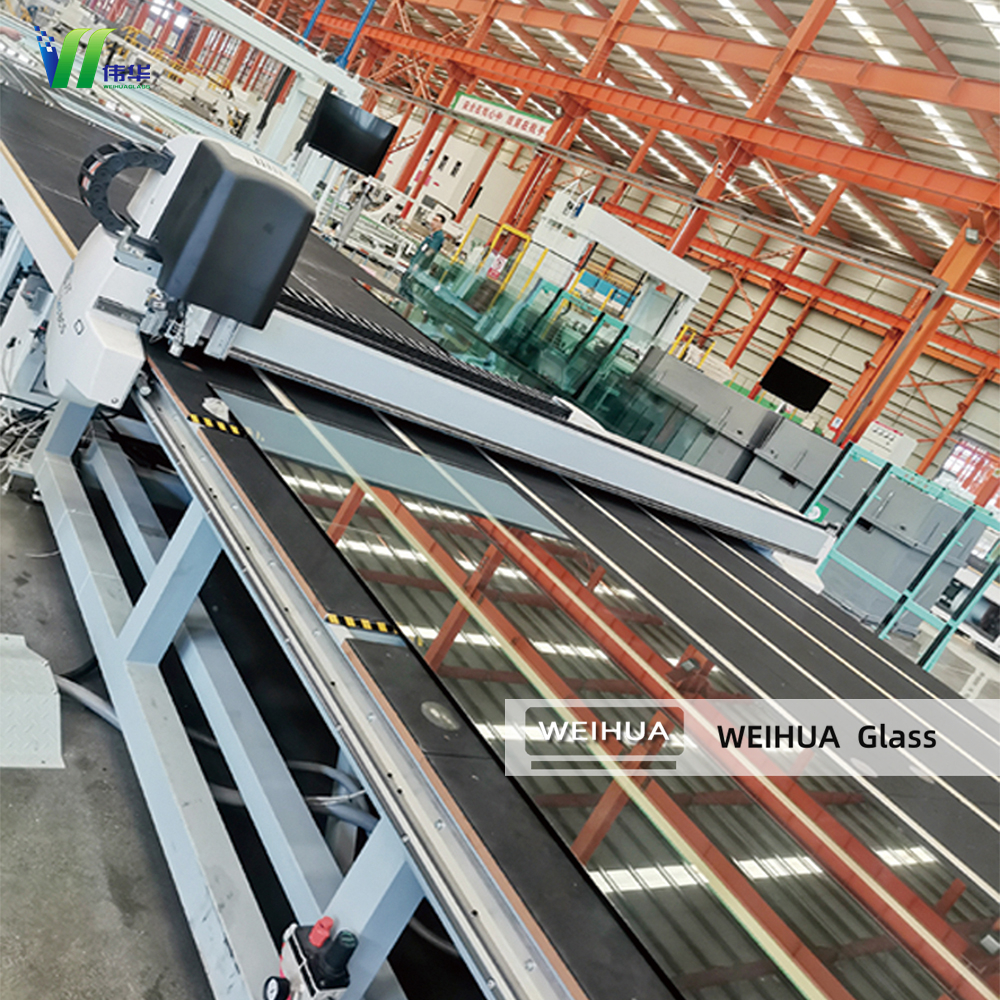

Automatic removal of the coating at the edge to guarantee strong sealant adhesion.

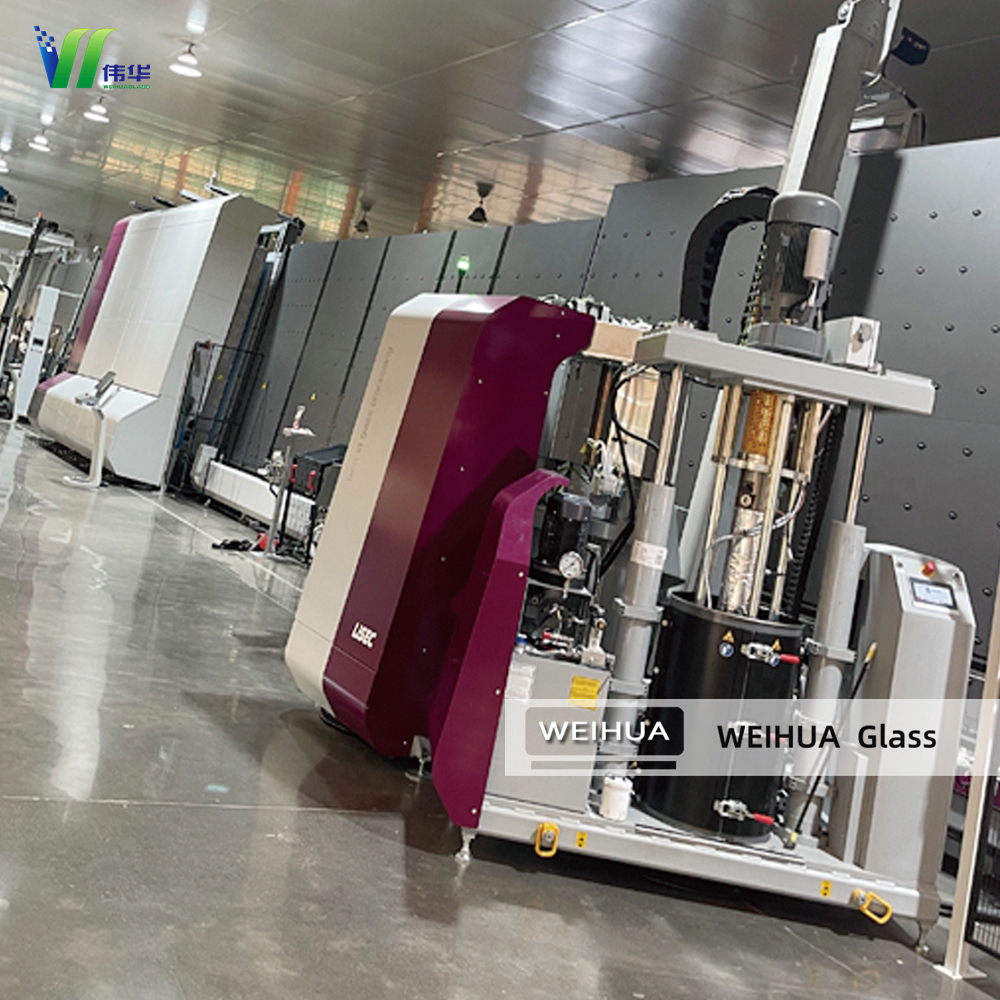

The glass and spacer are assembled and pressed in a gas-filling plate press, achieving 90%+ Argon gas concentration

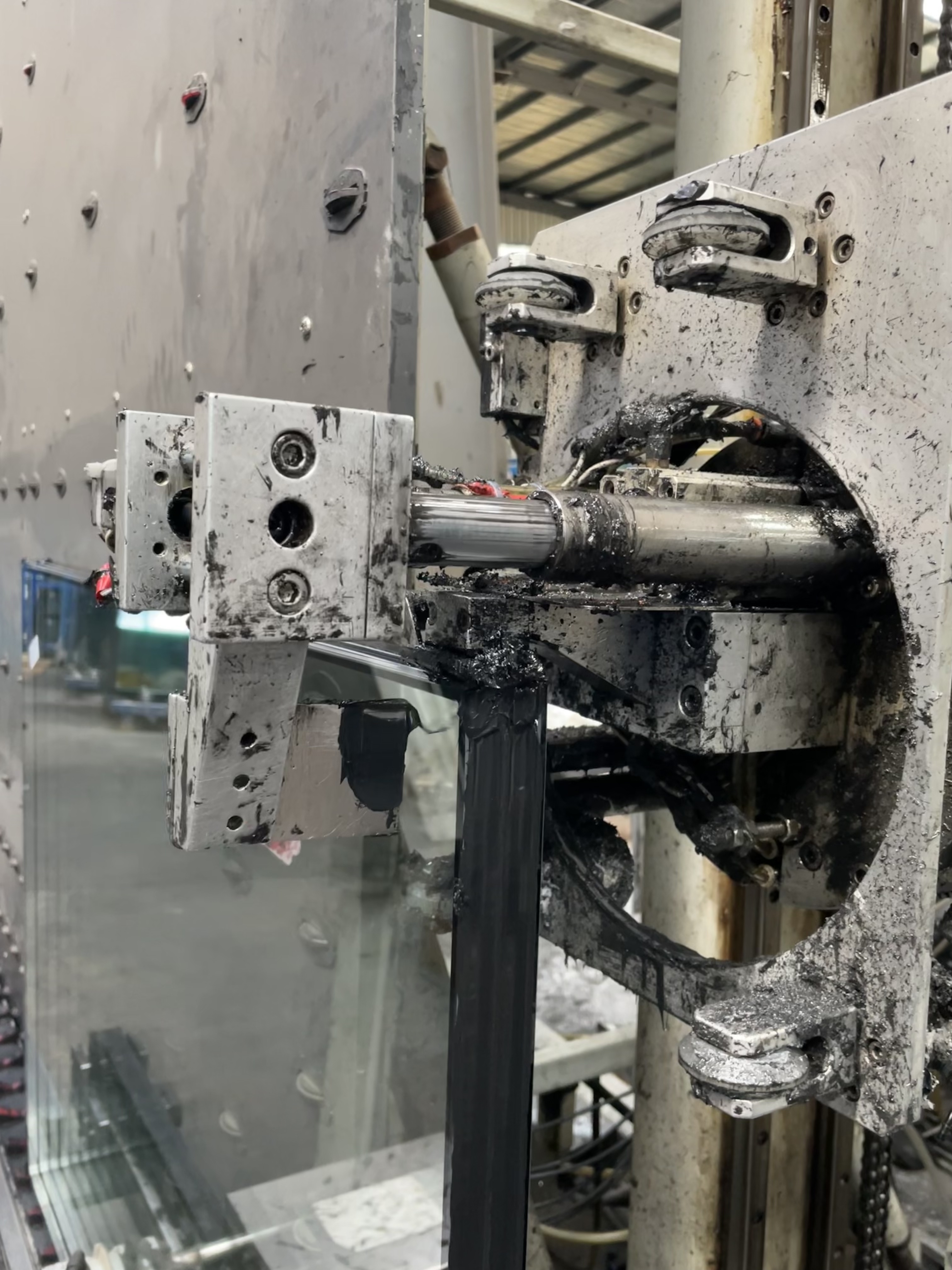

Automatic sealing robot applies the final Structural Silicone (or Polysulfide) layer to guarantee structural integrity
|

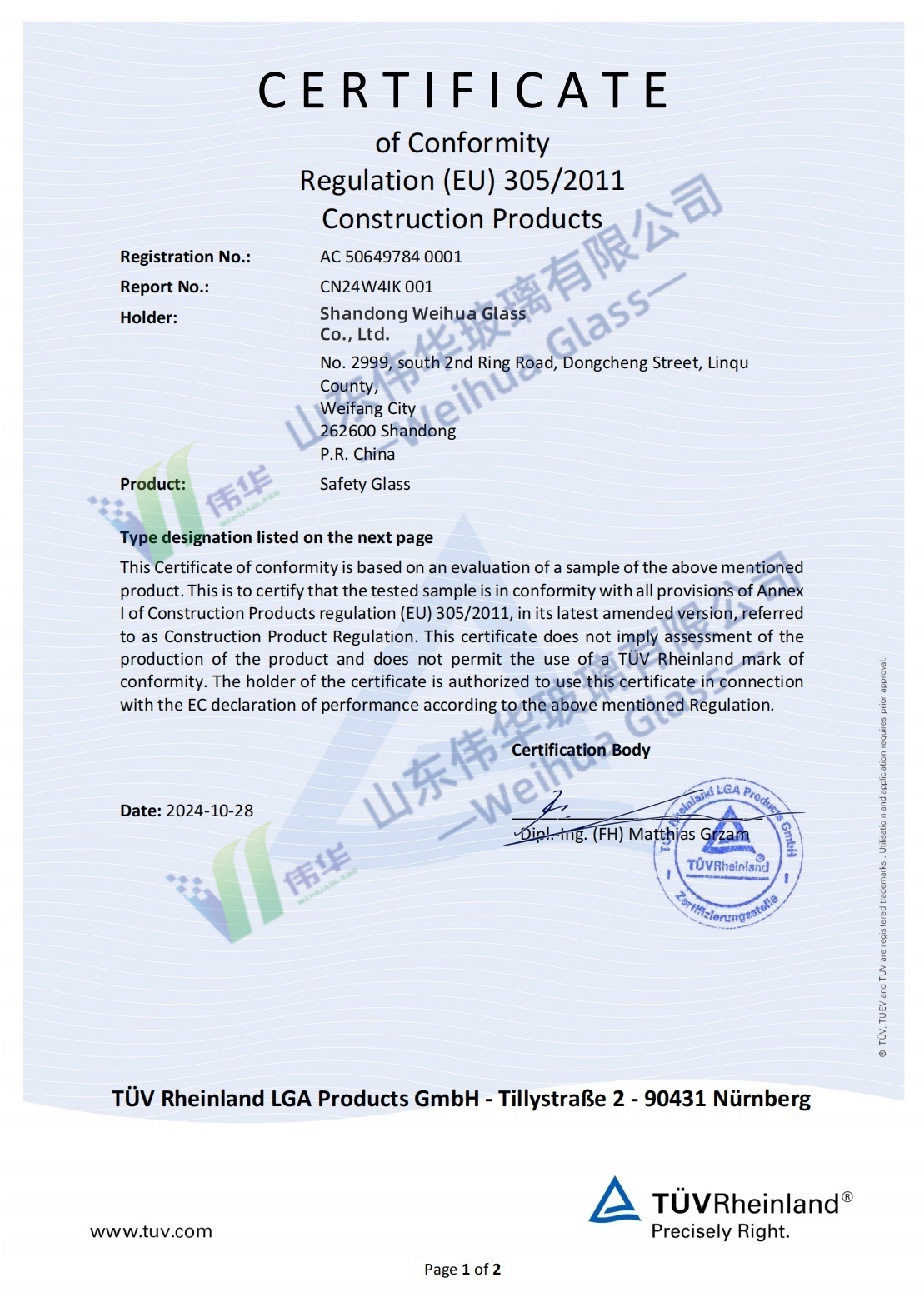

Certifications

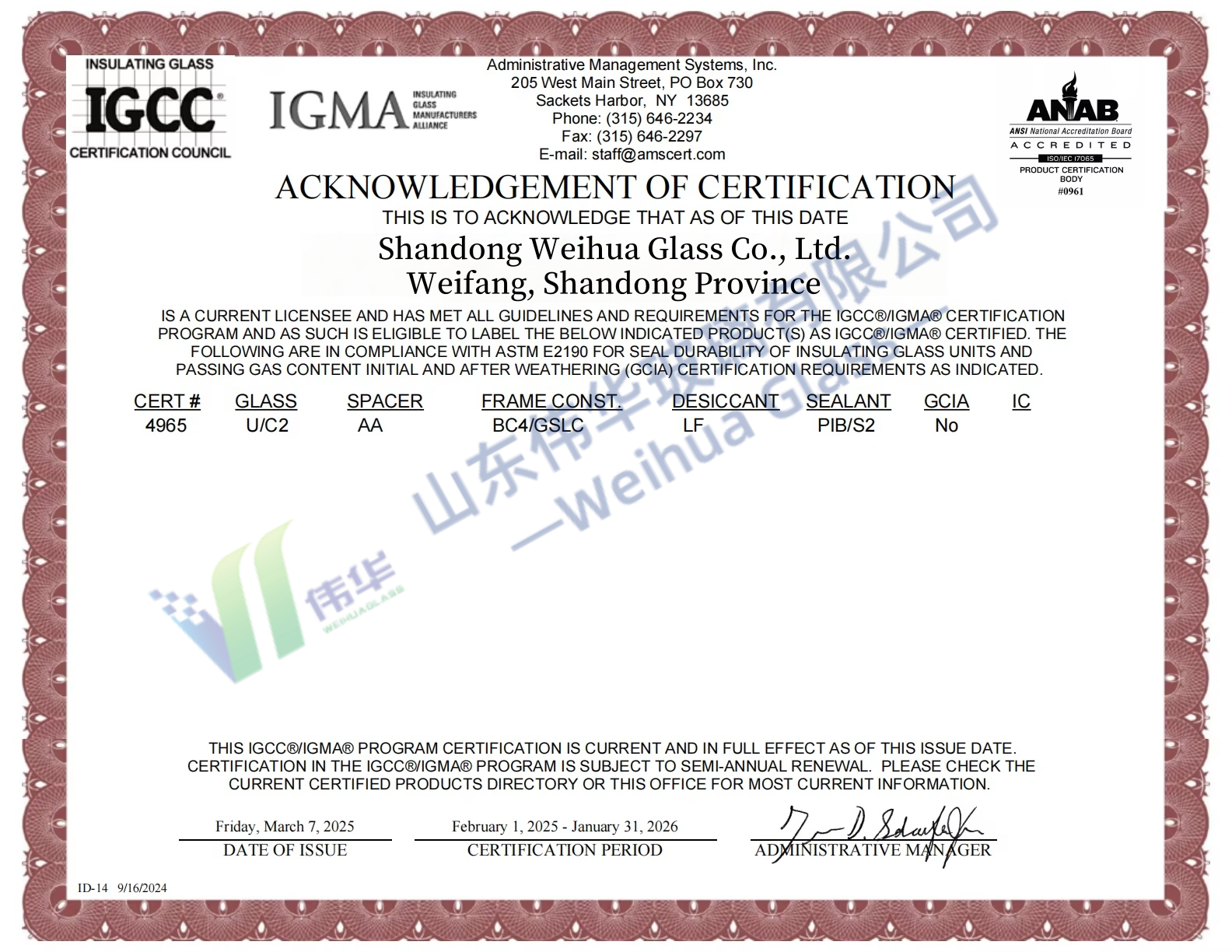

IGCC / SGCC
EN 1279 for Insulated Glass Units

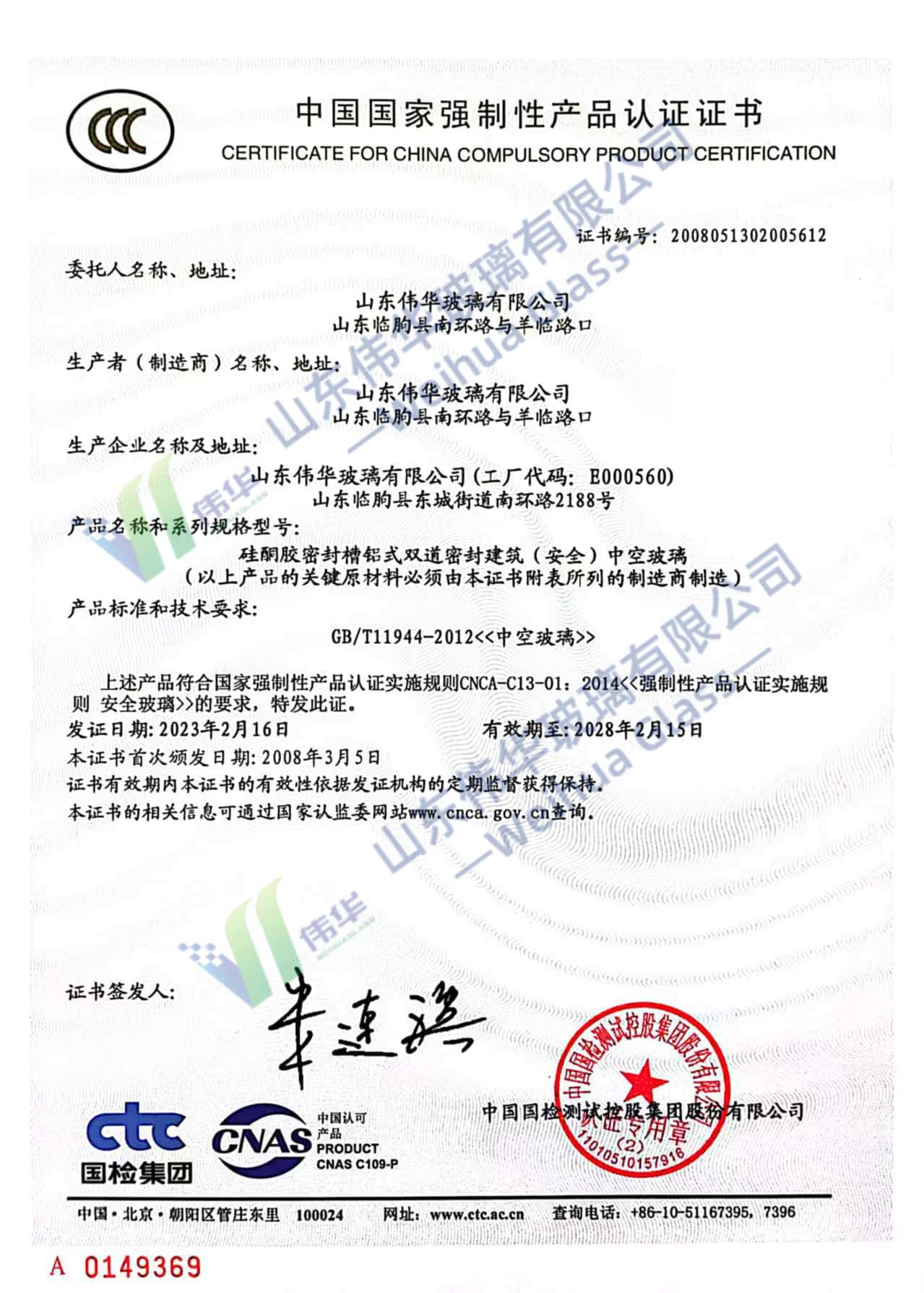

CCC
|
Data Sheet
| Specification | Technical Details |

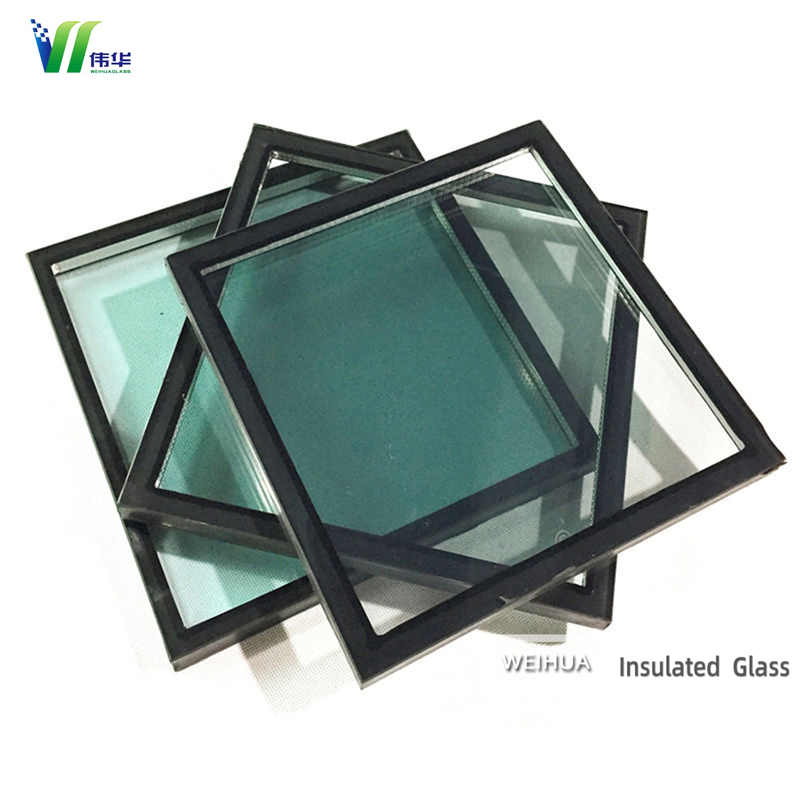

| Product Name | Low-E Insulated Glass / Hollow Glass / DGU |

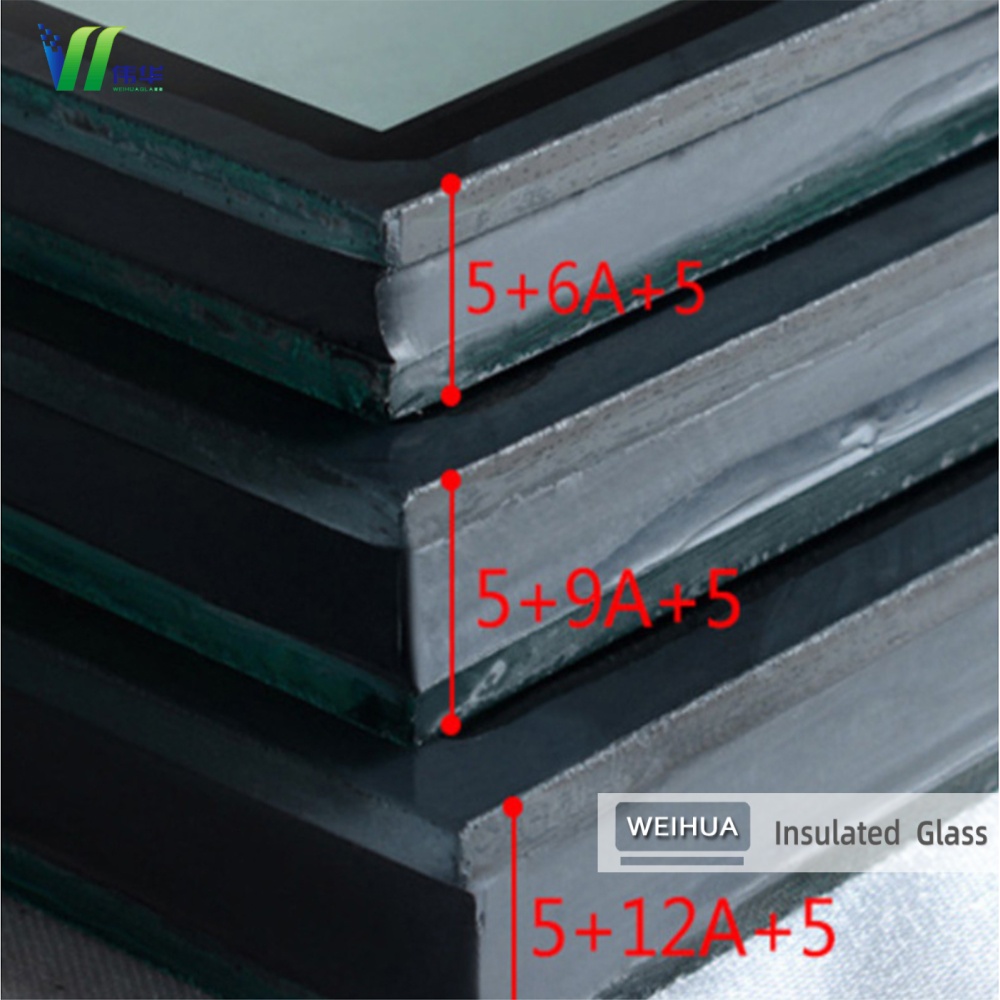

| Glass Configuration | 5mm+12A+5mm, 6mm+12A+6mm (Standard), or Custom |
| Coating Type | Single Silver Low-E (High Transparency), Double Silver Low-E |
| Gas Filling | Argon Gas (90%+) or Dry Air |
| Spacer Type | Aluminum Spacer (Bendable), Warm Edge Spacer (Optional) |
| Sealant | Primary: Polyisobutylene (Butyl); Secondary: Structural Silicone |
| Max Size | 2440mm x 3660mm (Standard), Jumbo sizes available on request |
| Size Tolerance | ±1.0mm (High Precision for Window Frames) |
|
Optional Surface
Customize your units to match specific project requirements:

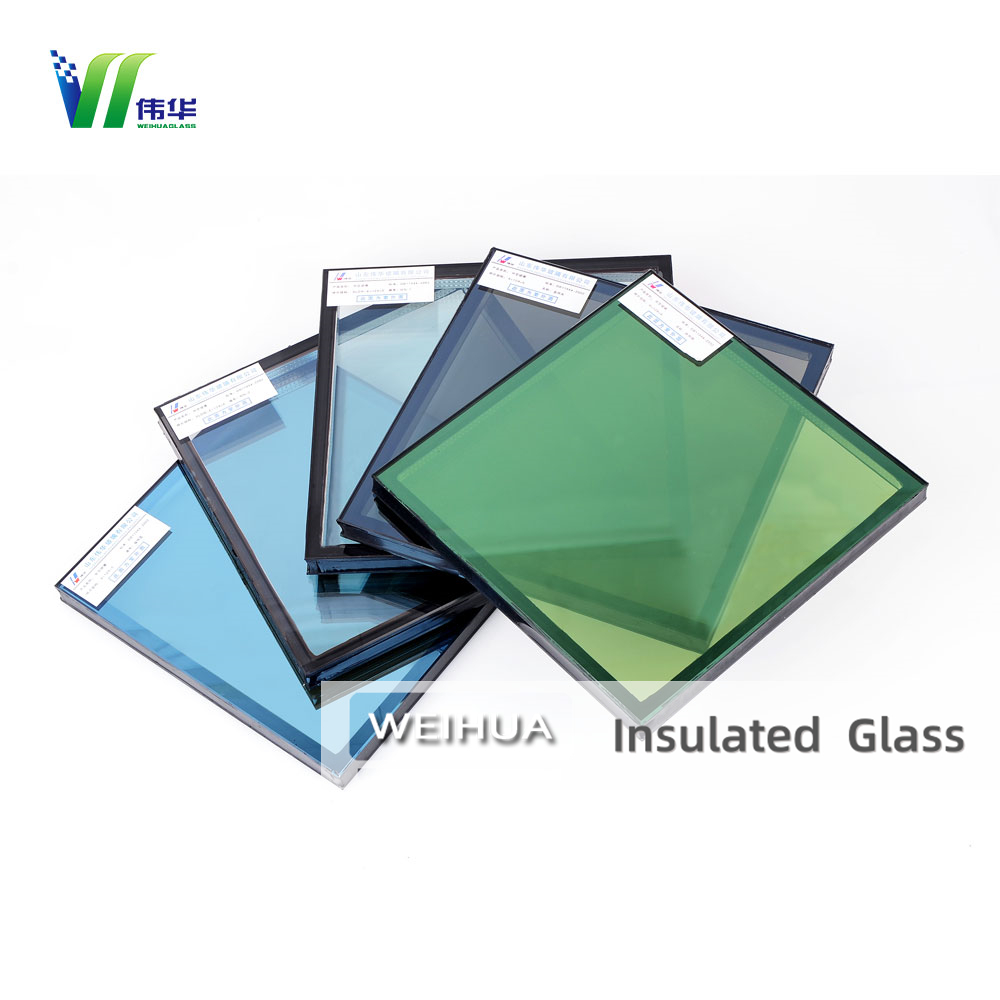

Tinted Options: Combine Low-E with Grey, Bronze, or Blue tinted glass for better sun shading and privacy.
Warm Edge Spacers: Upgrade from aluminum to warm-edge spacers (black) to reduce condensation on window edges.
Safety Upgrade: Replace the inner pane with Laminated Glass or Tempered Glass for areas requiring impact resistance.
Grid/Muntin Bars: Internal decorative bars available inside the hollow space.
|
Testing Quality
We strictly control the quality to prevent after-sales headaches:
Dew Point Test: Ensuring the dew point is below -40°C, so no fogging occurs inside the glass even in freezing winters.
Sealant Adhesion: Butterfly test to check the mixing ratio and stickiness of the structural silicone.
Gas Retention: Regular checks to confirm Argon gas leakage rate meets international standards (EN 1279).
