| I. Structure & Dimensions |
|
|
|
| Glass Structure | Product Type | Tempered Laminated Luminous Glass | Essentially a fully laminated glass to ensure the railing remains intact if broken, meeting safety standards. |
| Glass Thickness | Total Thickness Range | 12 mm to 22 mm | Common specifications: 6+1.14PVB+6; 8+1.52PVB+8; 10+1.52PVB+10. |
| Dimension Range | Max Width | 1500 mm - 2500 mm | Width is limited by the glass panel size and the hardware system. |
| Max Length | 3000 mm - 4000 mm | Standard custom size, suitable for most balconies and platforms. |
| II. Optics & Safety |
|
|
|

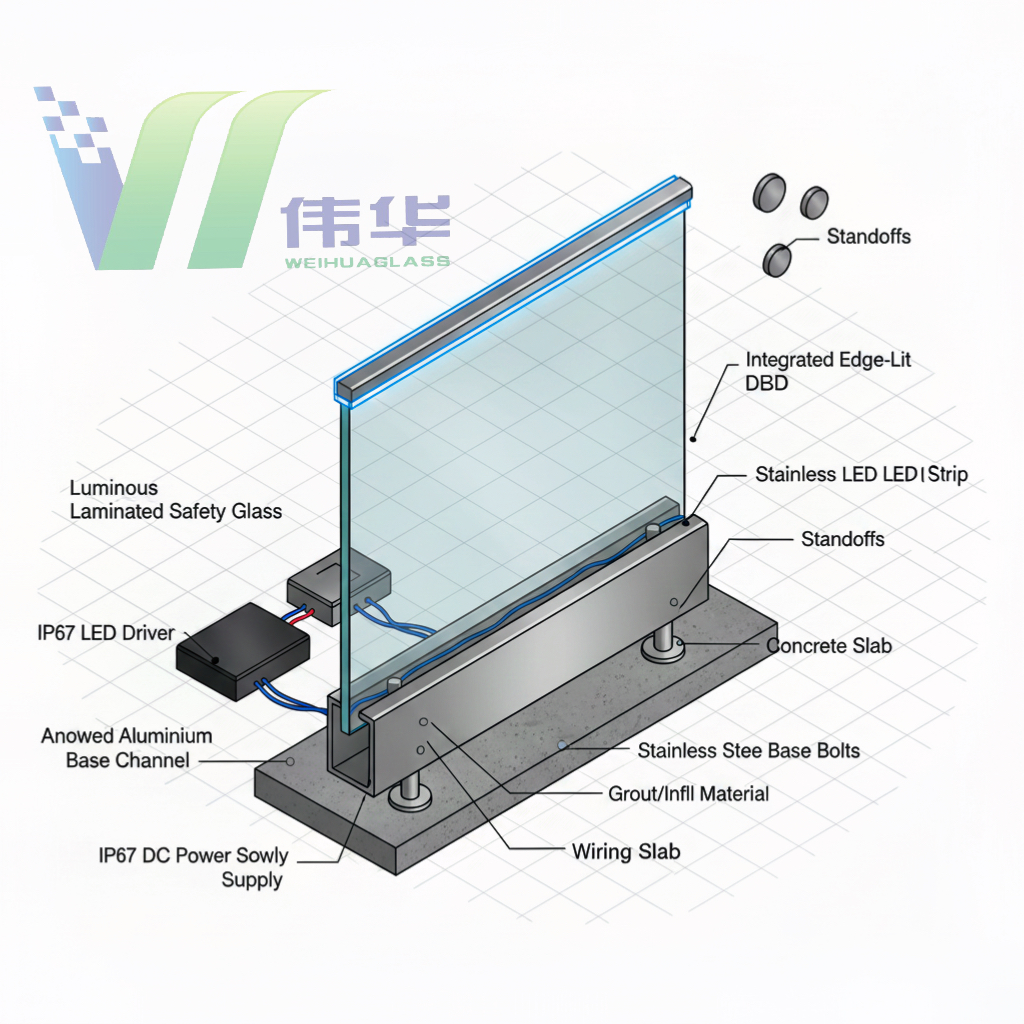

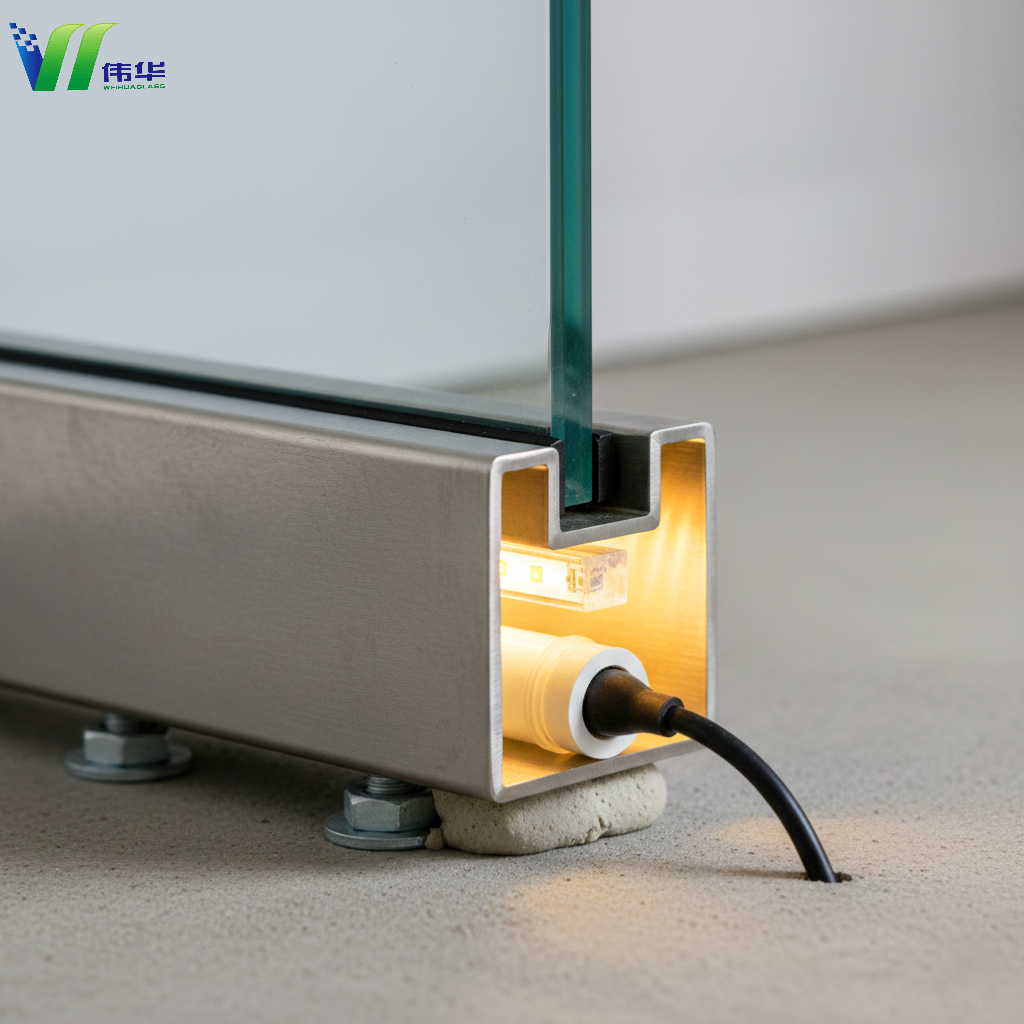

| Lighting System | Illumination Method | Edge-Embedded LED Strip | The LED light source is concealed in the base channel or post, conducting light through the glass. |
| Glass Material | Light Transmittance | > 88% (Float Glass) / > 91% (Ultra-clear Glass) | Ultra-clear (low-iron) glass best ensures the purity and brightness of the light. |
| UV Blocking | Lamination Intrinsic Benefit | > 99% | Intrinsic UV blocking capability of the laminated PVB/EVA film. |
| Safety Rating | Structural Safety Standard | Complies with ASTM / CE / GB and other load-bearing standards | The glass structure must be supported by a load calculation report. |
| III. Electrical & Control |
|
|
|
| Working Voltage | Driving Voltage | DC 24V | Industry standard low-voltage safety, requires a waterproof power transformer/driver. |
| Protection Rating | LED Water & Dust Proofing | IP65 or IP67 | Ensures stable operation of the LED system in outdoor environments. |
| Control System | Color & Method | Monochrome (Warm/Cool White) or RGB Color Change | RGB system requires a remote control or DMX controller for programmed effects. |
| Power Consumption | Luminous Power Consumption | Approx. 4W/m - 15W/m | Extremely low power consumption, depending on LED strip density and brightness. |
