U-Value & SHGC Selection Guide: Choosing the Right Low-E Glass for Cold vs. Hot Climates

One Size Does Not Fit All

In facade engineering, a common misconception is that when it comes to glass performance parameters, "lower is always better" or "more expensive is always better."

The truth is, a Low-E glass that performs exceptionally well in Singapore could actually increase heating costs if specified for a project in London.

Why? Because energy efficiency is not absolute—it is climate-dependent. Singapore requires aggressive solar blocking, while London often benefits from solar heat gain to offset heating loads.

To maximize LEED points and minimize operational costs, you must master the delicate balance between two key metrics: U-Value and SHGC.

1.The Physics — U-Value vs. SHGC

Before diving into selection strategies, let’s clarify the difference between these two critical metrics:

• U-Value (Thermal Transmittance):

  • What it is: Measures how fast heat escapes through the glass via conduction.

  • Think of it as: A winter jacket. A lower U-Value means better insulation (keeping indoor heat IN during winter, and outdoor heat OUT during summer).

• SHGC (Solar Heat Gain Coefficient):

  • What it is: Measures how much solar radiation (heat from the sun) passes through the glass into the building.

  • Think of it as: A sunshade. A lower SHGC blocks more solar heat; a higher SHGC allows more free heat to enter.

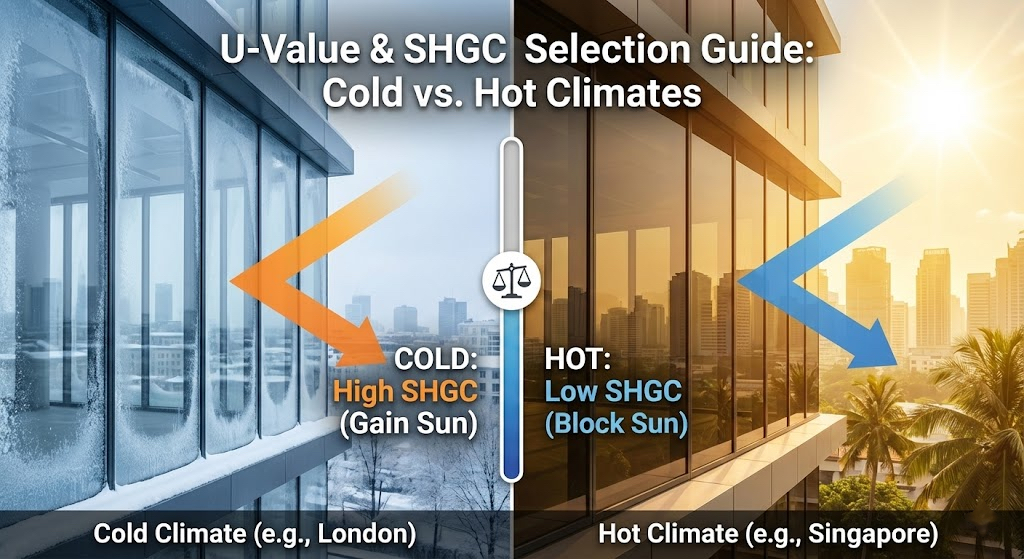

2.Strategy for Cold/Temperate Climates (Heating Dominated)

Typical Cities: London, Berlin, Toronto, New York

In these regions, your primary enemy is the cold. The majority of the building's annual energy bill goes toward heating.

• The Goal: Trap indoor heat while capturing "free" solar energy.

• Target U-Value: Extremely Low (< 1.6 W/m²K). Triple glazing or Argon-filled units are often standard here to prevent conductive heat loss.

• Target SHGC: Moderate to High (> 0.40).

  • The Counter-Intuitive Rule: If you use a "Singapore-spec" glass (with ultra-low SHGC) in London, you are blocking the winter sun. You actually want a moderate SHGC to allow Passive Solar Gain, which reduces the load on your heating system during the day.

• Recommended Glass: High-Transmission Low-E (Single Silver) or specific Passive Low-E coatings.

3.Strategy for Hot Climates (Cooling Dominated)

Typical Cities: Singapore, Dubai, Miami, Bangkok

In these regions, your primary enemy is the sun. Air conditioning (cooling) accounts for the largest portion of energy consumption.

• The Goal: Block solar heat from entering the building.

• Target U-Value: Low (< 2.4 W/m²K). Insulation is still important to keep hot air out, but not as critical as in the Arctic.

• Target SHGC: Extremely Low (< 0.25).

  • The Golden Rule: This is your most important metric. Every ray of sunlight that penetrates the glass translates directly into money spent on air conditioning.

• Recommended Glass: Double or Triple Silver Low-E. These "Solar Control" coatings are spectrally selective—they act like a filter, blocking invisible infrared heat while still letting in natural daylight.

4.The Architect's "Cheat Sheet"

Save this table for your next specification meeting:

Don't Just Buy "Low-E", Buy the "Right-E"

Glass is not a standard commodity; it is a climate-specific solution. Specifying the wrong combination of U-Value and SHGC can result in a building that fights against its environment, leading to oversized HVAC systems and bloated energy bills.
