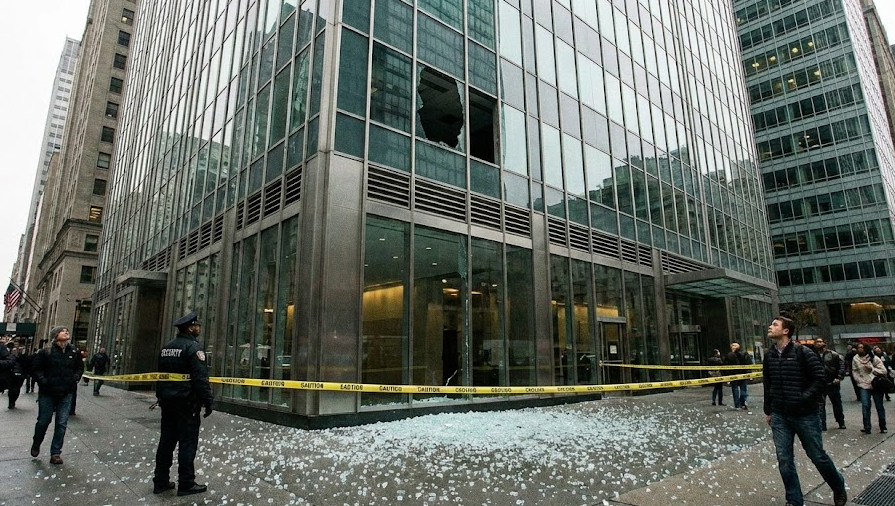

Tempered glass is a staple of modern architecture due to its high strength and safety features. However, it has an inherent weakness: Spontaneous Breakage. Imagine a facade panel shattering on a calm, sunny day with no external impact. The culprit is often a microscopic impurity known as Nickel Sulfide (NiS).
While rare, NiS inclusions act as a "ticking time bomb." The only way to defuse this bomb before installation is through Heat Soak Testing (HST).
To understand Heat Soaking, we must look at the molecular level.
During the glass manufacturing process, minute traces of nickel and sulfur can combine to form NiS stones. These stones are sensitive to temperature changes and exist in two states:
Alpha-State (Stable at High Temp): When glass is tempered (heated to ~600°C), the NiS is small and stabl
Beta-State (Stable at Low Temp): Over time (months or years), the NiS tries to revert to its natural "Beta" state at ambient temperatures.
Problem: The transformation from Alpha to Beta is accompanied by a 2-4% volume expansion. inside the high-tension center of tempered glass, this tiny expansion is enough to shatter the entire panel from the inside out.
The Heat Soak Test is essentially a "Destructive Test" performed in the factory, so the breakage happens there, not on your building.
The Process: The tempered glass is placed in a specialized oven and heated to approximately 290°C (±10°C) for several hours.
The Mechanism: This heat accelerates the NiS phase transformation (Alpha to Beta). If NiS is present, the stone expands rapidly, causing the glass to break inside the oven.
The Result: Any glass that survives the Heat Soak process is virtually free of critical NiS inclusions.
Is the extra cost worth it? This table breaks down the differences.
Feature | Standard Tempered Glass | Heat Soaked Tempered Glass (HST) |
Spontaneous Breakage Risk | High (approx. 3-5 per 1,000 panes) | Extremely Low (approx. 1 per 400 tons) |
Production Process | Float Glass -> Tempering | Float -> Tempering -> Heat Soak Oven |
NiS Detection | Impossible to detect visually | Destructive elimination |
Cost | Lower | Slightly Higher (Process + Energy cost) |
Safety Level | Standard Safety | Critical Safety |
Ideal Application | Interior partitions, shower doors | High-rise facades, Skylights, Canopies |
While standard tempered glass is sufficient for general use, Heat Soaked Glass is non-negotiable for critical environments. The cost of replacing a single shattered pane on a high-rise building—including road closures, cranes, and labor—far exceeds the initial investment in Heat Soak Testing.
Don't gamble with liability. Specify Heat Soaked Tempered Glass for your next landmark project.
