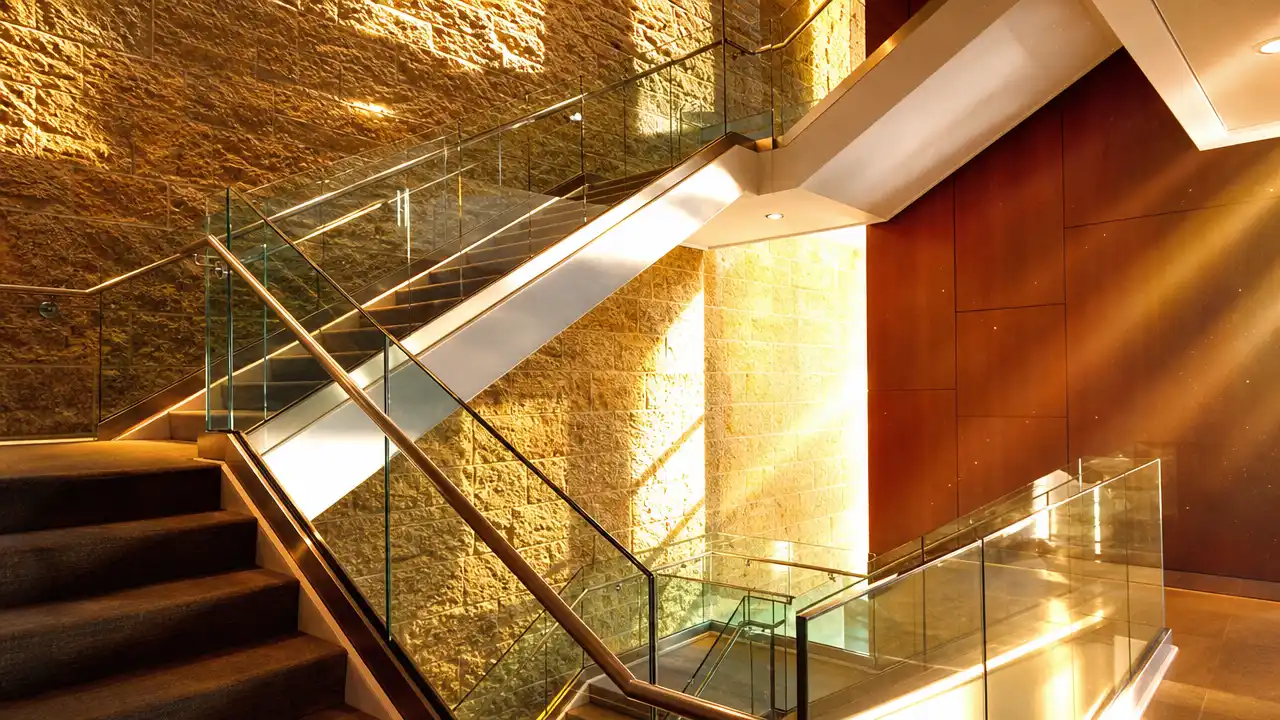

In modern architecture and interior design, frameless glass balustrades and floating staircases are highly favored by designers and homeowners alike for their ultimate sense of transparency and minimalist aesthetics. However, within these clean-lined designs, a seemingly minor component bears the dual responsibility of being both a visual focal point and the ultimate safety baseline—the Handrail Bracket.
As the core hardware connecting structural elements (walls, glass, or posts) to the handrail, choosing the right bracket not only defines the engineering premium of a project but also dictates long-term structural integrity. This guide delivers an in-depth analysis of handrail bracket classifications, key structures, and essential selection criteria.
The base design of a handrail bracket determines its compatibility with different architectural substrates. Depending on the installation environment, they are primarily categorized into three types:
The most classic and timeless variant. Featuring a circular or square flange base, these brackets are securely anchored directly into concrete walls, brickwork, or timber studs using 2 to 4 expansion bolts or heavy-duty wood screws. They are ideal for hallways, corridors, and traditional wall-adjacent staircases.
Engineered exclusively for premium, frameless glass railing systems. The defining feature of these brackets is "through-glass fixing"—requiring precision pre-drilled holes in the glass panels during production. During installation, a high-strength pin support clamps the glass firmly, cushioned by weather-resistant rubber gaskets. These gaskets prevent direct metal-to-glass contact, absorbing structural stress and mitigating the risk of glass shattering.
Utilized when the project incorporates a metal post balustrade system. The base is engineered with a specific curvature to seamlessly flush with round posts (commonly Φ42.4mm or Φ50.8mm) or designed as a flat face to match square posts. They are typically secured via rivet nuts or self-tapping screws.
Staircase pitches and slopes vary significantly across architectural layouts, meaning standard right-angle brackets often fall short of onsite installation demands. Consequently, modern brackets offer varying degrees of adjustability:
Bracket Type | Structural Attributes | Ideal Application Scenarios |
Fixed Brackets | The stem and top saddle are cast or forged as a single piece with a non-adjustable angle (typically 90°). Offers maximum structural rigidity. | Flat corridors, horizontal landings, and standard straight-flight staircases. |
Adjustable Brackets | Engineered with an integrated hinge, swivel joint, or ball-joint mechanism, allowing flexible articulation from 0° to 180°. | Ramps, spiral staircases, and custom stairways with non-standard pitches or multi-angled slopes. |
Height-Adjustable Brackets | Featuring a telescopic stem or threaded rod mechanism that allows subtle vertical tuning. | Specifically designed to compensate for uneven wall or floor tolerances, ensuring a perfectly leveled handrail line. |
The top component of the bracket that cradles the handrail is known as the "Saddle." To ensure a rock-solid, wobble-free grip, the profile of the saddle must perfectly complement the cross-section of the handrail:
Curved Saddle: Tailored to fit round timber or stainless steel tubular handrails.
Flat Saddle: Engineered for square stainless steel profiles or flat, rectangular wooden handrails.
Pro Installation Tips:
Screw-Fix Connections: The saddle comes with pre-drilled screw holes. Timber handrails can be directly secured from underneath using wood screws; metal handrails require drilling and tapping the tube to accept machine screws.
Welded Connections: The ultimate choice for stainless steel handrails. The saddle is omitted, and the stem is directly welded and seamlessly polished to the tubular handrail, achieving a flawless, high-end minimalist industrial aesthetic.
Handrails are high-touch architectural elements frequently exposed to diverse microclimates. Therefore, selecting the correct material grade and finish is non-negotiable.
SS304 (AISI 304): Offers excellent corrosion resistance, serving as the most cost-effective premium choice for indoor residential spaces, commercial malls, and corporate offices.
SS316 (AISI 316): Infused with Molybdenum (Mo), this grade delivers superior resistance against chloride-induced pitting. For outdoor environments, coastal regions, oceanfront villas, or swimming pool enclosures, SS316 is mandatory to prevent tea-staining and rust under high humidity and saline exposure.
Satin / Brushed: Exhibits a sleek, contemporary metallic texture. It is highly forgiving against fingerprints, smudges, and minor abrasions, making it the industry-standard choice for over 80% of architectural projects.
Mirror / Polished: Offers a high-glint, reflective specular finish that radiates luxury, though it requires routine maintenance to remain fingerprint-free.
Matte Black / PVD Gold: Utilizing advanced electroplating or Physical Vapor Deposition (PVD) technology, the stainless steel substrate is transformed into velvety matte black or opulent gold—perfectly aligning with modern industrial minimalism or high-end luxury design narratives.
⚠️ Professional Safety Notice:
When executing a frameless glass railing project utilizing glass-mount brackets, it is imperative to pair them with tempered glass or tempered laminated glass. Furthermore, to distribute shear stress correctly and prevent structural failure, the distance from the edge of the drilled hole to the outer edge of the glass panel should generally be at least twice the diameter of the hole itself.
The hallmark of exceptional architectural execution lies in the meticulous attention to detail. High-quality stainless steel handrail brackets and connectors do more than just ensure compliance with stringent international building codes (such as US IBC or AU/NZS standards)—they provide the definitive finishing touch that elevates a structural necessity into a design statement.
