Frameless Infinite View Aesthetics: Engineered to deliver a pure "growing out of the ground" seamless visual effect, completely concealing bottom structural anchoring to satisfy minimalist architectural submittals.

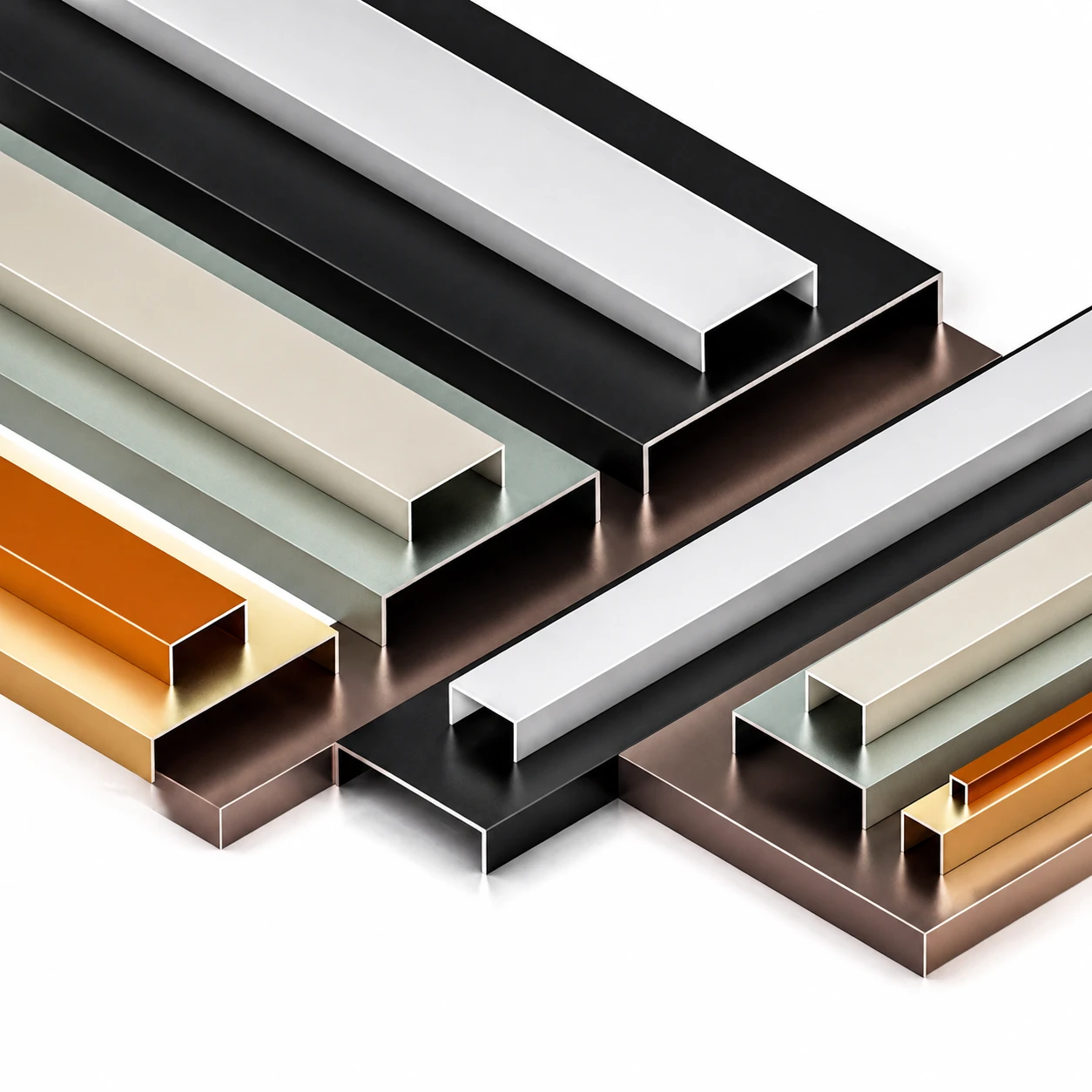

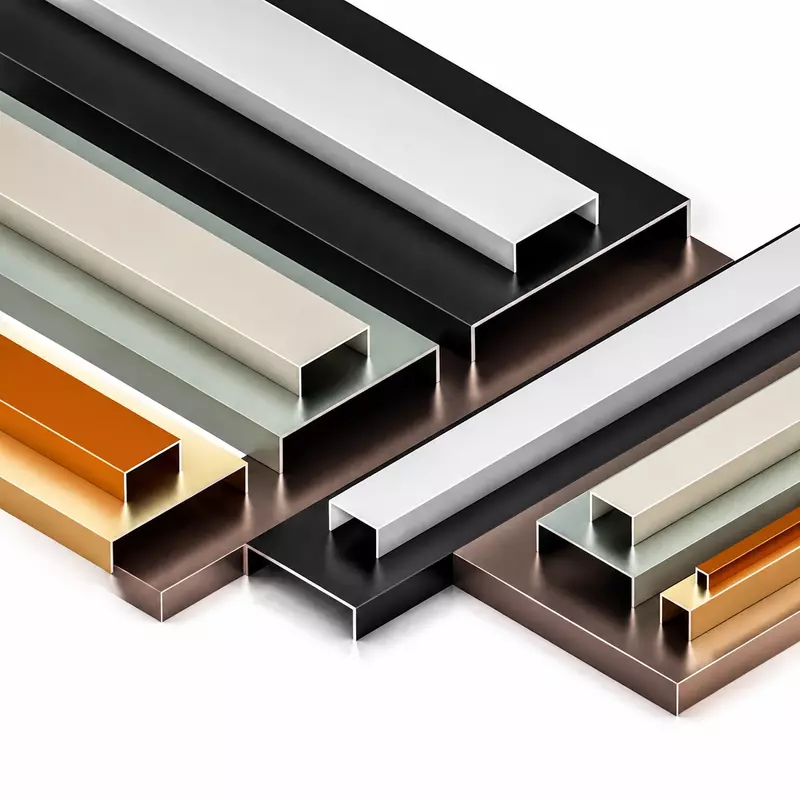

Dual-Material Engineering Matrix: Configurable in high-precision extruded 6063-T5/T6 Aluminum for complex internal snap-lock designs, and heavy-gauge SS304/SS316/Duplex 2205 for extreme outdoor structural loads and coastal environments.
Heavy-Wall Lateral Moment Resistance: Features heavy industrial wall thicknesses (2.0 mm - 8.0 mm+) and optimized embedment depths up to 120 mm, purpose-built to withstand strict dynamic wind pressures and public pedestrian crowd-load impacts.
Dry-Glaze Mechanical Plumb Adjustment: Available with integrated sloping tracks and high-tensile engineering plastic wedge mechanisms, enabling rapid installer crews to micro-adjust glass vertical alignment without messy grouting.

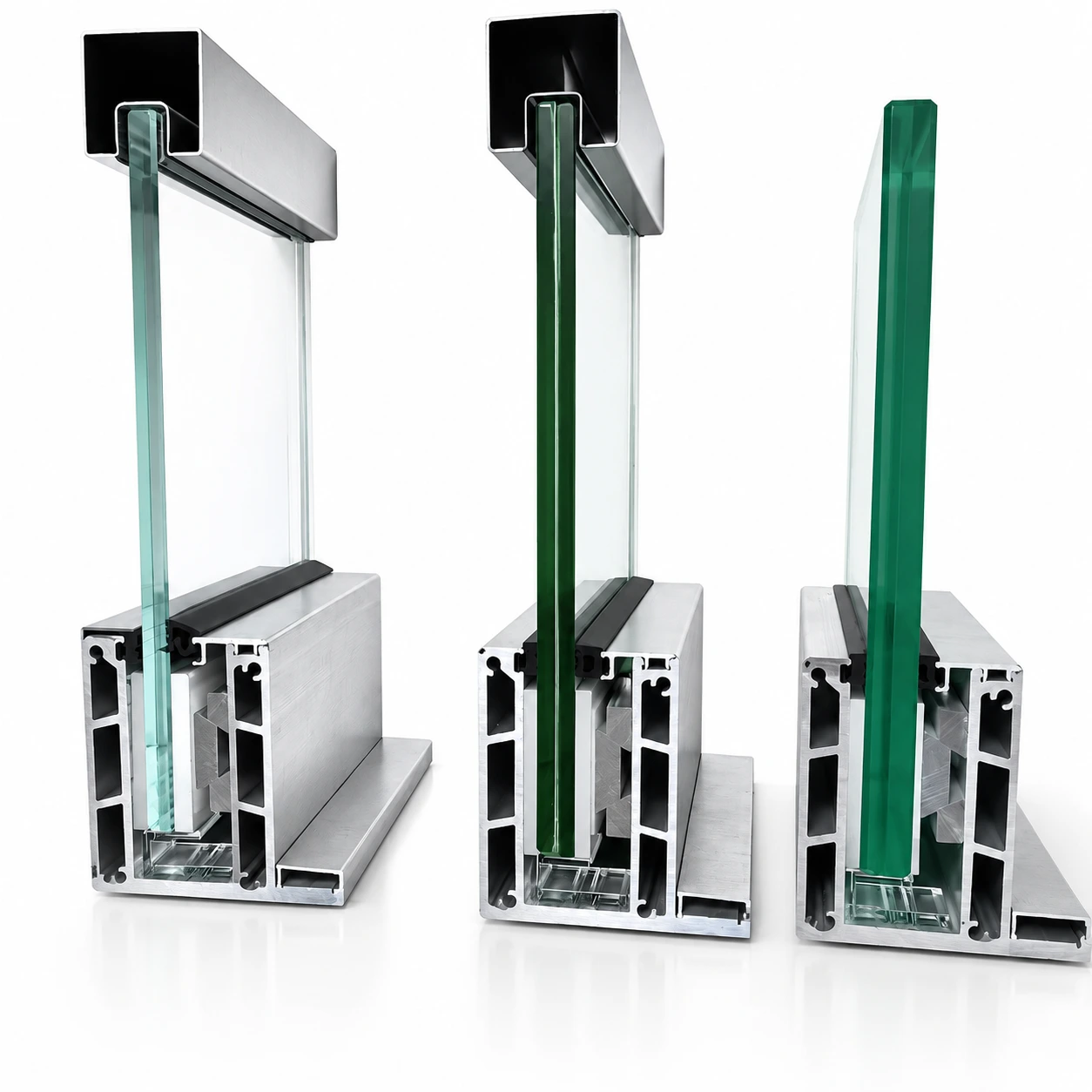

Universal Multi-Layer Glazing Cavities: Tailored with internal channel widths from $20\text{mm}$ to $40\text{mm}+$, offering perfect dimensional compatibility with monolithic 12 mm tempered panels up to heavy 21.52 mm (10+1.52 PVB+10) laminated safety sequences.
| Quantity: | |
|---|---|
Are you detailing a high-end corporate office partition matrix, a sprawling commercial mall atrium barrier, or a structural glass facade meant to withstand severe coastal wind loads? Shandong Weihua Glass supplies industrial-grade, heavy-duty Architectural Glass Base Channel Systems (U-Channels) engineered precisely to turn bold "frameless infinity" concepts into code-compliant structural realities.
In high-profile modern architecture, bottom support tracking is not merely a metal trim—it is the primary anchor absorbing heavy lateral bending moments. Selecting unverified, thin-walled channels results in structural deflection, glass pane misalignment, and critical engineering failure. Weihua resolves this bottleneck. By combining premium metallurgy options with advanced internal geometry tracking, we provide global B2B procurement networks with a robust, completely adaptable framing framework that slashes site installation timelines while guaranteeing flawless post-tempering glass stability.
To seamlessly match your regional building codes and site-specific exposure indexes, select from our two core structural material tracks:

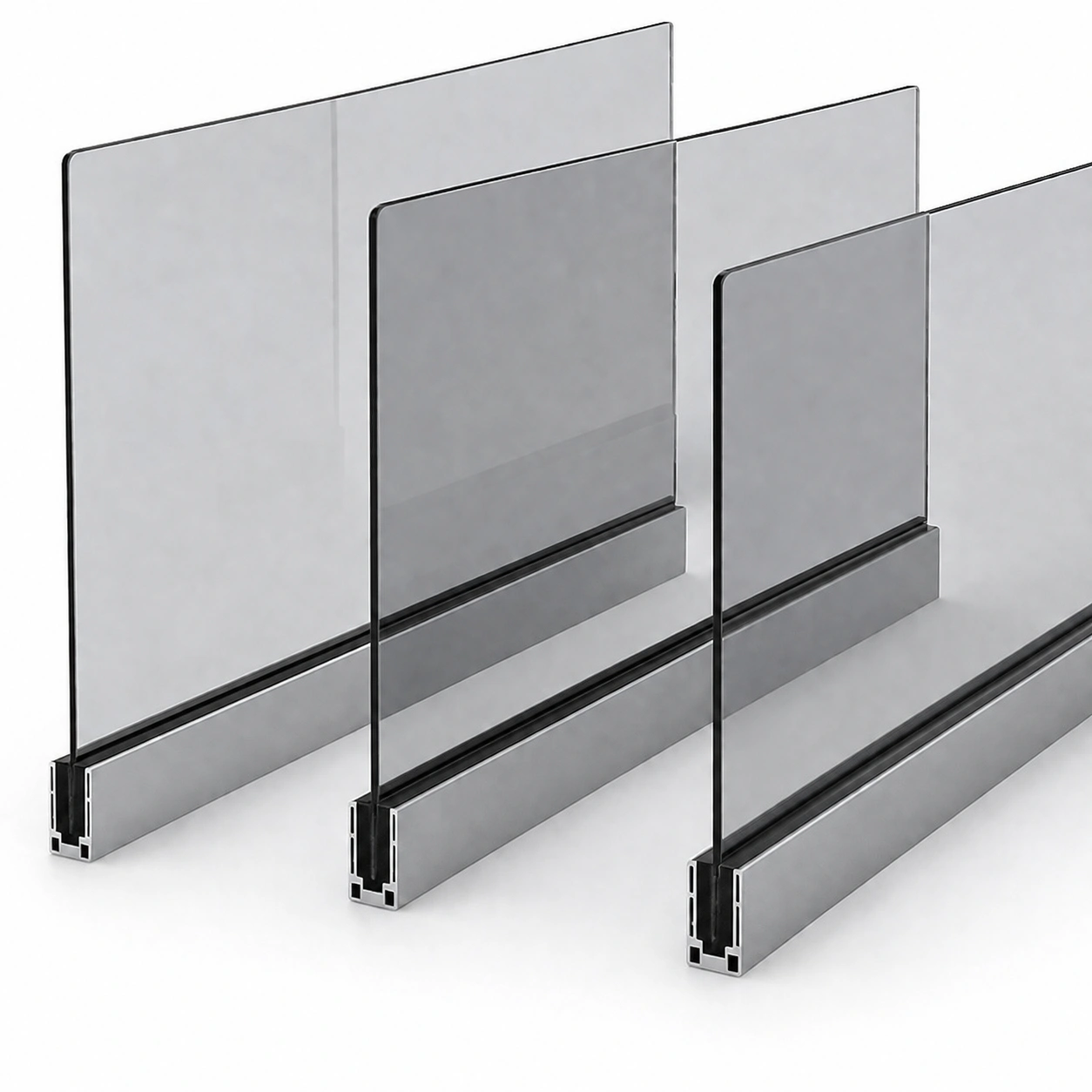

Target Environments: Premium interior corporate office dividers, luxury showroom partitions, commercial mall balustrades, and lightweight interior glass wall tracks.
Engineering Advantages: Exceptional dimensional fabrication accuracy. Highly compatible with complex internal mechanical snap-locks, pressure bars, and localized LED lighting channels.
Finishing Treatments: Micro-bead blasted Satin Anodized, high-durability Fluorocarbon (PVDF) coating, or architectural Matte Black powder-coating.
Target Environments: Outdoor heavy structural facades, sunken plaza perimeter guards, high-velocity hurricane zones, and overhead atrium canopy boundaries.
Engineering Advantages: Extreme mechanical yield strength and shear impact resistance. Delivers unrivaled anti-corrosion lifetimes when exposed to permanent moisture, rain, or high-chlorine pool perimeters.
Finishing Treatments: Hairline Satin Brushed, 8K Mirror Polished, or PVD Vacuum Titanium plating (Gold, Bronze, Charcoal).
Dimension Chain | Specification Range | Structural Engineering Function |
Profile Wall Thickness | 2.0 mm - 4.0 mm (Interior Partition) 5.0 mm - 8.0 mm+ (Heavy Structural Railing) | Dictates the channel's resistance to overturning bending moments caused by crowd pressure or high wind speeds. |
Internal Channel Width | 20 mm - 40 mm+ (Formula: Nominal Glass + Dual Gaskets + Safety Clearance) | Easily houses monolithic profiles up to thick, multi-layer 21.52 mm (10+1.52 PVB+10) structural laminated safety glass. |
Embedment Channel Depth | 40 mm - 60 mm (Standard Internal Partition) 100 mm - 120 mm (Heavy Public Guardrail) | Guarantees an optimal anchorage ratio. Follows international structural rules where the glass embedment must be ≥ 2/3 of total channel height. |

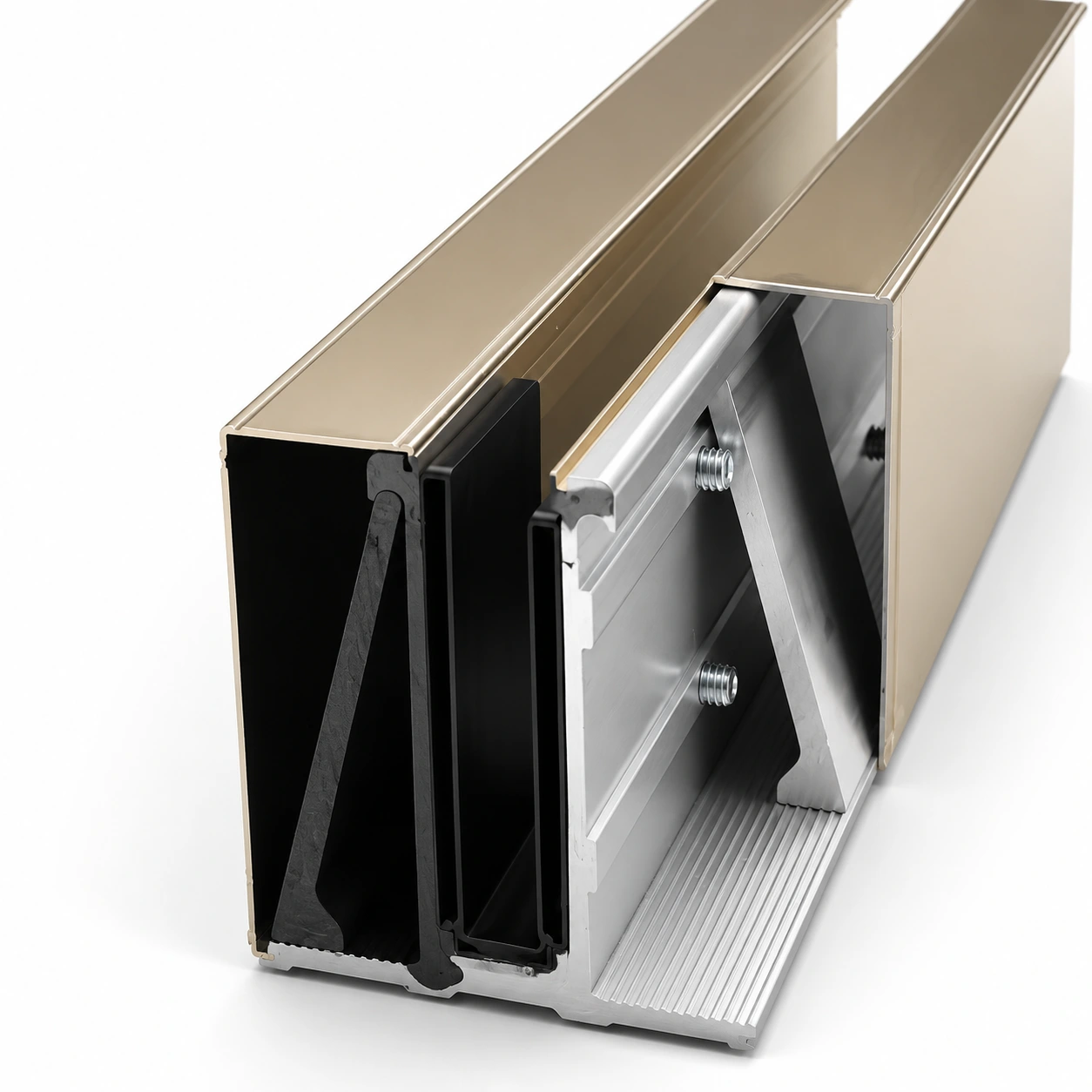

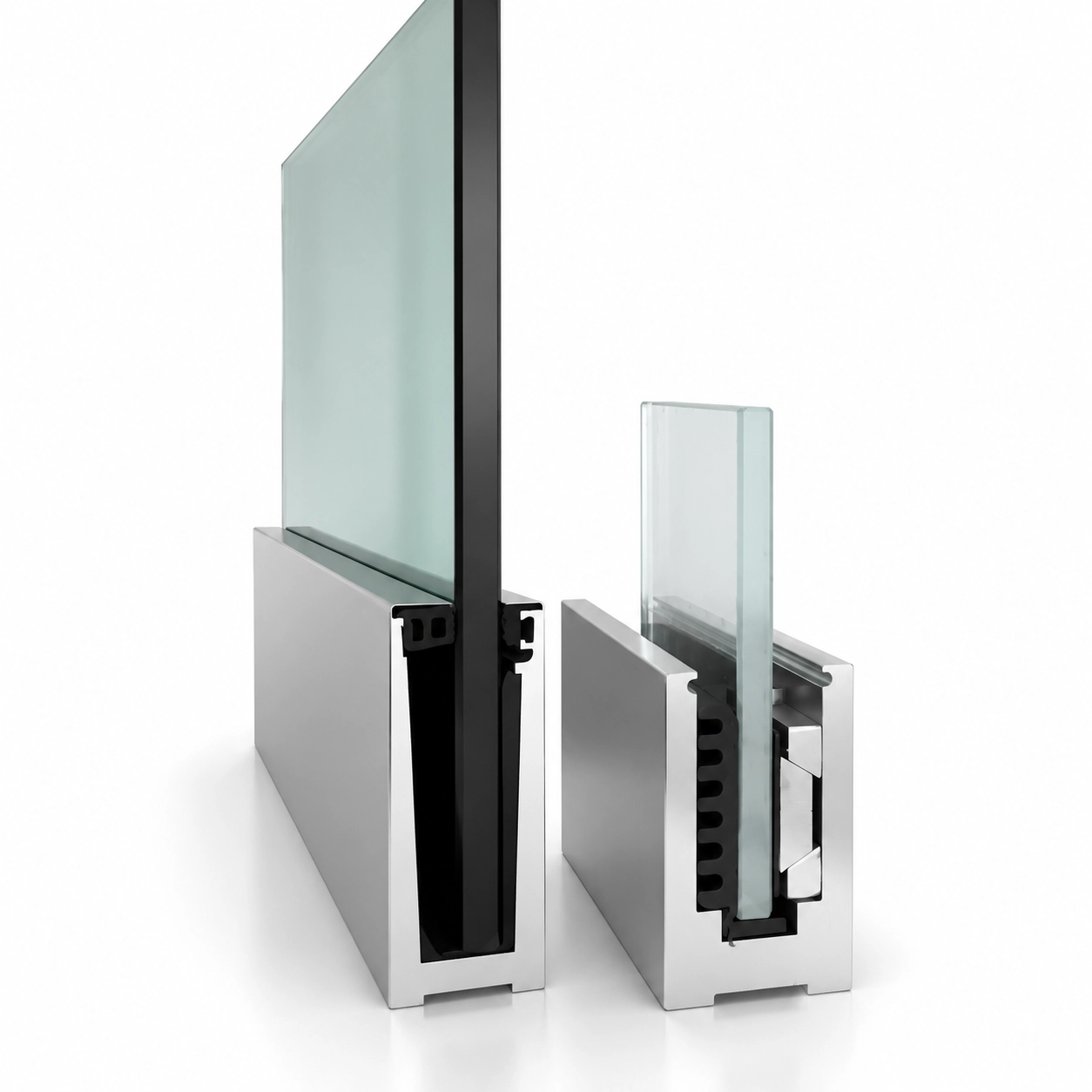

The definitive choice for modern fast-track fast-turnaround commercial sites. The internal tracking profiles integrate a built-in incline ramp. Once the heavy safety glass pane is dropped onto the baseline blocks, high-density engineering plastic wedges or mechanical pressure bars are driven home using Allen bolts.
The Contractor Benefit: Enables installation crews to instantly recalibrate the vertical plumb alignment of individual panels. If a glass pane fractures years down the road, it can be unlocked mechanically and replaced with zero damage to the surrounding finished flooring.
Engineered for non-standard custom stainless steel sheet folding profiles or ultra-heavy jumbo-size facade plate integration. The glass is seated onto high-durometer rubber setting blocks, stabilized with internal backer rods, and hermetically sealed utilizing high-modulus structural silicone or non-shrink high-strength expansion grouting.
The Contractor Benefit: Provides exceptional, air-tight waterproofing and a rigid base fitment. Recommended for heavy public transit infrastructure hubs under constant structural vibrations.
Flawless Glass-to-Channel System Synchronization: The most common field disaster occurs when glass thicknesses or bottom embedment parameters do not line up with the sourced channel profiles. Weihua eliminates this friction. By coordinating your architectural layouts directly with our strategic hardware partners, we run end-to-end CAD/DXF simulations to ensure that the glass sheets, internal wedge profiles, and rubber gaskets snap together with absolute structural precision.
Elite Component Sourcing with Tier-1 Factory Pricing: While we focus our internal manufacturing on high-performance safety glass, we have established long-term, high-volume buying agreements with China's premier architectural hardware foundries. By leveraging our massive B2B purchasing power, Weihua secures premium aluminum extrusions and heavy stainless steel profiles at strict factory-direct price points that individual contractors cannot achieve independently.
Stringent Unified Quality Assurance (QA): You do not have to manage multiple disjointed vendors or worry about inconsistent metal finishing. Every base channel profile we source undergoes rigorous third-party metallurgical, load-deflection, and tolerance audits at our facility. We verify straightness, internal slot clearance, and surface finish depth, providing a unified warranty that covers both your glazing and structural hardware.
Consolidated Smart Logistics & Site-Ready Kitting: We streamline your procurement pipeline by eliminating split-shipment customs clearances and heavy ocean freight tracking hours. Weihua packs, crates, and ships the entire structural assembly—tempered/laminated glass sheets, base channels, locking wedges, EPDM gaskets, cladding covers, and end-caps—in a single consolidated container, neatly labeled for rapid assembly upon arrival at your job site.
