Space-Saving Side Mount Footprint: Engineered for fascia or stringer edge mounting, completely suspending glass panels off the staircase or balcony side to maximize usable tread width and interior floor space.
Premium Solid Stainless Steel Construction: CNC-machined from high-tensile Grade 304 or Marine-Grade 316 stainless steel, ensuring exceptional shear load capacity and absolute structural integrity.
Universal Heavy Glazing Integration: Tailored to pass through pre-drilled holes in thick glass profiles, providing solid, wobble-free retention for 12 mm (1/2"), 15 mm (9/16"), and 19 mm (3/4") tempered or laminated safety glass.

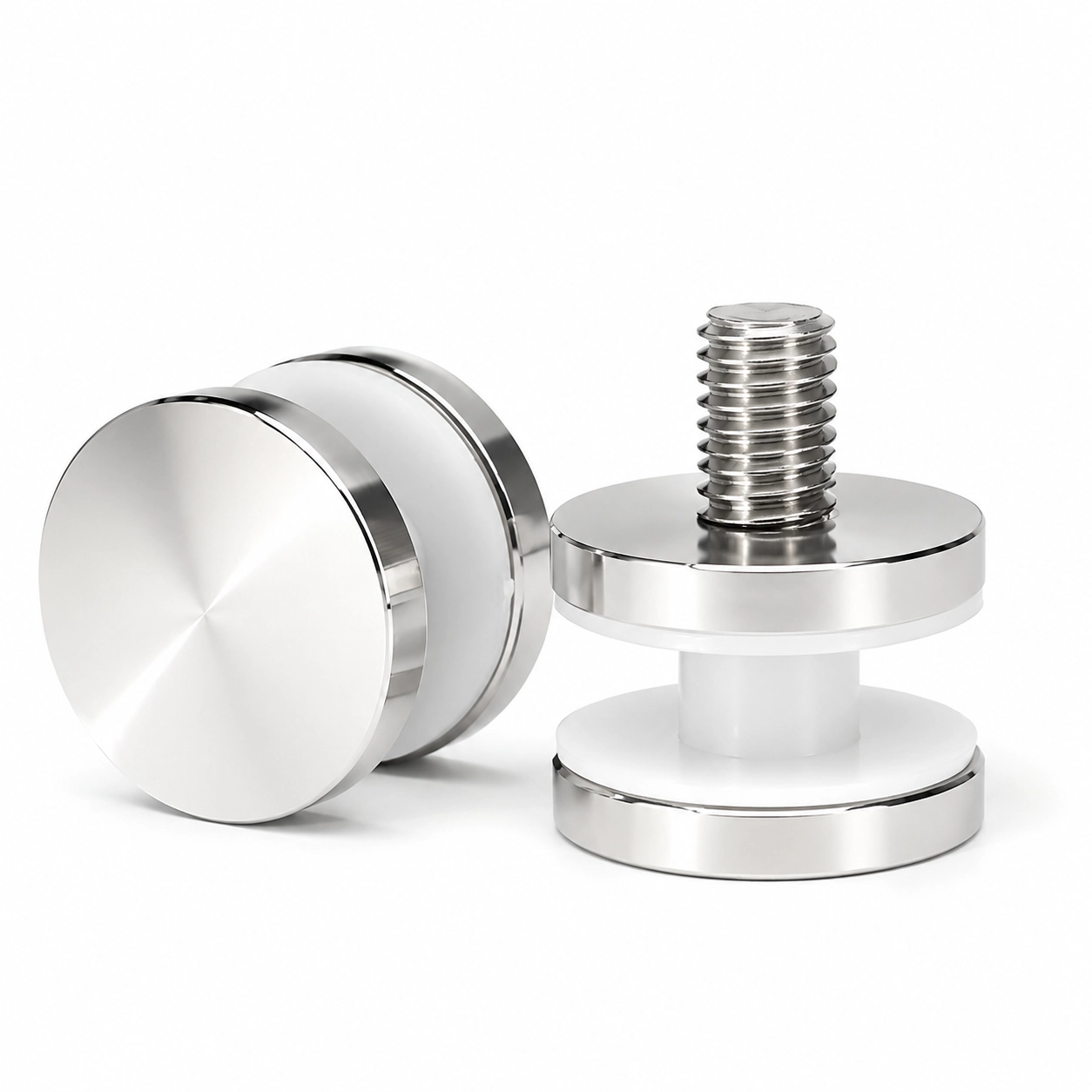

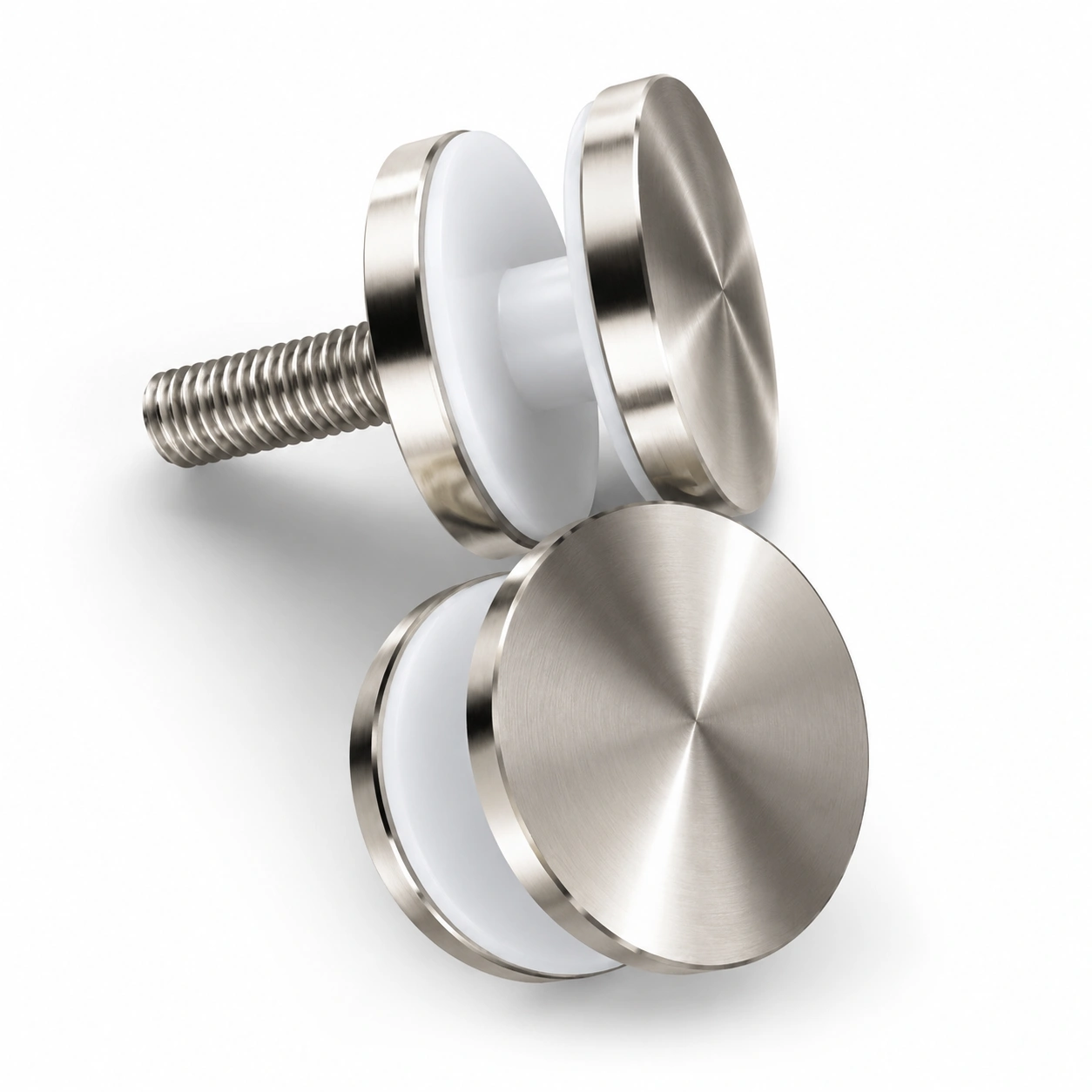

High-Density Isolation Protection: Packed with heavy-duty silicone/POM dampening gaskets and internal thread bushings, eliminating direct metal-to-glass friction and buffering structural vibration.

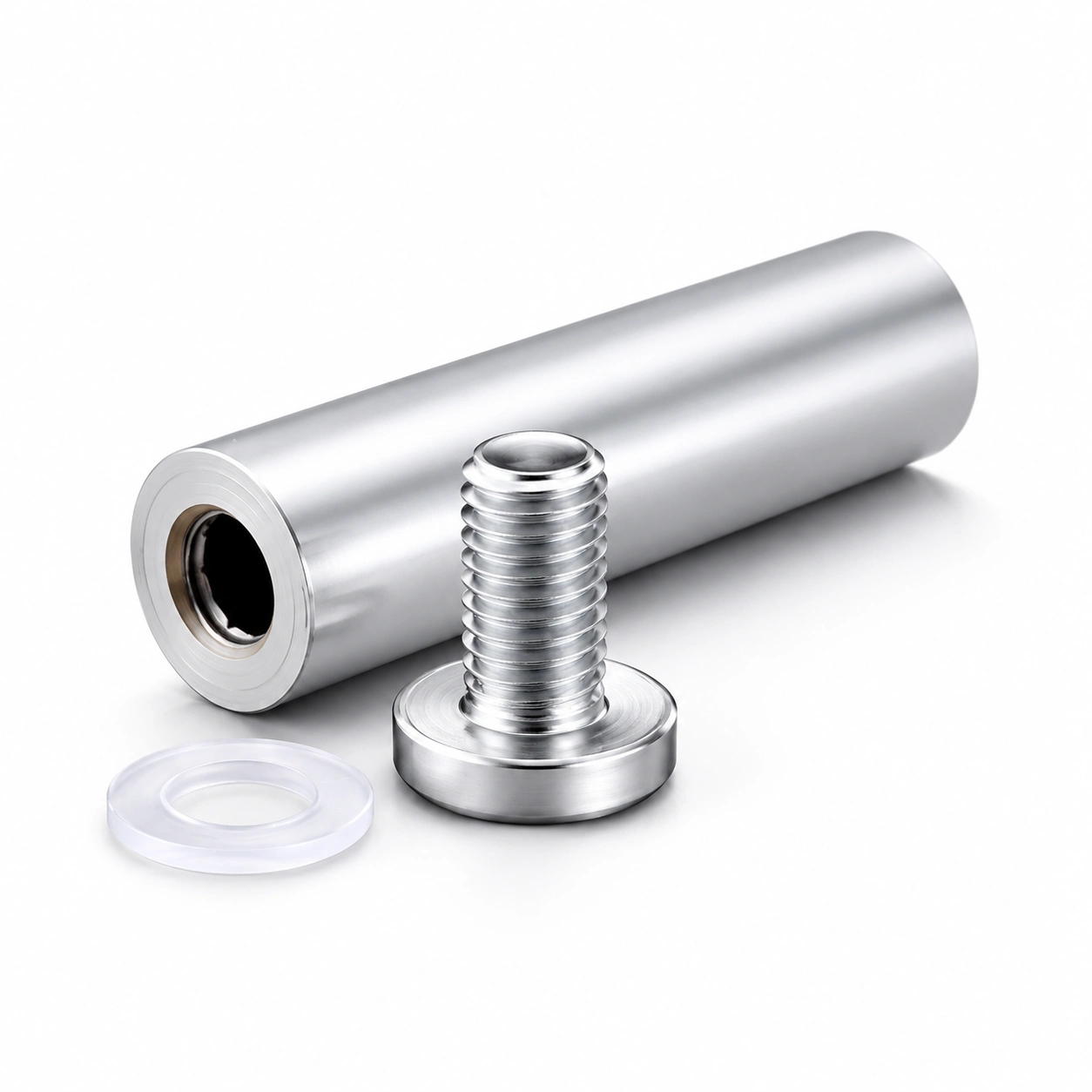

Flexible Adjustable Depth Threading: Features an adjustable heavy-gauge internal thread matrix, allowing installer crews to easily calibrate glass panel alignment and plumbing depth on uneven concrete or timber stringers.
| Quantity: | |
|---|---|

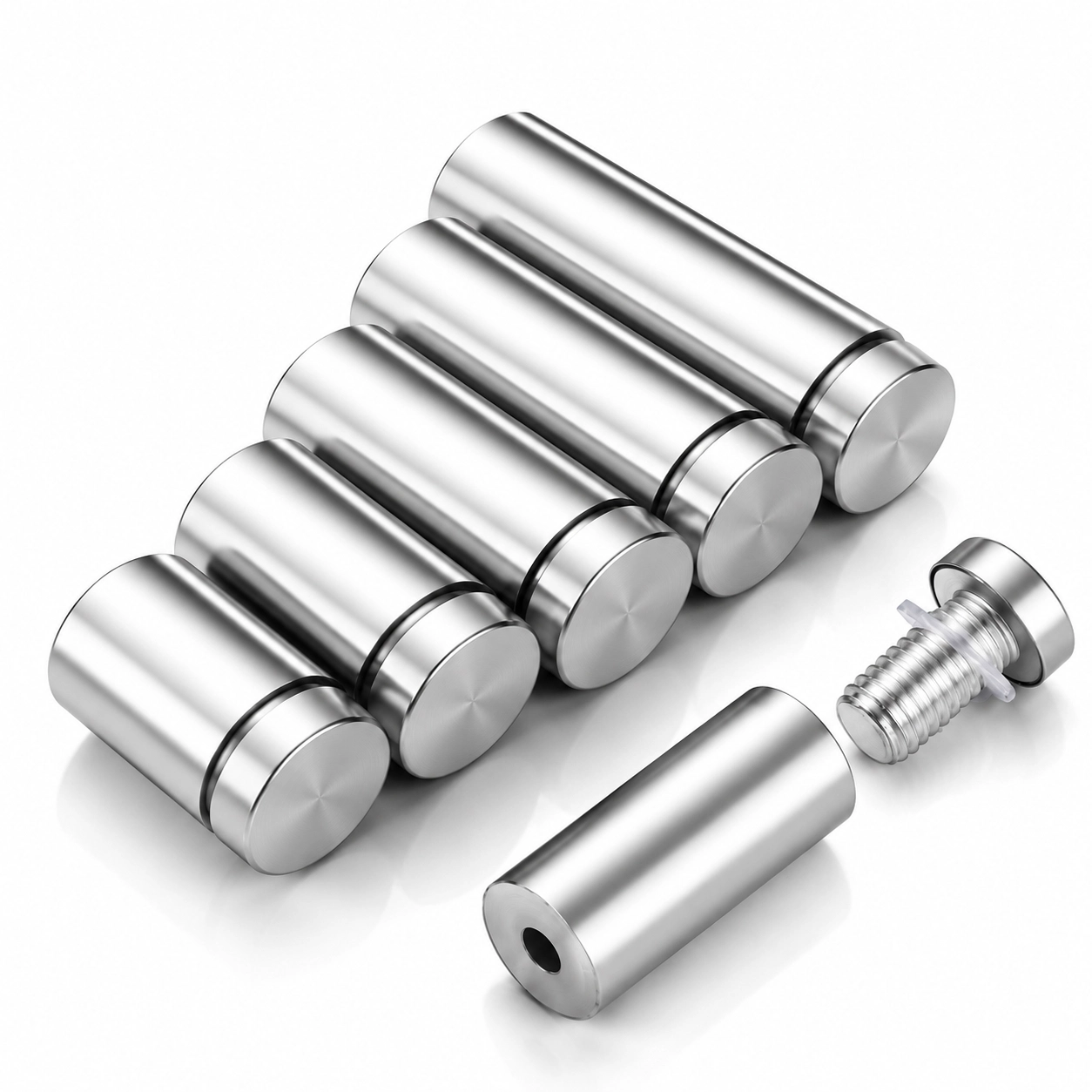

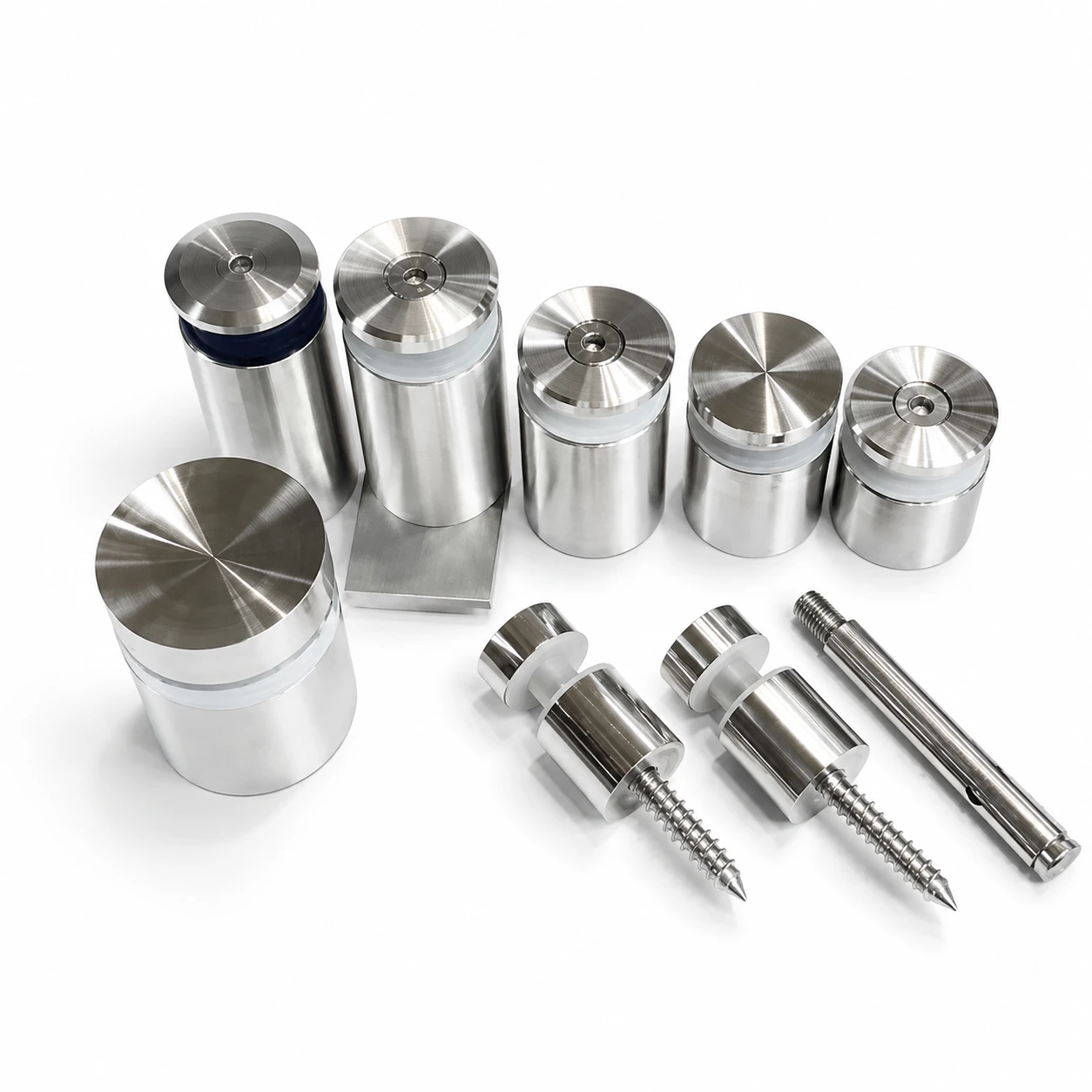

Are you looking to deliver a continuous, ultra-minimalist frameless glass railing while coping with tight interior staircase dimensions or narrow commercial walkways? Shandong Weihua Glass supplies industrial-grade Heavy-Duty Stainless Steel Glass Standoff Pins designed specifically to transfer heavy lateral loads directly into structural beams or concrete fascias, keeping your walking surfaces completely unobstructed.

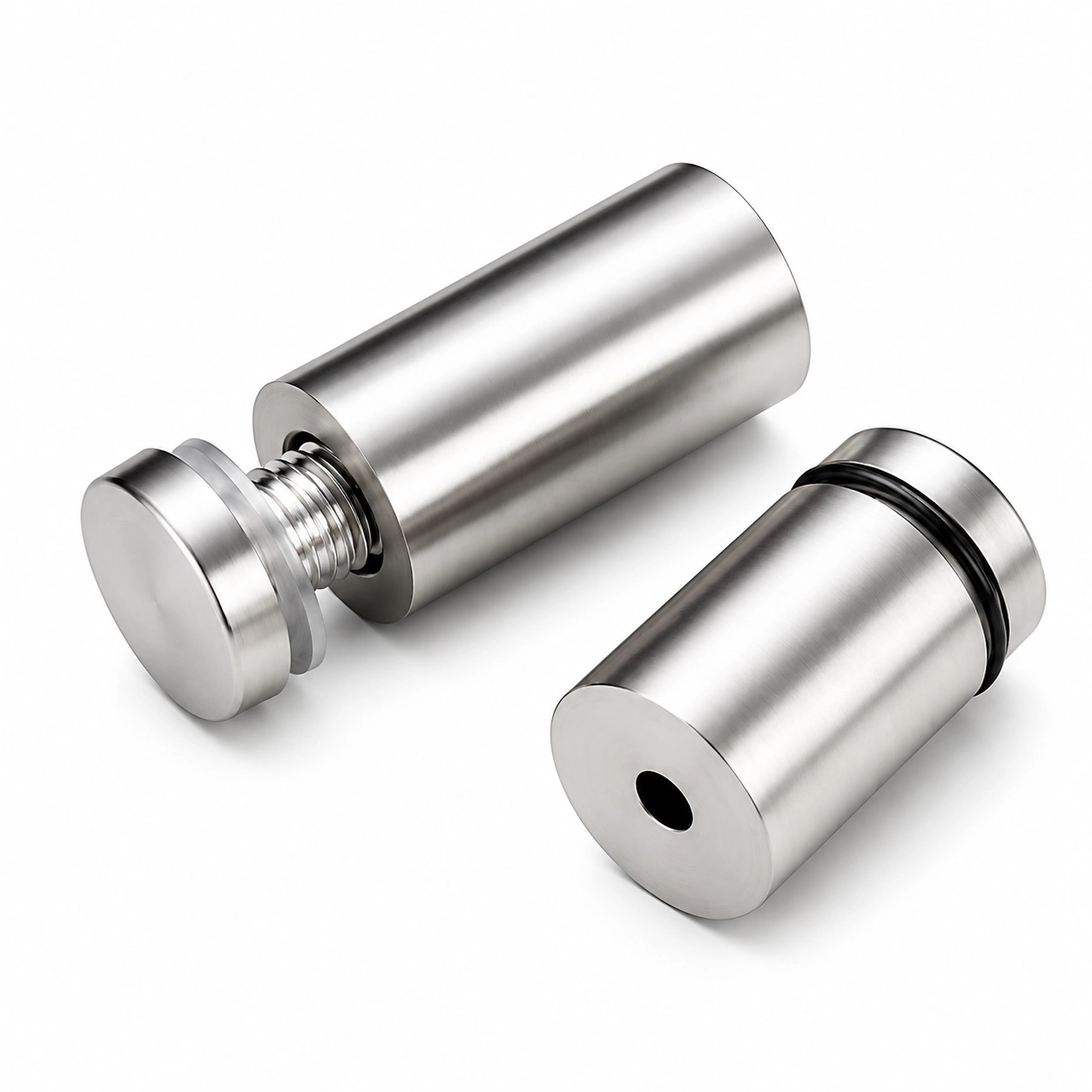

Traditional floor-mounted base shoes or spigots inevitably consume critical inches of step width and break the visual fluidity of open-concept stairs. Weihua's side-mount cylindrical standoff system redefines this architectural space. By utilizing solid, precision-turned stainless steel bodies that lock through pre-fabricated glass holes, we allow builders to create a floating glass curtain aesthetic that satisfies international crowd-load crash standards while expanding net usable floor space.
To match your specific engineering submittals and matching metalwork finishes, Weihua offers a fully configurable B2B standoff inventory:
Technical Feature | Available Specifications & Options |
Material Metallurgy | Grade 304: Optimal for interior luxury hotels & offices Grade 316 / 316L: Marine-grade, highly recommended for coastal exteriors |
Diameter Dimensions | Φ 30 mm, Φ 38 mm, Φ 50 mm (Custom heavy-duty architectural diameters available) |
Body Standoff Length | 10 mm, 20 mm, 30 mm, 40 mm, 50 mm (The space between the glass and the wall) |
Glass Thickness Mapping | Accommodates monolithic and laminated options from $10\text{mm}$ up to 25.52 mm |
Required Pre-Drilled Hole Size | Typically Φ 16 mm or Φ 20 mm (Precision aligned with Weihua glass fabrication) |
Surface Finish Options | High-Gloss Mirror Polished | Precision Satin Brushed | Matt Black Electroplated |
Mounting Sub-Structures | Heavy Masonry Anchors (Concrete) | Structural Lag Screws (Timber) | M12 Metric Bolts (Steel) |
Flawless Engineering Matching & Zero-Error Submittals: The biggest risk for a contractor is ordering glass from one factory and hardware from another, only to find a 2 mm error in hole alignment or slot tolerances on-site. Weihua bridges this gap. By coordinating your architectural layouts directly with our strategic hardware partners, we run end-to-end CAD/DXF simulations to ensure the glass panels and fitting assemblies latch together with zero geometric friction.
Elite Component Sourcing with Tier-1 Factory Pricing: While we focus our internal manufacturing on high-performance safety glass, we have established long-term, high-volume buying agreements with mainland China's premier architectural hardware foundries. By leveraging our massive B2B purchasing power, Weihua secures premium Grade 304/316 stainless steel and 6063-T6 aluminum components at strict factory-direct price points that individual contractors cannot achieve independently.
Stringent Unified Quality Assurance (QA): You do not have to manage multiple disjointed vendors or worry about inconsistent metal finishing. Every bracket, base shoe, wedge kit, and standoff pin we source undergoes rigorous third-party metallurgical and tolerance audits at our facility. We verify thread precision, surface anodizing depth, and gasket elasticity, providing a unified warranty that covers both your glazing and structural hardware.
Consolidated Smart Logistics & Site-Ready Kitting: We streamline your procurement pipeline by eliminating split-shipment customs clearances and heavy ocean freight tracking hours. Weihua packs, crates, and ships the entire balustrade framework—glass sheets, aluminum profiles, rubber isolators, and locking mechanics—in a single consolidated container, neatly labeled and organized for rapid drop-in assembly upon arrival at your job site.
