High-Tensile Structural Retention: Engineered as a heavy-duty architectural clamping mechanism designed to friction-lock or pin-secure heavy safety glass panels directly onto metal or timber support posts.
Dual-Back Profile Configurations: Available in both Flat Back profiles for seamless mounting to square tubes, wood stringers, or walls, and Radius Back versions precision-contoured to fit ⌀ 42.4 mm, ⌀ 48.3 mm, and ⌀ 50.8 mm round tubes.
Bespoke Aesthetic Geometries: Offered in globally trending fluid D-Shape (U-Shape) contours for a softer contemporary layout, or sharp Square Shape 90-degree lines tailored for minimalist, industrial, and high-end luxury architectural projects.
Environment-Specific Metallurgy: Configurable in standard Interior SS304, Exterior Premium SS316, and Marine/Pool-Grade Duplex 2205 to deliver targeted corrosion shielding under varying moisture and salt-spray indexes.
Vibration-Dampening Interior Gaskets: Packed with high-density, UV-stabilized rubber or EPDM isolating inserts tailored to securely compress glass thicknesses from 8 mm to 17.52 mm without localized stress concentrations.
| Quantity: | |
|---|---|
Are you specifying a frameless glass balustrade for a commercial mall interior, an outdoor multi-story balcony, or a high-exposure coastal pool perimeter? Shandong Weihua Glass supplies industrial-grade Heavy-Duty Structural Glass Clamps designed specifically to deliver a minimalist, floating glass aesthetic while transferring dynamic pedestrian live loads smoothly into your structural post network.
Selecting the wrong clamp profile or an unvetted metal grade leads to rapid component oxidation, loose pane tracking, and catastrophic structural failure. Weihua resolves these field bottlenecks. By matching premium metallurgy options with advanced CNC precision-machined clamping backplates, we provide global B2B procurement teams with an elite, completely adaptable fixing matrix that slashes on-site assembly times while maximizing post-installation safety.
To instantly satisfy your engineering submittals and matching architectural metalwork, customize your bulk orders using our specialized configuration options:
Flat Back : Engineered for direct anchorage onto flat surfaces, including square stainless steel posts, heavy timber columns, or structural concrete walls.
Radius Back : CNC-profiled with exact inner radiuses to mate perfectly against round tube balustrades. Standard stock curves include ⌀ 42.4 mm, ⌀ 48.3 mm, and ⌀ 50.8 mm.

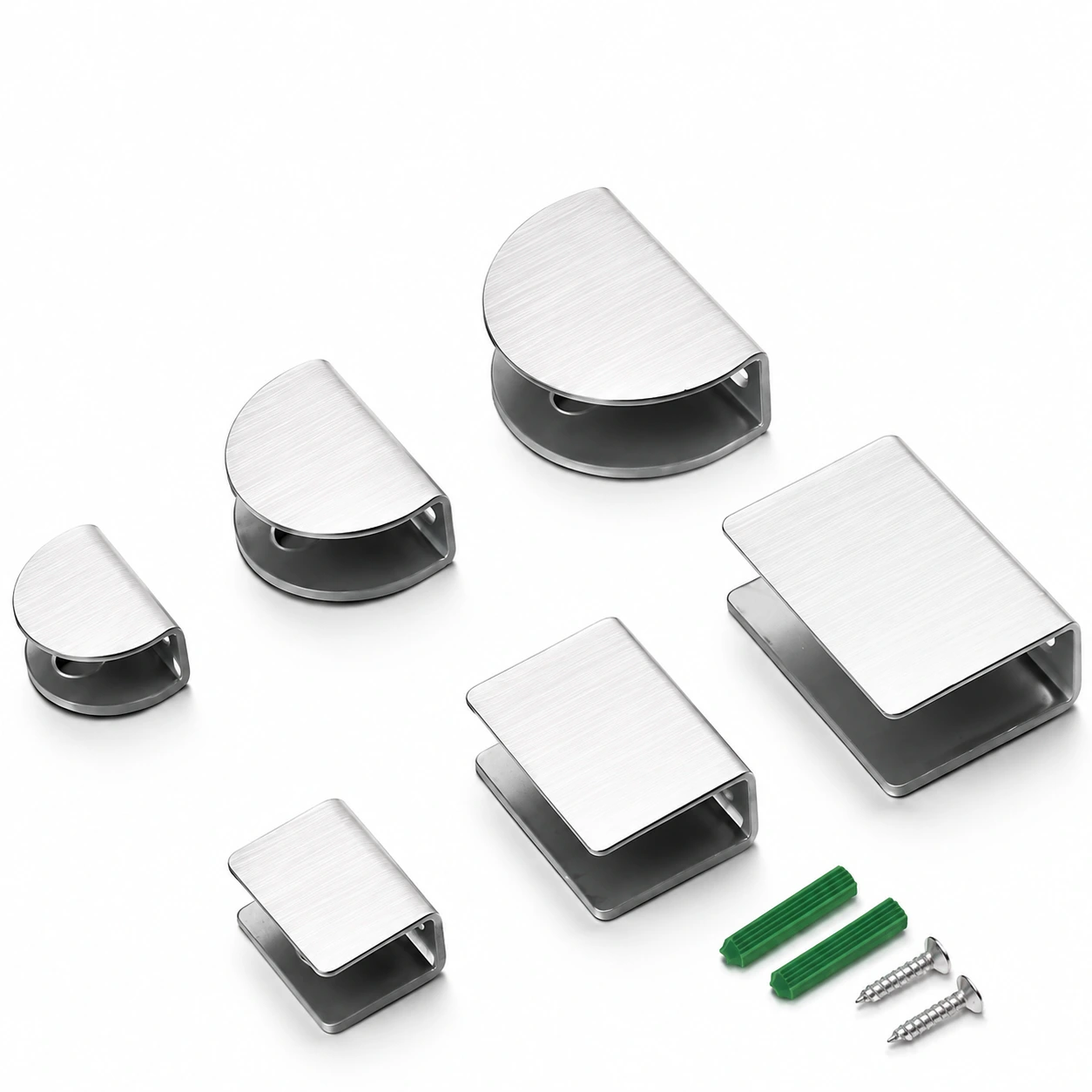

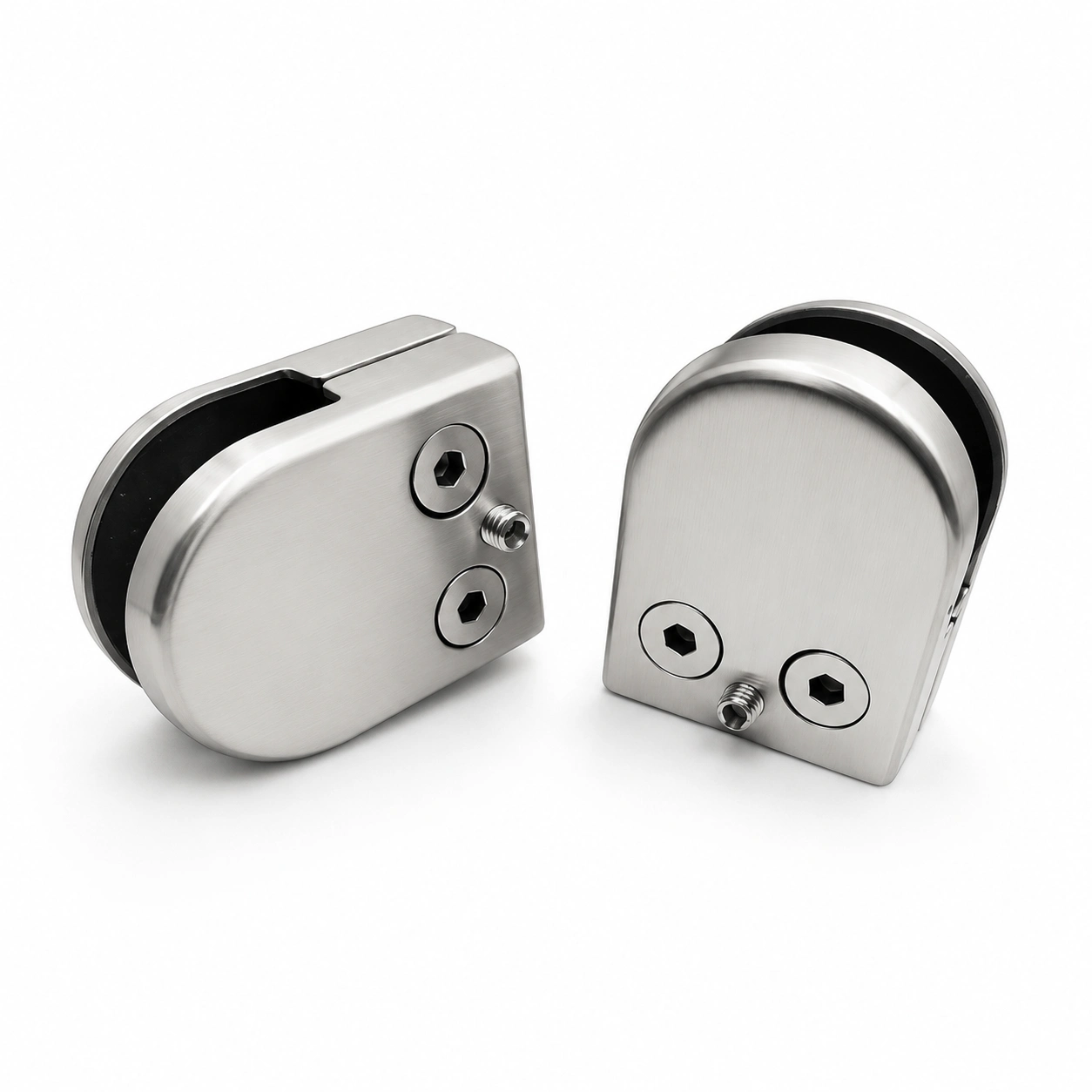

D-Shape / U-Shape: Featuring smooth, radiused external perimeters. This is the world’s top-selling commercial configuration, providing a soft, flowing transition.

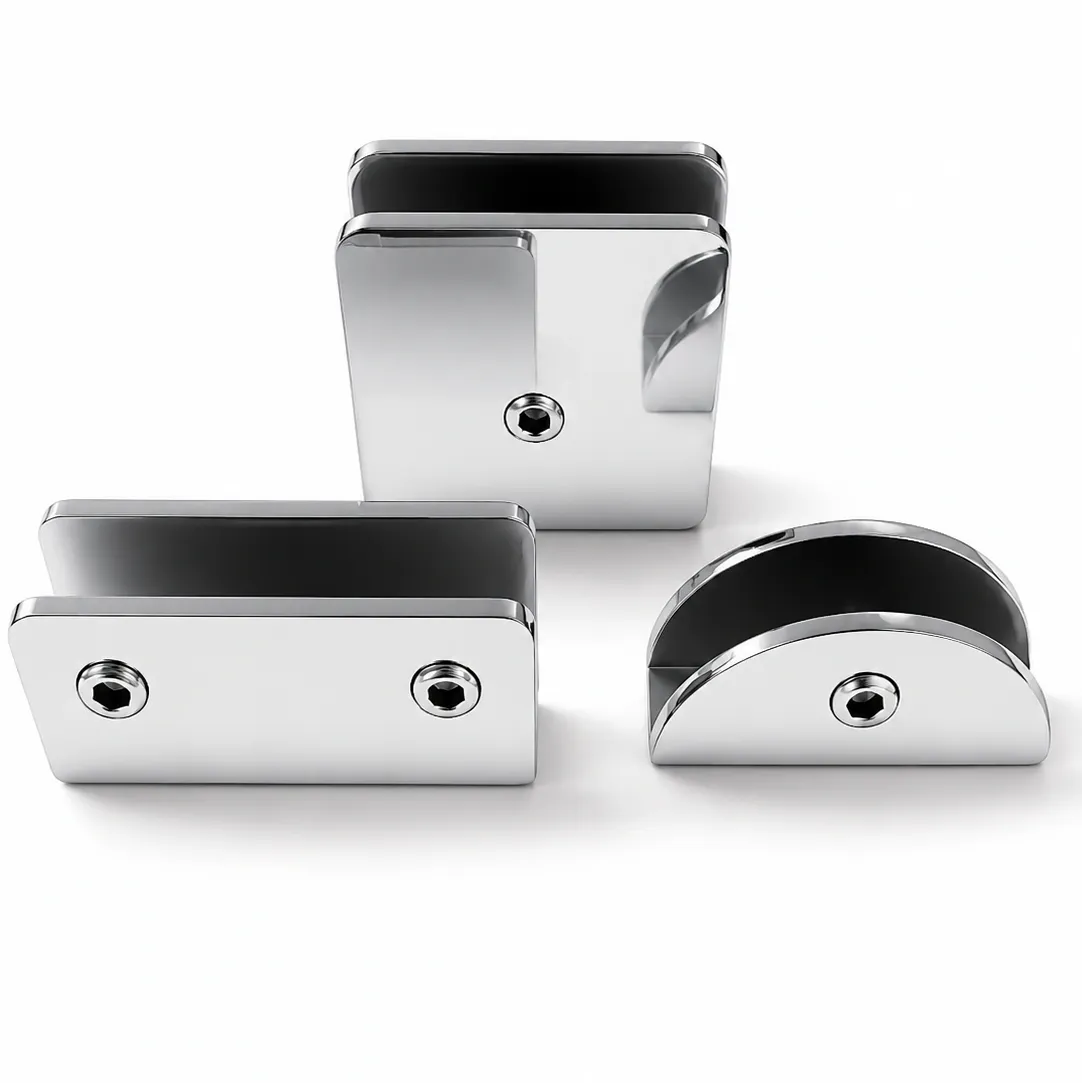

Square Shape: Characterized by crisp, bold 90-degree right angles. The definitive hardware choice for ultra-minimalist, industrial, or premium high-luxury commercial envelopes.
Material Grade | Recommended Application Environment |
Stainless Steel 304 (SS304) | Best suited for interior luxury office partitions, hotel staircase guards, or dry, inland exterior zones. |
Stainless Steel 316 (SS316) | The global gold standard for exterior architectural hardware. Contains Molybdenum to resist heavy rain and humidity. |
Duplex 2205 | Elite structural configuration. Mandatory for projects within high-chlorine pool enclosures or harsh, high-salinity beachfronts. |
Zinc Alloy | Strictly limited to light-duty interior office dividers and decorative screens. Never to be used for load-bearing barriers. |
Flawless Glass-to-Clamp Dimensional Synchronization: The most common field failure occurs when glass panel thicknesses or safety pin drop distances do not line up with the sourced hardware slots. Weihua eliminates this friction. By coordinating your architectural layouts directly with our strategic hardware partners, we run end-to-end CAD/DXF simulations to ensure that the glass sheets, internal safety pins, and clamp gaskets latch together with absolute structural precision.
Elite Component Sourcing with Tier-1 Factory Pricing: While we focus our internal manufacturing on high-performance safety glass, we have established long-term, high-volume buying agreements with China's premier architectural hardware foundries. By leveraging our massive B2B purchasing power, Weihua secures premium Grade 304/316 and Duplex 2205 components at strict factory-direct price points that individual contractors cannot achieve independently.
Stringent Unified Quality Assurance (QA): You do not have to manage multiple disjointed vendors or worry about inconsistent metal finishing. Every heavy-duty glass clamp we source undergoes rigorous third-party metallurgical, salt-spray, and tolerance audits at our facility. We verify thread precision, surface brushing/mirror polishing consistency, and gasket elasticity, providing a unified warranty that covers both your glazing and structural hardware.
Consolidated Smart Logistics & Site-Ready Kitting: We streamline your procurement pipeline by eliminating split-shipment customs clearances and heavy ocean freight tracking hours. Weihua packs, crates, and ships the entire balustrade framework—tempered/laminated glass sheets, pre-drilled posts, customized glass clamps, safety pins, and internal rubber isolators—in a single consolidated container, neatly labeled for rapid drop-in assembly upon arrival at your job site.
