Structural Geometry Visual Context: Offers three precision-engineered cross-sectional profiles (Round, Square, Flat Bar) tailored to instantly define the architectural tone, from soft classic flows to sharp industrial minimalism.
Heavy-Gauge Engineering Stability: Cold-formed and CNC-machined from heavy-wall premium stainless steel (1.5 mm - 12 mm thickness options), custom-built to intercept high lateral bending moments and public crowd impacts.

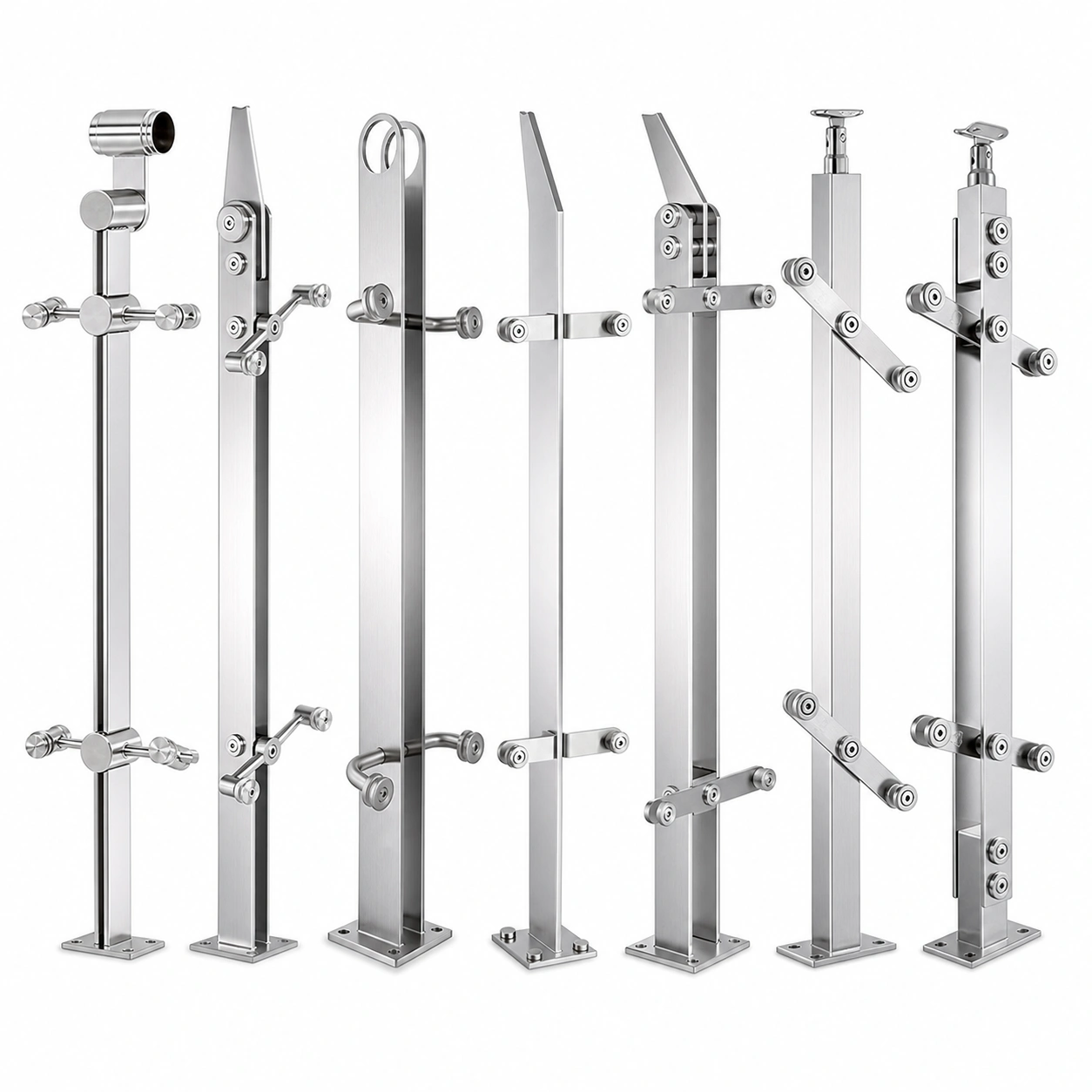

Universal Hardware Integration: Pre-drilled, tapped, and flow-drilled at our factory to seamlessly support heavy structural glass clamps, side-mount standoffs, and top-cap handrail saddle brackets.
Marine-Grade Material Performance: Available in Interior SS304 and Exterior SS316/316L, ensuring exceptional resistance to oxidation, pitting, and structural fatigue under heavy UV and coastal weathering.
Pre-Welded Heavy Anchor Baseplates: Features robust, robotic-welded thick base flanges with precision counterbored fixing holes, distributing stress uniformly into concrete slabs or timber stringers.
| Quantity: | |
|---|---|
Are you detailing a high-traffic retail mall mezzanine, an upscale corporate balcony run, or an iconic geometric spiral staircase? Shandong Weihua Glass supplies industrial-grade, heavy-duty Stainless Steel Balustrade Posts engineered precisely to turn bold engineering submittals into structurally code-compliant, visually captivating architectural statements.
In commercial structural barriers, a post is not merely a vertical metal pole—it is the structural backbone defining the spatial boundaries. Opting for thin-walled, poorly finished uprights leads to structural wobble, visible seam oxidation, and safety inspector rejections. Weihua resolves this bottleneck. By pairing elite metallurgy options with cleanroom-precise factory fabrication, we deliver an adaptable upright system that integrates flawlessly with heavy glass matrices while drastically cutting site assembly hours.
The geometric profile of a structural post directly shapes the sensory flow of an interior or exterior envelope. Configure your project bulk orders across our three definitive design paths:
Dimensional Metrics: Stock diameters available in ⌀ 38.1 mm, ⌀ 42.4 mm, and ⌀ 50.8 mm with robust wall thicknesses ranging from 1.5 mm - 3.0 mm.
Visual & Tactile Profile: Smooth, continuous curves that are exceptionally friendly to human touch, preventing snagging or accidental corner bruising. The global standard for high-occupancy commercial transport hubs, school corridors, and multi-family residential balconies.
Dimensional Metrics: Standard architectural geometries include 40 X 40 mm and 50 X 50 mm profiles with fortified wall thicknesses of 2.0 mm - 3.0 mm.
Visual & Tactile Profile: Characterized by bold, crisp 90-degree lines and powerful geometric structure. The definitive architectural choice for industrial-chic loft renovations, premium high-tech corporate offices, and ultra-minimalist commercial envelopes.
Dimensional Metrics: Heavy-gauge solid single plate thicknesses from 8 mm - 12 mm, or premium twin-plate open structural channels.
Visual & Tactile Profile: The premium darling of modern structural architects. When viewed from the direct front, the vertical profile profile is ultra-thin, minimizing eyesight obstruction to near-zero. When viewed from the side, the deep steel plate depth provides incredible lateral load resistance. Our Twin Flat Bar variants allow glass clamps to sit completely hidden between the two plates, creating a stunning floating illusion.
Structural Property | Material Metrics & Finishes |
Material Metallurgy | Grade 304: Internal luxury applications | Grade 316/316L: Heavy exterior marine environments |
Surface Finish Profiles | High-Gloss 8K Mirror Polished | Precision Satin Brushed (320 Grit) | Matte Black Electroplated |
Anchor Flange Engineering | Multi-hole heavy baseplates with matching stamped press-fit dress covers to conceal structural bolts |
Glazing Compatibility | Optimized for 8 mm - 17.52 mm Monolithic and Laminated safety glass setups |
Fixing Orientation | Top Mount (Floor Baseplate Footing) or Fascia Mount (Side Stringer Beam Attachment) |
100% Factory-Hole & Clamp Synchronization: The most expensive field failure occurs when post clamp drillings miss the glass panel hole centers by even a fraction of an inch. Weihua eliminates this split-vendor friction. By coordinating your framing submittals directly with our strategic hardware partners, we run unified CNC milling programs that ensure every post bracket aligns perfectly with our glass sheets out of the box.
Elite Component Sourcing with Tier-1 Factory Pricing: While we focus our internal manufacturing on high-performance safety glass, we have established long-term, high-volume buying agreements with mainland China's premier stainless steel precision foundries. By leveraging our massive B2B purchasing power, Weihua secures structural posts at strict factory-direct price points that individual contractors cannot achieve independently.
Stringent Unified Quality Assurance (QA): You do not have to manage multiple disjointed vendors or worry about mismatched finishes between your handrails and posts. Every vertical post we source undergoes rigorous third-party metallurgical, weld-penetration, and tolerance audits at our facility. We verify straightness, wall thickness consistency, and surface brushing depth, providing a unified warranty that covers both your glazing and structural hardware.
Consolidated Smart Logistics & Site-Ready Kitting: We streamline your procurement pipeline by eliminating split-shipment customs clearances and heavy ocean freight tracking hours. Weihua packs, crates, and ships the entire structural assembly—tempered/laminated glass sheets, pre-drilled posts, customized glass clamps, safety pins, and base caps—in a single consolidated container, neatly labeled for rapid assembly upon arrival at your job site.
