When designing or procuring for modern high-rise commercial developments, glass curtain walls serve as the building's primary environmental barrier and visual signature. As non-structural building envelopes, glass curtain walls carry no dead load weight from the building other than their own, while resisting wind loads, seismic forces, and thermal impacts.
For international developers, general contractors, and facade consultants, choosing the correct facade system directly dictates total project expenditure, structural safety, installation speed, and long-term HVAC energy savings.
The fundamental distinction in curtain wall engineering lies in the fabrication and installation methodology: Stick Systems vs. Unitized Systems.
Comparison Metric | Stick-Built Curtain Wall (Stick System) | Unitized Curtain Wall System |
Fabrication & Assembly | Components (mullions, transoms, glass) are shipped individually and assembled piece-by-piece on-site. | Pre-assembled and glazed under strict factory conditions into complete, floor-to-floor unit panels. |

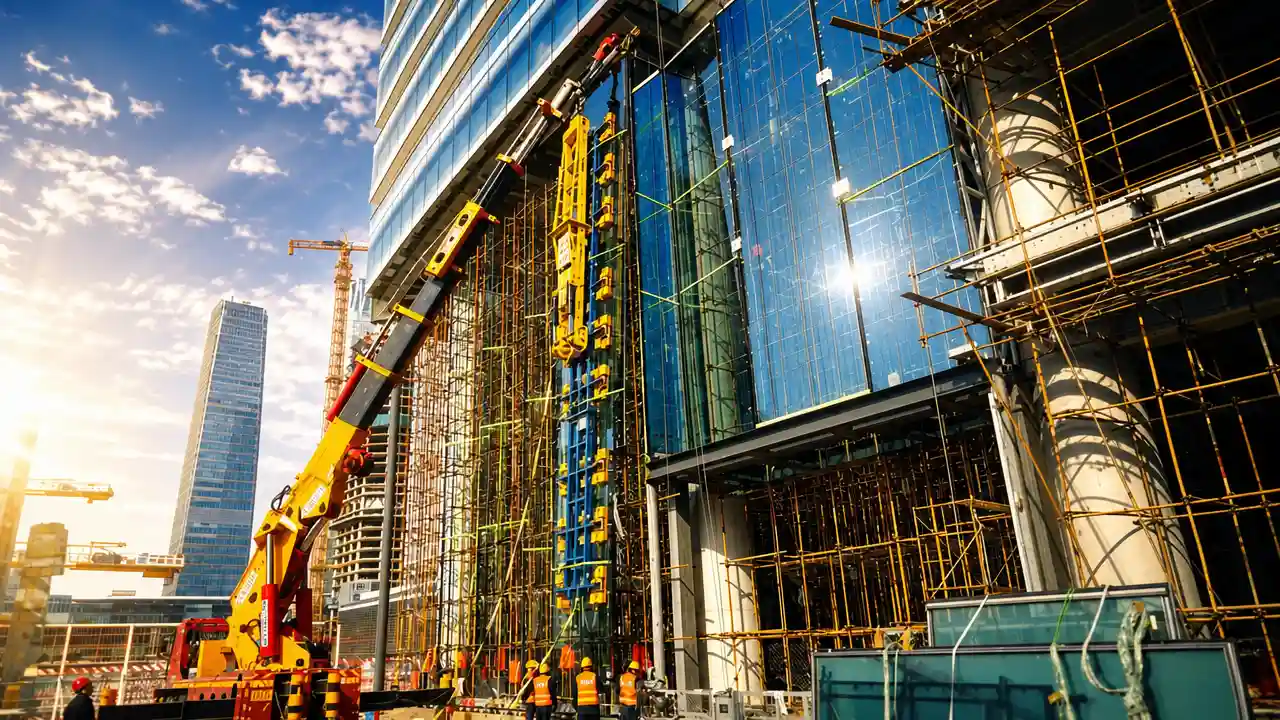

On-Site Installation | Labor-intensive. Requires extensive scaffolding or cradles. Highly vulnerable to weather delays. | Fast interlocking installation using floor-mounted cranes/hoists. Reduces field installation time by over 50%. |
Quality & Weathering | Sealing depends heavily on field-applied structural silicone and site workmanship quality. | Factory-controlled structural glazing, automated quality checks, and engineered EPDM gasket joints. |
Cost Structure | Lower material cost (15%–25% less aluminum), but higher site labor and scaffolding expenses. | Higher material/factory cost, offset by massive savings in field labor, safety equipment, and project duration. |
Ideal Application | Low-to-mid-rise buildings (<50m), bespoke complex geometries, and projects with flexible schedules. | High-rise/supertall towers (>100m), standardized floor plates, and fast-track commercial developments. |
High-altitude wind pressures and severe storms present extreme water-proofing challenges for high-rise envelopes. Rather than relying solely on sealant joints ("barrier sealing"), modern unitized curtain walls utilize the Rain Screen Principle and Pressure-Equalized Cavity (PEC) design.
Exterior (High Wind Pressure P_out)
│
├── [Rain Screen / Deflector Gasket] ─── Shields 90%+ direct rain impact
│
[Pressure-Equalized Cavity] ─── Vented to exterior (P_cavity ≈ P_out)
│
├── [Water Seal Line / EPDM Gaskets] ─── Pressure Differential ΔP = 0 (No suction)
│
[Interior Frame Cavity]
│
├── [Air Seal Line / Structural Seal] ─── 100% Sealed Air-tight Line (P_in)
│
Interior (Low Pressure P_in)
Water leakage requires three simultaneous elements: a water source, a gap/joint, and a driving force (wind pressure differential Δ P). By venting the internal cavity to the outside air, P cavity matches P out, driving Δ P to zero. Without a pressure gradient, water cannot be drawn inside.
Zone-Drained Floor Interlocks: Each unitized panel features internal sloped transoms (1° ~ 3°) directing penetrated water into internal drainage troughs.
Stack Joint Baffles: Drainage holes are fitted with one-way EPDM flap valves or baffles that allow gravity drainage while blocking external wind back-drafts.
Floor-by-Floor Isolation: Integrated EPDM plugs isolate drainage zones per story, preventing cumulative water accumulation down the building facade.
Double-Skin Facades (DSF) consist of two glass skins separated by an insulated air cavity (200mm–600mm) housing automated shade blinds. They are classified into two engineering configurations:
Mechanism: Draws fresh air from outdoors at the base and exhausts hot air out the top via the natural Stack Effect (Thermal Buoyancy).
Performance: Extracted cavity heat removes up to 80% of solar radiation in summer. Closing vents in winter creates an insulating greenhouse buffer.
Best For: Temperate zones and green building developments seeking LEED/WELL platinum certification.
Mechanism: The outer skin is fully sealed (insulated Low-E glass). Conditioned interior air is drawn into the cavity from the floor, absorbs solar heat from blinds, and is pulled into the central HVAC return air ducts.
Performance: Completely eliminates weather influences and dust accumulation inside the cavity, substantially lowering annual HVAC chiller loads.
Best For: Extreme cold/hot climates, urban centers with high air pollution, and strict indoor acoustic requirements.
When procuring custom curtain wall systems from overseas manufacturers, ensure your RFQ includes the following key specifications:
Glass Configuration: Specify Double/Triple Insulated Low-E Tempered Laminated Glass (e.g., 8mm Low-E + 16A + 8mm Extra-Clear Tempered). Ultra-clear glass (low iron) reduces spontaneous nickel-sulfide (NiS) explosion rates below 0.1%.
Structural Aluminum: High-grade 6063-T5/T6 or 6005A-T6 alloys with PVDF or anodized surface finishes (>25μm coating thickness) for high coastal corrosion resistance.
International Compliance: Verify supplier performance under ASTM E330 (Structural Performance), ASTM E283 (Air Leakage), ASTM E331 (Water Penetration), and EN 13830 curtain wall standards.
