Slashes Winter Heating Energy Bills (40% - 50% OpEx Savings): Engineered with dual/triple-cavity silver Low-E coatings and 90%+ Argon gas fill, dropping thermal U-values from 5.7 W/(m²·K) down to an ultra-low 1.1 - 1.4 W/(m²·K).
Rapid Capital Investment Payback (1.5 - 2.5 Year Full ROI): Reduces seasonal heating load energy consumption by 120 - 160 kWh/m², enabling complete upfront CapEx recovery within 18 to 30 winter operation months.
Hermetic Pressure-Equalized Dual-Seal Architecture: Constructed with primary polyisobutylene (PIB) and structural secondary silicone sealing, integrated with elevation barometric pressure-balancing capillaries to prevent seal degradation in high-altitude or extreme alpine regions.
Warm-Edge Thermal Break & Zero Internal Frosting: Integrates low-conductivity stainless steel or composite hybrid warm-edge spacers that eliminate perimeter cold bridging—stopping internal glass edge condensation and zero-frosting down to -20℃ outdoor temperatures.
Heavy Snow-Load & Storm Safety Rated: Fully toughened 4.0 mm - 6.0 mm safety glass layers certified under EN 12150 and ISO 9001, engineered to support heavy winter snow blankets and high lateral storm pressures.
| Quantity: | |
|---|---|

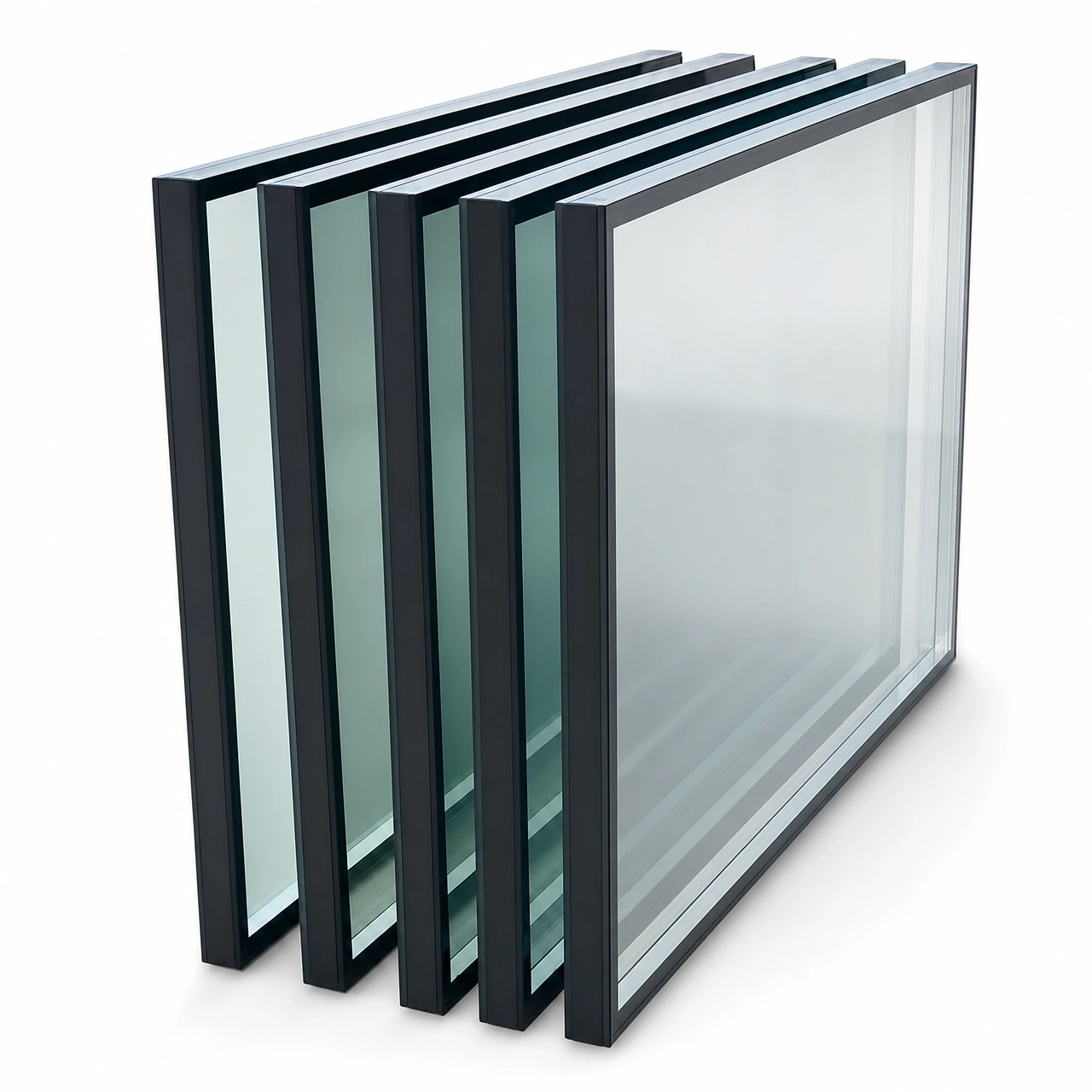

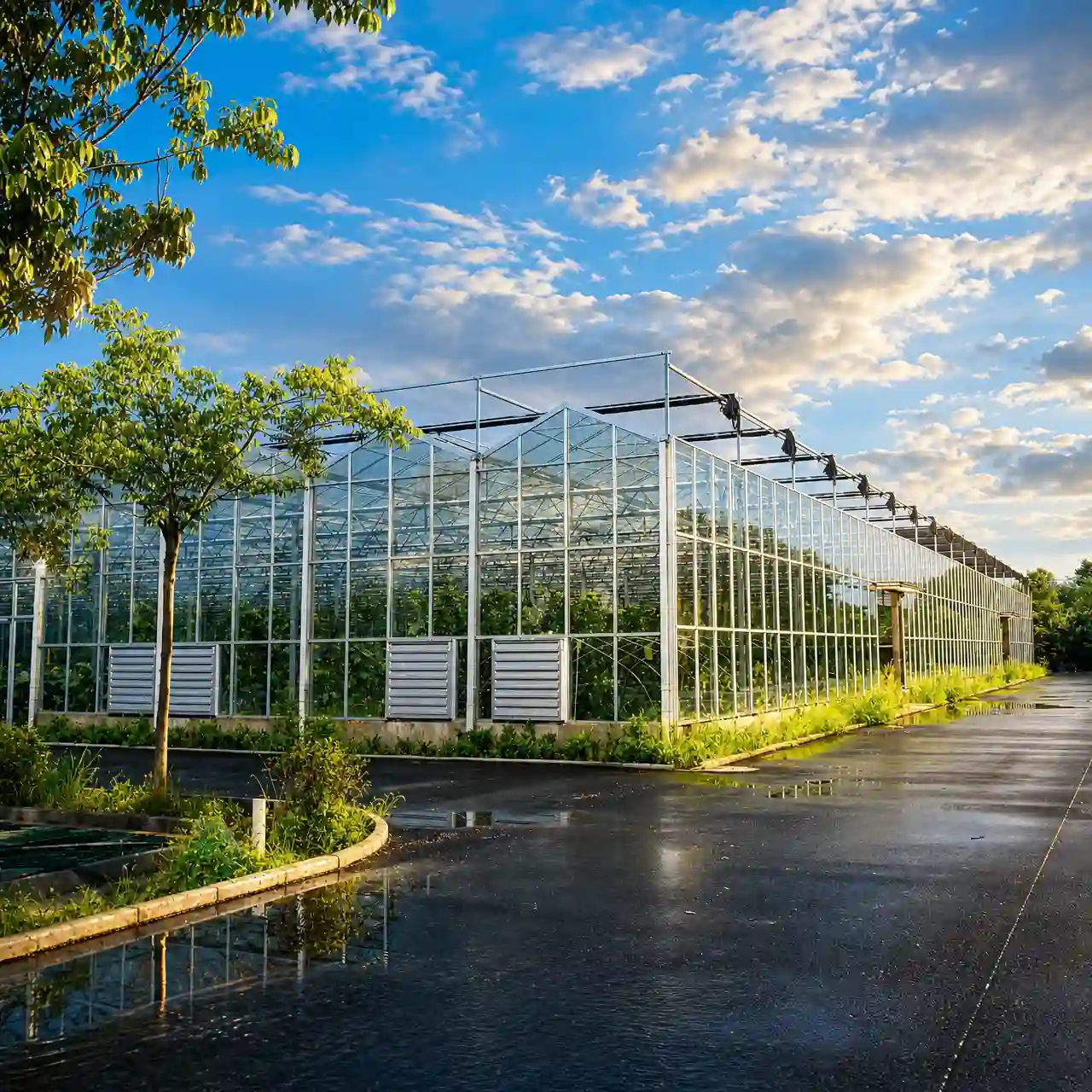

Are you engineering an automated high-tech plant factory, constructing a commercial production glasshouse in high-latitude regions, or seeking to eliminate seasonal winter heating costs? Shandong Weihua Glass manufactures custom, industrial-grade Multi-Cavity Low-E Insulated Glass Units (IGUs) engineered precisely to create an impermeable thermal barrier for commercial agricultural envelopes.
In traditional cold-climate greenhouse management, up to 80% of nighttime indoor thermal energy escapes into the atmosphere via far-infrared radiation through standard single glazing. Weihua's Low-E Insulated Glass Units resolve this critical thermodynamic bottleneck. By combining offline magnetron-sputtered Low-E metallic coatings, gas-sealed insulated cavities, and precision warm-edge engineering, our IGUs bounce indoor heat back to your crops, maintaining ideal growing microclimates while slashing HVAC gas and electricity consumption.
Weihua's Agricultural IGUs are engineered with selective optical properties—letting in high Photosynthetically Active Radiation (PAR) solar photons during the day while preventing thermal infrared radiation from escaping at night.
[ SOLAR RADIATION (DAY) ] [ THERMAL INFRARED (NIGHT) ]
│ │
│ (Visible PAR Light Passes) │ (Indoor Heat Escapes)
▼ ▼
┌────────────────────────────────────────────────────────────────────────────────────────┐
│ OUTER LOW-IRON GLASS SHEET (3.2mm / 4.0mm / 5.0mm) │
├────────────────────────────────────────────────────────────────────────────────────────┤
│ ░░░░░░ 90%+ ARGON GAS SEALED CAVITY (12mm / 16mm Space) ░░░░░░░░░░░░░░░░░░░░░░░░░░░░░ │
├────────────────────────────────────────────────────────────────────────────────────────┤
│ ═══ OFFLINE SILVER LOW-E COATING LAYER (Reflects Far-Infrared Back Inside) ═══════════ │
├────────────────────────────────────────────────────────────────────────────────────────┤
│ INNER LOW-IRON GLASS SHEET (3.2mm / 4.0mm / 5.0mm) │
└────────────────────────────────────────────────────────────────────────────────────────┘
│ │
▼ ▼
[ High PAR Photon Yield ] [ 90%+ Radiated Heat Bounced ]
Boosts Leaf Photosynthesis U-Value Dropped to 1.1 W/(m²·K)
Technical Property | Weihua Low-E Double IGU (6mm+12Ar+6mm) | Standard Single Float Glass (4mm) | Agronomic & Commercial Value |
Center-of-Glass U-Value | 1.1 - 1.4 W/(m²·K) | 5.7 W/(m²·K) | 78% reduction in nighttime conductive heat loss. |
Visible PAR Light Transmission | ≥ 80.0% - 85.0% | 88.0% | High photon entry balanced with maximum thermal retention. |
Internal Frost Threshold | No Frosting at -20℃ | Frosts at < 0℃ | Prevents cold-air radiation shock on perimeter crop rows. |
Hermetic Gas Fill Rate | ≥ 90% - 95% Injected Argon | Air Cavity | Drops convective heat circulation inside the cavity. |
Spacer System Type | Warm-Edge Stainless/Composite | Standard Aluminum | Eliminates perimeter cold bridging and condensation drip. |
Seal Integrity Lifetime | 10-Year Structural Guarantee | N/A | Zero internal fogging or gas leakage warranty. |
Project Test Basis: 10,000 m² high-tech commercial glasshouse operating in a Cold Climate Zone (120 heating days/year, target indoor temp +18℃, average outdoor temp -5℃.
Energy Savings Capacity: Replacing single float glass with Low-E Double IGUs saves approximately 120 - 160 kWh/m² per heating season.
Capital Expenditure (CapEx) Delta: The initial cost premium for multi-cavity Low-E insulated glass over single glass is roughly $18 - $25 /m².
Operational Expenditure (OpEx) Savings: At natural gas/heating energy prices of $0.06 - $0.09 /kWh, annual operational savings average $8.00 - $12.50/m².
┌────────────────────────────────────────────────────────────────────────────────────────┐
│ THE WEIHUA MANUFACTURING DIFFERENCE │
├───────────────────────────────┬───────────────────────────────┬────────────────────────┤
│ ️ Automated PIB Dual Sealing │ ❄️ Altitude Barometric Control│ Sea-Freight Safety │
│ Primary polyisobutylene seal │ Pressure-balancing capillary │ Heavy-duty L-frame │
│ guarantees <0.5% annual Argon │ tubes prevent glass deflection│ crates with desiccants │
│ leakage rate for 10+ years. │ during mountainous transit. │ and anti-staining film.│
└───────────────────────────────┴───────────────────────────────┴────────────────────────┘
Micro-Controlled Automated PIB Dual Sealing: Cheap insulated units suffer from seal degradation and internal gas leakage. Weihua utilizes robotized primary polyisobutylene (PIB) extrusion and structural secondary silicone sealing, maintaining an annual gas leakage rate below 0.5%.
Barometric Pressure-Equalization Technology: Transporting sealed glass units across varying mountain elevations or atmospheric pressures can cause glass bulging or pane implosion. Weihua installs factory capillary pressure-equalization valves to ensure panel flatness upon field installation.
Complete System Kitting & Sizing Sync: Sourcing insulated glass from one supplier and roof framing or aluminum glazing channels from another causes field assembly errors. Weihua works directly with your CAD drawings, delivering pre-sized, CNC-finished panels complete with compatible EPDM gaskets and structural accessories.
Engineered Anti-Staining Maritime Packaging: Ocean transit humidity causes glass surface corrosion and clouding. Weihua packs all agricultural IGUs in reinforced, steel-banded L-frame timber crates fitted with vapor-barrier films, non-reactive interleaving powder, and industrial desiccants.
Structural Glass Standard: EN 12150-1 (Impact Toughened Glass), ANSI Z97.1 (US Safety Glazing).
Insulated Unit Standard: EN 1279-2 (Gas Leakage Rate Assessment), EN 1279-3 (Long-Term Moisture Penetration).
Quality Management: ISO 9001:2015 Certified Manufacturing Facility.
Glass Thickness Configurations: 3.2 mm - 8.0 mm (Single pane layer options).
Cavity Spacer Options: 9 mm, 12 mm, 16 mm, 20 mm (Argon or Dry Air fill).
