Ultimate Passive House Thermal Metrics: Engineered with advanced triple-pane dual-cavity or quadruple-pane triple-cavity configurations, driving structural U-values down to an industry-leading ≤ 0.5 - 0.8 W/(m²·K).
Multi-Shield Low-E Layer Matrix: Maximizes heat retention by strategically depositing multiple offline soft-coat Low-E layers (Double/Triple Silver) inside discrete internal cavities, preventing interior thermal bleeding under sub-zero polar climates.
Hermetic Noble Gas Thermal Breaks: Every internal multi-cavity chamber is injected with 90%+ high-purity Argon (Ar) or Krypton (Kr) gas, heavily retarding internal convective heat transfers between the glass plies.
Warm-Edge Hybrid Spacer Engineering: Utilizes premium low-conductivity warm-edge thermal spacers with automated primary PIB and secondary structural silicone double-sealing, completely eliminating cold bridges and edge condensation.
Acoustic Sanctuary Decibel Isolation: Delivers an elite Sound Transmission Class (STC) rating of 40 - 48 dB+, effortlessly blocking ultra-low frequency heavy traffic, airport, and industrial environmental noises.
| Quantity: | |
|---|---|

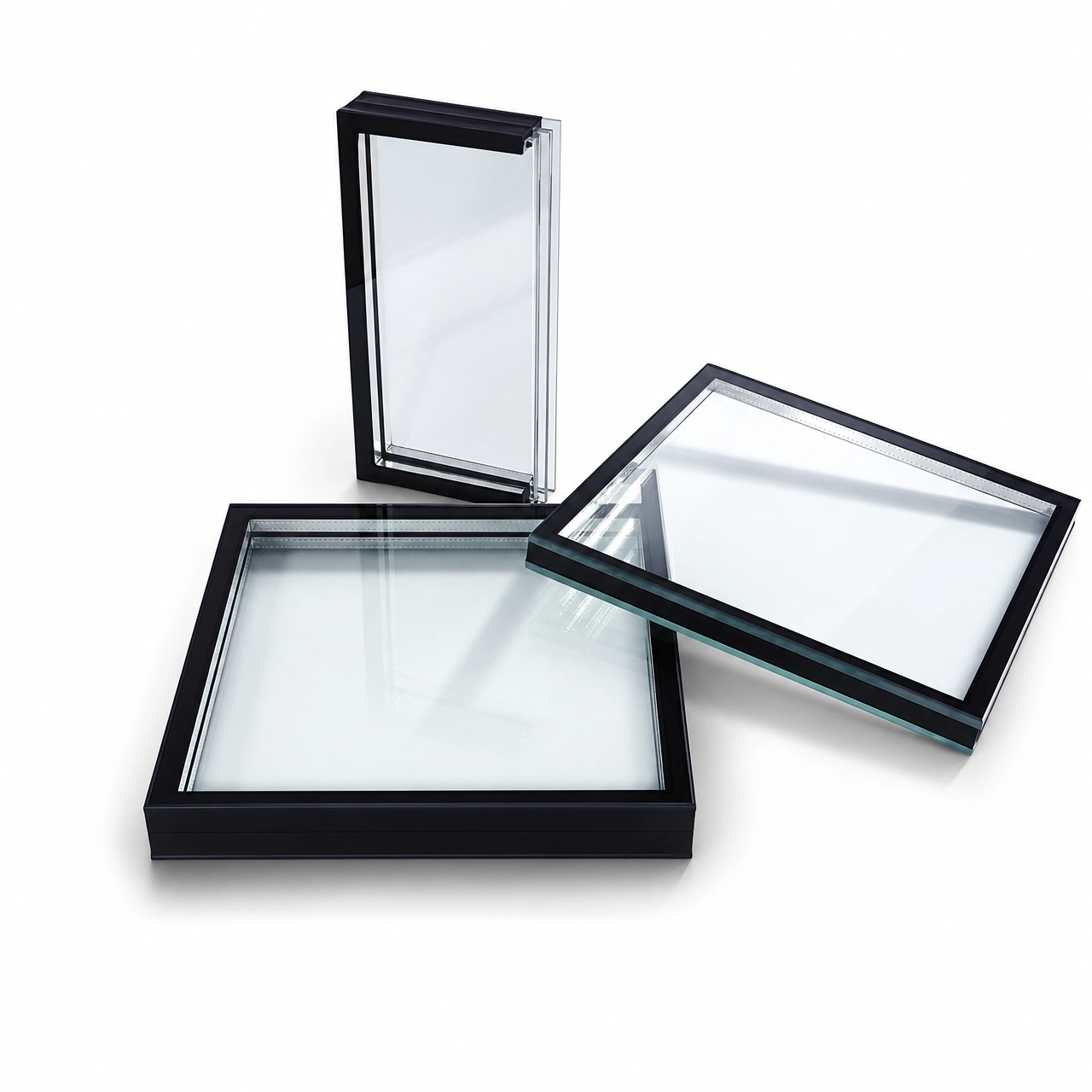

Are you structural-engineering a certified net-zero passive house, a monumental commercial curtain wall in an arctic climate zone, or an elite soundproof envelope for a high-exposure airport hotel? Shandong Weihua Glass manufactures premium, industrial-grade Multi-Cavity Triple & Quadruple Glazed Low-E Insulated Glass Units (IGUs) designed precisely to satisfy the world's most stringent green building energy codes, drop operational carbon footprints, and achieve peerless acoustic damping.
Standard single or double glazing units quickly reach their thermodynamic limits under extreme winter cold or intense desert solar loading. Weihua's multi-cavity structural design breaks through this performance ceiling. By expanding the glass matrix into three or four structural safety panes separated by hermetically sealed, noble-gas-filled chambers, we construct a monolithic thermal fortress. This allows architects to implement expansive, floor-to-ceiling glass facades that maintain optimal indoor comfort while drastically shrinking building HVAC sizing expenditures.
To seamlessly match your building envelope specifications and structural mullion pocket depths, specify your bulk order across our flagship configurations:

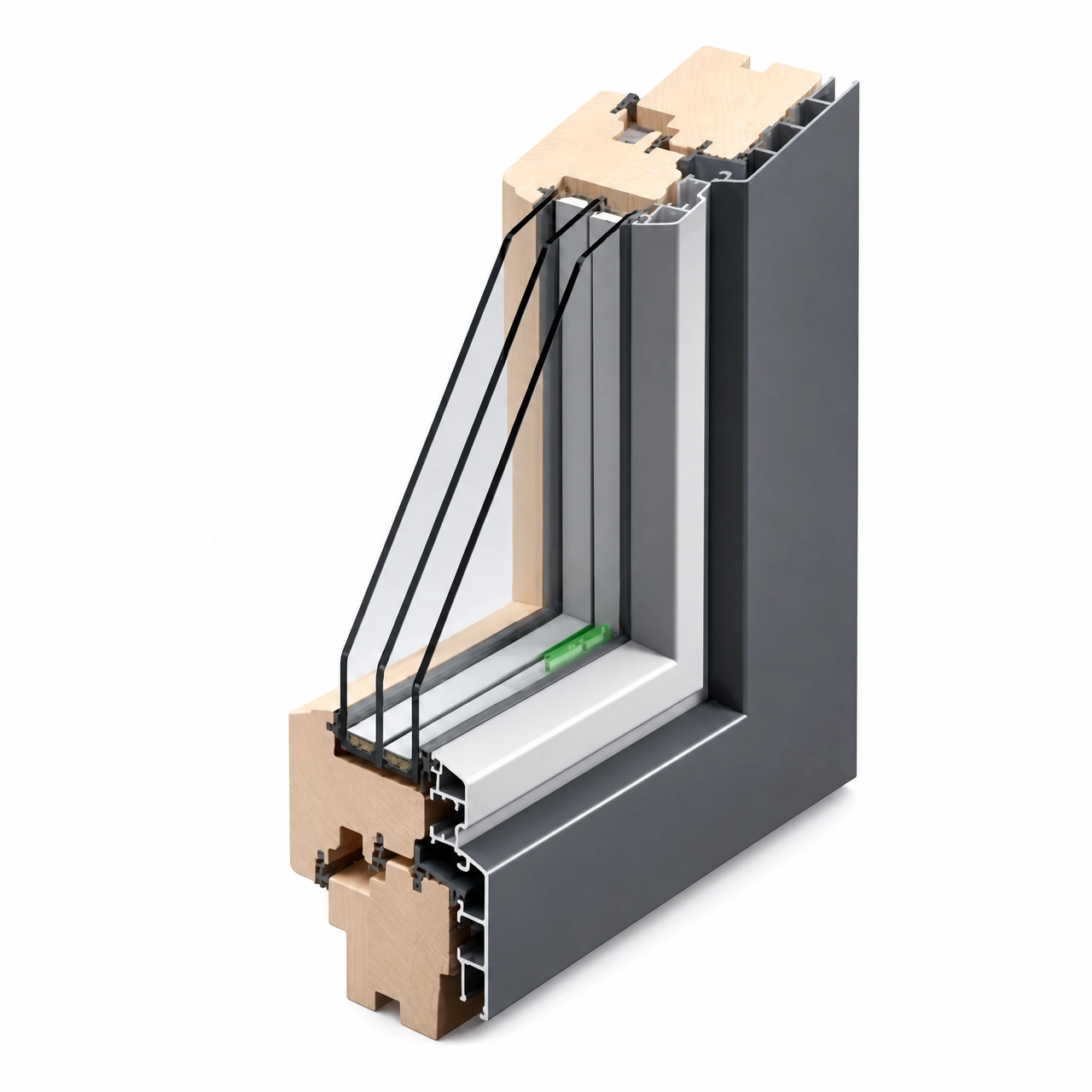

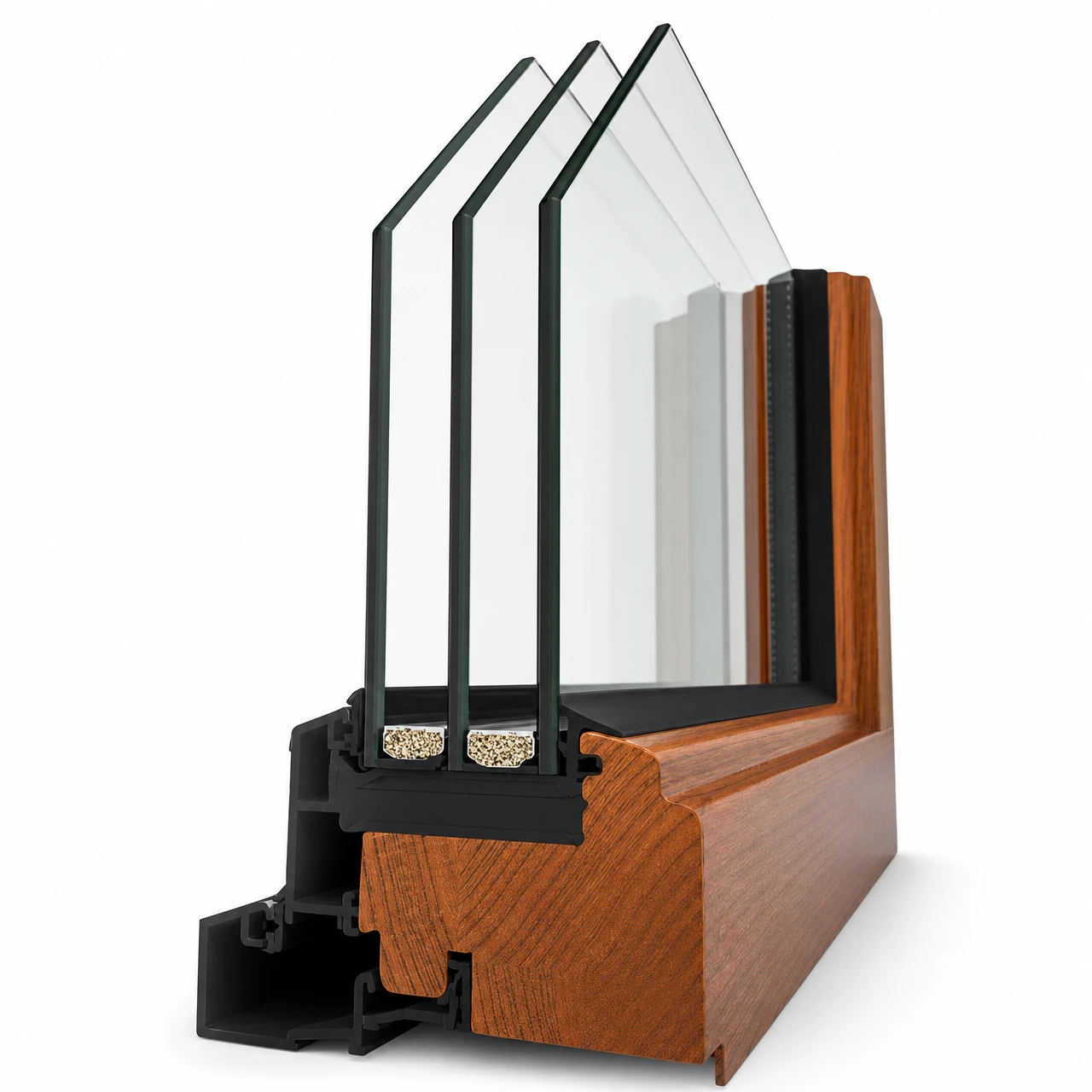

Triple-Glazed Dual-Cavity (Industry Standard):
Typical Builds: 6 mm + 12 Ar + 6 mm + 12 Ar + 6 mm (Available with dual Low-E film layers on Surface #2 and #5).
The Engineer's Choice: The gold standard for modern commercial office curtain walls and premium residential fenestration balancing cost with elite green-building code compliance.

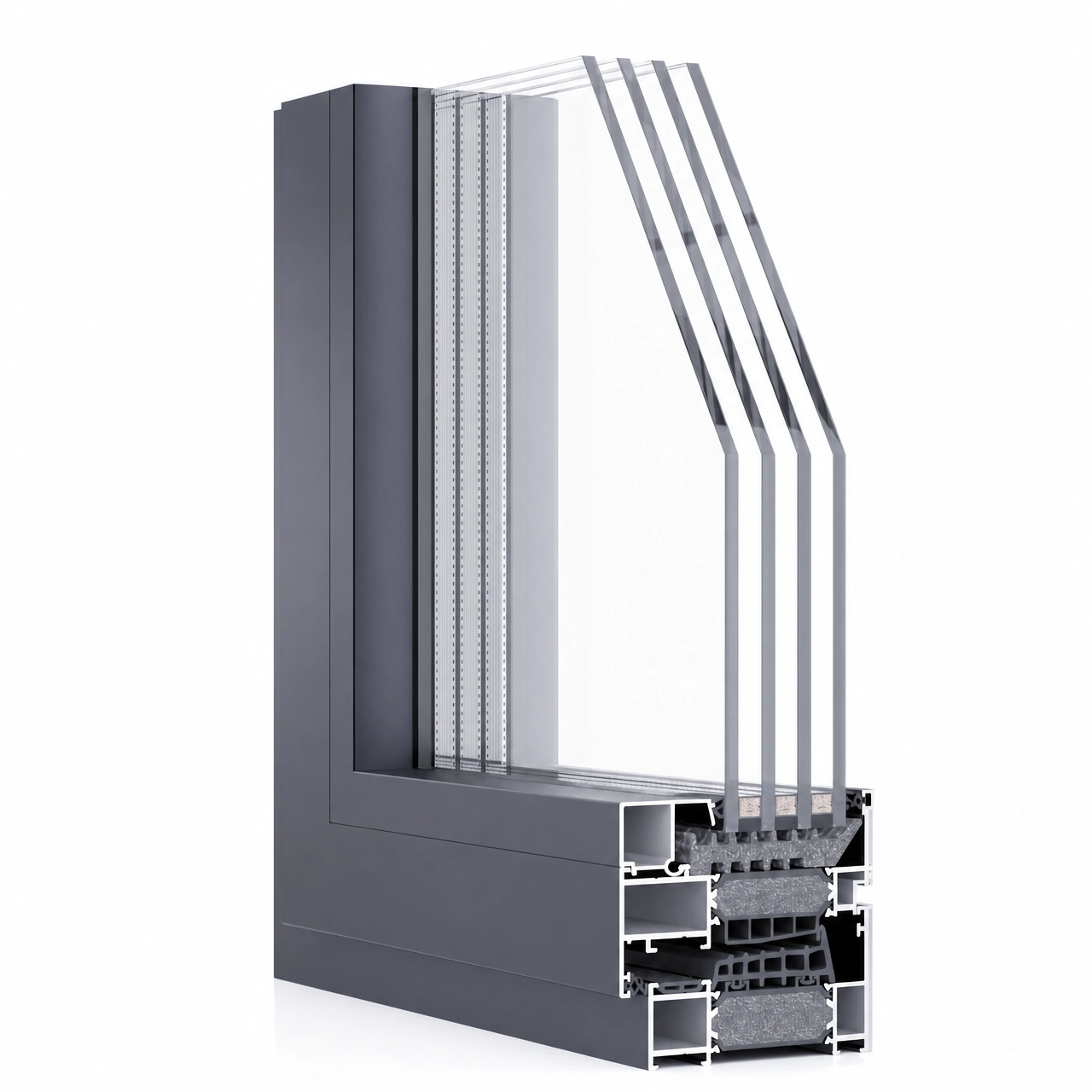

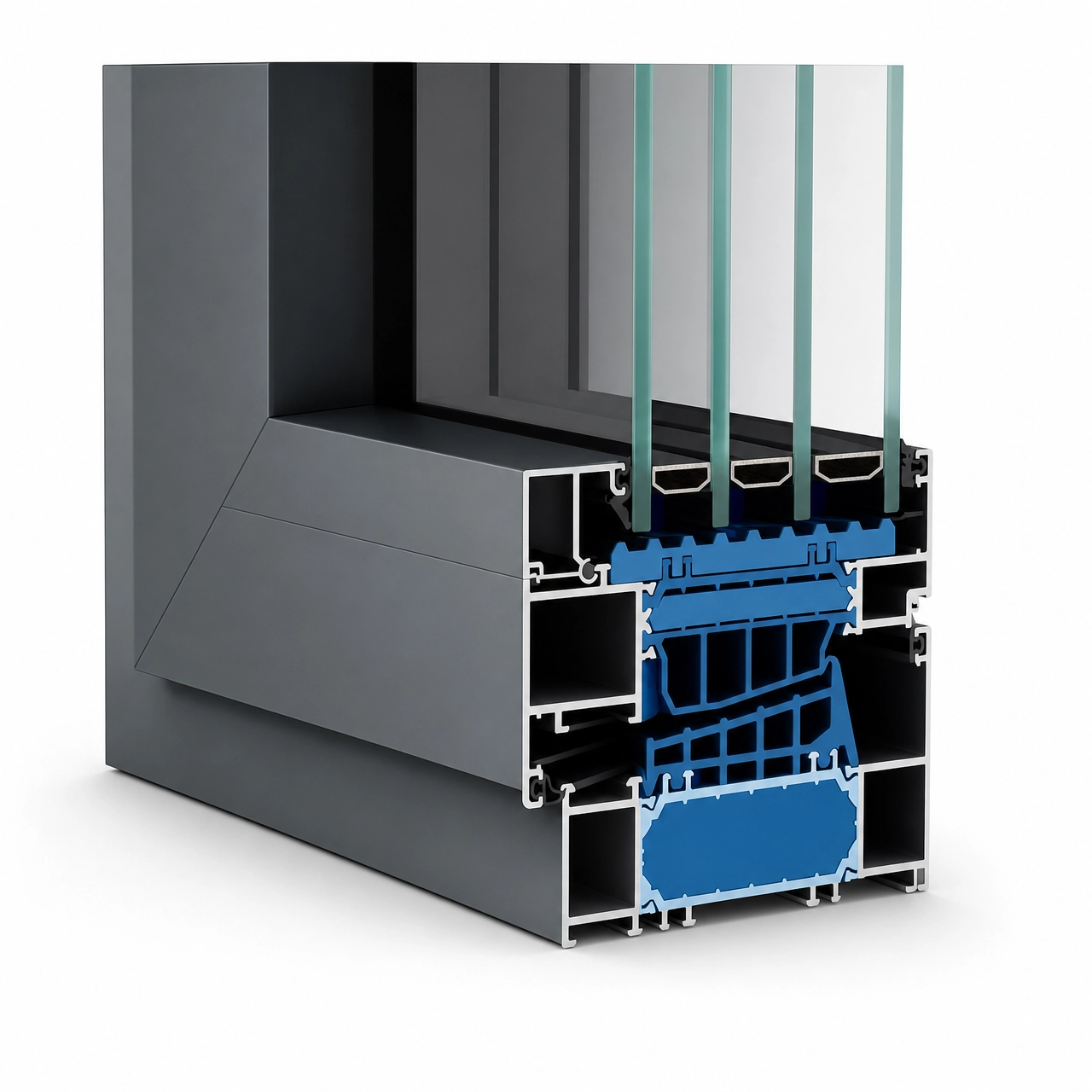

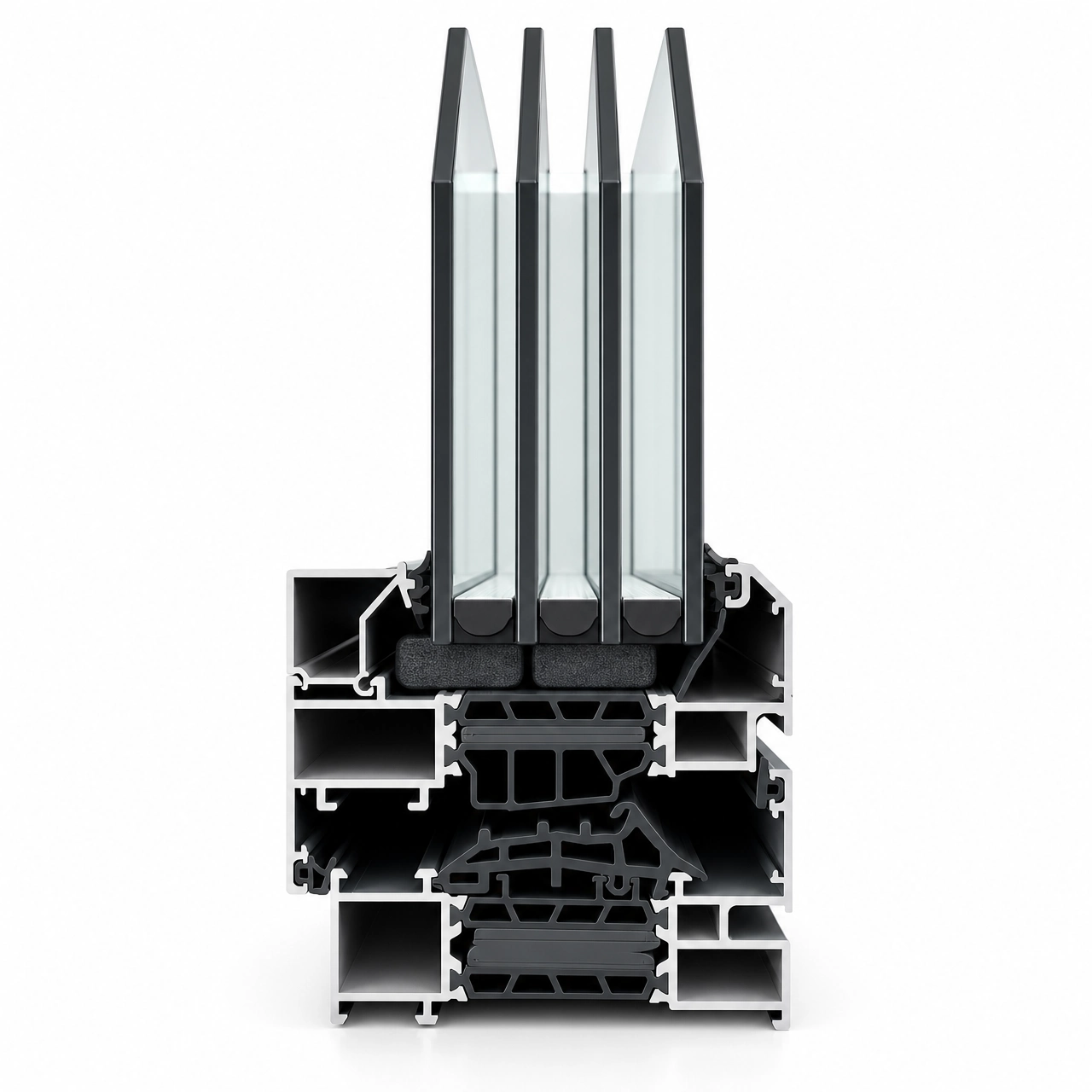

Quadruple-Glazed Triple-Cavity (Extreme Performance):
Typical Builds: 6 mm + 9 Ar + 6 mm + 9 Ar + 6 mm + 9 Ar + 6 mm.
The Engineer's Choice: Engineered strictly for high-latitude polar regions, alpine resorts, and severe acoustic zones demanding near-zero heat loss.
System Performance Properties | Triple Glazed Dual-Cavity | Quadruple Glazed Triple-Cavity |
Center-of-Glass U-Value (Thermal Transmittance) | 0.7 - 1.1 W/(m²·K) (Optimized via Dual Low-E) | 0.5 - 0.7 W/(m²·K)}$ (Optimized via Triple Low-E) |
Acoustic Mitigation Index (STC / R_w Rating) | 38 - 42 dB Sound Attenuation | 43 - 48 dB+ Extended Noise Shielding |
Internal Chamber Gas Fill Options | 90\% - 95% Density Argon (Ar) / Bespoke Krypton (Kr) | 90\% - 95\% Density Argon (Ar) / Bespoke Krypton (Kr) |
Internal Spacer Matrix | Architectural Aluminum Spacers | Structural High-Insulation Warm-Edge Spacers | |
Glass Processing Options | Fully compatible with Flat/Curved Toughening, Heat Soak Testing (HST), and Heavy Lamination | |
Quality Safety Compliance Standards | Certified and fully compliant with CE (EN1279), SGCC (ANSI Z97.1), IGCC, and ISO9001 |
Zero-Failure Multi-Layer Edge Deletion: Processing multi-cavity IGUs with multiple Low-E coatings doubles the risk of film oxidation and seal failure. Weihua utilizes fully automated, cleanroom-integrated CNC edge-deletion lines that perfectly strip the metallic coating along all glass boundaries, guaranteeing a lifelong, leak-proof primary seal bond.
Deflection-Compensated Gas Injection: Large, heavy triple and quadruple-glazed units face internal pressure changes due to changes in site altitude and temperature, which can cause glass bending or breakage. Weihua utilizes specialized barometric pressure balancing calculations and exact automated gas dosing during assembly, preventing glass deflection during overseas shipping and building installation.
Elite Component Sourcing with Tier-1 Pricing: While we focus our internal advanced production lines on custom high-performance safety glass, we have established long-term volume buying agreements with the world's premier warm-edge spacer and primary/secondary sealant foundries. By leveraging our massive B2B purchasing power, Weihua secures structural hardware at factory-direct price points, ensuring an uncompromised high-end system assembly at highly competitive rates.
Consolidated Site-Ready Kitting & Jumbo Packaging: We streamline your procurement pipeline by eliminating split-vendor component matching errors. Weihua packs and ships the entire structural facade order—fully kitted with custom glass sizing, structural fasteners, and perimeter gaskets—inside heavy-duty, reinforced steel-banded L-frame timber crates fitted with shock-absorbing foam blocks, ensuring zero movement across global maritime freight routes.
