During severe typhoon and hurricane seasons, residents in coastal regions and high-rise apartments face critical structural challenges. Gale-force winds weaponize tree branches, roof tiles, and airborne debris, sending them crashing into residential windows.
Standard glass easily shatters under such blunt forces, instantly exposing home interiors to catastrophic wind-driven rain and pressure changes. This is why investing in true typhoon-resistant glass has become an indispensable element of modern home safety and architectural planning.
In the fenestration industry, typhoon-resistant glass (often engineered as "hurricane impact-rated glass" or "high wind-load safety glass") is far more than just thick standard glass. It is a highly sophisticated composite structural system. This article breaks down its core materials, essential performance standards, and practical buying tips.
Typhoon-resistant glass utilizes a premium laminated glass configuration. The classic engineering formula is: Double/Multi-layer Tempered Glass + High-Performance Interlayer.
Both the inner and outer glass panels must undergo rigorous tempering or heat-strengthening processes. Tempered glass provides 4 to 5 times the impact resistance of ordinary annealed glass. If an extreme impact occurs, it fractures into small, blunt-edged granules rather than sharp, dangerous shards.
Glass shattering can be managed, but falling shards and open wind-tunnels cannot. The interlayer's job is to "hold the fort." There are two industry-standard options available:
PVB (Polyvinyl Butyral) Film: The traditional, cost-effective choice. It features incredible elasticity and adhesion. Even when the glass cracks from debris impact, the shards stick tightly to the PVB film, maintaining the envelope of the house and blocking wind-driven rain.
SGP (SentryGlas® Plus / Ionoplast) Interlayer: The premium "gold standard" for hurricane defense. SGP membranes possess a shear modulus 50 times greater and a tear strength 5 times higher than traditional PVB. Crucially, even if both layers of tempered glass completely break, the rigid SGP interlayer remains upright inside the window frame. It will not sag or collapse, offering unrivaled post-breakage structural integrity for oceanfront villas and super high-rises.

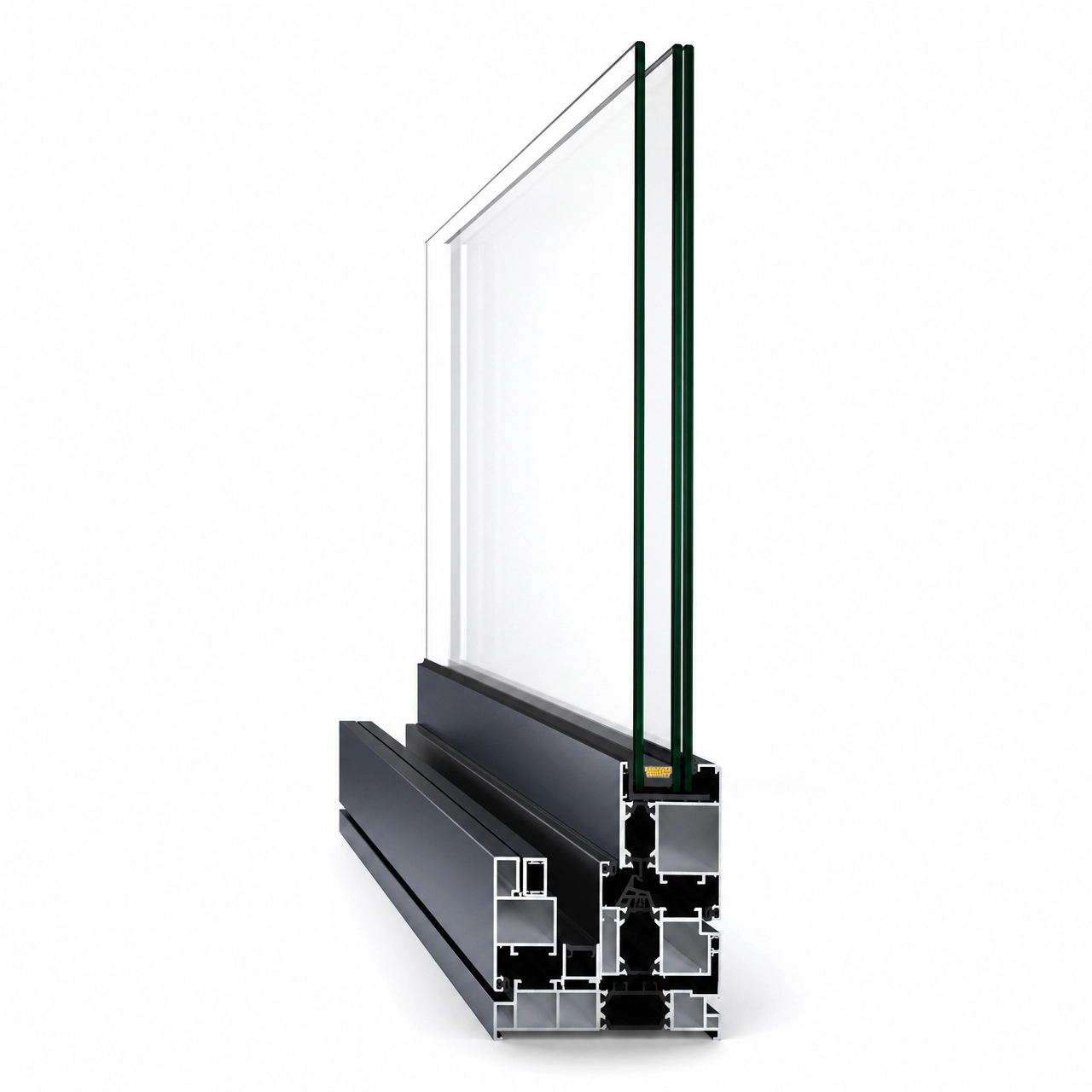

To deliver optimized wind defense, acoustic insulation, and thermal efficiency, most modern residential projects combine Insulated Glass Units (IGU) with Laminated Glass technology. Here are the elite standard recommendations:
Application Scenario | Recommended Configuration | Design Analysis |
Standard High-Rise / Inland Storm Zones |
| Outer IGU for insulation; inner PVB laminated layer for essential impact defense. High cost-efficiency. |
Coastal Typhoon Belts / Oceanfront Properties |
| Premium storm configuration utilizing a rigid SGP interlayer to withstand violent, direct windward pressures. |
Oversized Floor-to-Ceiling Windows / Skylights |
| Engineered for massive architectural spans, providing maximum structural load distribution and ultimate safety. |
(Note: "12A" and "15A" represent the thickness of the air/argon gas space between the glass panes).
When sourcing typhoon-grade window systems, always request structural test certification from your suppliers and verify the following parameters:
Wind Load Performance (Resistance to Wind Pressure): Measures the window's capacity to bend without breaking under intense continuous pressure. High-rise installations typically require compliance with heavy wind load ratings (e.g., matching or exceeding localized Class 8 wind pressure standards or 4.5–5.0 kPa).
Windborne Debris Impact Resistance (Missile Tests): Simulates severe storm conditions where objects like timber blocks or steel balls are mechanically launched at the glass. Certified glass must successfully capture the missile without letting it breach or tear open the interlayer.
Water Penetration and Air Infiltration: Hurricanes mix violent winds with heavy downpours. A top-tier window system ensures no water leaks or air drafts bypass the frame gaskets under peak atmospheric load.
"30% Glass, 70% Frame and Installation."
No matter how unbreakable your glass is, if the aluminum frames are too thin or poorly installed, the entire window unit can be sucked out by extreme negative wind loads.
When buying, always verify that:
Aluminum profile wall thickness is at least 1.8mm to 2.0mm for heavy wind load zones.
Corner joints are reinforced with heavy-duty corner cleats and professional injection glue.
The glass is secured inside the frame using commercial-grade structural silicone sealant rather than basic weatherproofing caulk.
Selecting the ideal typhoon-resistant glass requires a calculation based on geographical exposure, floor height, and window dimensions. If you live within active storm corridors or on upper floors (30th level and above), choosing an integrated system with an SGP laminated interlayer is highly recommended. It is a long-term investment that safeguards your real estate assets and, most importantly, protects your loved ones.
