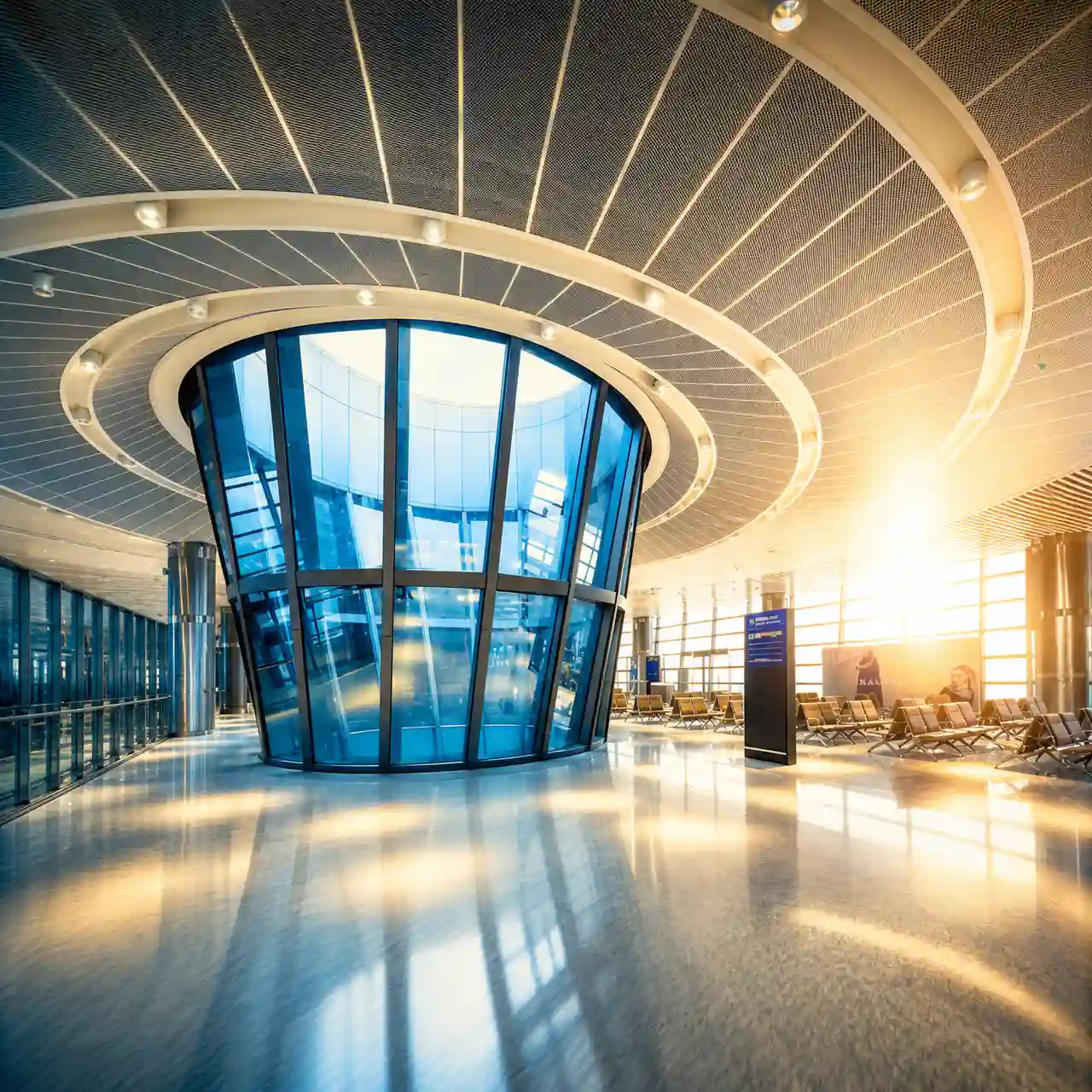

In modern architectural design, expansive glass facades, light-filled interior partitions, and soaring atriums are highly coveted design elements. However, in the pursuit of visual transparency and aesthetic elegance, structural safety remains an absolute, non-negotiable threshold.
In the unfortunate event of a fire, standard glass will shatter within minutes due to thermal shock and uneven heating, allowing flames and toxic smoke to spread unimpeded. This is where fire-resistant glass (FRG) steps in—acting as a vital "transparent shield" that safeguards lives and property.
This comprehensive guide demystifies the defense mechanisms, core classifications, and verification methods of fire-resistant glass, helping you make informed decisions in procurement and project inspection.
The exceptional performance of fire-resistant glass under extreme heat relies on two distinct physical and chemical mechanisms:
Through specialized chemical ion exchange or high-intensity thermal tempering, the surface stress profile of the glass is fundamentally altered. This glass possesses several times the mechanical and thermal shock resistance of standard glass. Even when subjected to temperatures exceeding 1000℃, it maintains its structural integrity without shattering, effectively containing fire and toxic smoke.

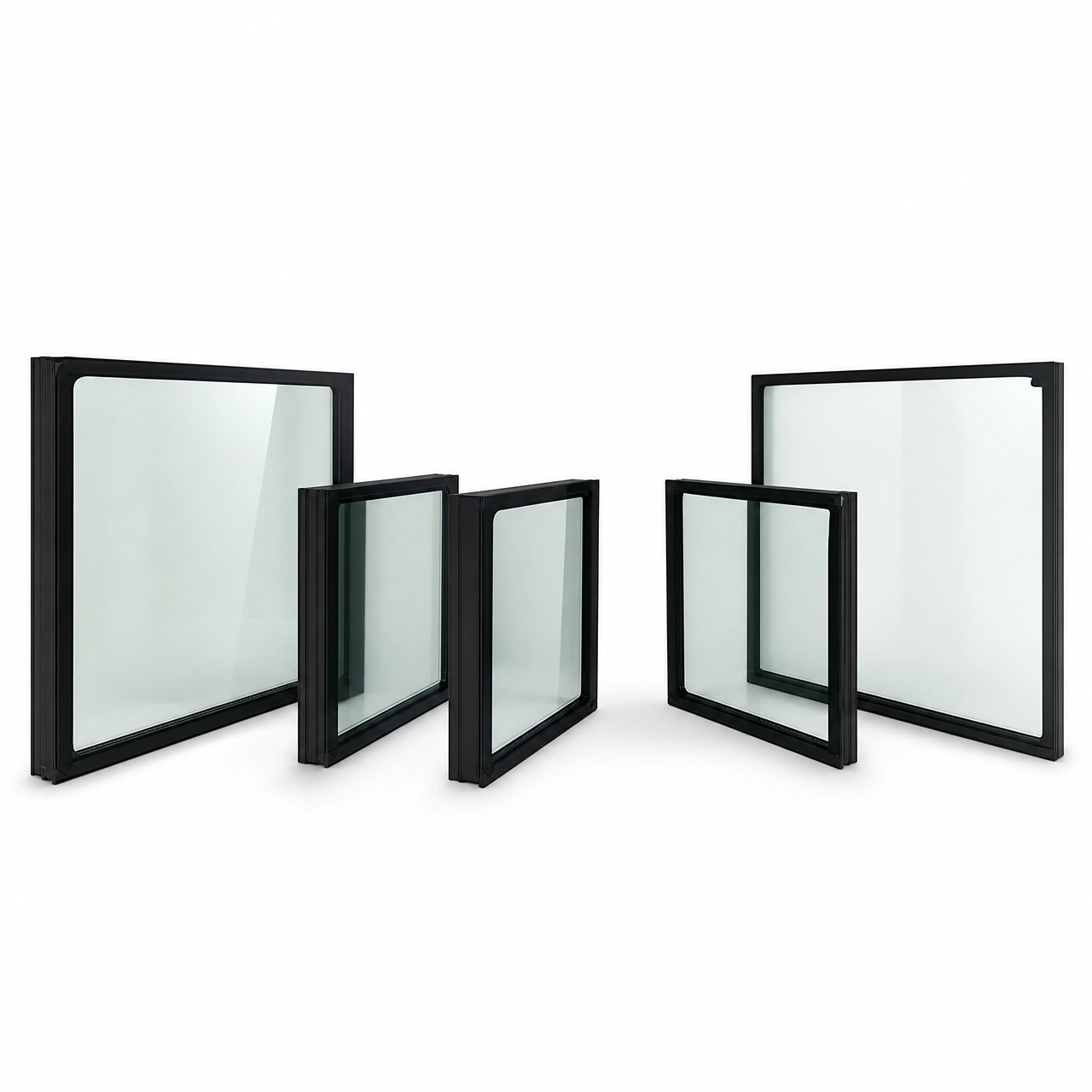

This multi-layered glass features a transparent, intumescent interlayer (typically a sodium silicate or phosphate gel) sandwiched between two or more lites of glass.
Under normal conditions: It remains perfectly clear and undistinguished from standard glass, allowing natural light to flow freely.

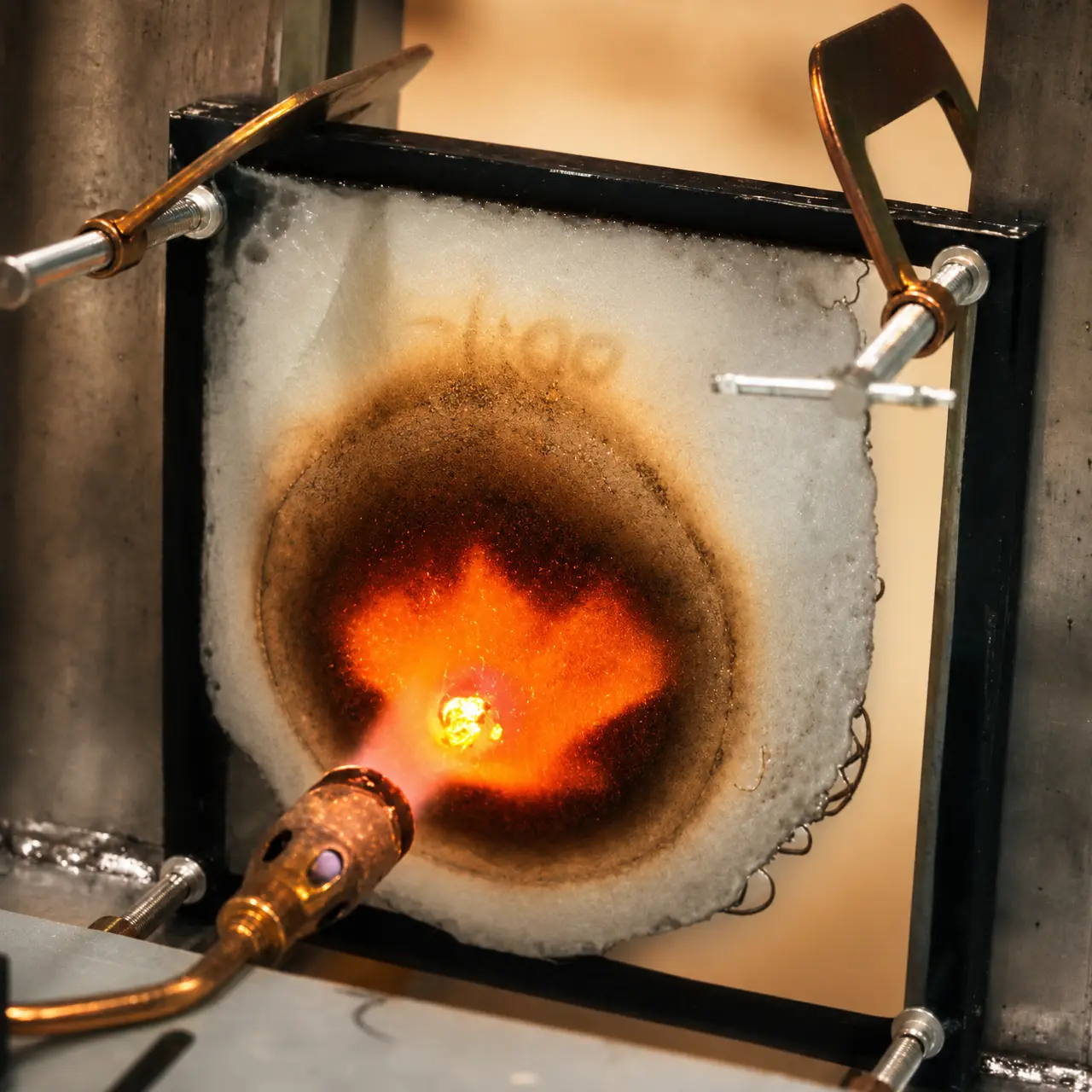

In a fire scenario: The pane facing the fire shatters under intense heat, triggering the interlayer to swell, foam, and transform into a thick, opaque, and highly insulating heat shield. This barrier acts like a thermal thermal blanket, blocking the transmission of radiant heat.
According to international and national standards, fire-resistant glass is strictly categorized into three primary classes based on its protective capabilities. Understanding these classes is crucial for preventing critical design and procurement errors:
Class | Industry Designation | Core Capability | Common Applications |
Insulating | Class A (EI Class) | Blocks flames, smoke, and conducted/radiant heat. The temperature on the non-fire side remains safe (typically below 140℃). | Fire doors, refuge floors, fire-rated partitions, and escape corridors. |
Partially Insulating | Class B (EW Class) | Blocks flames and smoke while partially limiting the transmission of radiant heat. | Rare as a standalone; typically used for specific, bespoke engineering designs. |
Non-Insulating | Class C (E Class) | Blocks flames and smoke only; does not block heat radiation. The non-fire side becomes extremely hot. | Exterior windows, building envelopes, and outdoor curtain walls (where there is sufficient escape distance). |
Critical Safety Warning: While Class C (Non-Insulating) glass holds back flames, the radiant heat passing through it can reach hundreds of degrees within minutes, easily igniting nearby curtains, furniture, or carpets on the non-fire side. Consequently, Class C glass must never be substituted for Class A glass in interior escape routes and emergency corridors.

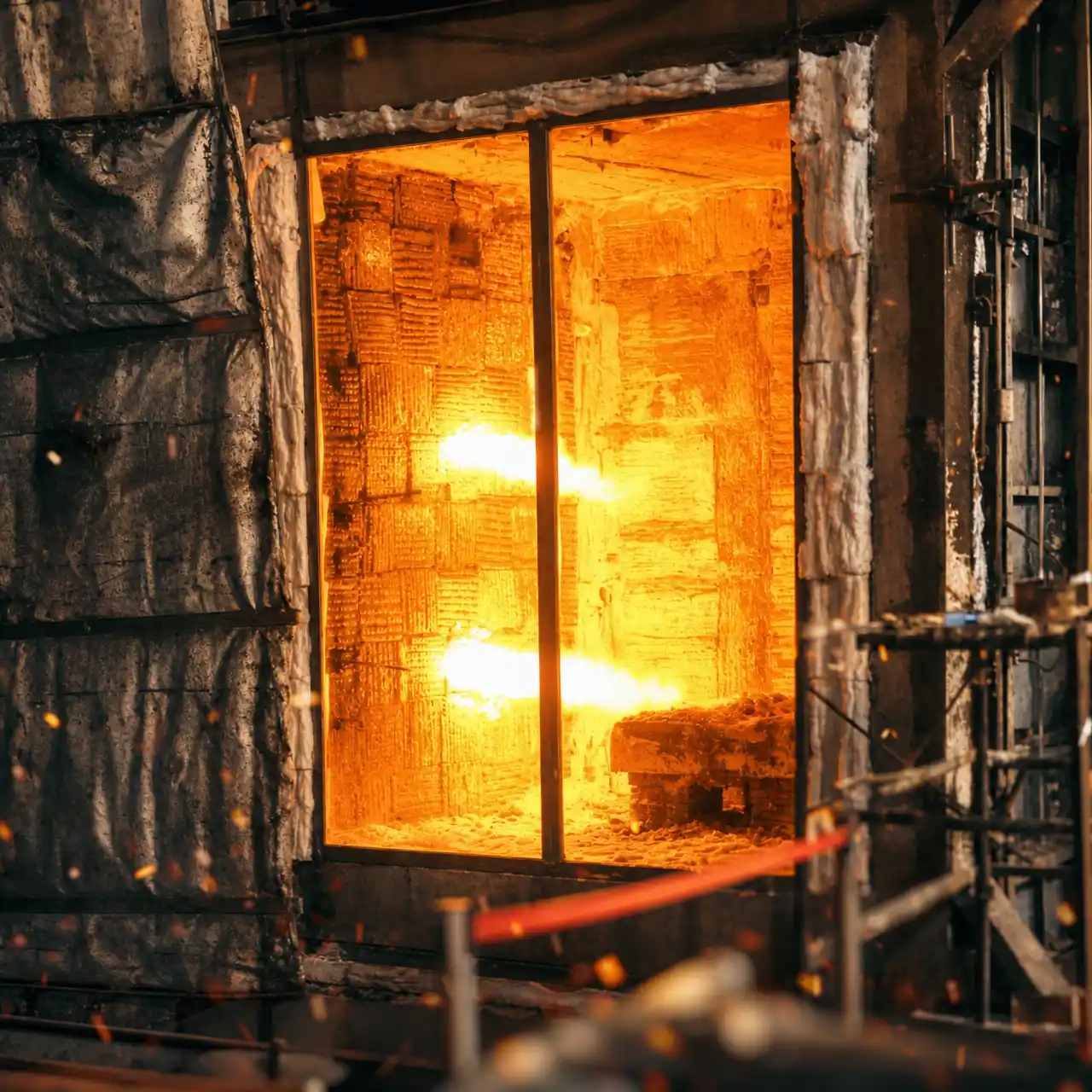

The quality of fire-resistant glass is measured in duration. Under standard furnace testing curves, common ratings include: 0.50 hours (30 min), 1.00 hours (60 min, the most widely specified), 1.50 hours, 2.00 hours, and 3.00 hours.
Because authentic fire-rated glass is visually indistinguishable from standard tempered glass, the market is unfortunately plagued by subpar alternatives and mislabeled products. During procurement or site inspection, always follow the "Look, Verify, Match" protocol:
Every authentic pane must feature a permanent certification mark (such as CCC, CE, or UL) and its fire performance rating (e.g., DFB-06-C1.00, denoting a 6mm monolithic Class C glass with a 1.00-hour rating) fired directly into the glass. This marking is applied using high-temperature ceramic inks and cannot be scraped off with a blade or fingernail.
The supplier must provide valid, up-to-date documentation:
Compulsory Product Certificate (3C/CE/UL): Check the official certification database to confirm that the manufacturer is registered and that the exact thickness and specifications match your delivered product.
Type Test Report: Issued by an accredited national fire testing laboratory, this report must explicitly conclude that the tested glass met or exceeded the designated fire-rating duration.
Legitimate fire-rated glass shipments are accompanied by official fire safety traceability labels. Scanning the QR code or entering the unique product code on the official registry database must yield a profile that matches your delivered product’s specifications and manufacturer 100%.

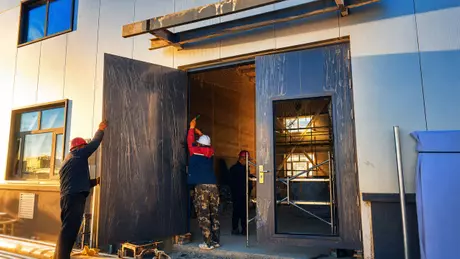

"Fire-Rated Glass" ≠ "Fire-Rated Window": Fire-resistant glass is only as good as the system holding it. If paired with standard aluminum or PVC frames, the framing will melt and collapse long before the glass fails. Fire-resistant glass must always be installed within specially engineered steel/fire-rated timber frames equipped with intumescent perimeter seals.
Tempered Glass is Not Fire-Rated: Standard tempered glass cannot withstand the rapid thermal shock of a real fire and will typically shatter within minutes.
Strictly No On-Site Modification: Fire-resistant glass—particularly monolithic high-strength types and laminated varieties—must be pre-cut to its final dimensions and fully processed at the factory. Any on-site cutting, drilling, or edge-shaving is strictly prohibited, as it will compromise the tempered stress profile or cause the intumescent gel to leak, entirely destroying its fire-rated properties.
Fire-resistant glass represents the ultimate synthesis of spatial aesthetics and life-safety engineering. By specifying the correct classification and enforcing rigorous quality verification, you ensure that this transparent element stands firm as a reliable shield when it matters most.
Are you sourcing high-performance fire-rated glass systems for your next landmark project? Contact our technical consulting team today for customized specifications, compliance advice, and project quotes.
