In any building or residential safety ecosystem, a fire door is far more than a entry point—it is a critical "life line" engineered to block fire, arrest toxic smoke, and buy precious minutes for evacuation. Whether you are a commercial contractor, a retail store owner, or a high-rise homeowner, choosing a door that strictly complies with fire safety standards while balancing structural durability and aesthetics is essential.
This guide dives into the core manufacturing processes of fire doors, uncovers common market traps, and provides actionable insights for residential installation and commercial compliance inspections.

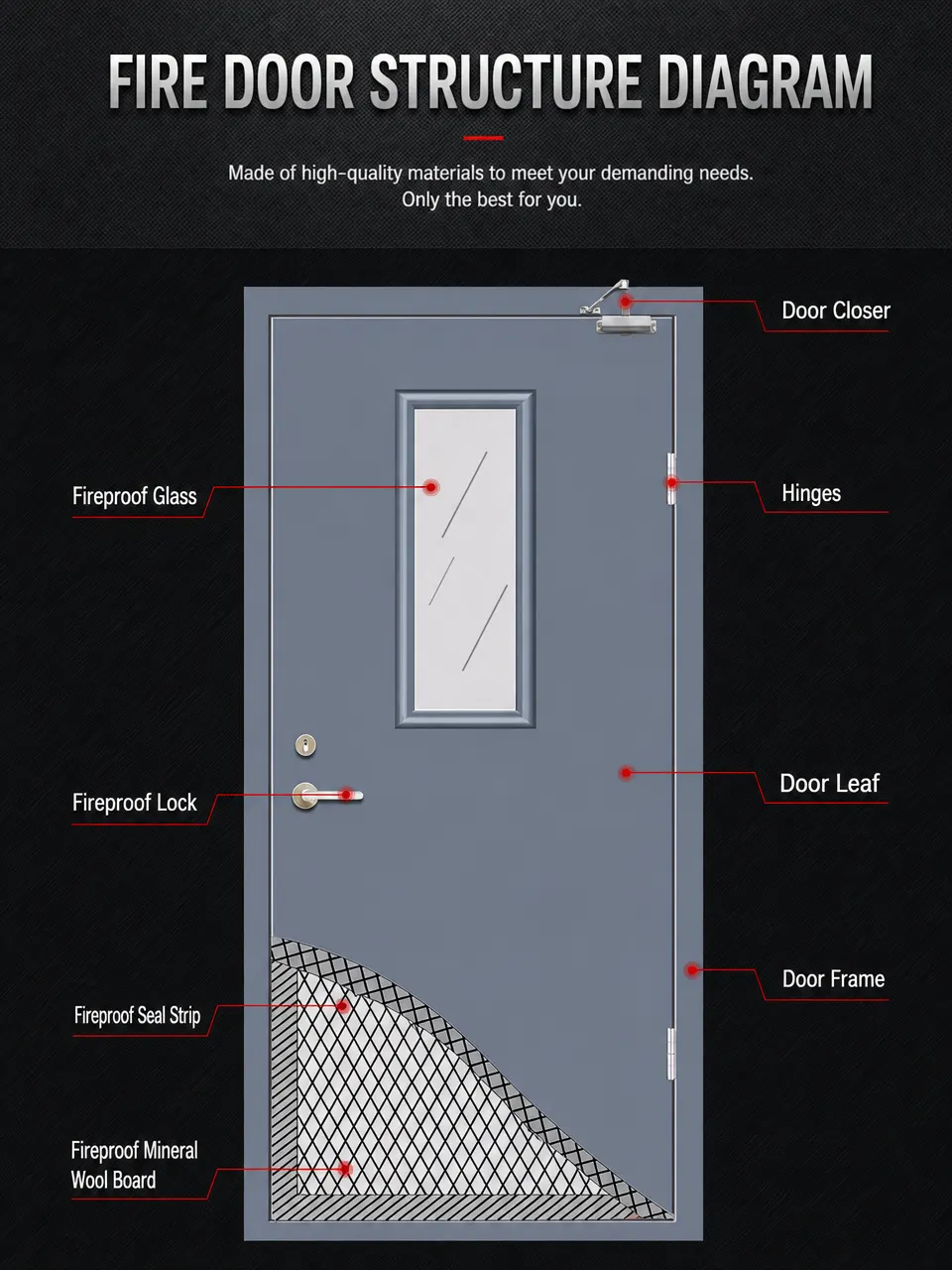

The integrity of a fire door relies on two key factors: the thermal insulation of its core matrix and the perimeter seal that prevents smoke penetration.
Material Selection: Steel fire doors utilize cold-rolled steel sheets (frame thickness typically ranging from 1.2 mm to 1.5 mm; door leaf skin at 0.8 mm). Wooden fire doors require timber treated with fire-retardant pressure impregnation.
Stamping & Bending: CNC punching and bending machines form the precise frame profiles, leaving cutouts for fire locks, heavy-duty hinges, and intumescent seal grooves.
Core Installation: The interior is filled with expanded perlite board or aluminum silicate wool. Perlite boards offer exceptional thermal insulation, fire resistance, and zero toxic emissions under high temperatures.
Internal Reinforcement: Steel stiffeners are welded inside the door leaf to prevent warping under thermal exposure or structural pressure.
Pressing: Fire-rated adhesives bond the outer steel/wood panels to the perlite core, after which the assembly is hot-pressed for maximum structural rigidity.
Intumescent Seals: High-expansion intumescent strips are embedded into the frame channels. When exposed to heat, these strips expand exponentially to seal all edge gaps, shutting out toxic smoke.
Finishing: Steel doors undergo electrostatic powder coating or heat-transfer wood grain finishing, while wooden doors receive fire-retardant clear coats.

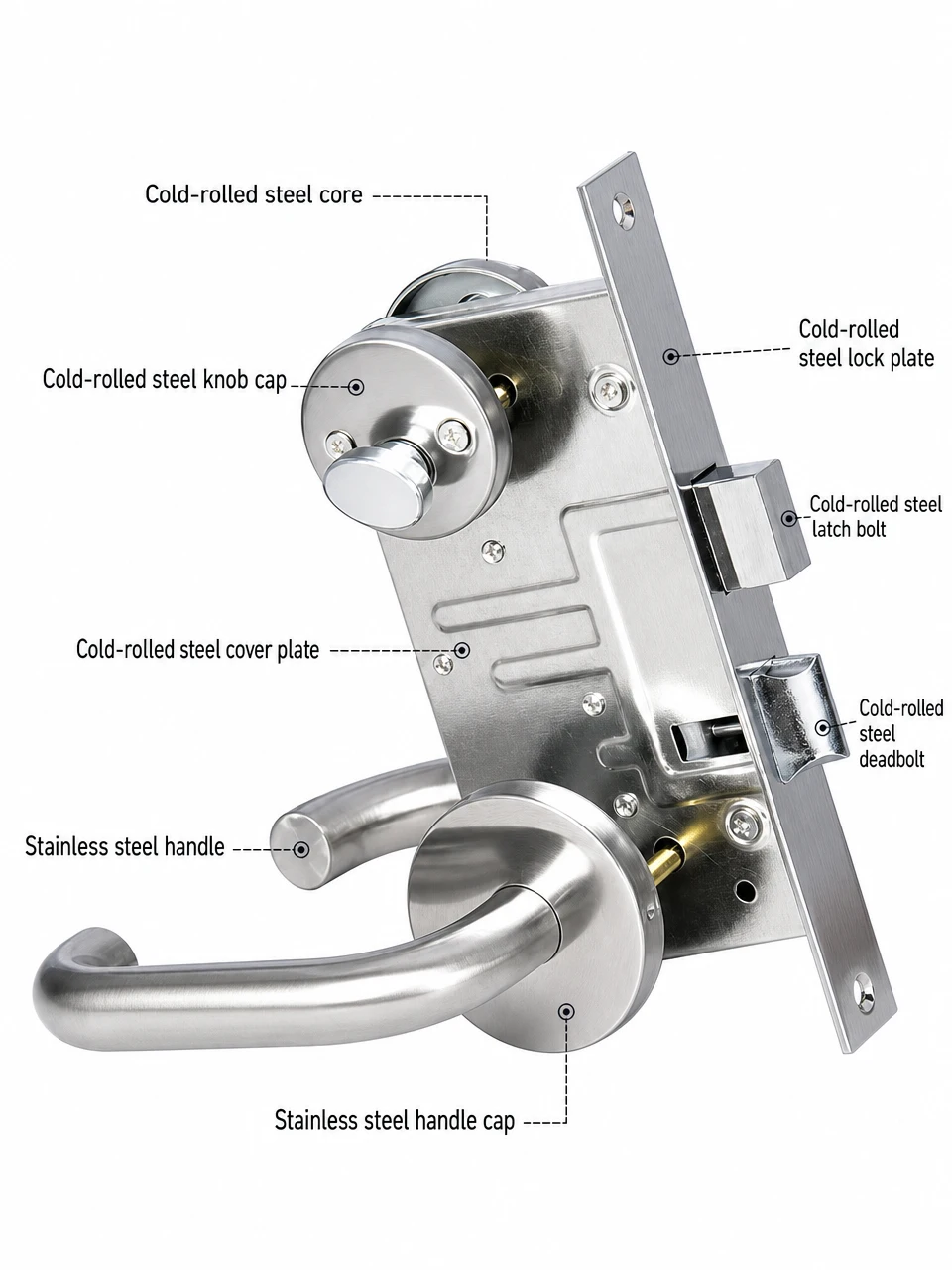

Hardware Assembly: Installation of fire-rated mortise locks, heavy-duty fire hinges, door closers, and door coordinators (for double-leaf doors).
The fire door market is fraught with substandard products. Watch out for these six common traps:
Substandard Core Materials
The Trap: Unscrupulous manufacturers use low-density rockwool or cheap foam panels that burn through within minutes, releasing lethal toxic fumes.
How to Avoid: Tap the door panel—a solid, non-hollow sound indicates proper filling. Always inspect a physical core sample to verify high-density perlite infill.
Non-Fire-Rated Hardware
The Trap: Pairing a fire door with standard commercial locks or hinges. Standard hardware melts under high heat, causing the door to sag, warp, or fail to latch.
How to Avoid: Ensure all locksets, hinges, closers, and flush bolts carry official fire-resistance certification. Avoid any components made of plastic or low-melting-point zinc alloys.
Forged or Invalid Certifications
The Trap: Products delivered without test reports, or lower-grade doors disguised as higher-grade rated models.
How to Avoid: Inspect the official fire safety certification tag and QR code on the door edge. Scan the code to verify test reports against the actual product model.
Mismatching Fire-Resistance Ratings
Class A (≥ 1.5 Hours): Required for critical areas such as refuge floors, fire wall partitions, and high-voltage transformer rooms.
Class B (≥ 1.0 Hours): Designed for emergency exit stairwells, corridors, and high-rise apartment entryways.
Class C (≥0.5 Hours): Used for utility shafts, pipe chases, and cable closets.
Omitting Closers and Perimeter Seals
The Trap: A fire door without a self-closing mechanism or intumescent seal cannot stop smoke or isolate flame during a real incident.
How to Avoid: Ensure every fire door is fitted with a certified automatic door closer (or electromagnetic hold-open device for normally-open doors) and continuous intumescent striping along the frame.
Unauthorized Modifications
The Trap: Cutting unapproved holes for standard peepholes or aftermarket smart locks compromises the door’s structural integrity and voids its rating.
How to Avoid: Never drill or modify a fire door post-installation without certified retrofit hardware.
For high-rise apartments, entry doors must meet Class B fire door standards (≥ 1.0 hour fire resistance). To achieve safety without sacrificing interior design:
Opt for Dual-Tone / Composite Doors: Choose factory-certified steel-timber composite doors designed with modern architectural finishes (e.g., an exterior matching the hallway aesthetic and a warm wood-grain interior).
Code-Compliant Modifications: If refinishing an existing door, use fire-rated vinyl wraps or add wood casing over the frame. Never cut into the core or cover intumescent seals.
Fire-Rated Smart Locks: If installing keyless entry, the lockset itself must be fire-certified. Peepholes must also feature factory-installed fire-resistant glass.
During final fire safety inspections for commercial buildings or retail spaces, inspectors focus on four primary pillars:
Inspection Phase | Critical Verification Points |
Documentation | Full compliance documentation (Type Test Reports, Factory Certificates, QR-traceable tags matching physical units). |
Dimensions & Fit | Frame-to-leaf overlap ≥ 12 mm; perimeter gap ≤ 3 mm; intumescent strips continuous and unpainted. |
Hardware Performance | Opening force ≤ 80 N; closers completely latch the door automatically; double doors equipped with working coordinators. |
System Integration | Normally-open fire doors must interface with the Fire Alarm System (FAS), closing automatically within 3 seconds of signal activation. |
Investing in a high-quality fire door is not merely a matter of passing building code inspections—it is a vital investment in life safety and asset protection. By adhering to the principles of verified certification, compliant core materials, certified hardware, and structural integrity, you can confidently navigate the procurement process and build a safer environment.
