Certified Fire Protection: Engineered to withstand extreme thermal shock and prevent the spread of flames, smoke, and toxic gases for up to 30, 60, 90, or 120+ minutes.
Integrity & Insulation Options: Available in both Monolithic E-Class (fire integrity only) and Composite EI-Class (fire integrity + thermal insulation) to meet various building codes.
High Impact Safety: Fully tempered options ensure the glass doubles as heavy-duty safety glazing, meeting architectural impact standards for high-traffic areas.
Factory-Direct Supply: Manufactured by Shandong Weihua Glass. We provide fully traceable, custom-cut solutions with strict compliance to international fire safety certifications.
Versatile Applications: The critical safety choice for fire doors, escape corridors, partition walls, elevator enclosures, and hazardous industrial environments.
| Quantity: | |
|---|---|

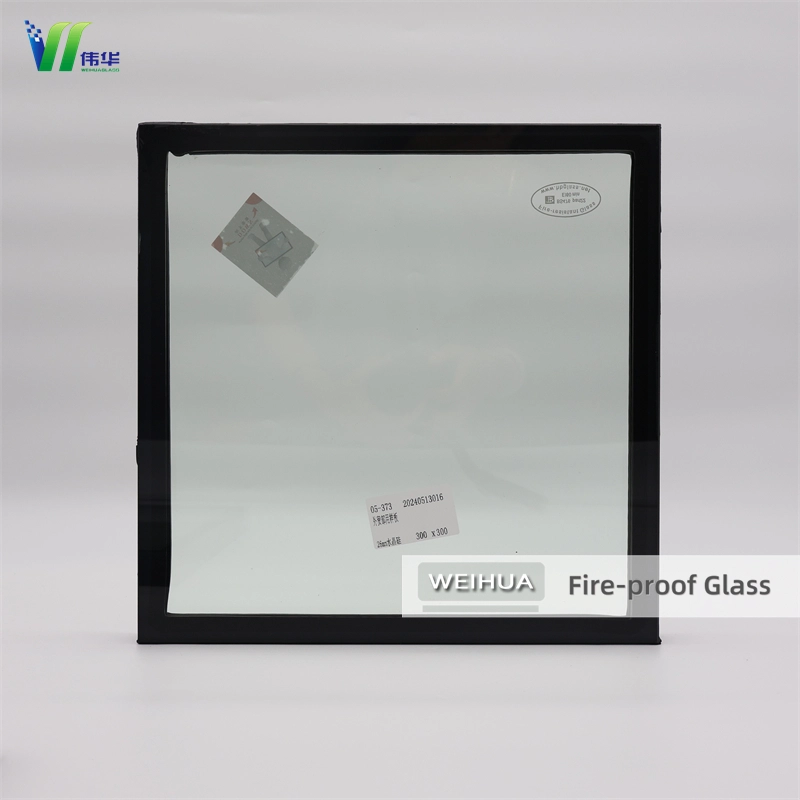

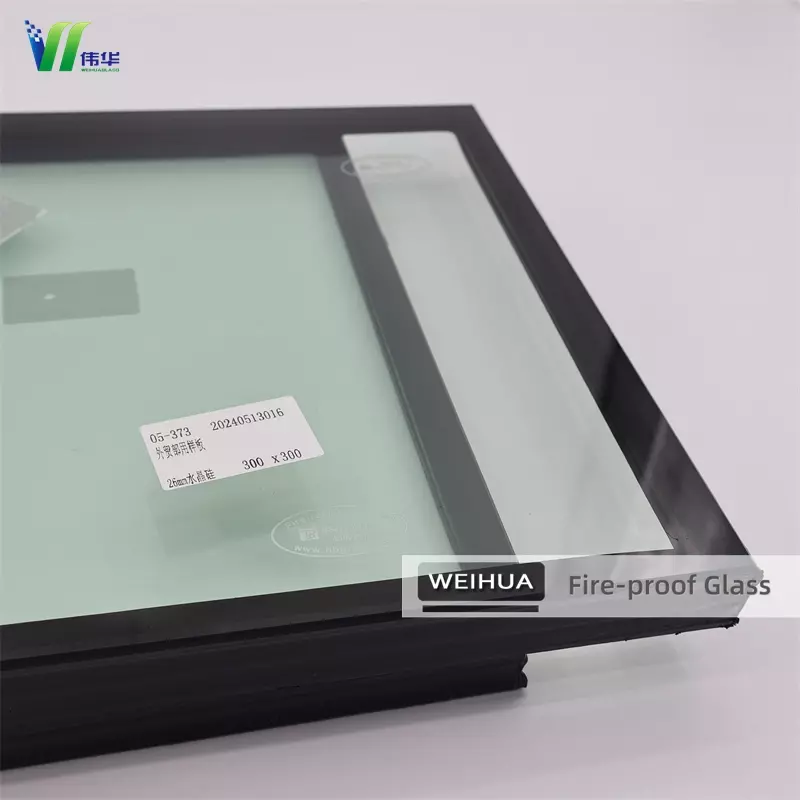

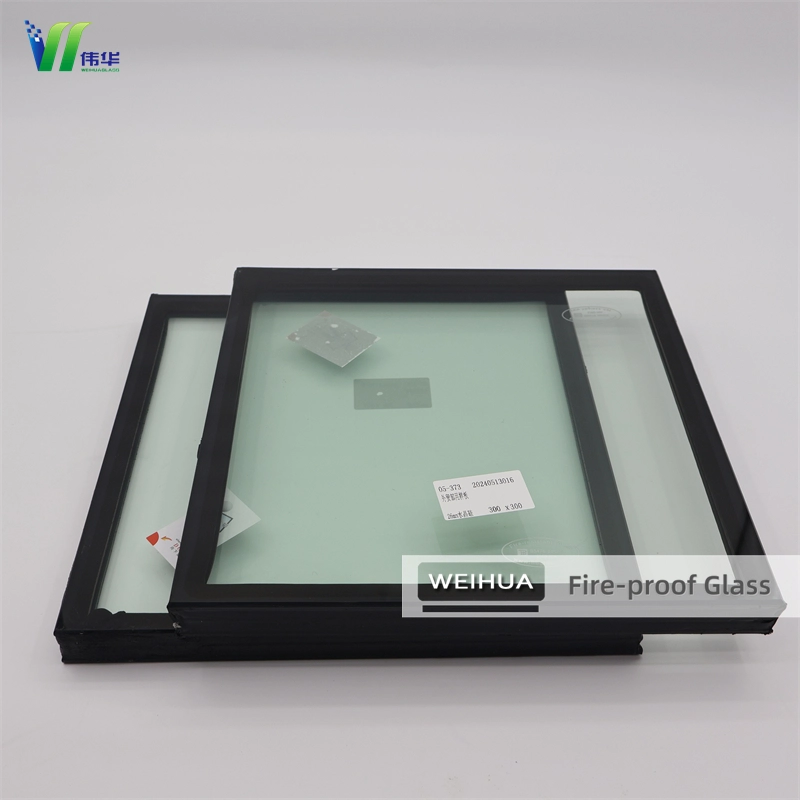

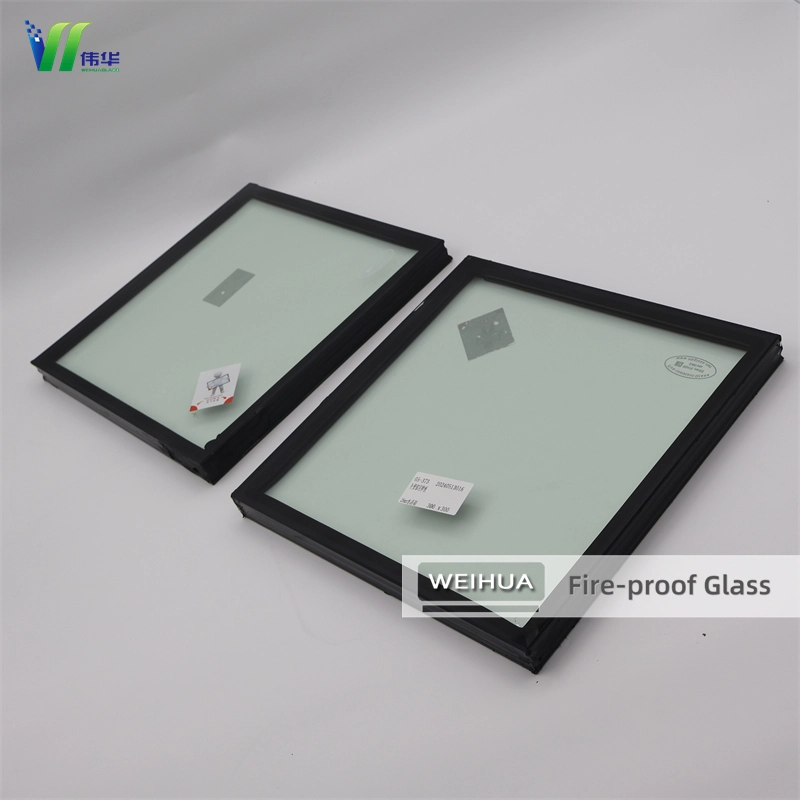

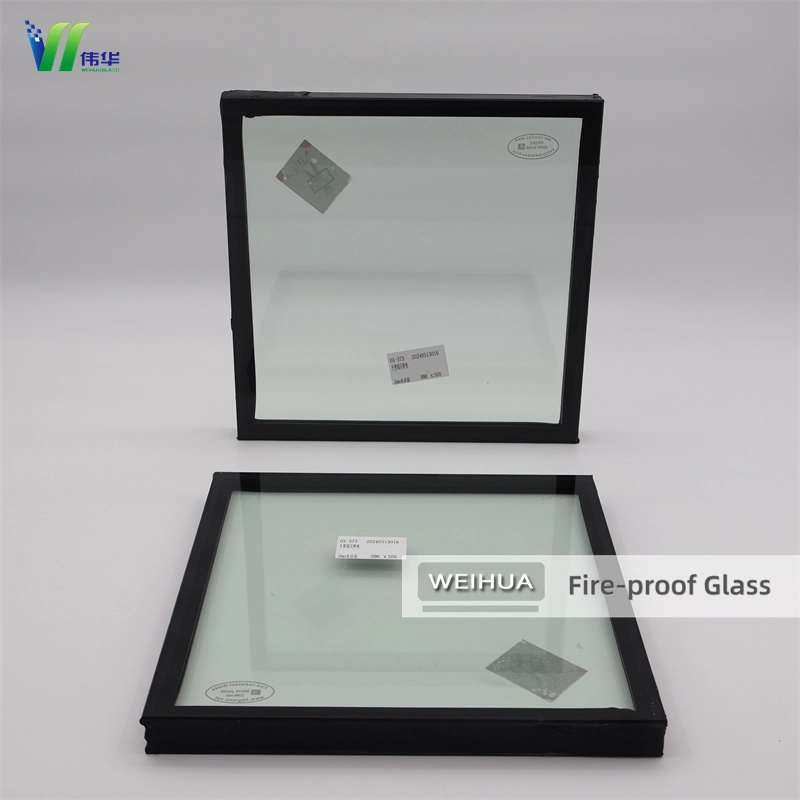

Are you sourcing high-reliability glazing solutions to comply with stringent building fire safety regulations? Shandong Weihua Glass offers premier, custom-manufactured fire-rated glass panels engineered to provide critical thermal barriers during fire emergencies.

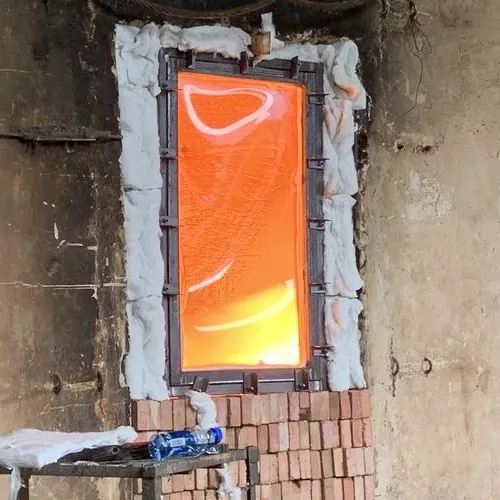

By utilizing advanced chemical tempering processes or premium intumescent gel interlayers, our fire-resistant glass maintains its structural integrity even under direct exposure to extreme temperatures exceeding 1000°C. Whether you need sleek partitions for commercial office buildings, fire door vision lites, or heavy-duty exterior facades, Weihua delivers certified safety and peace of mind.
Feature (特性) | Available Options (可选参数/规格) |
Fire-Rating Class | Class E: Fire Integrity (Blocks flames & smoke) | Class EI: Fire Integrity + Insulation (Blocks heat transfer) |
Fire Duration Limits | 30 Mins, 60 Mins, 90 Mins, 120 Mins, or Custom Higher Ratings |
Glass Type | Monolithic Caesium Potassium Fire Glass, Laminated Fire Glass, or Insulated Fire-Rated Units |
Thickness Range | Category C (Class E - Monolithic / Laminated): 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, 19 mm Category A (Class EI - Composite Intumescent / Insulated): 15 mm, 20 mm, 26 mm, 30 mm, 36 mm, 50 mm+ (Customizable multi-layer configurations) |
Size Range | Min: 300 mm X 300 mm |
Edge & Surface Work | Precision Flat Polished Edges, Custom Cutouts, Shape Cutting |
Certifications | CE (EN1363 / EN1364 / EN1634), ISO9001, CCC (BS 476 standard compatible) |
No Spontaneous Shattering: Our monolithic caesium potassium fire-rated glass is processed through advanced tempering furnaces, achieving 1.5 to 3 times the strength of standard tempered glass and superior resistance to thermal stress.
Advanced Heat Blockage (EI Class): Our composite fire glass features clear intumescent layers that expand into an opaque, rigid shield when exposed to heat, blocking radiant heat transfer to keep escape routes cool and safe.
Flawless Transparency: Unlike low-quality alternatives, Weihua fire glass guarantees excellent light transmission, zero distortion, and long-term stability against UV yellowing or delamination.
Determine Required Rating: Identify the fire-resistance duration (e.g., 60 mins) and protection type (Class E Integrity or Class EI Insulation) specified by your local building codes.
Specify Configuration & Size: Provide your exact height, width, and framing system details, as fire glass performance is highly dependent on the correct frame compatibility.
Select Processing Options: Indicated any required edge finishing, hole drilling, or integration into double-glazed units for exterior energy efficiency.
Submit Blueprint for Verification: Upload your architectural drawings or glazing schedules so our technical team can verify the dimensions against our certified testing maximums.
