As skylines around the globe ascend, soaring glass curtain walls have become the definitive hallmark of modern architectural brilliance. Yet, while we revel in the sweeping vistas and flooded natural light that glass provides, we are faced with a profound fire safety dilemma: ordinary glass shatters within minutes of fire exposure, allowing fierce flames and toxic smoke to spread unchecked.
To dissolve the compromise between aesthetic transparency and robust safety, the structural fire protection industry has unleashed a revolutionary game-changer—Nano-Silica Fire-Rated Glass. Today, let us peel back the layers of this high-tech marvel to see how it acts as the "invisible shield" for modern high-rises.
Nano-Silica Fire-Rated Glass (also known as Nano-Silica Composite Fire-Resistant Glass) is a premium Class A (Fully Insulated) fire safety material. It marks a quantum leap over traditional gel-filled fire glass, completely eradicating notorious industry pain points such as yellowing, bubbling, and a short service life. It stands as a flawless synthesis of optimum clarity and unrivaled thermal insulation.

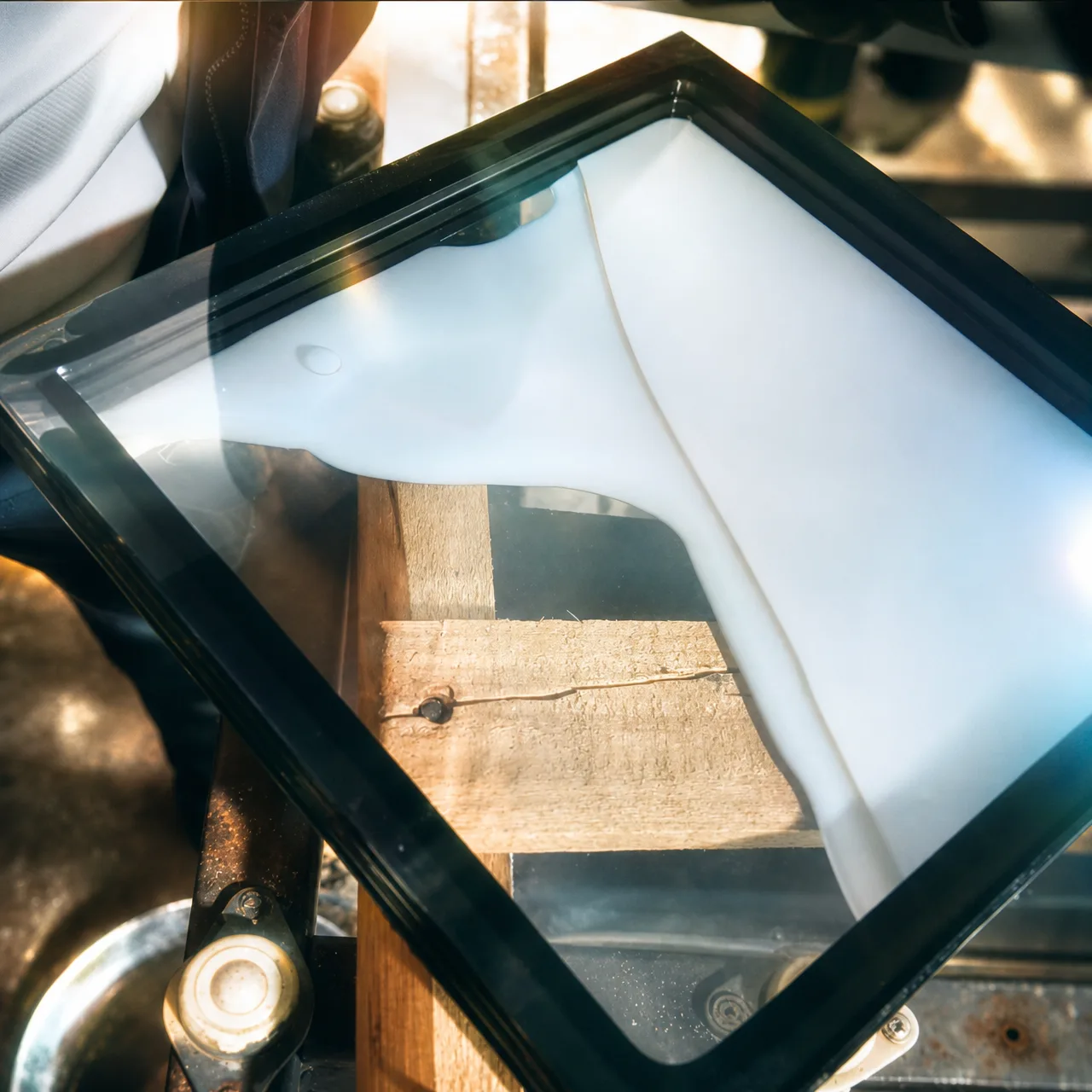

To the naked eye, nano-silica fire-rated glass is indistinguishable from standard premium glass. However, a cross-section reveals a highly sophisticated, three-tiered "sandwich" architecture:
The Outer Armor: Two or more outer panes of high-strength tempered or ultra-clear tempered glass form the structural foundation.
The Smart Core: The internal cavity is pressure-injected with a proprietary nano-scale silicon dioxide ( SiO2) rigid fire-resistant gel.
In its everyday state, the silica nanoparticles within the gel measure a mere 10-30 nm in diameter. Because their refractive index perfectly mirrors that of the surrounding glass, light passes through with absolute fidelity, maintaining flawless, crystalline transparency.

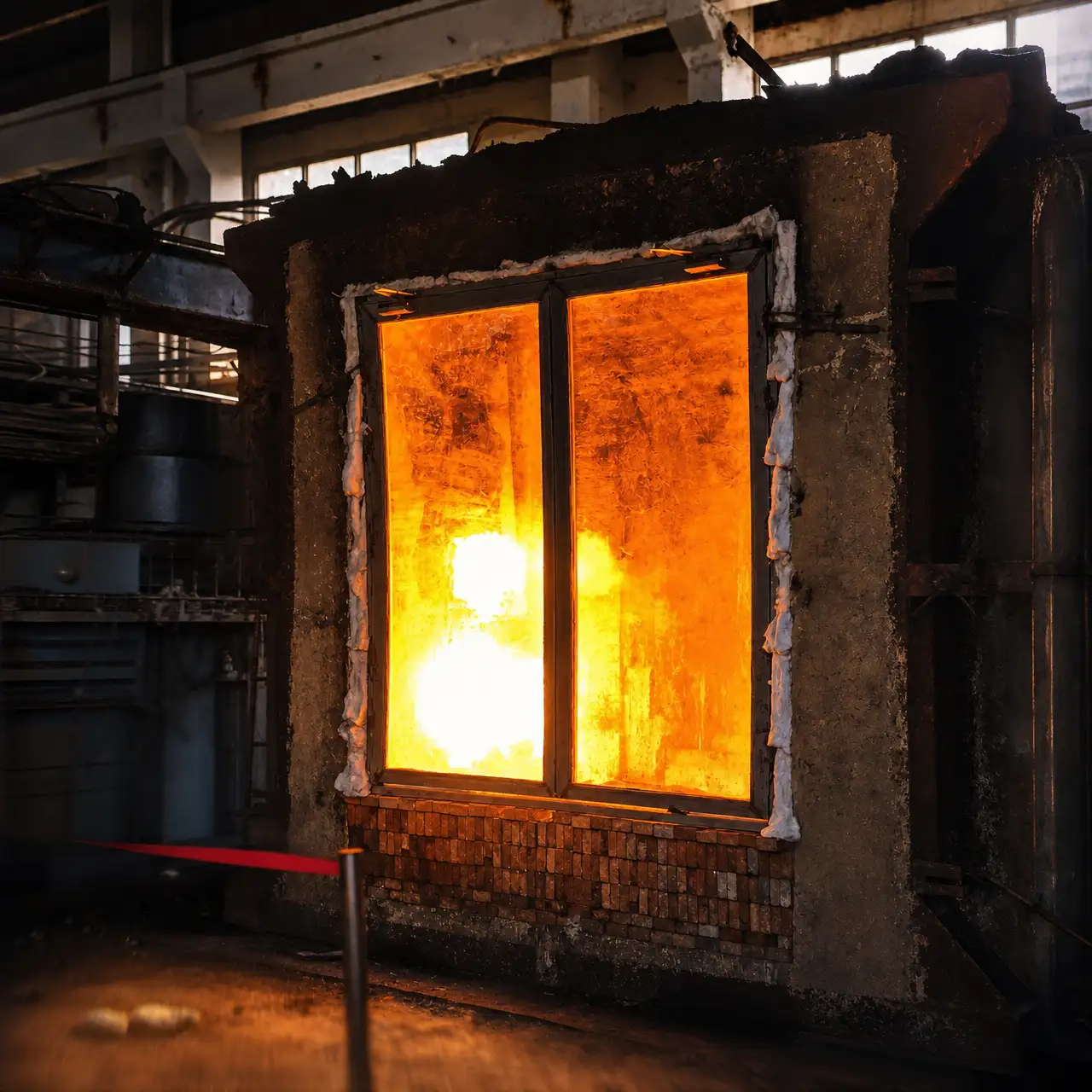

The true prowess of nano-silica fire glass awakens the moment it is assaulted by a blaze. When a fire breaks out and ambient temperatures skyrocket to hundreds or thousands of degrees Celsius, the glass triggers a dynamic three-stage defense mechanism:
As the fire-facing glass heats up, the chemically bound water within the nano-silica core begins to vaporize rapidly. This vaporization absorbs an immense volume of heat from the fire, significantly delaying any temperature rise on the protected, non-fire side.
As temperatures continue to climb, the nano-silica matrix undergoes a dramatic physical and chemical metamorphosis. The core expands and foams violently, instantly transforming the crystal-clear gel into a thick, opaque, chalk-white thermal barrier.
This newly formed ceramic-like shield possesses an exceptionally low thermal conductivity. Acting as a solid, monolithic firewall, it not only barricades raging flames and toxic fumes but also completely repels intense thermal radiation exceeding 1000℃. Consequently, while a furnace-like inferno rages on one side, the evacuation corridor on the other side remains at a survivable temperature, preventing adjacent combustibles from auto-igniting. This buys a critical lifeline for evacuation—typically lasting 60, 90, or up to 120 minutes.
Crafting a pane of fire-rated glass that is both optically pristine and highly fire-resistant requires a rigorous marriage of advanced mechanical processing and precision Sol-Gel chemistry:
Ultra-Purification: Premium float glass sheets are selected and put through a rigorous multi-stage cleanroom washing cycle, ensuring a surface free of even microscopic dust particles.
Cavity Assembly: A high-strength, fire-resistant perimeter spacer sealant is applied between the glass panes, creating a perfectly calibrated, hermetically sealed internal cavity.
Gel Formulation & De-aeration: The nano-silica sol is blended with cross-linking agents and fire retardants. The liquid matrix is then subjected to a deep vacuum de-aeration process to eliminate any micro-bubbles.
Precision Casting: Utilizing state-of-the-art injection equipment, the liquid nano-silica is smoothly cast into the cavity under controlled pressure and completely sealed.
Thermal Curing (The Definitive Step): The assembled unit enters a computer-controlled curing kiln. Following a strict, proprietary temperature curve, the silica sol undergoes a polycondensation reaction, curing in situ into a stable, three-dimensional crystalline gel network.
Compared to alternative fire-rated glass products on the market, nano-silica composite glass offers four decisive advantages, making it the premier choice for luxury commercial complexes, shopping malls, and supertall high-rises:
Exceptional Weatherability (Zero Yellowing): Traditional gel-filled glass uses sodium silicate (water glass), which breaks down, yellows, and bubbles under UV exposure. Nano-silica, composed of inorganic inert materials, is entirely immune to UV radiation, ensuring long-term optical clarity even under blistering sunlight.
True Integrity & Insulation (Class A): Monolithic fire-rated glass (such as single-pane cesium-potassium glass) offers integrity against flames but cannot block heat radiation. Curtains on the safe side can easily ignite from the sheer radiant heat. Nano-silica glass delivers total insulation, elevating safety to the highest standard.
Anti-Shatter Structural Integrity: Even if the fire-facing glass fractures under extreme thermal shock, the cured, rigid nano-silica core acts as an ultra-strong adhesive, gripping the shards firmly in place to prevent the firewall from collapsing or dropping hazardous glass rain.
Eco-Friendly & Non-Toxic: When exposed to extreme heat, the pure inorganic composition expands without releasing any toxic gas or dense black smoke, keeping evacuation routes safe and breathable.
Nano-silica fire-rated glass infuses the cold, elegant transparency of glass with the unyielding soul of steel. In peacetime, it remains beautifully inconspicuous, serving the grand vision of architectural aesthetics with flawless clarity. In times of crisis, it stands resolute, erecting an impassable barrier against the fury of fire.
In an era where safety standards are uncompromising, specifying nano-silica fire-rated glass is not just a choice—it is a long-term investment in architectural resilience and peace of mind.
