When you think of glass, you probably think of it as completely clear and colorless. However, if you look closely at the edge of a standard window pane, you will notice a distinct, dark green tint.
In architectural design, luxury interior styling, and high-end manufacturing, this green hue is often undesirable. That is where Low-Iron Glass (also widely known as Ultra-Clear Glass) comes into play. It is the premium, crystal-clear sibling of standard glass, engineered to offer unparalleled clarity and safety.
Here is a comprehensive guide to what low-iron glass is, how it differs from standard glass, and the fascinating manufacturing process that makes it possible.
The primary culprit behind the green tint in standard float glass is iron oxide (Fe2O3), which is naturally present in the sand and silica used to make glass.
While standard glass works perfectly fine for everyday windows, its green tint intensifies as the glass gets thicker or when multiple layers are laminated together. Low-iron glass solves this problem by drastically reducing the iron content.
Feature | Standard Float Glass | Low-Iron (Ultra-Clear) Glass |
Iron Content (Fe2O3) | Typically ≥1000 ppm(0.1%) | Typically ≤150 ppm(0.015\%) |
Edge Color | Distinct deep green | Brilliant light blue or nearly colorless |
Light Transmittance | Around 86% - 88% | 91.5% or higher |
Color Rendering | Can distort back-painted colors or fabrics | True-to-life color neutrality |
Spontaneous Explosion Rate | Higher (approx. 0.3%) | Extremely low (approx. 0.01%) |
Because of its high performance and aesthetic purity, low-iron glass is the material of choice for several critical industries:
High-End Architecture & Facades: Massive structural glass walls, skylights, and apple-store-style glass pavilions utilize low-iron glass. To maximize safety without sacrificing clarity, it is frequently configured as low-iron laminated glass.
Interior & Display: Museum showcases, luxury jewelry counters, and premium aquariums use it so that viewers can see the true colors of artifacts, gems, and marine life without a murky green filter.
Solar Energy: Low-iron glass is widely used as the cover material for photovoltaic solar panels because its superior light transmittance allows more sunlight to reach the solar cells, boosting energy efficiency.

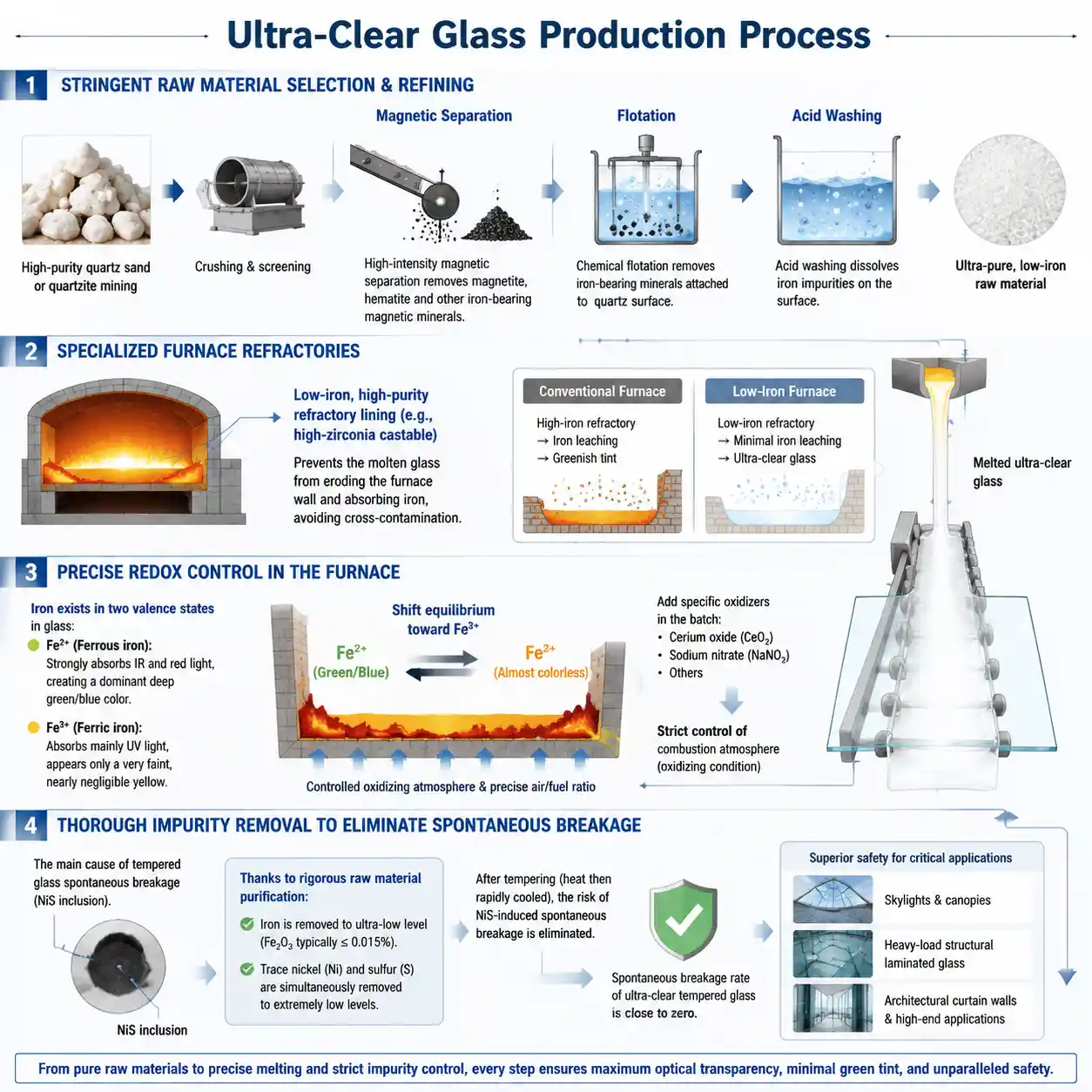

Achieving an iron content of less than 150 ppm (parts per million) is not a simple feat. It requires a highly controlled, specialized manufacturing process that spans from raw material extraction to final thermal treatment.
Here is a detailed breakdown of the technical engineering behind lowering the iron content:
The foundation of low-iron glass lies in sourcing exceptionally pure ingredients. Standard glass uses common silica sand, which is rich in iron. Low-iron glass requires high-purity quartz sand or sandstones that undergo rigorous physical and chemical beneficiation:
Magnetic Separation: The raw sand is passed through high-intensity magnetic separators to pull out ferromagnetic minerals like magnetite and hematite.
Flotation & Acid Leaching: Chemical washing and flotation processes are used to dissolve or float away surface-bound iron impurities from the quartz grains.
During the melting phase in the furnace (which reaches temperatures above 1500℃), the molten glass can actually dissolve and absorb iron from the furnace walls.
To prevent this "cross-contamination," low-iron glass production lines must use specialized low-iron, high-purity refractory bricks (such as high-zirconia fused cast refractories) for the furnace lining.
Controlling the chemical state of the remaining iron inside the furnace is critical. Iron in glass exists in two primary valency states:
Ferrous iron (Fe2+): Absorbs light strongly in the infrared and red spectrum, creating a dominant dark green/blue color.
Ferric iron (Fe3+): Absorbs light in the ultraviolet spectrum, resulting in a very faint, negligible yellow color.
Engineers introduce specific oxidizing agents (like cerium oxide or sodium nitrate) into the batch and carefully adjust the furnace atmosphere. The goal is to shift the equilibrium so that the iron remains in the Fe3+state, effectively neutralizing the visible green tint and maximizing optical clarity.
When glass is tempered (heated and rapidly cooled for strength), any microscopic impurities trapped inside can cause it to shatter unexpectedly later on—a phenomenon known as spontaneous explosion. The main culprit is Nickel Sulfide (NiS).
Because low-iron glass goes through such an exhaustive raw material purification process, it removes not just iron, but also the trace nickel and sulfur elements. As a result, tempered low-iron glass has a spontaneous explosion rate that is nearly zero, making it vastly safer for overhead glazing and heavy-duty structural lamination.
Low-iron glass represents the pinnacle of modern glass engineering. By strictly controlling chemical composition and eliminating microscopic impurities, manufacturers transform a basic building material into an optical-grade product. While it carries a premium price tag compared to standard glass, its breathtaking transparency, precise color accuracy, and superior safety profile make it an indispensable asset for modern, high-end design.
