Abstract: Windows are often the single largest "thermal loophole" in any residential or commercial building. Choosing the wrong glass leads to unbearable indoor temperatures—turning spaces into saunas in summer and iceboxes in winter—along with sky-high utility bills. This article demystifies critical performance metrics such as U-value and SHGC. By comparing Single, Double, and Triple Low-E coatings alongside Triple-Pane configurations, we provide a definitive selection guide to help you find the ultimate thermal shield for your property.

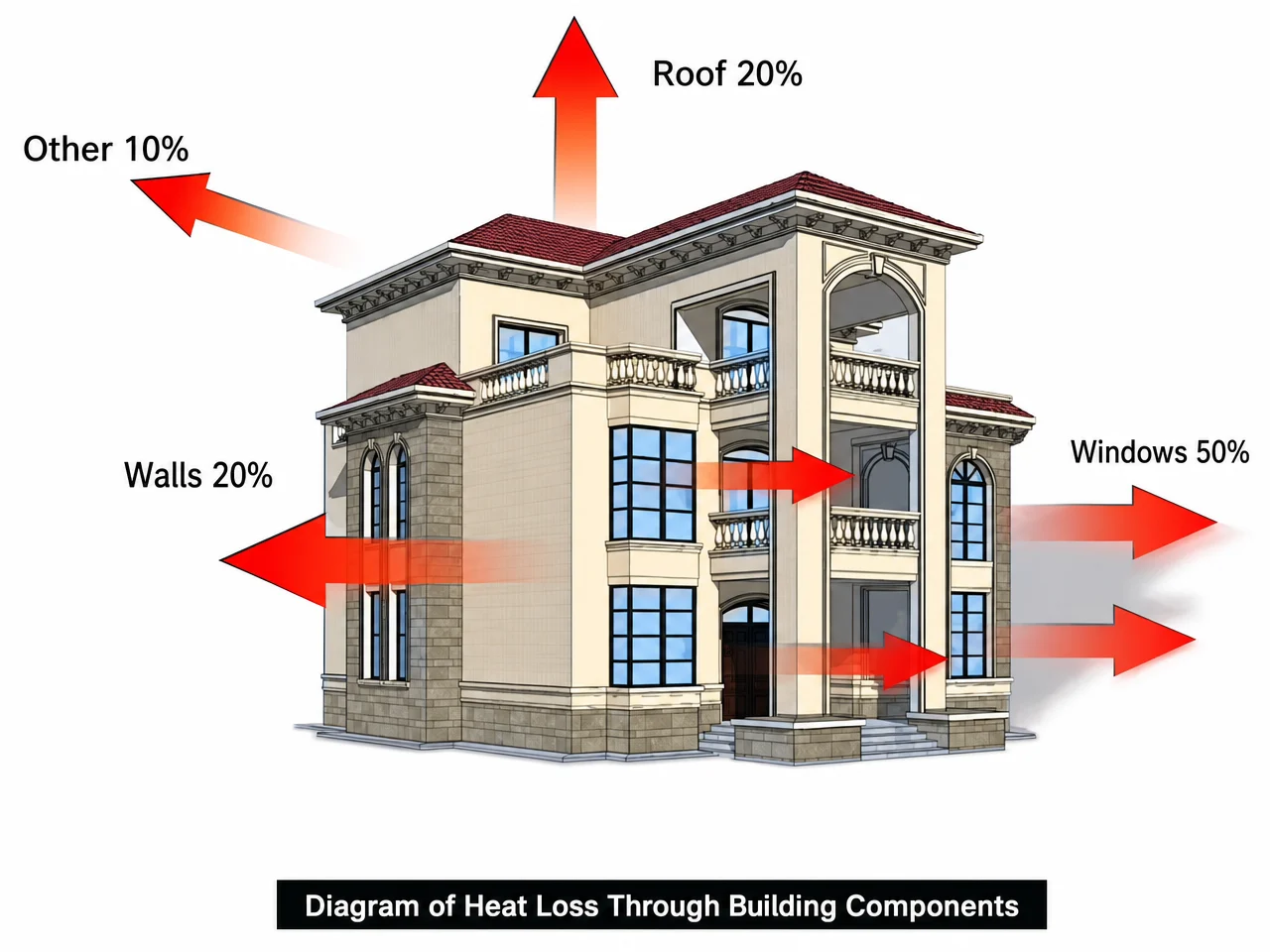

In a typical window assembly, glass accounts for 70% to 80% of the total surface area. No matter how premium the frame material or how tight the weatherstripping, standard single-pane or inferior insulated glass allows summer heat and winter interior warmth to pass through effortlessly via thermal radiation and conduction.
To select the right energy-efficient glass, you only need to master two core indicators:
U -Value (Thermal Transmittance K -Value): Measures thermal insulation. A lower U -value means less heat is conducted through the glass, keeping the interior significantly warmer during winter.
SHGC (Solar Heat Gain Coefficient): Measures solar shading. A lower SHGC indicates a superior ability to block direct solar radiation, preventing indoor overheating during summer.

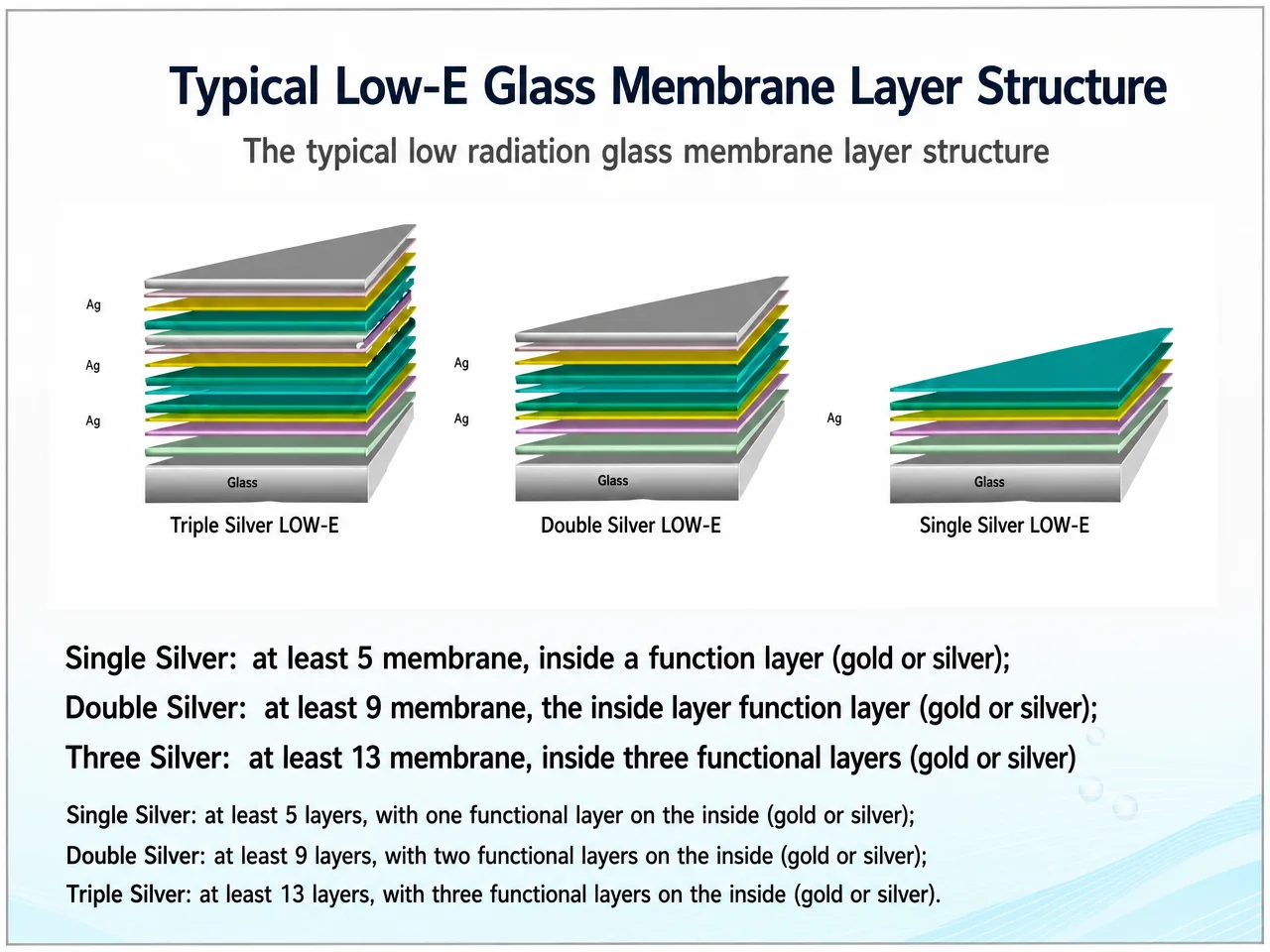

Low-E (Low Emissivity) glass is not simply tinted or privacy-coated glass. Instead, it features microscopically thin layers of pure silver (Ag) deposited onto the glass surface using advanced magnetron sputtering technology.
These silver layers act as an "invisible, intelligent thermal mirror": allowing visible light to pass through for bright indoor illumination, while reflecting a high percentage of heat-bearing infrared and ultraviolet rays back outside.
As more silver layers are integrated into the coating structure, the glass achieves unmatched spectral selectivity:
Performance Dimension | Single Low-E | Double Low-E (Highly Recommended) | Triple Low-E |
Silver Layers | 1 Layer | 2 Layers | 3 Layers |
Visible Light Transmittance (VLT) | 65% – 75% (High) | 65% – 72% (High & Natural) | 50% – 65% (Slightly Tilted & Cool) |
Solar Heat Gain (SHGC) | 0.45 – 0.55 (Moderate) | 0.30 – 0.40 (Exceptional) | 0.22 – 0.32 (Extreme) |
Light-to-Solar Gain (LSG Ratio) | 1.2 – 1.4 | 1.5 – 1.8 (Balanced Performance) | 1.8 – 2.2 (Maximum Shading) |
Cost-Effectiveness | Entry-level for tight budgets | Sweet spot for premium residential | Commercial towers & extreme sun exposure |
Single Low-E: An entry-level option that fulfills basic insulation requirements with excellent cost-efficiency.
Double Low-E: The gold standard for residential applications. It offers the ultimate balance between high light transmission and low solar heat gain—keeping interiors bright while rejecting over 80% of infrared heat.
Triple Low-E: The pinnacle of solar control. It blocks over 90% of heat radiation, eliminating thermal discomfort even when standing directly in front of sun-drenched windows. Ideal for commercial curtain walls, sunrooms, or severe west-facing facades.
A common question among homeowners and builders is: "Is a triple-pane IGU (Insulated Glass Unit with two cavities) inherently better than a double-pane unit?"
The short answer: It depends entirely on your climate.
Double-Pane IGU (e.g., 6mm + 12Ar + 6mm Low-E): Focuses on solar radiation control. When paired with Double Low-E, it meets the solar shading and thermal demands of most temperate and warm regions.

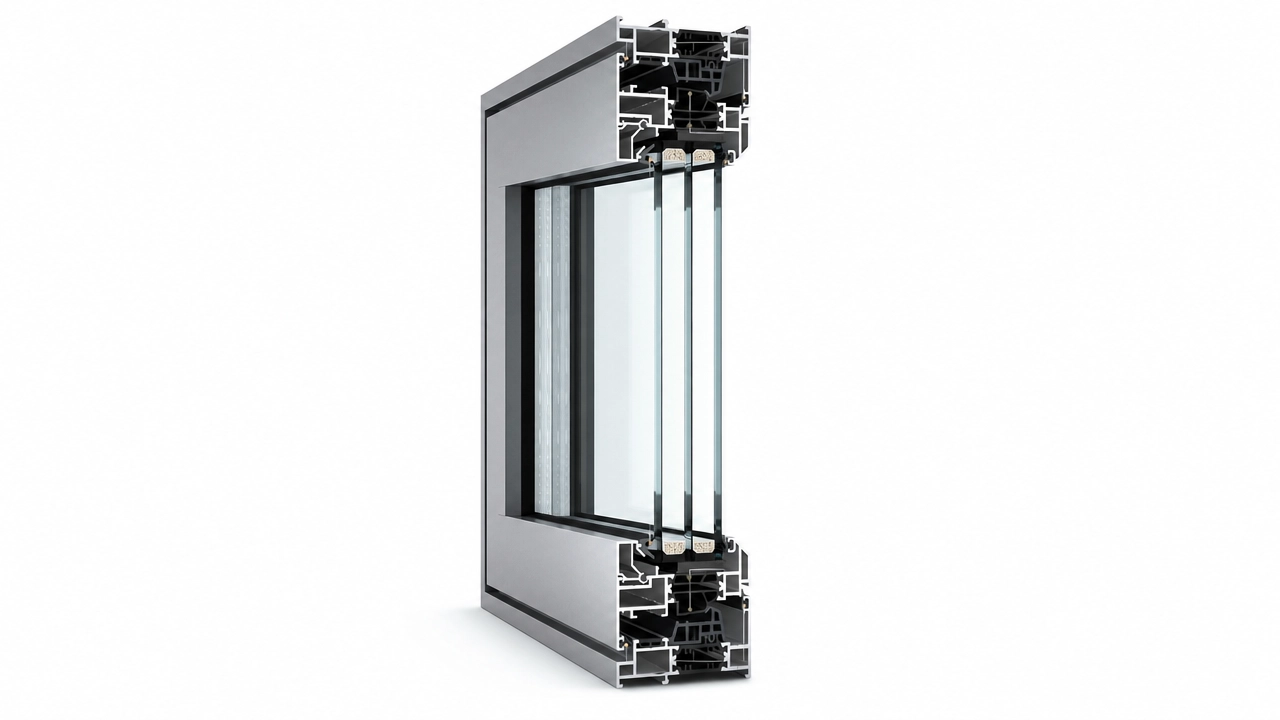

Triple-Pane IGU (e.g., 5mm + 12Ar + 5mm + 12Ar + 5mm Low-E): Features two gas-filled cavities that drastically reduce the U -value (reaching down to 0.8 - 1.1 W/m²K)). Its primary superpower is extreme cold climate insulation.
Selection Takeaway:
Cold & Arctic Climates: Opt for Triple-Pane Double Low-E units. They provide supreme defense against frost and severe cold, dramatically lowering heating costs.
Warm & Hot Climates: Prioritize Double-Pane Double Low-E units. Their main task is blocking intense summer solar heat and cutting air conditioning energy demand.
To maximize your investment, here is a tailored reference table based on architectural scenarios:
Property Characteristics / Demand | Recommended Glass Configuration | Core Value Delivered |
Southern Exposure / Floor-to-Ceiling Windows | Ultra-Clear Double Low-E + 12Ar (Argon) + IGU | Pristine optical clarity paired with high solar rejection |
Severe Winter / Cold Regions | Triple-Pane + Dual Low-E + Argon + Warm Edge Spacer | Maximum thermal resistance against harsh temperature drops and edge condensation |
High Noise Environments (Streets, Airports) | PVB/SGP Laminated + Low-E Insulated Composite Unit | Laminated interlayer dampens low-frequency noise; IGU blocks heat and high-frequency sound |
Skylights & Sunrooms | Double Low-E Tempered Laminated + IGU Assembly | Safety first (prevents overhead glass shatter hazards) while curbing greenhouse heating effects |
Insist on Argon Gas Filling: Filling the cavity with argon gas improves thermal insulation performance by 10%–15% and prevents the oxidation of Low-E coatings over time.
Upgrade to Warm Edge Spacers: Replacing traditional aluminum spacers with composite warm-edge spacers eliminates thermal bridging, eliminating winter window-edge condensation and mold growth.
Specify Low-Iron (Ultra-Clear) Substrates: Ultra-clear glass reduces the greenish tint of standard glass for crystal-clear aesthetics and lowers the spontaneous thermal breakage rate from 3‰ to below 1‰.
Climate zones, window orientations, and glass dimensions all play a crucial role in specifying the right architectural glass.
If you need a tailored glazing proposal or a technical quotation for your project, our engineering team is here to assist you.
