Permanent & Scratch-Resistant Graphics: Utilizes inorganic ceramic fritted inks fused permanently to the glass surface at temperatures exceeding 600°C. The printed patterns are completely scratch, fade, and chemical resistant.
Precision Screen & Pattern Customization: Supports high-density dots, progressive gradients, linear strips, solid opacity blocking, or complex bespoke architectural graphics with exceptional edge crispness.
Enhanced Solar & Glare Control: Provides structural shading by reducing solar heat gain coefficients (SHGC) and controlling glare, balancing daylighting with energy efficiency in modern facades.
Industrial-Grade Safety & Strength: Fully tempered to meet global safety standards (CE/SGCC). Delivers 4-5 times the mechanical and thermal stress resistance of standard annealed printed glass.
Versatile OEM & B2B Solutions: The definitive choice for architectural curtain walls, interior spandrel panels, glass balustrades, office partitions, splashbacks, and premium appliance glass.
| Quantity: | |
|---|---|
Are you looking for a durable, non-fading, and high-precision patterned glazing solution to achieve specific aesthetic or thermal control benchmarks? Shandong Weihua Glass manufactures premium, industrial-grade Custom Silk-Screen Printed Tempered Glass (Ceramic Fritted Glass) engineered to satisfy strict architectural specifications and high-volume OEM manufacturing standards.
Unlike standard organic paint printing, our advanced production lines apply inorganic ceramic enamels that fuse molecularly with the glass substrate during the tempering process. This ensures the graphics become an indestructible part of the glass matrix, capable of withstanding extreme environmental exposure, harsh UV radiation, and severe mechanical loads without blistering, peeling, or altering color values over decades of service.
Technical Feature (技术特性) | Available Specifications (供应与定制规格) |
Printing Technology | Precision Silk-Screen Printing (Ceramic Fritting / Enameling Process) |

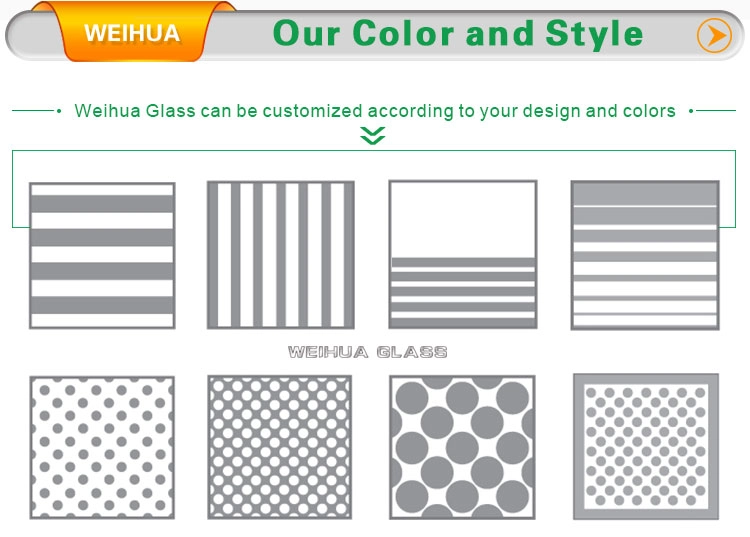

Pattern Types | Solid Spandrel, Dots (Linear/Staggered), Lines, Gradients, Perforated Illusion, or Bespoke CAD Artwork |
Ink Options | Heavy-Duty Lead-Free Inorganic Ceramic Inks (Vibrant RAL/Pantone color matching) |
Glass Substrates | Clear, Ultra-Clear (Low-Iron), Tinted, Reflective, or Low-E Glass substrates |
Thickness Range | 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, 19 mm (Customizable single or laminated configurations) |
Size Range | Min: 300 mm X 300 mm |
Secondary Processing | Precision CNC Polished Edges, Water-jet Corner Cutouts, Structural Hole Drilling, Heat Soak Testing (HST) |
Certifications | CE (EN12150), ISO9001, CCC, SGCC (ANSI Z97.1 for North American & European markets) |
Zero Fading in Exterior Facades: Our ceramic-fritted technology guarantees complete resistance to UV degradation, making it the industry standard for exterior spandrel panels and curtain walls exposed to intense, direct sunlight.
Strict Geometric Tolerance Control: Utilizing fully automated silk-screen printing tables and precise mesh alignment setups, we keep printing registration and dimensional deviations within tight ±0.5mm limits.
Optimized Thermal Performance: By applying specific dot or line density configurations, we assist facade consultants in accurately tuning shading coefficients (SC) and interior light transmission to lower building HVAC costs.
Submit Artwork & Color Code: Provide your pattern layout in vector format (AI, DWG, or PDF) along with the desired Pantone or RAL color codes.
Define Substrate & Opacity: Specify whether the backing glass should be standard clear or low-iron, and define the required transparency or solid opacity level of the printed area.
Sample Verification: For large-scale architectural cladding or appliance OEM projects, Weihua provides pre-production samples to verify color precision and ink thickness.
Heavy-Duty Export Packaging: All completed batches are loaded into secure, moisture-proof end-cap timber crates with protective interleaving paper, engineered specifically to survive ocean transit and forklift distribution.
