The Ultimate Guide To Laminated Glass Canopies: Types, Cost, Design & Waterproofing

When designing modern architectural entrances, covered walkways, and skylights, safety and durability are paramount. Among all architectural glazing solutions, Laminated Glass Canopies have become the gold standard for high-end residential and commercial projects.

Whether you are an architect, contractor, or building owner, choosing the right glass configuration, understanding cost trade-offs, and ensuring proper waterproofing are essential steps to a successful project.

1. What is Laminated Glass for Canopies and Why is it Essential?

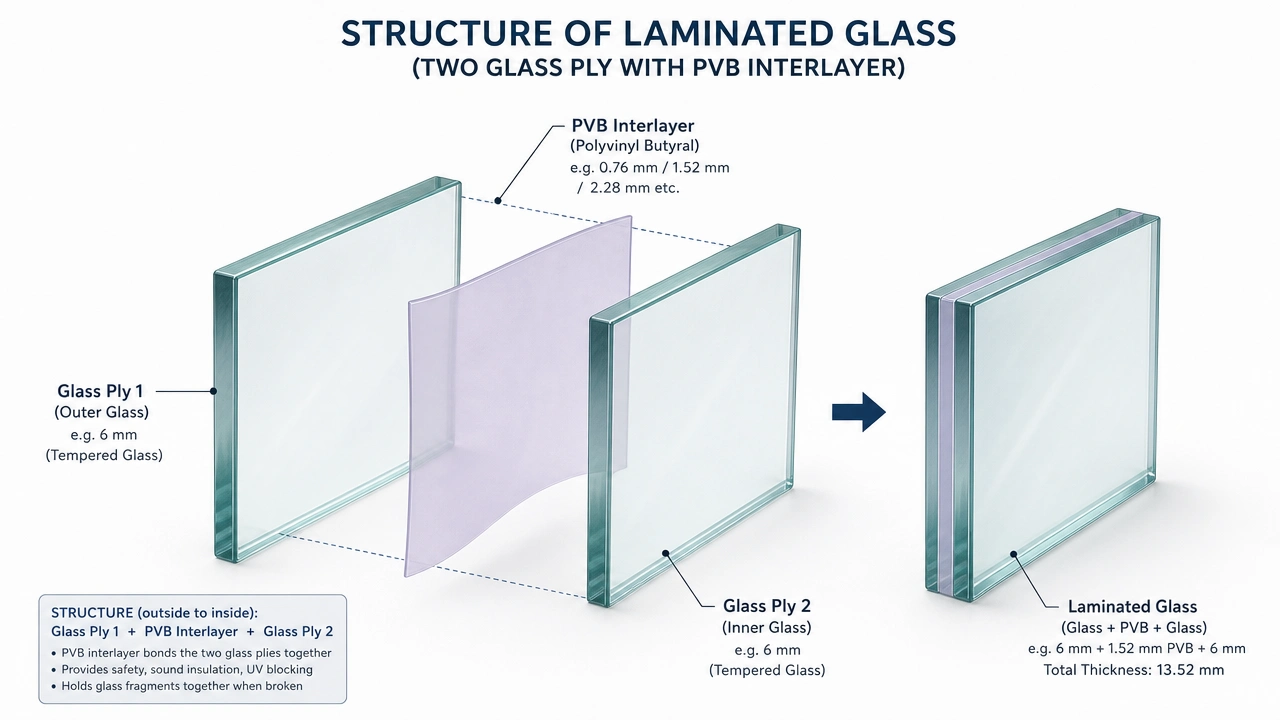

A laminated glass canopy is created by joining two or more glass sheets with a high-strength polymer interlayer—typically PVB (Polyvinyl Butyral) or SGP (SentryGlas® Plus)—under heat and intense pressure.

Key Advantages of Laminated Glass Canopies:

• Zero Drop Hazard (Safety First): Even if the glass shatters due to severe impact or thermal stress, the broken fragments stick tightly to the inner interlayer, preventing dangerous "glass rain" from falling on pedestrians below.

• Impact & Load Resistance: Built to withstand heavy snowfall, hail, high-velocity wind loads, and falling objects.

• UV & Noise Insulation: Blocks over 99% of harmful UV rays while significantly dampening rain impact acoustics compared to solid metal sheets or polycarbonate panels.

2. PVB vs. SGP Interlayer: Which One Do You Need?

The choice of interlayer material directly determines the canopy’s structural post-breakage strength and long-term clarity.

Glass Substrate Tip: Combining fully tempered or heat-strengthened (semi-tempered) glass sheets with PVB or SGP eliminates self-explosion risks while offering maximum rigidity.

3. Glass Thickness & Weight Load Calculation Guide

Choosing the right thickness depends on the canopy's cantilever distance (outward projection).

Recommended Specifications by Cantilever Distance:

• Small Cantilever (＜ 1.2 meters): 5mm + 0.76mm Interlayer + 5mm or 6mm + 1.14mm Interlayer + 6mm Tempered Laminated Glass.

• Medium Cantilever (1.2 m to 2.0 m): 8mm + 1.52mm Interlayer + 8mm Tempered Laminated Glass (Standard configuration).

• Large Cantilever / Point-Supported (> 2.0 m): 10mm + 1.52mm SGP + 10mm or 12mm + 1.52mm SGP + 12mm Ultra-Clear SGP Laminated Glass.

How to Calculate Dead Load Weight:

Glass density is standardly calculated at 25  kN/m³ (2500 kg/m³).

For a standard 8mm + 1.52mm + 8mm canopy glass:

• Effective Glass Thickness: 16 mm = 0.016 m

• Self-Weight per Unit Area (Dead Load):

  0.016 m X 2500 kg/m³ = 40 kg/m² (0.4 kN/m²)

• Example Calculation: For a canopy measuring 1.8m cantilever X 3.0m width (Area = 5.4 m²):

  Total Glass Weight = 5.4 m² X 40 kg/m² = 216 kg

Note: Structural steel support framing must account for dead loads multiplied by safety factors, plus snow loads (＞ 0.5 kN/m²) and dynamic wind uplift loads.

4. Cost Comparison: SGP vs. PVB Laminated Glass Budget

Budgeting is always a major factor in project decision-making.

• Raw Interlayer Cost: SGP film alone costs 4 to 6 times more than standard PVB film.

• Finished Canopy Project Cost: Upgrading from PVB to SGP typically increases the total installed canopy budget by 30% to 80%.

Budget Breakdown Example (8mm + Interlayer + 8mm Configuration)

Plaintext

[PVB Solution]
   ├── Glass & PVB Film: $200 - $320/m²
   └── Total Project Cost (Steel + Install): $600 - $1,000/m²

[SGP Solution]
   ├── Glass & SGP Film: $400 - $600/m²
   └── Total Project Cost (Steel + Install): $800 - $1,600/m²

Value Verdict:

If your project features a frameless, spider-fitted, or large cantilever design (> 1.8m) where glass edges are directly exposed to rain and humidity, SGP is worth every penny to prevent edge delamination and catastrophic collapse. For fully-framed small residential canopies, PVB remains the most cost-effective choice.

5. Waterproofing & Drainage Joints for Multi-Panel Canopies

For long cantilevers (e.g., 1.8m projection), wind-induced vibration and thermal expansion cause subtle movements. Relying solely on surface sealant will inevitably lead to leaks over time.

A professional engineering approach uses a 3-Layer Waterproofing & Hidden Drainage System:

Plaintext

  [Top Layer]    Neutral Weatherproof Silicone Sealant + Foam Backer Rod
                      ↓
  [Expansion]    10mm - 12mm Expansion Gap between Glass Panels
                      ↓
  [Secondary]    Concealed Aluminum/Stainless Steel U-Shape Drainage Channel
                      ↓
  [Support]      EPDM Rubber Gasket + Main Steel Support Beam

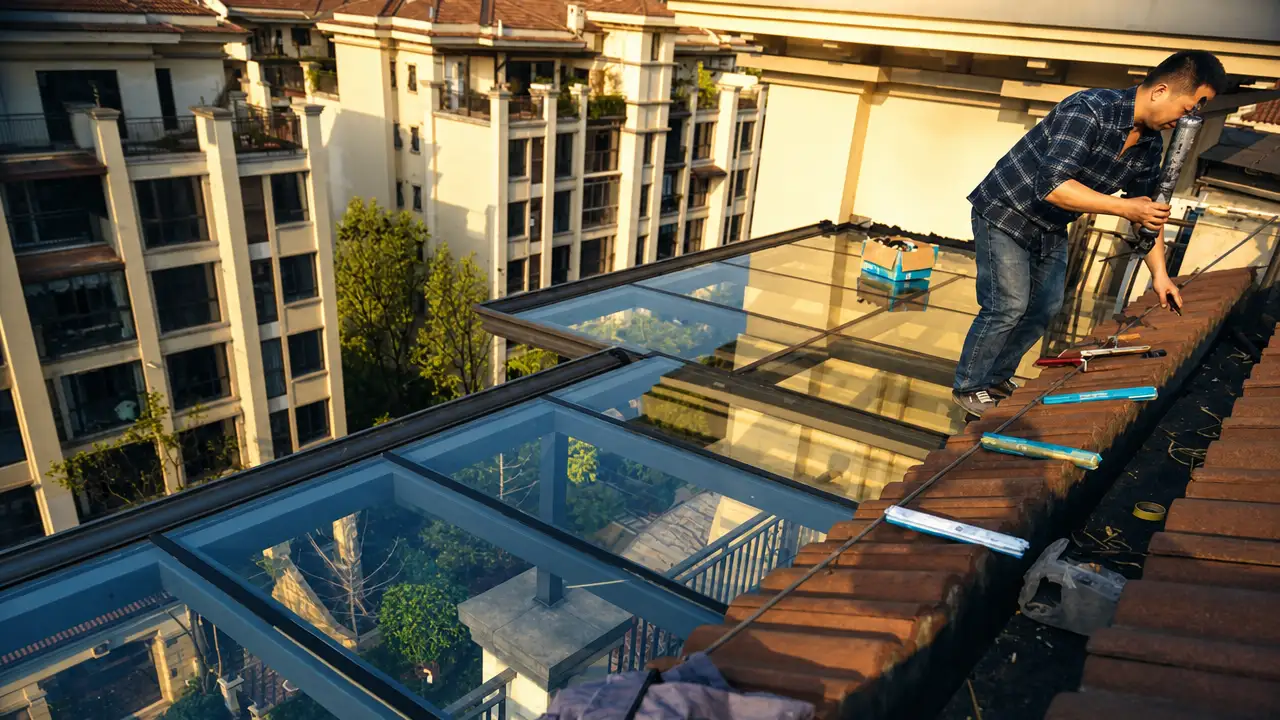

Critical Installation Checklist:

1. Expansion Joint (10 mm - 12 mm): Never butt glass edges tightly against each other. Always insert a round foam backer rod before applying neutral silicone sealant.

2. Hidden U-Channel Drain: Place an aluminum or stainless U-shaped channel directly underneath the glass joint. If the top silicone sealant degrades over time, water drops straight into the U-channel and flows safely to the outer edge.

3. Slope Requirement (＞ 5%): Maintain a downward slope of at least 5% (e.g., a 9 cm drop over a 1.8 m cantilever) to prevent standing water and silt buildup.

4. Wall Flashing (Root Joint): Embed the wall-side glass edge under a metal flashing plate with a silicone seal to ensure seamless watershed off the exterior facade.

Conclusion

A well-engineered laminated glass canopy balances aesthetics, structural safety, and budget constraints. By pairing the right glass thickness (8+8mm for medium spans) with the proper interlayer (PVB for framed, SGP for open-edge/point-supported) and implementing a dual-drainage joint detail, you ensure a sleek, leak-free structure built to last decades.
