High-Impact Shatter Redundancy: Specifically engineered with multi-layer Curved Laminated Tempered Glass architectures. Utilizing high-toughness PVB or SGP structural interlayers, it ensures zero falling shard hazards for high-traffic interior spaces.

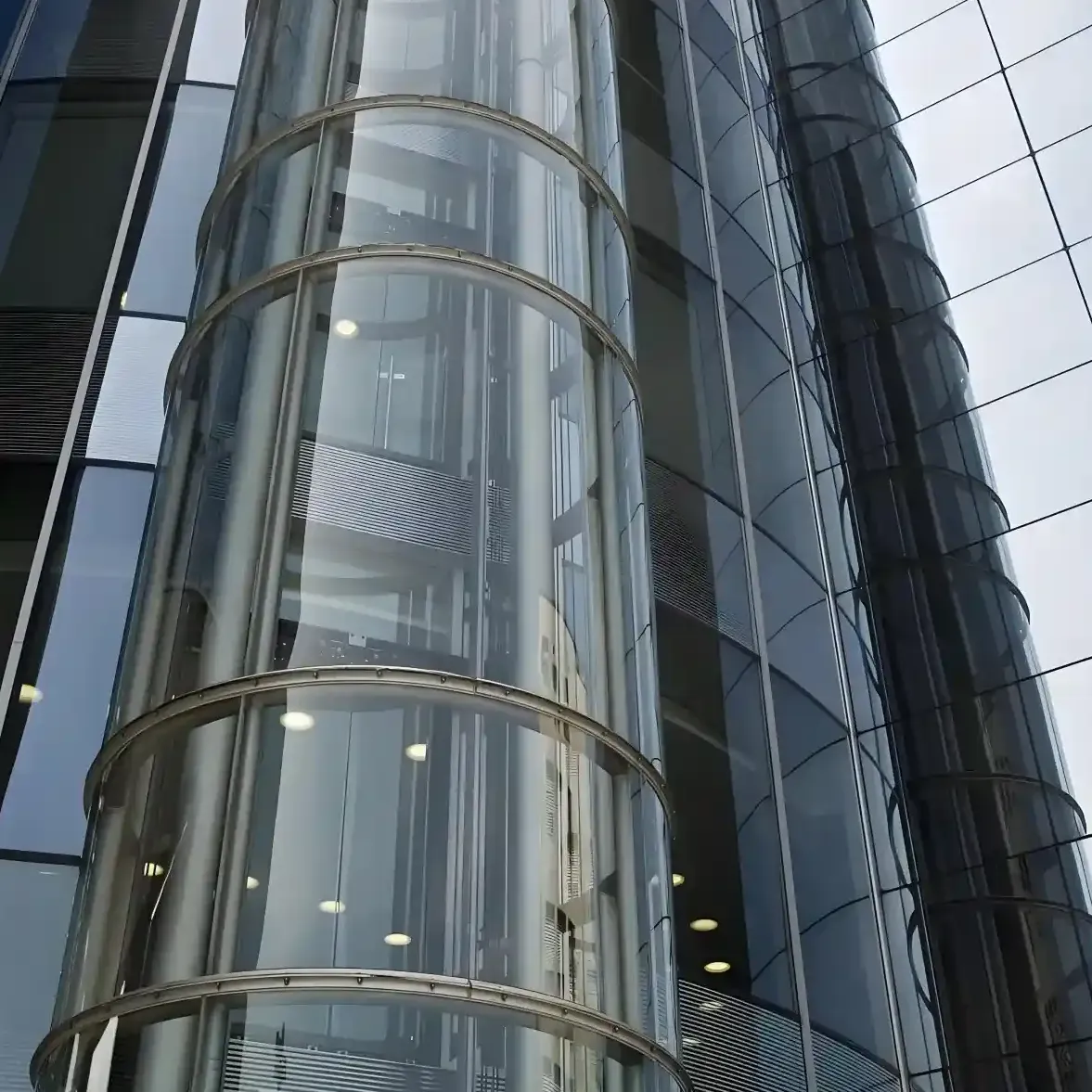

Cylindrical Lift Shaft Optimization: Custom manufactured to perfectly match global OEM elevator steel frameworks. Guarantees uniform curvature radius control to ensure seamless, friction-free movement of panoramic lift capsules.
Complex Helical Geometry Alignment: Mastered in deep spiral staircase handrail bending and structural balustrade curving, achieving flawless geometric continuity in structural interior architecture.
Acoustic Dampening & UV Block: The integrated structural resin interlayer provides sound attenuation inside echoing commercial atriums while screening out up to 99% of fading UV rays to protect interior finishes.
Pristine CNC Hardware Preparation: Features precision countersunk hole drillings, edge mitering, and water-jet cutouts executed via five-axis CNC machining centers to match point-fixed standoffs or channel base systems.
| Quantity: | |
|---|---|
Are you detailing a sweeping spiral staircase for a five-star hotel lobby, a multi-story panoramic glass elevator shaft for a luxury shopping mall, or a sprawling structural atrium skylight for a corporate headquarters? Shandong Weihua Glass manufactures premium, commercial-grade Custom Curved Laminated Tempered Glass systems engineered precisely to satisfy stringent internal safety building codes, complex geometric submittals, and upscale interior styling.
In heavily populated commercial spaces, overhead and structural barrier glazing operate under extreme liability protocols. Standard monolithic panes pose an unacceptable risk of sudden failure and falling debris. Weihua resolves this structural safety bottleneck. By bonding high-strength bent tempered panels with advanced structural interlayers under high-pressure vacuum autoclaving, we deliver a visually stunning, geometrically exact architectural medium that protects human life while maintaining fluid, sweeping design curves.
Target Fitment: Seamlessly engineered to mate with circular, elliptical, or panoramic lift capsules for leading elevator brands.
Curvature Precision: Radius (R ) deviation restricted to ≤ pm1.5 mm across the entire arc length, completely eliminating mechanical interference with moving elevator cabs.
Substrate Choice: Highly recommended in Low-Iron (Ultra-Clear) to deliver completely colorless, immersive scenic visibility for passengers traveling up and down the shafts.
Lamination Standard: Typically 6 mm+6 mm or 8 mm+8 mm Curved Laminated configurations utilizing rigid SGP (SentryGlas) or heavy-duty PVB interlayers.
Post-Breakage Rigidity: Engineered as an active pedestrian fall-protection barrier. Even if mechanical force fractures both tempered layers, the SGP interlayer maintains a rigid, upright stand inside the floor tracks to prevent falling accidents.
Edge Finishing: Executed with flawless CNC multi-stage diamond wheel flat polishing. Since balustrade rims are fully exposed to hand contact, every edge is finished to a crystal-bright, completely smooth arris profile.
Structural Redundancy: Heavy-duty double or triple-layer laminated bent architecture designed to sustain severe continuous loads, including dynamic wind pressure, localized snow loads, and accidental maintenance tool drops.
Solar Control Coatings: Fully compatible with offline high-performance Low-E coatings or tinted interlayers, reflecting solar heat to minimize internal HVAC climate-control costs for massive atrium volumes.
Technical Evaluation | Weihua Factory Specification Limits |
Monolithic Glass Thickness | 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm (Available in laminated pairings up to 30 mm+) |
Interlayer Foil Materials | Structural SGP (SentryGlas), UV-Stabilized Architectural PVB, Moisture-Resistant EVA |
Roller Wave Distortion | Controlled under ≤ 0.15 mm / 300 mm to eliminate visual bending or funhouse mirror effects |
Lamination Step Deviation | Edge-to-edge offset restricted to ≤ ±0.5 mm through precision robotic cleanroom assembly |
Hole & Notch Processing | Precision water-jet cutting with positional registry tolerances restricted within ±0.5 mm |
Quality & Safety Compliance | Traceability markings permanently fired to comply with CE (EN14449), SGCC (ANSI Z97.1), ISO9001 |
Zero-Failure Structural Layout Matching: Our internal technical center translates your complex 3D Rhino or CAD interior framing drawings into exact heating and bending matrix parameters, ensuring every single pane in a helical array lines up perfectly on-site.
Blemish-Free Cleanroom Lamination: Our curved lamination is executed in Class 100 climate-controlled cleanrooms to prevent dust, lint, or moisture contamination between the glass layers, guaranteeing long-term transparency without delamination or internal clouding.
Vertical L-Frame Safe Shipping: Interior curved glass sheets feature varied chord depths and are highly vulnerable to corner impacts during transit. We ship using heavy-duty, engineered steel-banded L-frame timber crates fitted with shock-absorbing foam blocks, preventing movement across maritime freight routes.
