In commercial architecture and structural engineering, the integration of curved glass surfaces has evolved from a rare aesthetic statement into a standardized functional requirement. Managing these geometric profiles requires a strict understanding of thermodynamics, material limits, and mechanical tolerances.
This technical guide outlines the manufacturing physics, critical engineering parameters, and quality compliance benchmarks for Curved Tempered Glass (also referenced as Curved Toughened Glass), providing procurement teams and facade engineers with the data required for project specification.
Achieving a safety-grade curved profile requires a precise, non-reversible heat treatment process. It is distinct from annealed heat bending, which lacks structural strength.

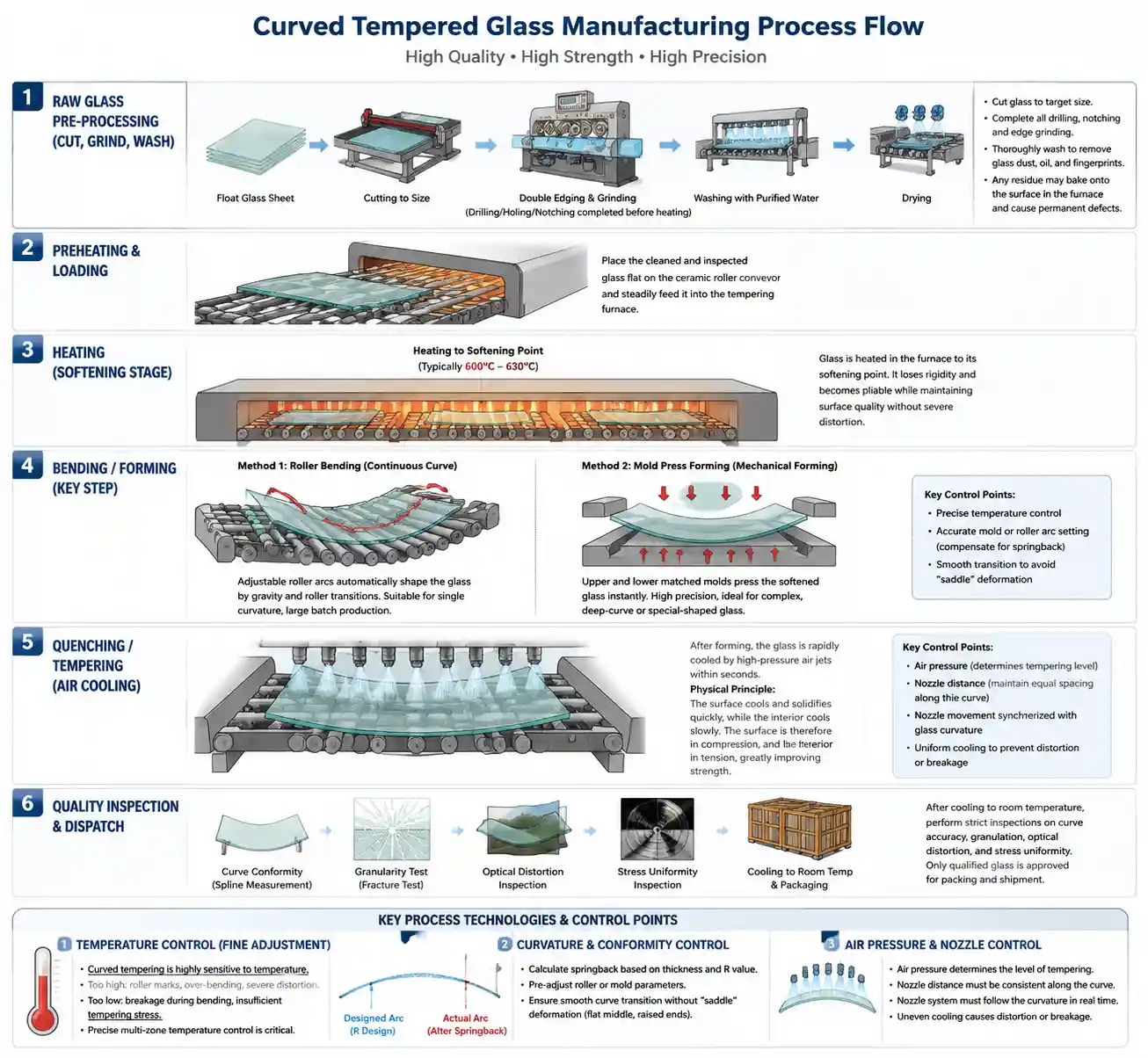

[ Pre-Processing ] ---------> [ Thermal Cycle ] ---------> [ Geometric Forming ] ---------> [ Controlled Quenching ]
Cutting, CNC Edging, Heated to Computerized roller track High-pressure air cooling
Drilling (Pre-Tempering) 600°C - 630°C or mechanical press mold creates surface compression
Pre-Processing Execution: Prior to entering the thermal line, all raw float glass sheets must undergo cutting, CNC grinding, and any required drilling or counter-sinking. Tempered glass cannot be mechanically altered post-processing.
Thermal Cycle: The flat sheets are transported via ceramic rollers into a convection furnace, where they are uniformly heated to the material's softening point—typically between 600°C and 630°C.
Geometric Forming: Once the glass reaches a malleable state, it is rapidly transferred to the bending section. Here, the glass is shaped using one of two industrial methodologies:
Horizontal Roller Bending: The roller bed dynamically adjusts its arc coordinates. The soft glass oscillates on the track, utilizing gravity and mechanical synchronization to achieve the target radius. This is ideal for single-curved cylindrical configurations.
Mechanical Press Molding: The glass is mechanically pressed between male and female rigid molds. This method delivers tighter tolerances and is necessary for complex, deep, or non-uniform spherical geometries.
Controlled Quenching: Immediately following formation, the glass undergoes rapid cooling via high-pressure air nozzles. The exterior surfaces solidify instantly, while the core cools at a slower rate. As the core contracts, it induces permanent compressive stress on the exterior layers (≥ 90 MPa) balanced by internal tensile stress. This transformation yields an architectural glass solution with 4 to 5 times the impact resistance of annealed glass.
A primary challenge in specifying curved profiles is matching the required glass thickness with the physical limits of thermal shaping. The Minimum Bending Radius (R-value) is strictly governed by the glass thickness; exceeding these thresholds results in optical distortion or structural failure during quenching.
The table below outlines standard industrial production thresholds:
Nominal Thickness (mm) | Standard Minimum Bending Radius (R) | Maximum Architectural Dimension (Standard Line) |
5mm – 6mm | 450mm – 500mm | 2440 mm X 3660 mm |
8mm – 10mm | 600mm – 800mm | 3300 mm X 4800 mm |
12mm – 15mm | 1000mm – 1200mm | 3300 mm X 6000 mm |
19mm+ | ≥ 1500 mm | Jumbo Size Curved Glass (Custom Project Lines) |
When specifying dimensions, engineers must account for minor material "spring-back" or radius deviation that occurs during the quenching phase as stresses equalize. Standard industrial tolerances generally require:
Arc Deviation:± 2.0 mm to ± 3.0 mm per linear meter.
Linear Flatness Localized Edge Deviation: ≤ 0.3 mm per 300 mm.
For commercial envelopes, structural balustrades, or overhead glazing, single-pane glass often fails to meet structural or environmental building codes. Projects frequently specify deep-processed composites to enhance performance.
To comply with overhead and high-altitude safety mandates, two or more layers of curved tempered glass are bonded using an engineered interlayer under high temperature and pressure in an autoclave.
PVB (Polyvinyl Butyral): Provides standard impact protection, acoustic dampening, and UV mitigation. Suitable for interior curved glass railing applications and standard curtain walls.
SGP (SentryGlas Plus Ionoplast): Offers up to five times the tear strength and 10 times the rigidity of standard PVB. SGP curved laminated glass is specified for hurricane zones, structural glass fins, glass floors, and blast-resistant facades due to its post-breakage load-bearing capacity.
Standard clear float glass contains higher concentrations of iron oxide (Fe2O3), imparting a green tint that multiplies along curved sightlines and laminated stack-ups. Specifying low-iron curved glass (ultra-clear) reduces iron content from roughly 0.1% to less than 0.01%. This optimization guarantees high color rendering indices (CRI ) and maximum visible light transmittance (VLT ), which is highly desirable for high-end retail storefronts and observation enclosures.
The transformation of malleable glass over localized rollers introduces specific mechanical risks that must be monitored through strict Quality Assurance (QA) protocols.
[ Uneven Thermal Distribution ] ---> Multi-directional Distortion
[ Mismatched Air Nozzle Flow ] ---> Localized Anisotropy (Iridescence)
[ Excess Roller Friction ] ---> Roller Wave Patterns (Optical Distortion)
Visual Distortion & Roller Waves: If the furnace temperature profile is uneven, or if the dwell time is too long, the glass will sag slightly between the ceramic rollers. This creates microscopic surface waves (roller wave distortion). Procurement specifications should define maximum peak-to-valley depths (≤ 0.15 mm for high-spec facades).
Anisotropy (Strain Patterns): Uneven air pressure during the quenching phase creates localized stress zones. Under polarized natural light, these zones appear as dark spots or iridescent rings (birefringence). This must be mitigated using multi-channeled scanning systems that verify cooling uniformity across the entire arc plane.
Curved tempered profiles are integrated into critical structural assemblies across several primary sectors:
Curved Glass Facade and Ribbon Windows: Utilized to reduce wind drag coefficients on high-rise structures and maximize panoramic field-of-view parameters.
Vertical Transportation Enclosures: Engineered panoramic lift shafts requiring precise radius consistency to ensure mechanical clearance for the cab.
Before final procurement and installation, materials must be verified against regional structural and safety glass test standards. A technical submittal must include independent laboratory testing verification for the following regions:
North America: SGCC (Safety Glass Certification Council) certification confirming compliance with ANSI Z97.1-2015 and CPSC 16 CFR 1201 impact criteria.
Europe / International: CE Mark documentation proving compliance with EN 12150-1 (for thermally toughened silicate safety glass) and EN 14449 (for laminated safety glass evaluation).
Oceania: AS/NZS 2208 structural safety glass certification for architectural use cases across Australia and New Zealand.
