Multi-Substrate Anchorage Versatility: Offered in three specialized interface blueprints—Wall Mount, Through-Glass Fixing, and Post Mount—to instantly secure continuous architectural handrails across any structural substrate.
Precision Through-Glass Isolation: Designed for premium frameless glazing, featuring heavy-gauge through-bolts lined with high-durometer UV-stabilized rubber washers to compress glass seamlessly while neutralizing localized burst stresses.
Dynamic Multi-Axis Terrain Adjustment: Configurable with integrated pivot hinges, rotary joints, or threaded sleeve sleeves (0° - 180° tilt and height micro-calibrations) to completely negate concrete building settlement and installation slope deviations.
Flawless Saddle-to-Rail Alignment: Precision-turned with curved profiles optimized for round metal/timber tubes, or flat geometric foundations tailored for sharp, minimalist square and rectangular handrail designs.
Architectural Stainless Steel Metallurgy: CNC-machined from premium Grade 304 or Marine-Grade 316 stainless steel, guaranteeing immense shear load performance and zero rust degradation under intense moisture or public foot traffic.
| Quantity: | |
|---|---|

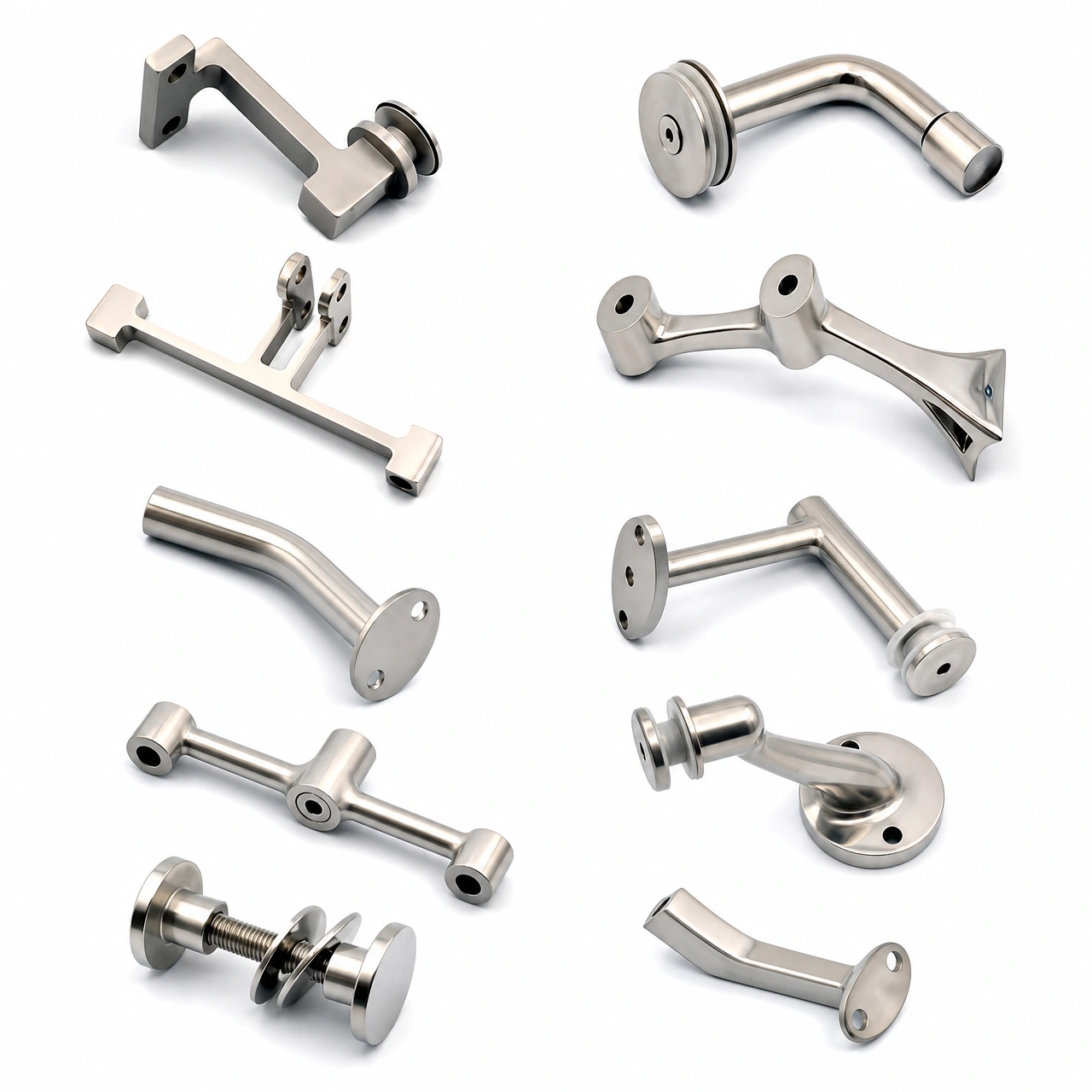

Are you detailing a wrapping helical staircase inside a luxury hotel, a long high-occupancy commercial transit corridor, or a modern frameless glass balcony running along a coastal resort? Shandong Weihua Glass supplies industrial-grade, heavy-duty Stainless Steel Handrail Brackets (Connectors) engineered precisely to anchor continuous handrails firmly while adapting seamlessly to complex slope geometries and uneven field layouts.
In structural balustrades, a handrail connector is the critical mechanical component capturing constant pedestrian leverage and push-pull shear forces. Utilizing unverified, cast-zinc components or non-adjustable rigid brackets results in loose handrail tracking, glass pane cracking, and building code failure. Weihua resolves this field bottleneck. By combining premium metallurgy options with advanced internal geometry tracking, we provide global B2B procurement networks with a robust, completely adaptable framing framework that slashes site installation timelines while guaranteeing flawless post-installation railing rigidity.
The foundation architecture of your job site dictates the mechanical design of the bracket's backing profile. Configure your bulk orders across our three core installation paths:
Engineering Blueprints: Features a robust circular or square mounting flange equipped with 2–4 counterbored anchor slots.
Target Environments: Direct anchorage into structural concrete walls, masonry surfaces, or heavy interior timber studs. Ideal for continuous safety handrails in commercial fire exits and hotel corridors.

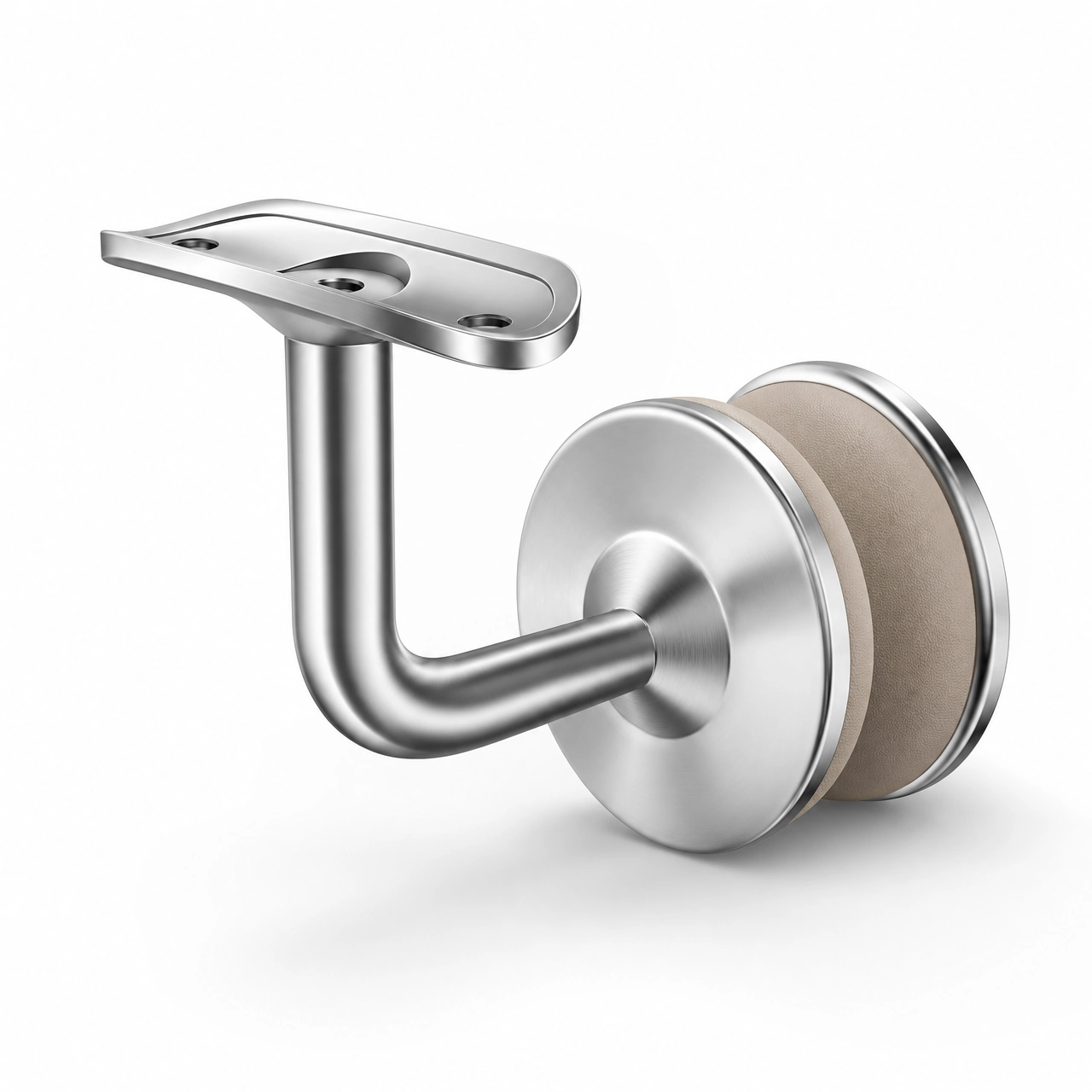

Engineering Blueprints: Engineered with a heavy-duty through-bolt mechanical lock that requires pre-drilled holes within the safety glass framework.
Target Environments: Premium frameless structural glass balustrades. Packed with heavy compression gaskets that completely isolate the metal threads from direct glass rim contact, absorbing structural vibrations and preventing localized shattering.
Engineering Blueprints: Profiled with a precision radius curve (tailored to tight tube diameters like ⌀ 42.4mm or ⌀ 50.8 mm) or finished flat to sit perfectly flush against square post faces.
Target Environments: Pre-drilled or blind-riveted onto vertical structural support posts inside modular framing systems.
Staircase slopes change dynamically across multiple landings. Weihua offers tailored adjustability classes to counter extreme site errors and helical runs:
Bracket Mechanism Type | Structural Engineering Features | Optimal Field Applications |
Fixed Brackets | Stem and top saddle are solid, single-piece cast or welded architectures. Non-adjustable angle (typically 90°), offering maximum structural rigidity. | Flat walkways, level mezzanine platforms, and standard straight-run uniform stairs. |

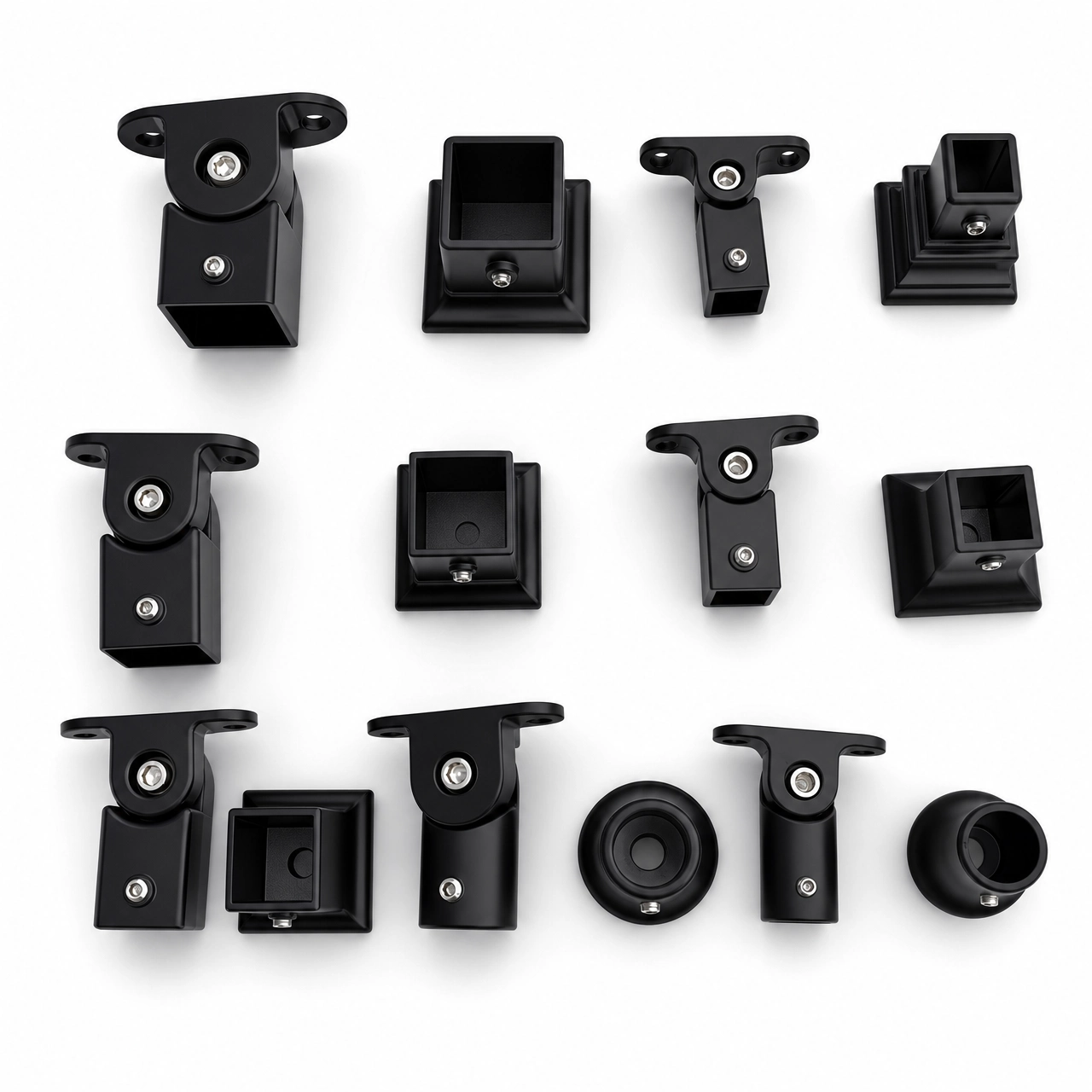

Adjustable Angle Brackets | Stem integrates a high-torque rotary hinge, ball-joint, or pivoting articulation matrix, enabling fluid tilt adjustments from 0° - 180°. | Variable-slope ramps, winding spiral staircases, and custom multi-pitch transitional stair landings. |
Height Adjustable Brackets | Engineered with an internal threaded rod or telescopic slip-sleeve sleeve, allowing localized vertical micro-adjustments. | Compensates for uneven masonry wall elevations, ensuring the top handrail follows a perfectly straight visual baseline. |
To completely eliminate handrail wobble, the top saddle plate must perfectly mirror the cross-section of your specified rail:

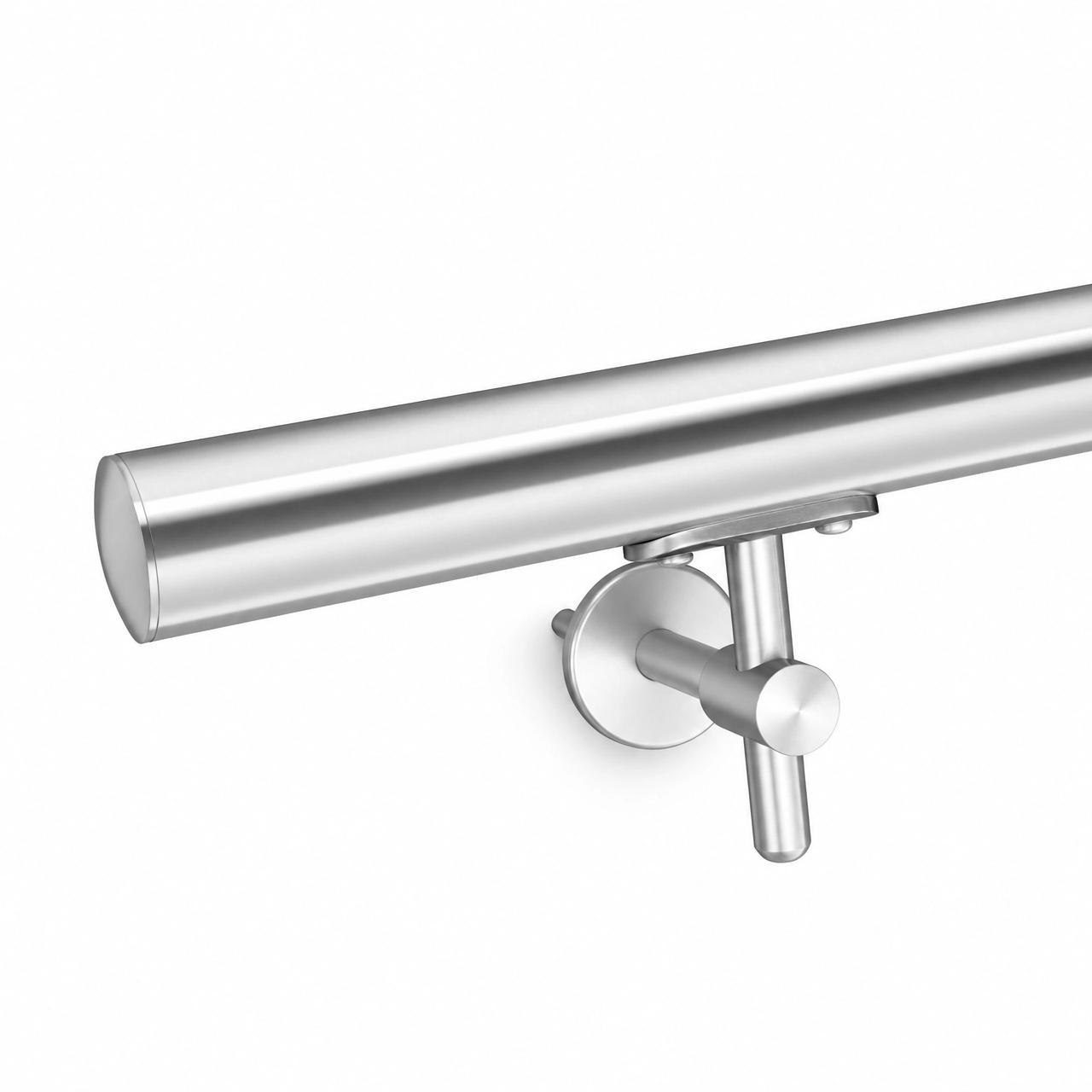

Curved Saddles: Precision-contoured to cradle round stainless steel tubes or circular hardwood handrails.

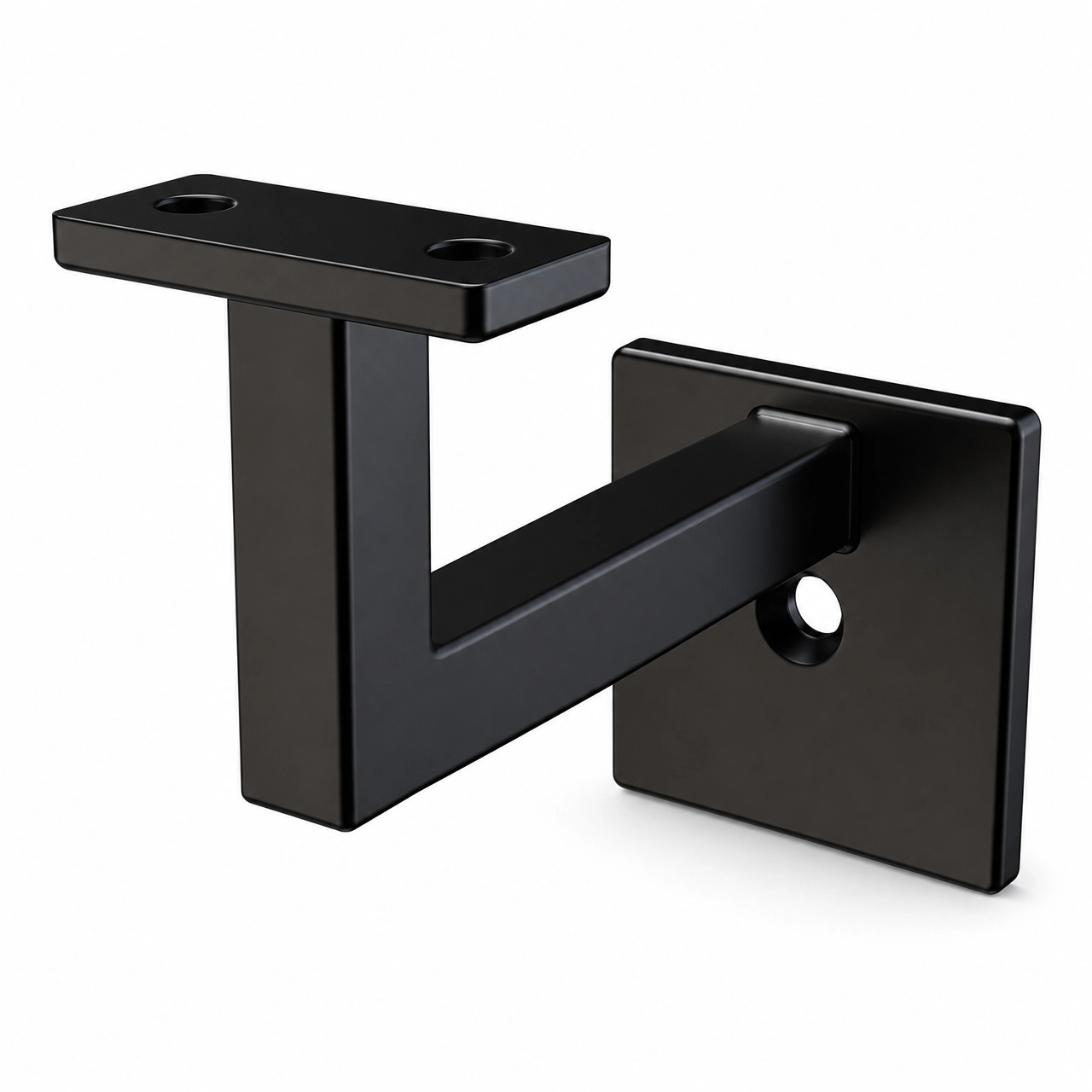

Flat Saddles: Formed with flat, flush geometries to support square metal tubes or broad rectangular timber profiles.
Screw-Fix Configuration: Prefabricated with clean screw holes. Timber rails lock directly via high-grade wood screws; metal tubes are fixed via machine screws after flow-drilling or tapping.
Welding Configuration: The saddle plate is removed, allowing the heavy stem profile to be directly full-welded and polished flush to a stainless steel handrail, achieving a seamless, ultra-minimalist industrial aesthetic.
100% Factory-Hole & Bracket Synchronization: The most expensive field failure occurs when handrail bracket through-bolts miss the glass panel hole centers by even a fraction of a millimeter. Weihua eliminates this split-vendor friction. By coordinating your framing submittals directly with our strategic hardware partners, we run unified CNC glass-milling programs that ensure every glass-mount bracket matches our glass sheets perfectly out of the box.
Elite Component Sourcing with Tier-1 Factory Pricing: While we focus our internal manufacturing on high-performance safety glass, we have established long-term, high-volume buying agreements with mainland China's premier architectural stainless steel precision foundries. By leveraging our massive B2B purchasing power, Weihua secures structural connectors and brackets at strict factory-direct price points that individual contractors cannot achieve independently.
Stringent Unified Quality Assurance (QA): You do not have to manage multiple disjointed vendors or worry about mismatched finishes between your handrails, posts, and connectors. Every handrail bracket we source undergoes rigorous third-party metallurgical, load-deflection, and tolerance audits at our facility. We verify thread precision, wall thickness consistency, and surface brushing depth, providing a unified warranty that covers both your glazing and structural hardware.
Consolidated Smart Logistics & Site-Ready Kitting: We streamline your procurement pipeline by eliminating split-shipment customs clearances and heavy ocean freight tracking hours. Weihua packs, crates, and ships the entire structural assembly—tempered/laminated glass sheets, pre-cut posts, base channels, adjustable handrail brackets, and corresponding fasteners—in a single consolidated container, neatly labeled for rapid assembly upon arrival at your job site.
