When project managers see the price tag of SentryGlas® (SGP) ionoplast interlayer, their first reaction is often: "It's 3-5 times more expensive than PVB! We can't afford this."
But this is a classic procurement trap: looking at the unit price instead of the system cost.
What if I told you that using the "expensive" SGP interlayer could actually lower your total facade budget? The secret lies in one engineering concept: Structural Coupling Efficiency.

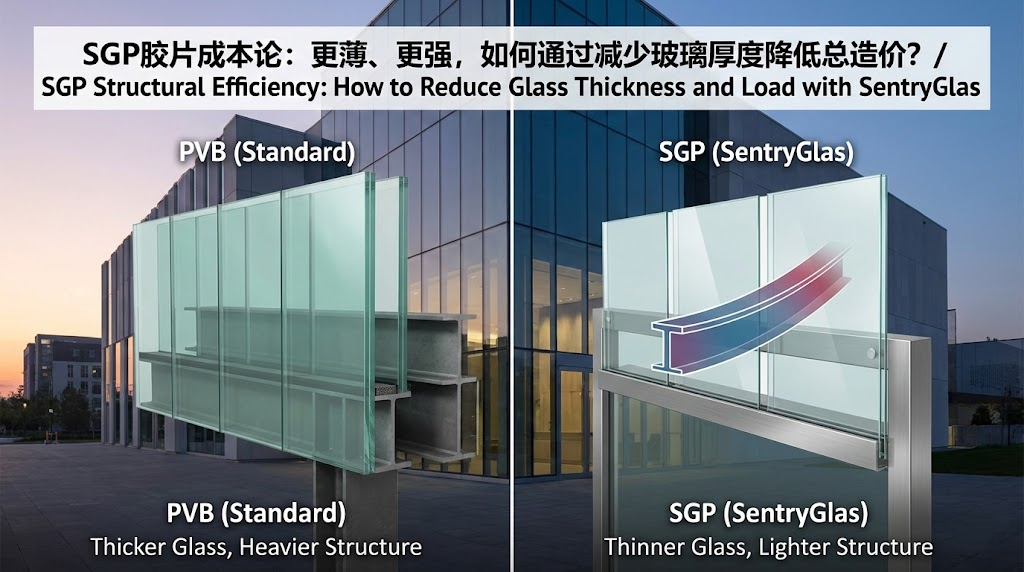

To understand the cost-saving potential, we must look at how laminated glass behaves under load.
PVB Scenario (The "Wet Blanket"): Standard PVB is soft and elastic. Under wind load, the two glass panes slide against each other. They act like two loose sheets of paper—weak and flexible.
SGP Scenario (The "Composite Beam"): SGP is 100 times stiffer and 5 times stronger than PVB. It locks the two glass panes together, forcing them to work as a single, solid unit. This is the Coupling Effect.
The Result: Because SGP glass is stiffer, you can achieve the same structural strength with thinner glass.
Let's calculate a hypothetical canopy project with a high wind load (e.g., 3.0 kPa).
Parameter | Option A: Standard PVB | Option B: SentryGlas (SGP) |
Glass Configuration | 10mm + 10mm Tempered | 8mm + 8mm Tempered |
Interlayer Type | 1.52mm PVB | 0.89mm SGP |
Glass Weight | 50 kg/m² | 40 kg/m² (20% Lighter!) |
Steel Structure | Heavy Duty (Needs to support 50kg) | Lighter Duty (Only needs to support 40kg) |
Visual Appearance | Greenish tint (thicker glass) | Clearer & Whiter (thinner glass) |
Total Cost | High (Glass + Heavy Steel) | Optimized (Expensive interlayer offset by savings) |
Conclusion: By switching to SGP, we reduced the glass thickness by 20%. This not only saves money on the glass raw material but also significantly reduces the dead load on the building structure.
Beyond thickness reduction, SGP offers Post-Breakage Strength. If both panes of a canopy break:
PVB: Collapses like a wet blanket, falling out of the frame. Danger!
SGP: The stiff interlayer holds the shattered glass in place, maintaining a horizontal position and supporting a certain load. This buys time for replacement and prevents injury.
Don't let the unit price of SentryGlas scare you. When you factor in the potential to reduce glass thickness, lighten structural support, and eliminate edge delamination, SGP is often the most economical choice for structural glazing.
