Beyond the "Thickness" Myth: A Smart Cost-Control Guide for Bulletproof Glass Procurement

In the armored glass trade, we often hear clients demand: "Give me the thickest one; thicker must be safer." This "thickness-first" mindset is often the root cause of project budget overruns and installation failures. As industry veterans, we want to share an insider consensus: A high-quality ballistic solution achieves the lightest Areal Density and optimal structural stability while strictly meeting the required Ballistic Rating.

I. Buyer Beware: Thickness ≠Protection

Security isn’t just about "stopping the bullet"; it’s about the Energy Dissipation Mechanism.

• All-Glass Structures (Heavy & Bulky): Relies on stacking multiple layers of cheap glass. While the upfront Price might be lower, the extreme weight is a disaster for window hardware and building load-bearing limits.

• Composite Optimized Structures (Lean & Strong): By integrating PC (Polycarbonate), SGP ionoplast interlayers, or PTU films, a well-engineered 45mm composite structure often outperforms a 60mm standard laminate while reducing weight by over 30%.

Pro Tip: Don't ask "How thick?" Ask if it meets the rating with Non-Spall performance.

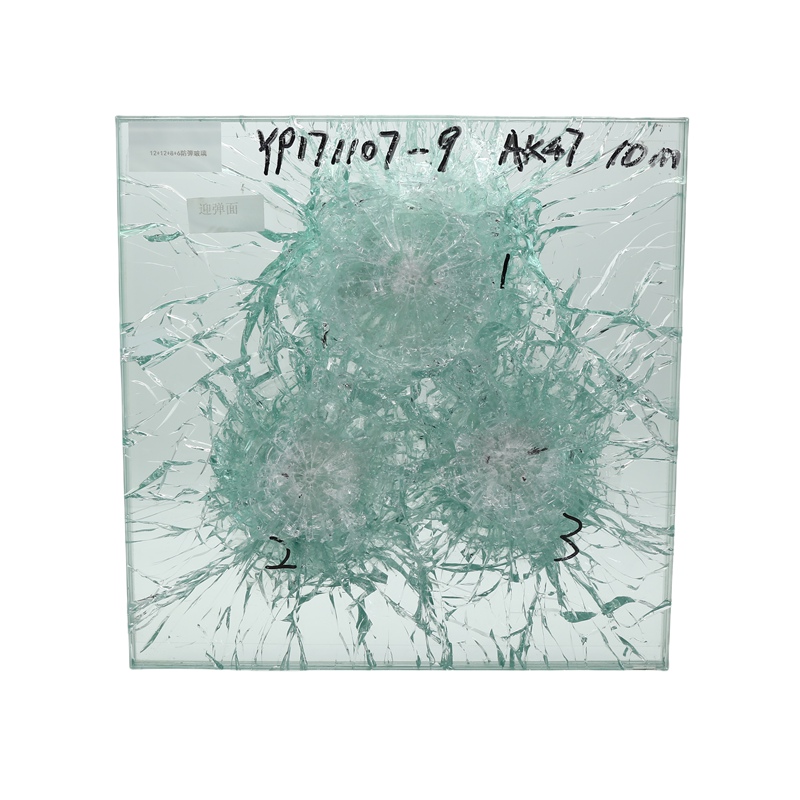

Our ballistic test data (such as the 12mm+12mm+8mm+6mm configuration) proves that thickness isn't the only metric. This setup uses graduated energy absorption: the high-hardness strike face shatters the bullet, the middle layers absorb the shockwave, and the base layer maintains integrity to prevent lethal fragments. This balanced approach provides elite protection (e.g., against an AK47 at 10 meters) while maintaining high light transmission and easy installation.

II. The Big Three: Professional Metrics You Must Know

To cut your long-term Cost, focus on these three professional dimensions:

1. Areal Density (kg/㎡): This is the true measure of technology. Low-end products stack thick, cheap glass; high-end solutions use material modification (like chemical strengthening) to stay thin. Lighter glass means lower shipping fees and simpler engineering.

2. Spalling vs. Non-Spalling: Even if a bullet doesn't penetrate, the glass can "spray" fragments from the back (Spalling) that are often lethal. Non-Spall glass uses a high-performance liner or PC layer to ensure zero injury to those inside—a must-have for professional bids.

3. Environmental Stability: Standard PVB films lose their "grip" in extreme heat ($40^{\circ}C+$) or freezing cold. For projects in harsh climates, SGP interlayers are essential. With 100x the shear modulus of PVB, SGP ensures the glass won't delaminate, cloud, or lose its protective strength over time.

III. Scenario-Based Procurement Logic

Save on unnecessary expenses by matching the solution to your specific needs:

• Financial & Retail (Banks, Jewelry Stores):

• Level: UL 752 Level 1–3.

• Priority: High transparency for visual clarity + Non-Spall for employee safety.

• High-End Residential & Armored Vehicles (Cybertruck Grade):

• Level: Lightweight Glass + PC Composite.

• Priority: Weight reduction. Excessive weight destroys vehicle window motors and warps residential frames.

• Government & High-Risk Security:

• Level: EN 1063 BR6/BR7 (defends against 7.62mm rifle rounds).

• Priority: Multi-hit durability.

Choosing the Right Partner is Better Than Picking a Thickness

A professional quote should offer more than just a measurement. It must include Areal Density calculations, light transmission stats, ballistic test reports, and site-specific installation advice. We don't just sell glass; we provide safety redundancy that lowers your total project Cost.
