Views: 2897 Author: Site Editor Publish Time: 2026-07-27 Origin: Site
When purchasing a high-rise apartment or remodeling a residential building, property owners and contractors often encounter a strict code requirement: in-suite refuge room fire-rated windows.
To the untrained eye, they look almost identical to standard thermal-break aluminum windows, yet they come with a significantly higher price tag. Why are they so expensive? Can you simply substitute them with standard double-glazed windows? How do you spot counterfeit or substandard products?
This comprehensive guide breaks down the underlying engineering, key manufacturing processes, and essential buyer pitfalls to ensure your building remains safe and fully compliant.

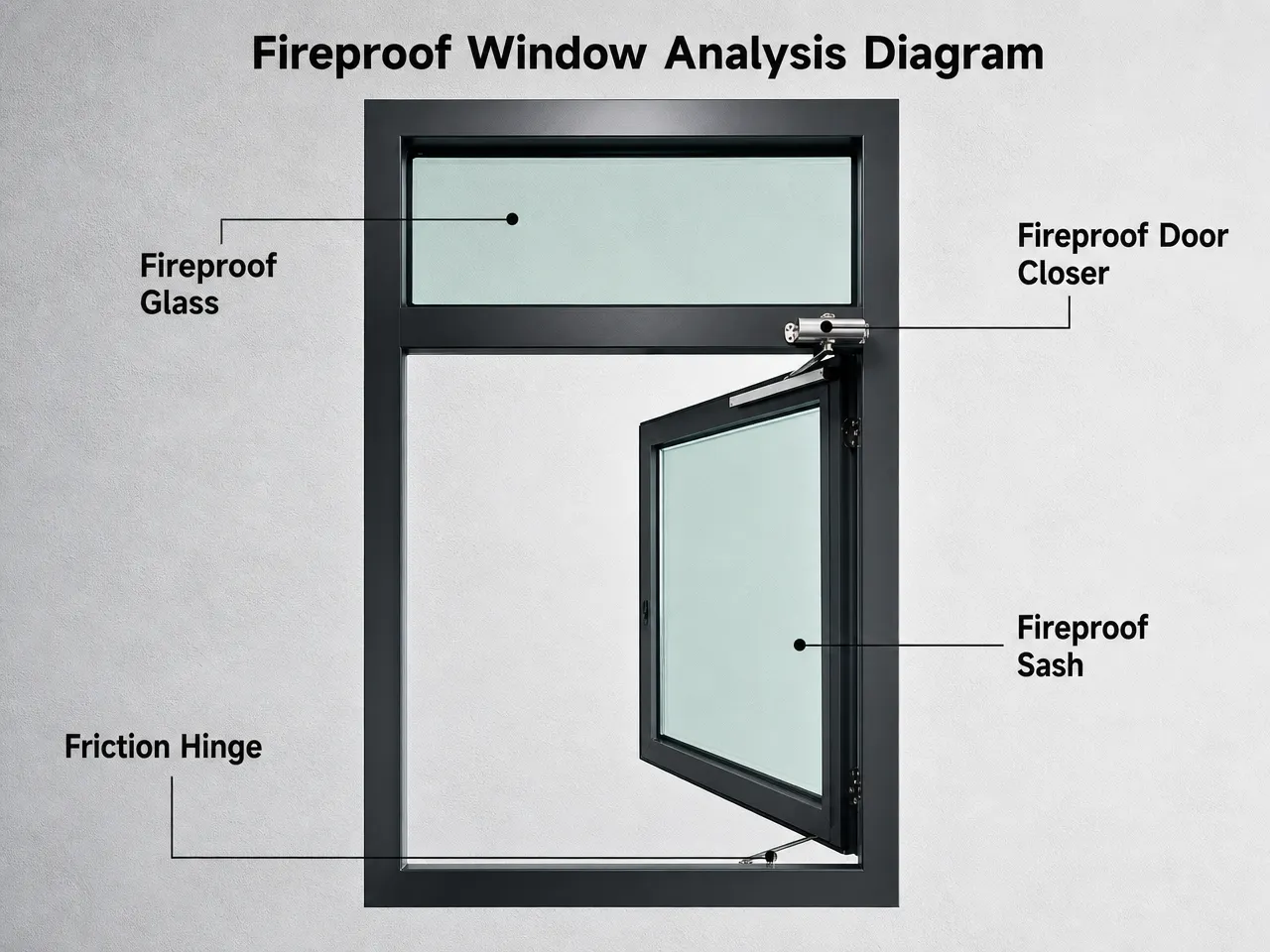

A certified fire-rated window is not merely a thick frame with tempered glass—it is an intricately engineered passive fire protection system. Compliant fire-rated windows undergo three rigorous manufacturing steps:
Standard aluminum profiles soften and lose structural strength at 300℃ - 400℃. During a structural fire, standard window frames can collapse within minutes.
High-Density Fireproof Infill: The hollow cavities of fire-rated aluminum frames are pressure-infilled with high-density expanded perlite or inorganic silicate blocks, allowing the frame to maintain structural load under extreme heat (exceeding 1000℃).
Intumescent Fire Seals: Embedded along the sash-to-frame perimeter, these intumescent graphite seals expand up to hundreds of times their original volume when exposed to heat, sealing all air gaps to block toxic smoke.
The glass unit represents the highest technical barrier in fire window production:
Class C (Integrity-Only / Non-Insulated): Made from specialized high-strength monolithic borosilicate glass or chemically toughened glass that resists severe thermal shock without shattering.
Class A (Integrity & Thermal Insulation): Features multi-layer laminated glass filled with transparent water-soluble inorganic silicate fire gel. Under fire conditions, the gel foams into an opaque, solid white thermal shield, blocking direct fire and radiant heat.
Operable fire windows feature a specialized self-closing system powered by thermal release devices:
When ambient temperature around the window reaches 73℃ ± 0.5℃, a heat-sensitive fusible link melts and triggers the release.
A heavy-duty mechanical spring or pneumatic arm automatically pulls and locks the window sash shut within 60 seconds, requiring zero electrical power.
The market contains varying quality levels. Avoid these four frequent traps when sourcing fire windows:
The Risk: Standard exterior fire-resistant windows (offering 0.5–1.0h integrity only) are often sold as full refuge-room fire windows.
Solution: Verify full 3C / UL / EN fire safety certifications and test reports. Fire-rated windows require official certification badges and full traceability.
The Risk: Low-grade suppliers may substitute regular tempered glass with tint films.
Solution: Inspect the bottom corner of the glass. Authentic fire glass features a permanent, ceramic-baked "F" stamp / certification logo that cannot be scraped off with a razor blade.
The Risk: Frames that look robust on the outside but lack interior fire-retardant grout fill will collapse in minutes.
Solution: Request cutaway sample blocks from the manufacturer or inspect profile corner joints during installation to confirm solid interior filling.
The Risk: Handles and hinges made from plastic or low-melting-point zinc alloys will fail quickly under high heat.
Solution: Ensure all hardware (friction stays, handles, latches, closers) is crafted from high-grade stainless steel or forged fire-rated steel.
Use this quick checklist to audit installed or delivered units on site:
Inspection Item | Compliance Requirement | Field Verification Method |
Certifications | Permanent certification badge & QR code traceability label | Scan code to verify manufacturer, glass thickness & dimensions |
Glass Marking | High-temperature ceramic-baked "F" mark | Inspect lower corner for permanent physical etching/marking |
Auto-Closing | Closes & latches shut within 60s at 73℃ trigger | Manually release thermal link to test automatic pull mechanism |
Concealed Gaps | Frame-to-wall gaps filled with fire sealant or mortar | Inspect perimeter joints; polyurethane spray foam is strictly forbidden |
