How Is Laminated Glass Made? A Step-by-Step Guide To Safety Glass Production

When it comes to modern architecture, automotive engineering, and home security, laminated glass is the unsung hero. Known for its incredible strength and ability to remain intact when shattered, it is the go-to choice for storefronts, skylights, and windshields.

But have you ever wondered, how is laminated glass made? In this comprehensive guide, we will take you behind the scenes of the manufacturing process to see how ordinary glass is transformed into a high-performance safety barrier.

What is Laminated Glass?

Before diving into the manufacturing process, let’s define what it actually is.

Laminated glass consists of two or more layers of glass permanently bonded together with an intermediate layer (interlayer) of plastic, most commonly Polyvinyl Butyral (PVB), Ethylene-Vinyl Acetate (EVA), or SentryGlas Plus (SGP).

The Spiderweb Effect: Unlike standard glass that shatters into dangerous shards, laminated glass holds together upon impact, creating a characteristic "spiderweb" cracking pattern.

The Step-by-Step Laminated Glass Manufacturing Process

Manufacturing laminated glass requires extreme precision, absolute cleanliness, and specialized heavy machinery. Here is how the magic happens, step by step.

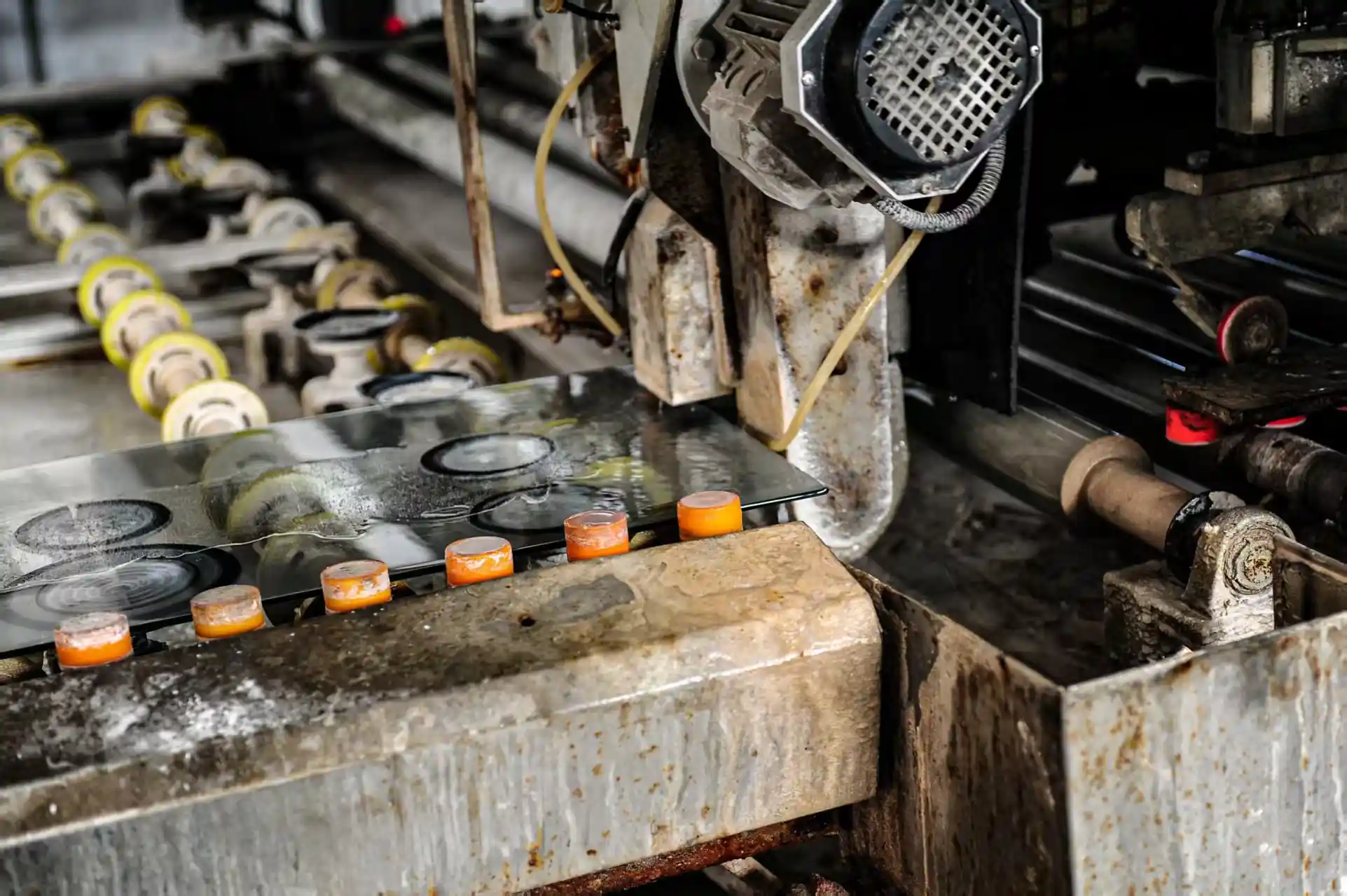

Step 1: Glass Cutting and Washing

The process begins with standard float glass sheets.

• Cutting: The glass is cut to the precise dimensions required for the final product.

• Edging: The sharp edges are ground down and polished for safety and better bonding.

• Washing: This is perhaps the most critical sub-step. The glass sheets pass through a specialized industrial washing machine using deionized water. Any speck of dust, oil, or fingerprint could cause delamination (peeling) later on.

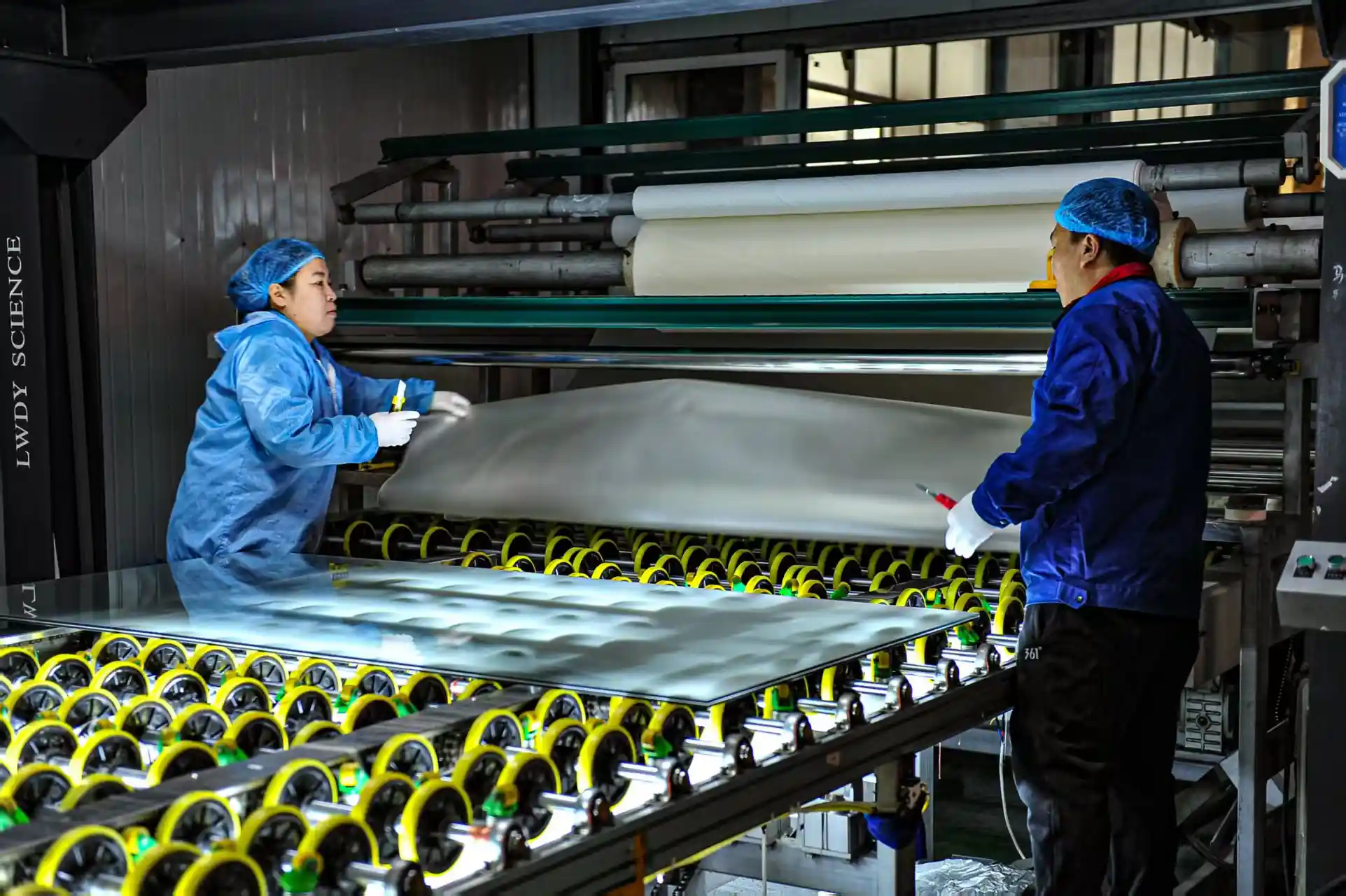

Step 2: The Cleanroom and Interlayer Application

Once perfectly clean and dried, the glass enters a controlled cleanroom. In this room, temperature, humidity, and dust particles are strictly regulated.

• A sheet of interlayer material (usually a flexible PVB film) is carefully unrolled and placed on top of the first glass sheet.

• If a custom color, acoustic insulation, or UV protection is required, specialized PVB films are used at this stage.

• The second sheet of glass is then placed directly over the PVB film, creating a "glass-PVB-glass" sandwich.

Step 3: Pre-Pressing (De-airing and Nip Rolling)

At this stage, the sandwich looks opaque because there is still air trapped between the glass and the plastic film. To fix this, the assembly goes through a pre-pressing line.

• The glass sandwich passes through a series of heated rollers (nip rollers) or a vacuum bag system.

• The heat softens the PVB slightly, and the pressure squeezes out the trapped air.

• By the end of this step, the layers are semi-bonded, and the glass changes from milky white to semi-transparent.

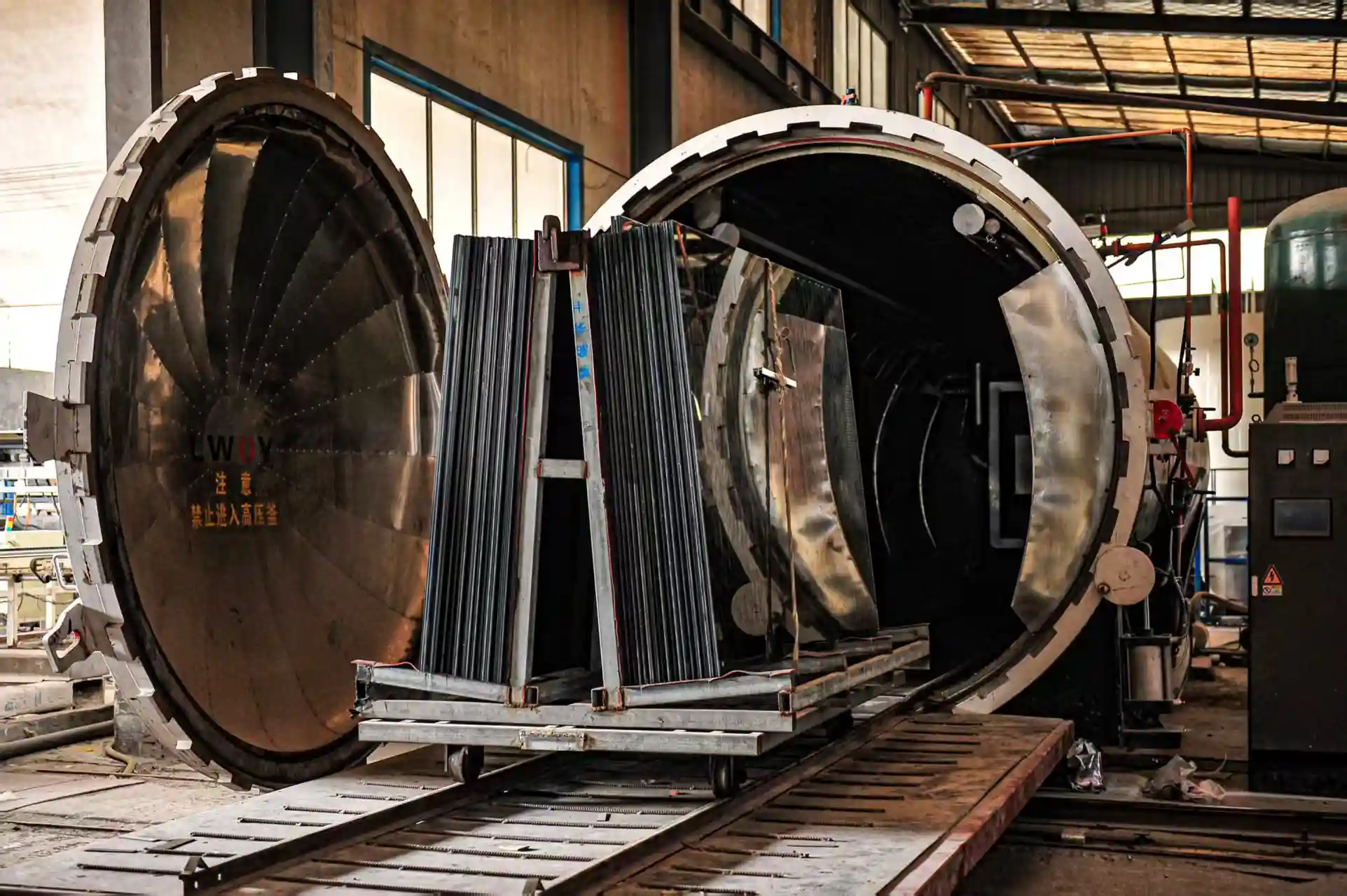

Step 4: The Autoclave (The Final Cure)

To achieve complete optical clarity and maximum strength, the pre-pressed glass enters the Autoclave—a massive, high-pressure industrial oven.

• The Conditions: Inside the autoclave, the glass is subjected to temperatures around 135°C to 145°C (275°F to 290°F) and pressures reaching up to 13 to 14 bar.

• The Result: The intense heat and pressure melt the PVB completely, forcing it to chemically bond with the glass surfaces.

When the glass emerges from the autoclave and cools down, it is 100% optically clear, incredibly strong, and ready for quality inspection.

PVB vs. SGP vs. EVA: Which Interlayer is Used?

Depending on the final application of the laminated glass, manufacturers choose different interlayer materials:

Why Choose Laminated Glass?

Now that you know how it's made, it’s easy to see why it is highly valued across industries:

• Unmatched Security: It resists forced entry. Even if a burglar smashes the glass, the interlayer holds the barrier intact.

• Sound Insulation: The plastic interlayer dampens sound waves, making it perfect for busy city buildings and airports.

• UV Protection: Laminated glass blocks up to 99% of harmful UV rays, protecting indoor furniture and carpets from fading.

• Safety First: It minimizes injury from flying glass shards during natural disasters like hurricanes or earthquakes.

Conclusion

The process of making laminated glass is a perfect blend of chemistry and engineering. By sandwiching high-tech polymers between sheets of glass and baking them under immense pressure, manufacturers create a material that keeps our homes, cars, and cities safe.
