Product Description

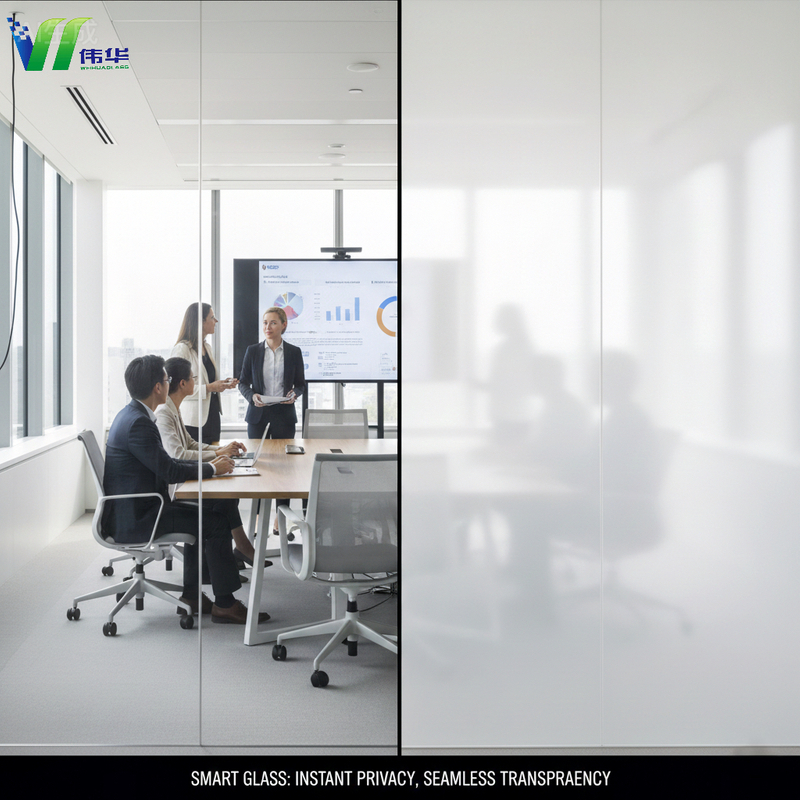

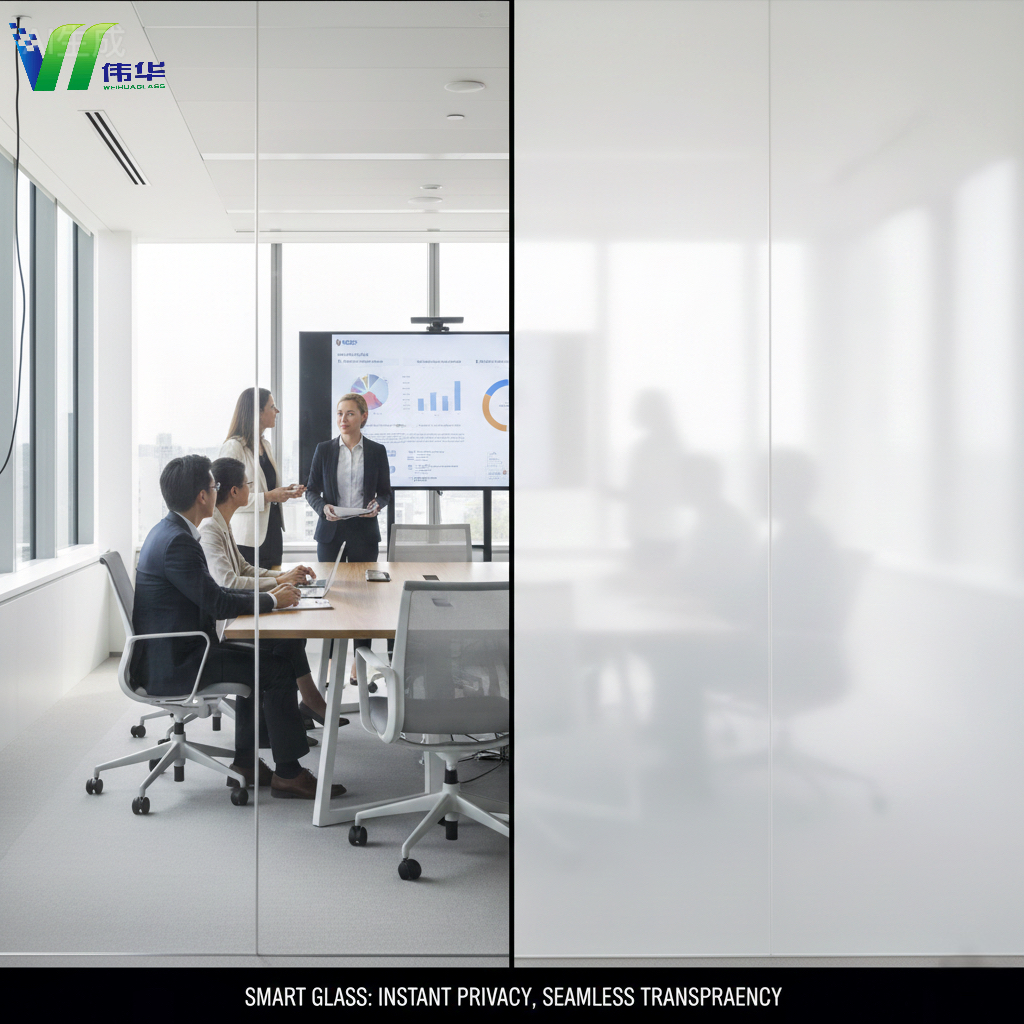

Instant Privacy at the Touch of a Button

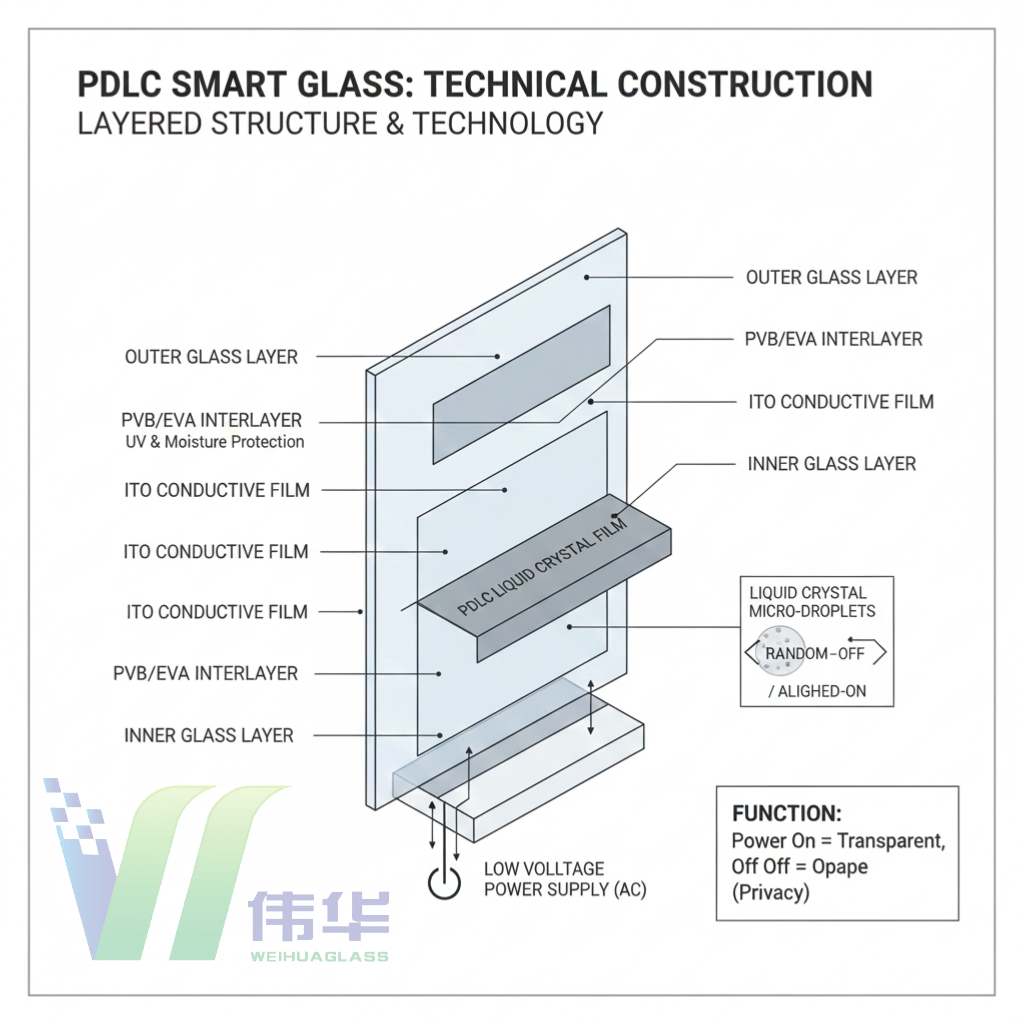

Our PDLC Smart Switchable Glass is a high-tech laminated glass that changes from transparent to opaque instantly when an electrical current is applied. By sandwiching a specialized Liquid Crystal (PDLC) film between two layers of premium tempered glass, we provide a versatile solution for light control and architectural privacy.
Core Advantages:
Switchable Privacy: Shift from open views to total privacy in less than 0.1 seconds.
Energy Saving: Blocks over 99% of harmful UV rays and significant infrared heat.
Rear Projection Screen: Can be used as a high-definition projection screen in its opaque state.
Safety First: Laminated construction ensures the glass remains intact even if shattered.
|
Product Packaging

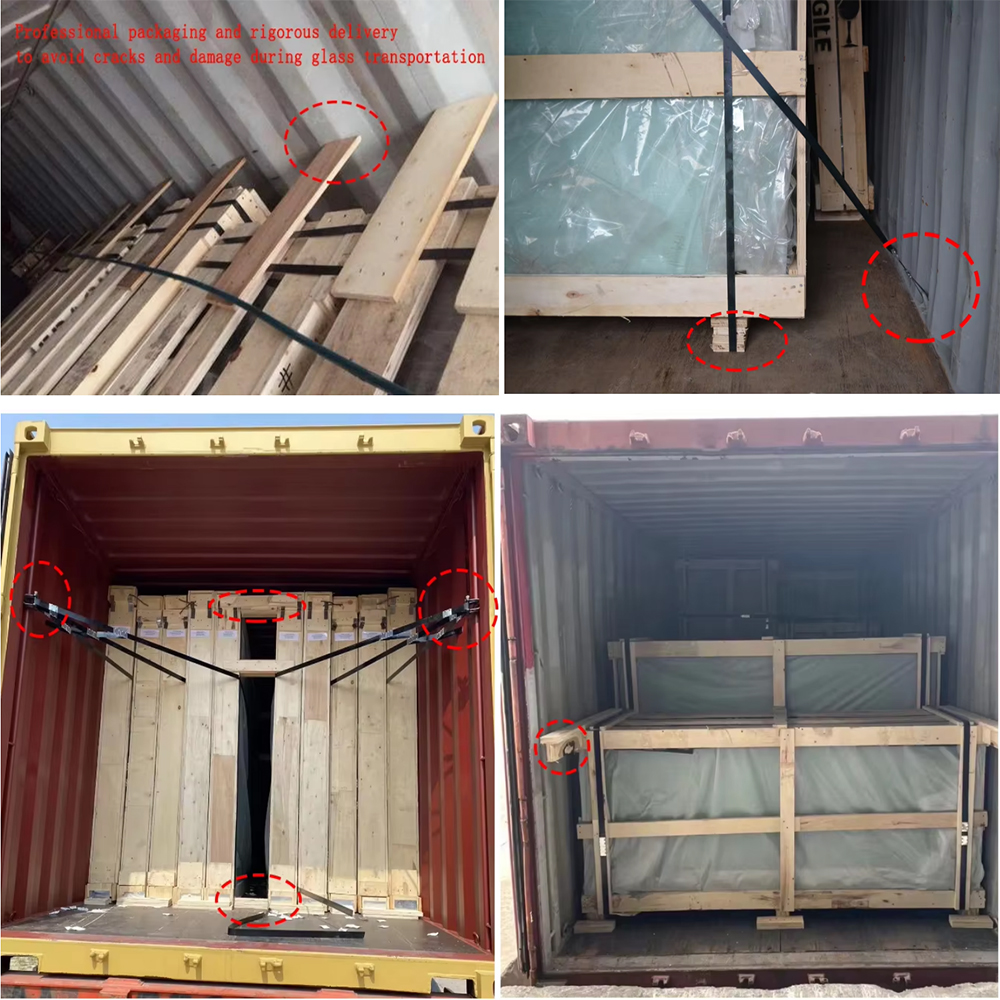

Electronic Protection

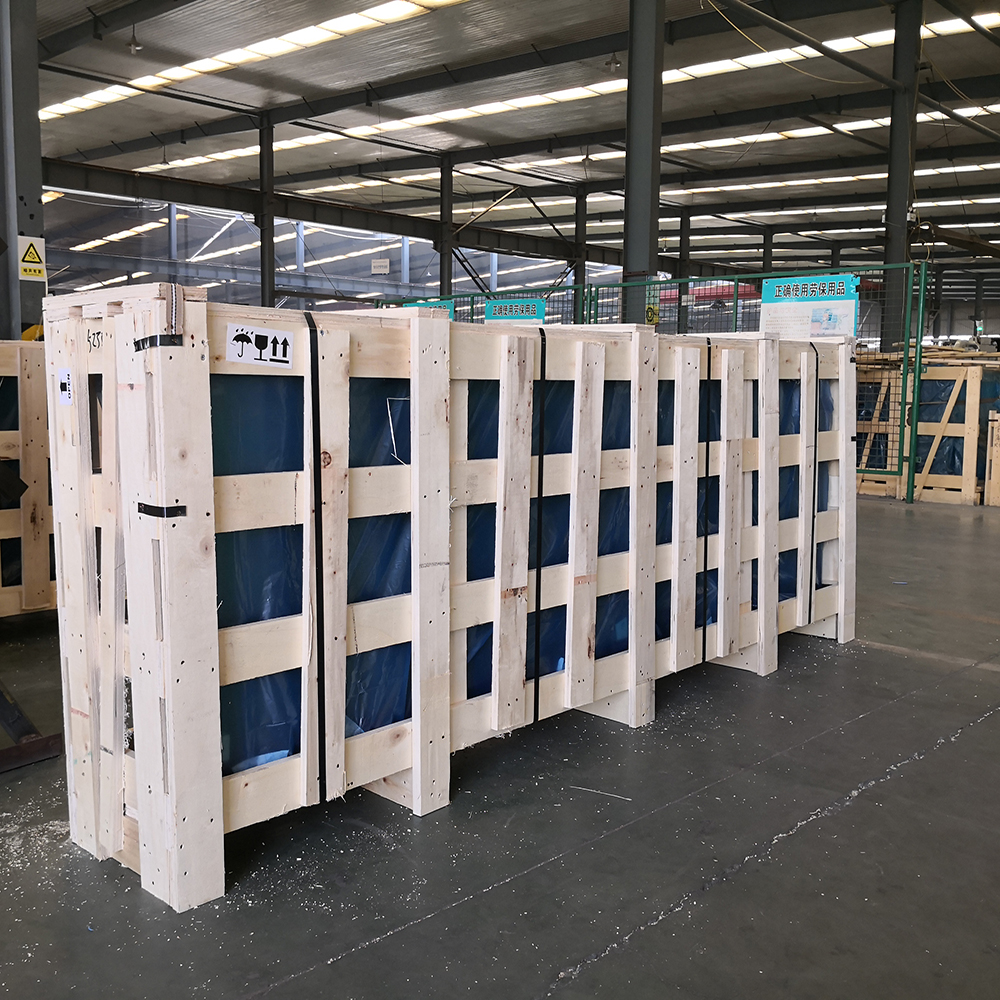

Moisture Barrier

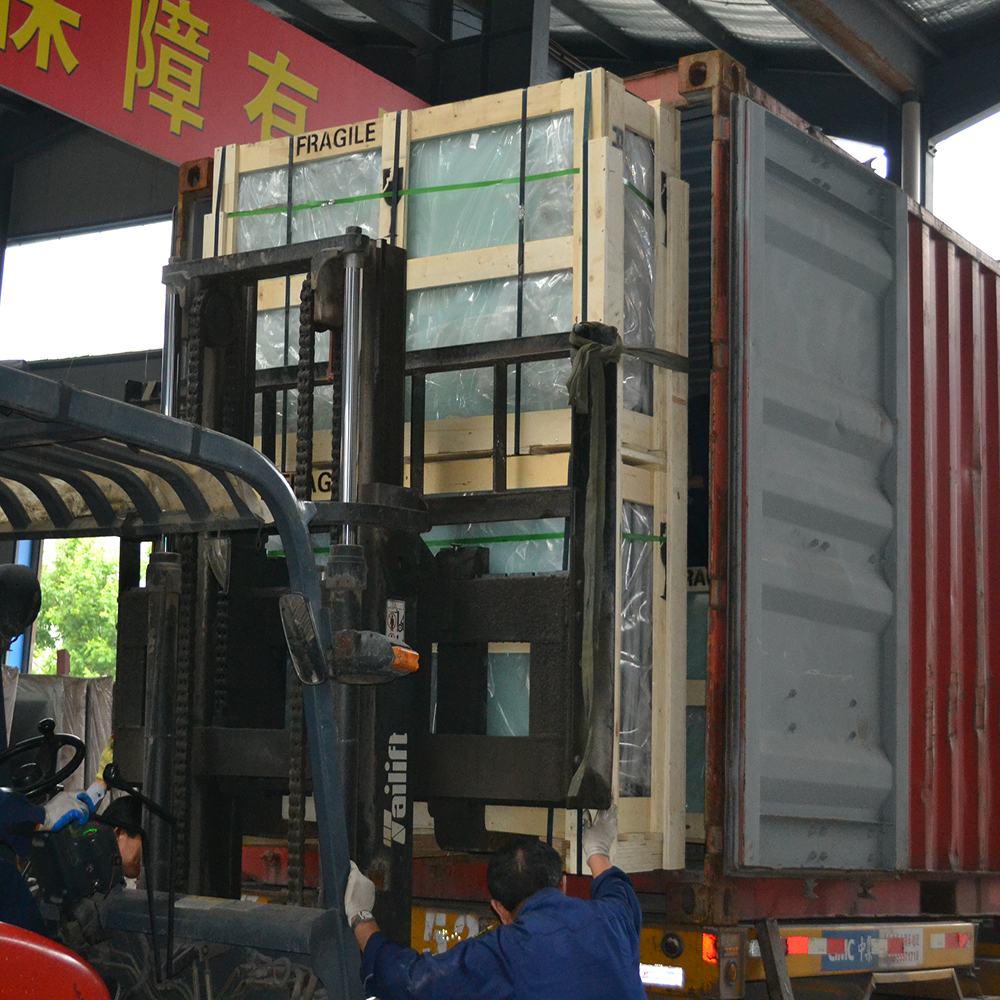

Heavy-Duty Crating
|
Comment & FAQ

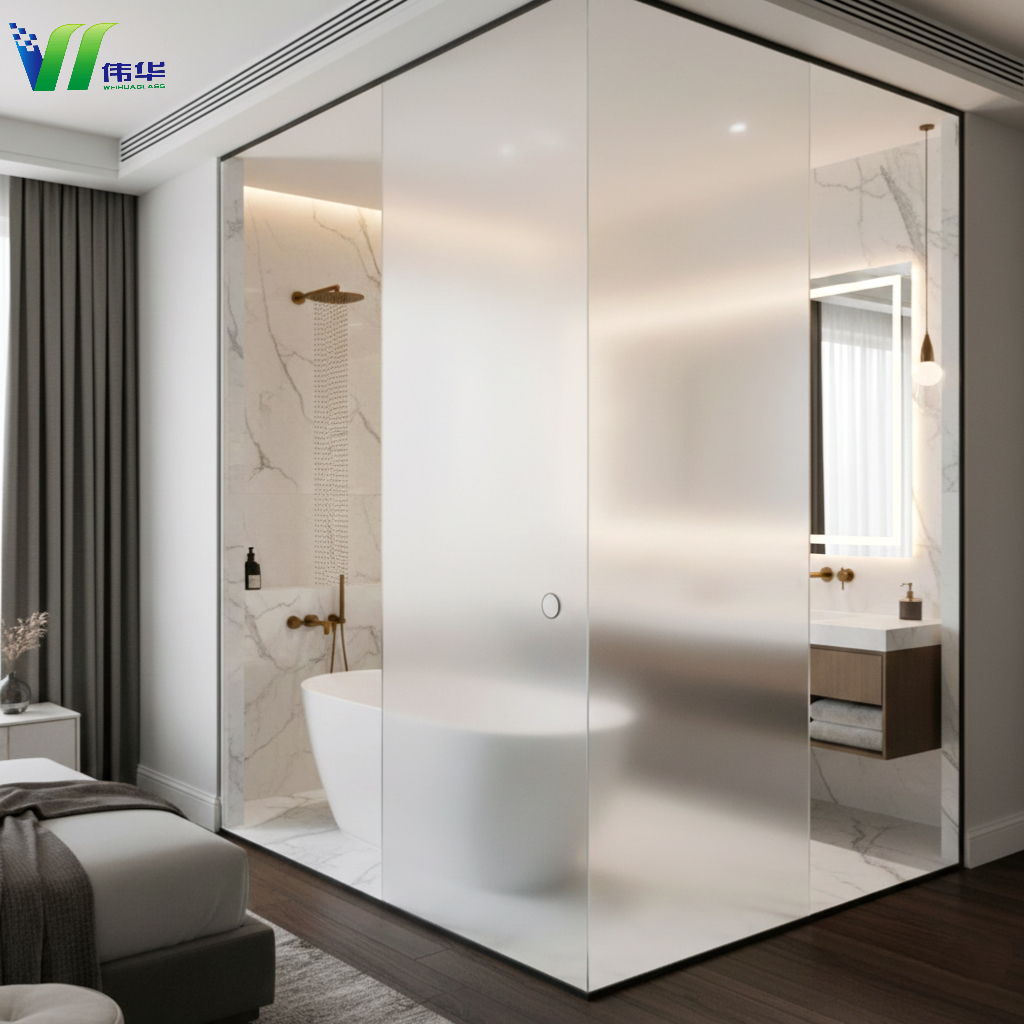

Q1: Can smart glass be used in wet areas like bathrooms?
A: Yes! However, the edges must be properly sealed with non-acidic silicone, and we recommend our IP67-rated waterproof wiring kits.
Q2: Does it require a professional electrician to install?
A: The glass installation is similar to standard glass, but a qualified electrician should handle the connection to the power transformer and controller.
Q3: How do I control the glass?
A: We offer multiple control options: standard wall switches, remote controls, mobile apps, or integration into your existing Smart Home/BMS system.
|
Company Profile
1）This area can be fully edited and gives you the opportunity tointroduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
2）This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
|
Production Process

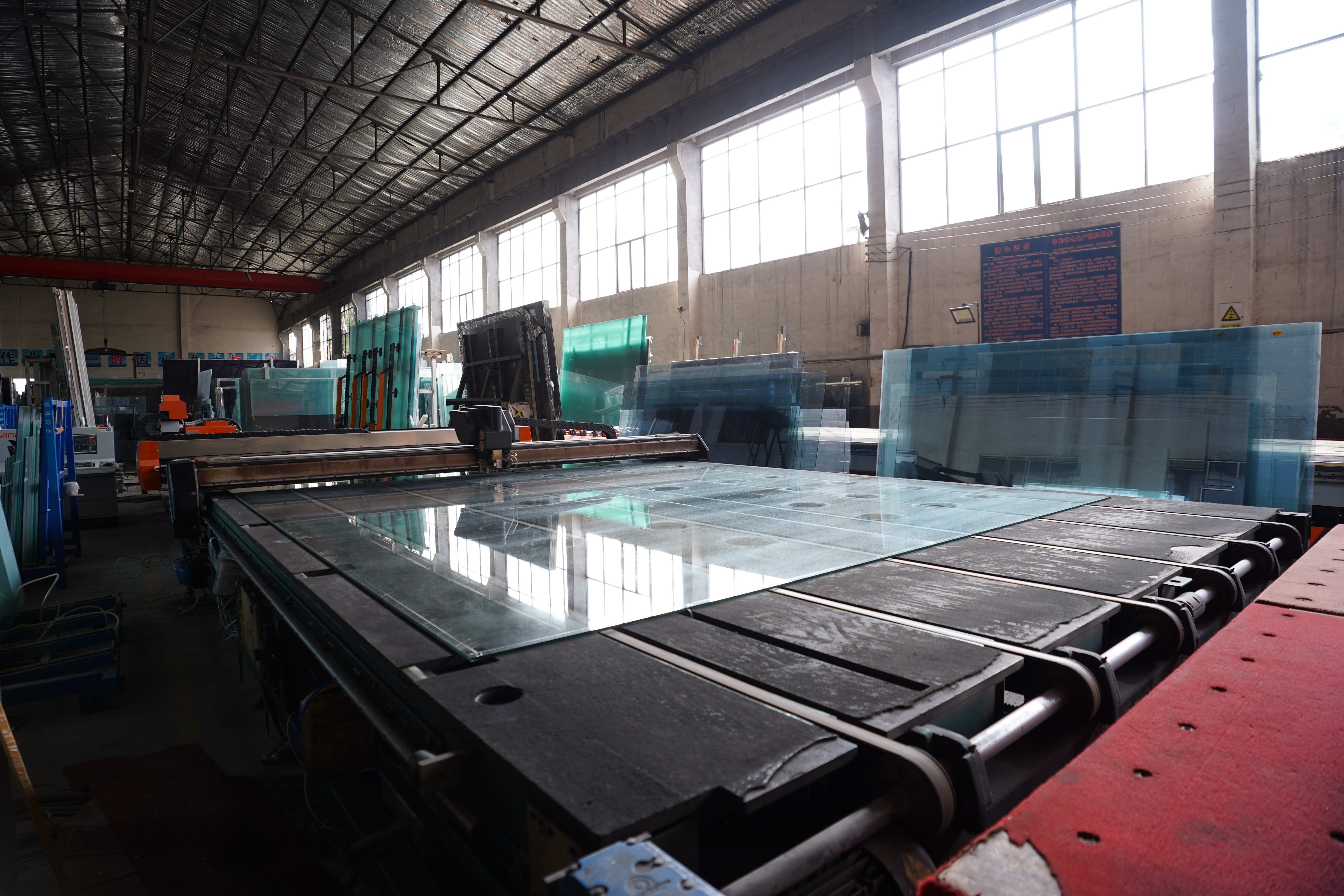

CNC Cutting

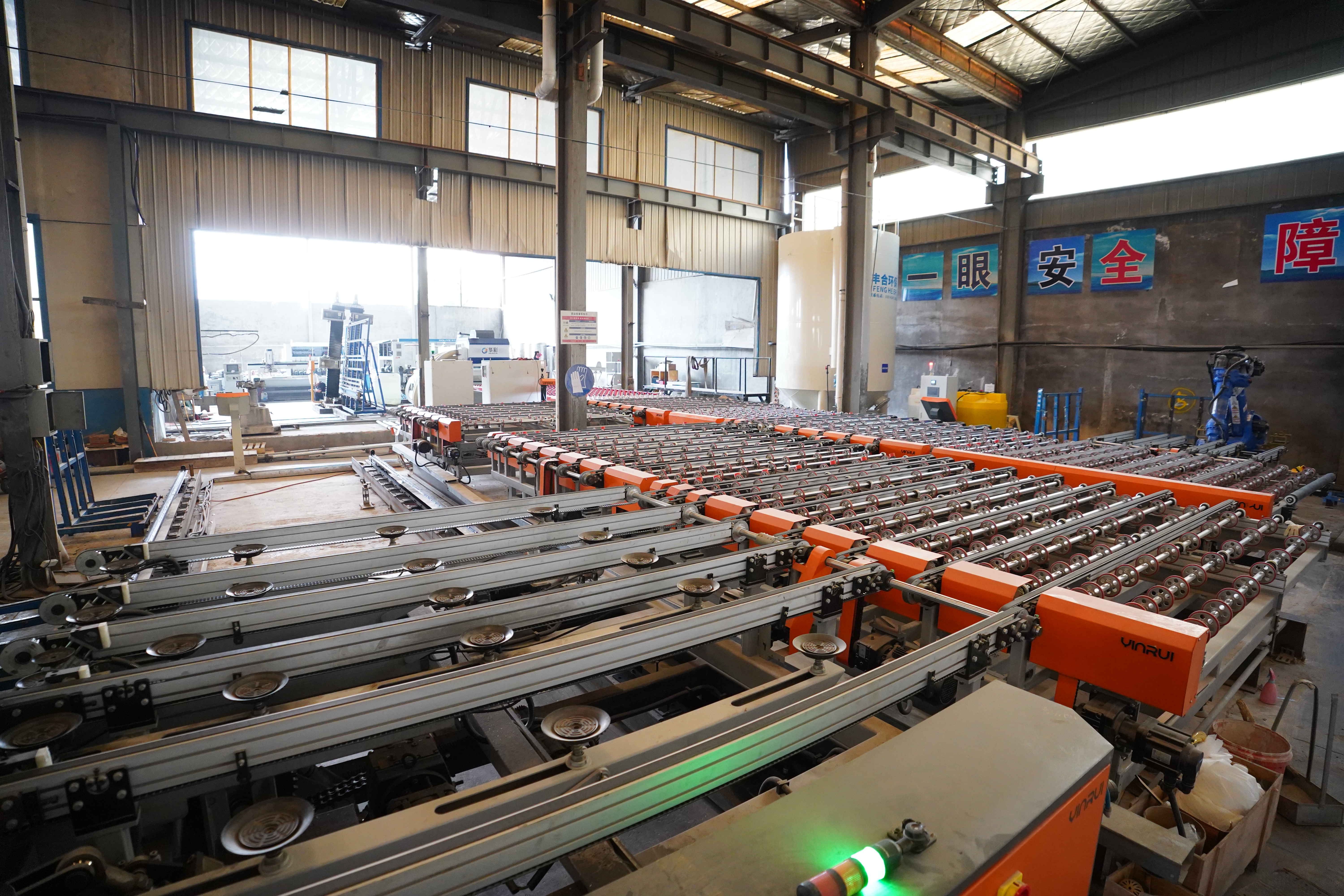

Polishing

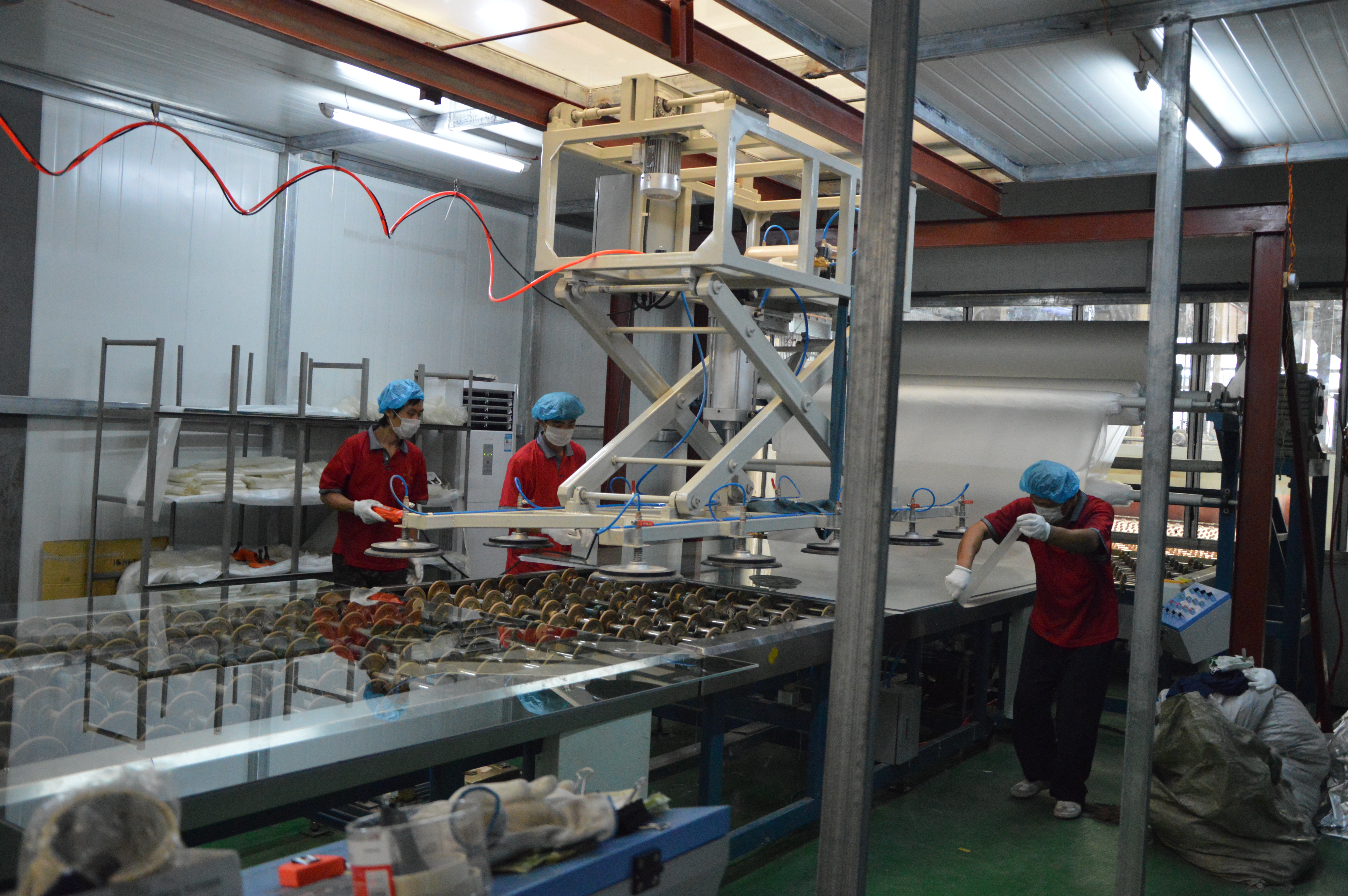

Lamination
|
Certifications

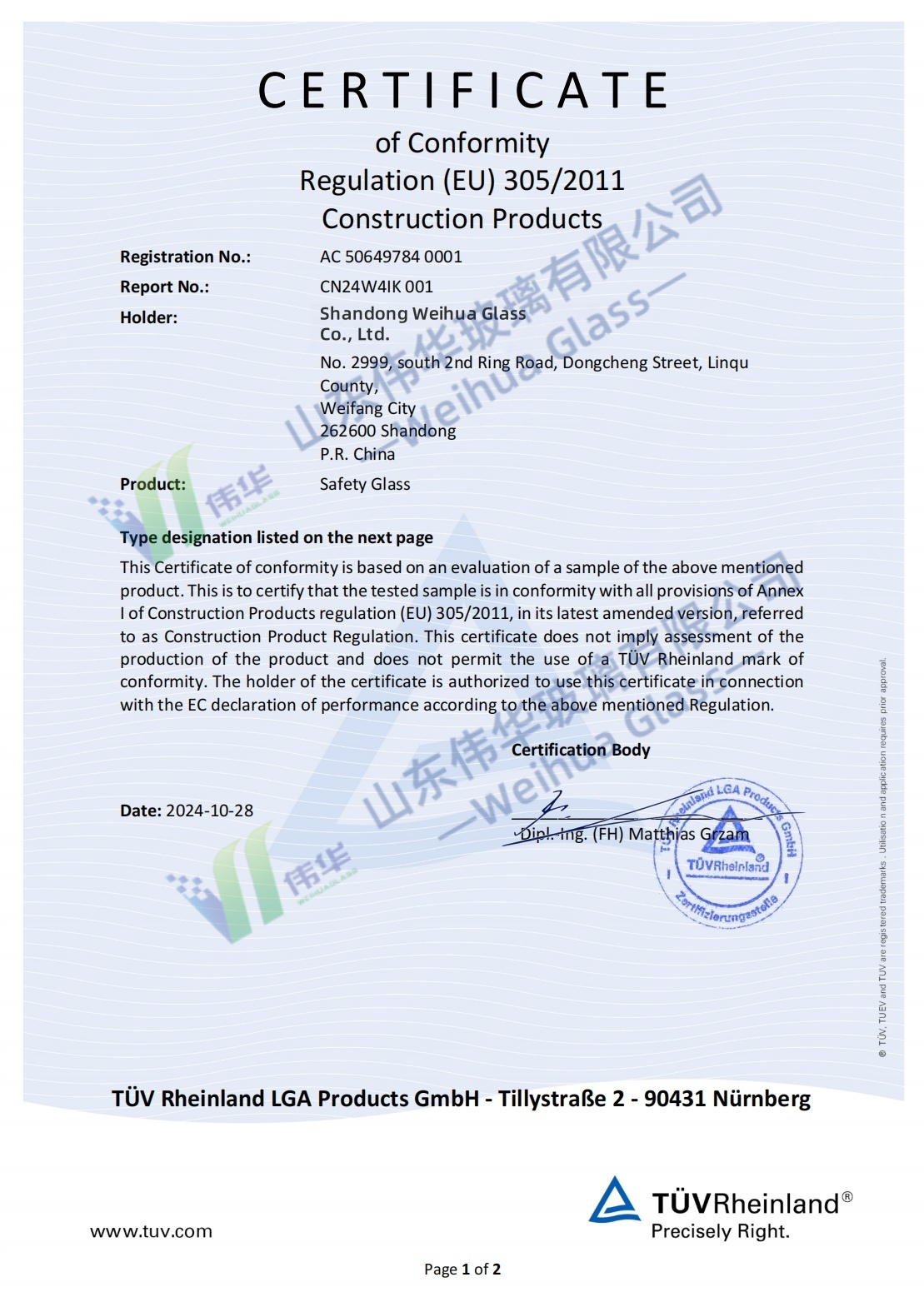

CE (EN14449)

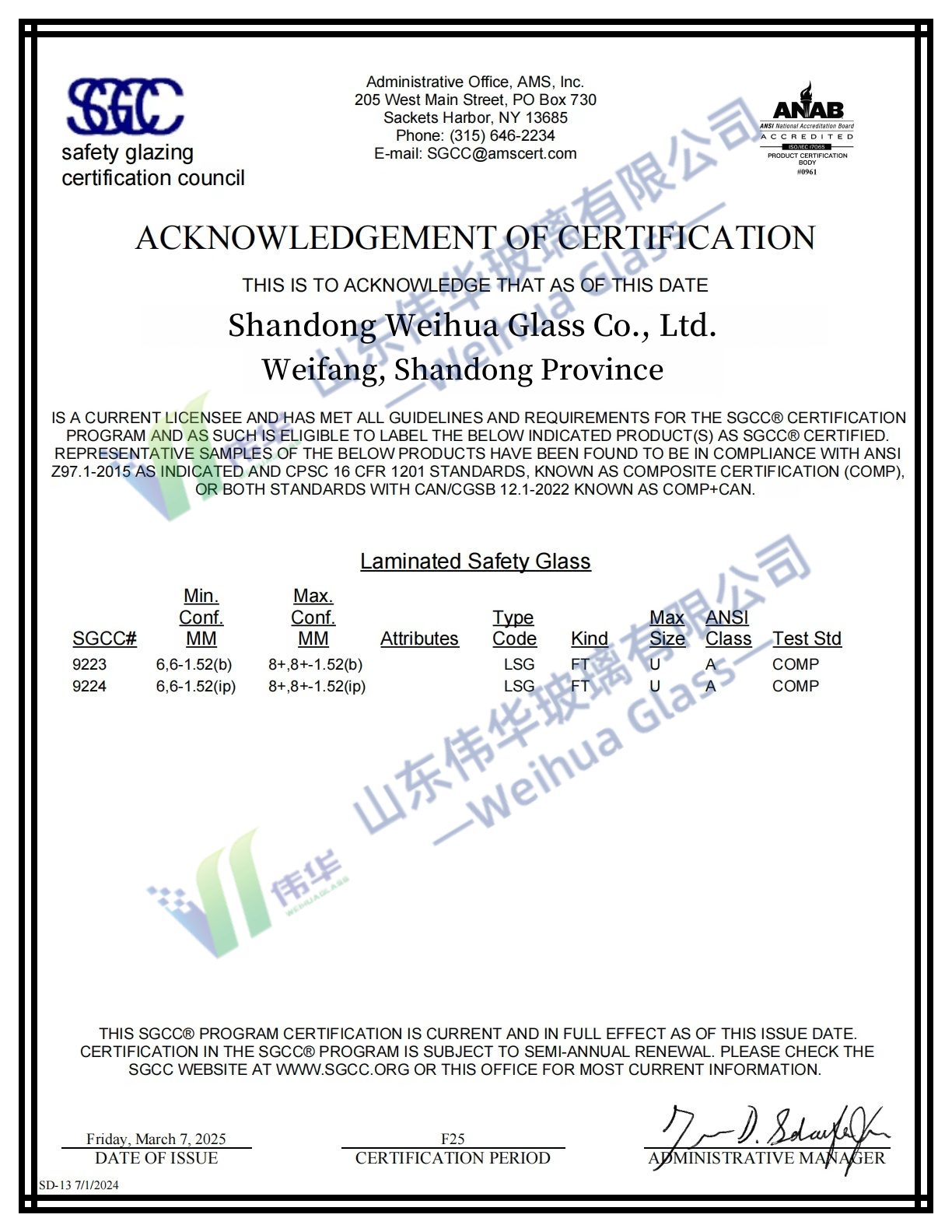

SGCC (ANSI Z97.1)
AS2208
ISO 9001:2015
|
Data Sheet
Category | Specification Name | Typical Market Parameters | Notes |
I. Structure & Dimensions | |||
Glass Structure | Product Type | Laminated Smart Glass (PDLC Film + EVA/PVB Film + Glass) | Inherently a safety laminated glass |
Glass Thickness | Total Thickness Range | 8mm to 13mm | Common: 4+4mm, 5+5mm, 6+6mm |
Size Range | Max Width | 1800mm - 2000mm | Limited by PDLC film roll width |
Max Length | 3000mm - 4000mm | Long lengths often customizable | |
II. Electrical Performance | |||
Operating Voltage | Driving Voltage | AC 48V / AC 65V | Requires a dedicated transformer/power supply |
Power Consumption | Power On (Transparent State) | 3W/m² - 5W/m² | Very low energy consumption |
Switching Speed | Response Time | < 100 milliseconds (ms) | Instantaneous switch |
III. Optical Performance | |||
Light Transmittance | Transparent State (Power On) | > 78% | Higher values indicate better clarity |
Frosted State (Power Off) | Approx. 50% - 60% | ||
Haze | Frosted State (Power Off) | > 90% | Higher value ensures optimal privacy/opacity |
UV Rejection | Ultraviolet (UV) Blockage | > 99% | Inherent benefit of laminated structure |
IV. Control & Customization | |||
Available Colors | Film/Glass Colors | Clear/White (Standard), Grey, Blue, Tea Color | Glass sheet color can be customized |
Control System | Switching Method | Wall Switch, Remote Control, App/Smart Home Integration | Must be integrated with the specific transformer |
Certifications | Industry Standards | 3C, CE, RoHS (Environmental) | Relevant certifications for laminated glass and electrical components |
|
Optional Surface
Ultra-Clear Substrate: Recommended for maximum transparency in the "ON" state.
Tinted Options: Can be combined with Grey, Bronze, or Blue glass for aesthetic effects.
Double Glazed Units (IGU): Integrated into insulated glass for exterior facade energy efficiency and noise reduction.
|
Testing Quality
Switching Life Cycle: Tested for over 10 million switch cycles without failure.
Moisture Resistance: Special edge sealing technology passed 500-hour high-humidity testing.
Optical Uniformity: 100% inspection for bubbles, impurities, or "cloudy" spots in the PDLC film.
