When designing a modern glass railing system for a balcony, staircase, or pool fence, safety and aesthetics go hand in hand. Among all the components, glass clamps (also known as U-clamps) play a critical role. They are the structural anchors that keep heavy glass panels securely attached to your posts or walls.
However, choosing the wrong type of glass clamp can lead to disastrous installation failures, rust stains, or even shattered glass.
In this comprehensive guide, we will break down everything you need to know about glass clamps and share the essential "pitfalls" to avoid when purchasing.
Glass clamps are heavy-duty hardware designed to grip glass panels from both sides, typically secured to a metal or wooden post. They are favored in modern architecture for their clean, minimalist look.
Before buying, you must know what kind of surface your clamps will mount on:
Flat Back Clamps: Designed to be mounted on flat surfaces, such as square stainless steel posts, wooden pillars, or concrete walls.
Radius Back (Curved Back) Clamps: Designed with a curved rear profile to perfectly fit round tubes. The most common round post diameters are ⌀ 42.4 mm, ⌀ 48.3 mm, and ⌀ 50.8 mm.
D-Shape (U-Shape): Features a smooth, rounded edge. It is the most popular style globally, offering a softer, contemporary look.
Square Shape: Features sharp, 90-degree corners. Perfect for ultra-minimalist, industrial, or high-end architectural designs.
Never choose a glass clamp based on price alone; the environment dictates the material you need.
Stainless Steel 304 (SS304): Best for indoor applications (staircases, office partitions) or dry outdoor environments far from the coast.
Stainless Steel 316 (SS316): The standard for outdoor architectural use. It contains molybdenum, making it highly resistant to rust and corrosion from rain and humidity.

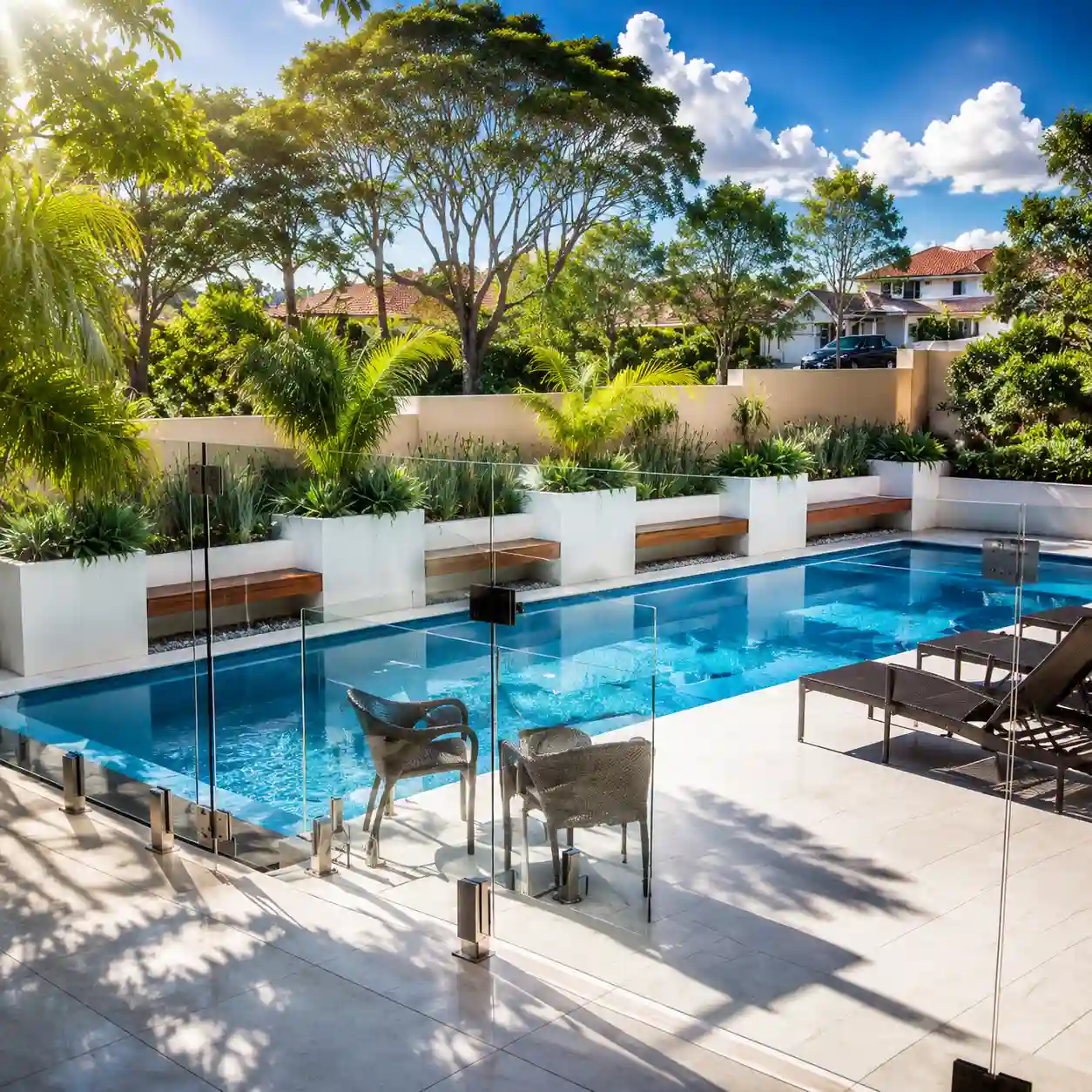

Duplex 2205: The premium choice. If your project is near a swimming pool or coastal beach, Duplex 2205 is mandatory to resist harsh chlorine and salt spray.
Zinc Alloy: Only suitable for lightweight, indoor decorative use. Never use zinc alloy for structural or outdoor balustrades.
To ensure a smooth installation and long-lasting safety, avoid these four common pitfalls:
Glass clamps rely on Rubber Gaskets to grip the glass. If the gasket is too thin, the glass will slip; if it's too thick, you won't be able to close the clamp.
The Fix: Always verify your exact glass thickness (e.g., 8 mm, 10 mm, or 12.76 mm laminated glass) and ensure the supplier provides the exact matching rubber inserts.
For railings installed on balconies or upper floors, relying on pure rubber friction to hold the glass is a massive safety hazard. Over time, temperature changes and wind pressure can cause the glass to slide.
The Fix: Opt for glass clamps with an internal Safety Pin (Security Pin). This requires pre-drilling a hole in the glass panel. Even if the clamp screws loosen, the pin will mechanically catch the glass and prevent it from falling.
"Satin" (Brushed) and "Mirror" (Polished) are completely different visual styles. Mixing a satin post with a mirror-finish clamp will ruin the aesthetic flow of your project.
The Fix: Stick to one finish theme. Satin/Brushed is great for hiding fingerprints and matches modern appliances. Mirror/Polished offers a luxury look and is slightly better at shedding salt spray in coastal areas.
Every glass clamp size has a weight capacity limit. Using small clamps to hold thick, oversized glass panels will lead to structural sagging.
Clamp Size | Typical Dimensions | Glass Thickness Range | Max Weight Capacity (Per Pair) |
Small | 45X45X25 mm | 6 - 8 mm | Up to 30 kg |
Medium | 55X55X30 mm | 8 - 10 mm | Up to 45 kg |
Large | 65X60X35 mm | 10 - 12.76 mm | Up to 60 kg |
Investing in high-quality glass clamps ensures your railing remains safe and beautiful for decades. Before hitting the "Buy Now" button, always double-check:
Is my post round or flat?
Is my environment indoor, outdoor, or near a pool?
Does my glass require pre-drilled holes for safety pins?
