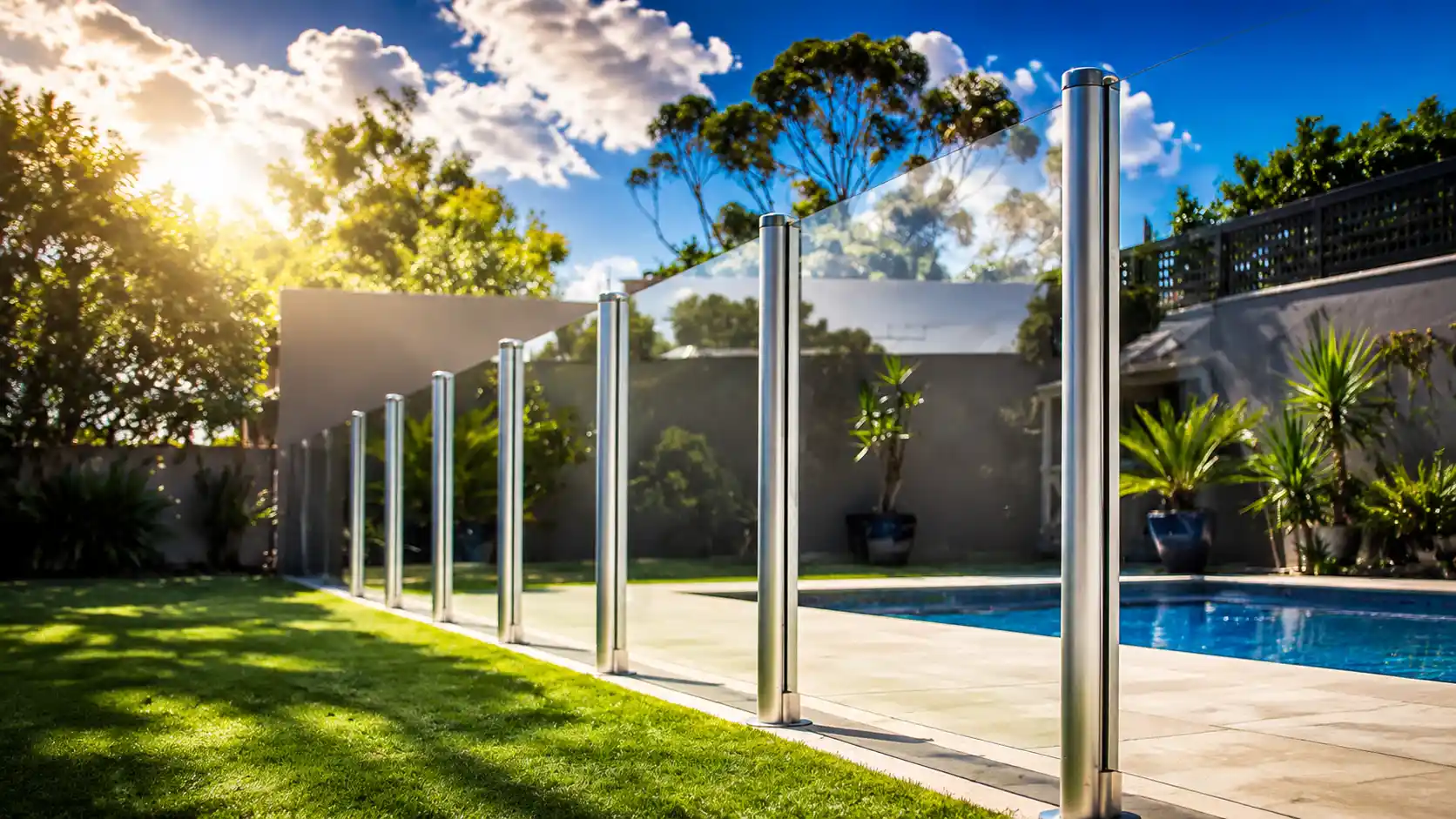

In modern architecture and interior design, striking the perfect balance between "robust safety" and "visual openness" is a perpetual pursuit. Stainless steel glass railing systems have emerged as the premier choice for commercial spaces, luxury residences, and scenic balconies, thanks to their contemporary, minimalist allure and unmatched durability.
Within these systems, the posts (or balusters) serve as the structural backbone. They do not just withstand wind loads and physical impact; they define the architectural identity of the entire space.
If you are specifying for your next project—be it a commercial renovation or a private villa—this guide will walk you through materials, profiles, glass clamps, and installation methods to help you make a professional, value-driven decision.
When selecting stainless steel posts, the journey begins not with the aesthetics, but with the material grade. Choosing the wrong grade can lead to unsightly "tea staining" (surface rust) within just a few years.
AISI 304 Stainless Steel (The Indoor Gold Standard)
Offering excellent workability and commendable corrosion resistance, Grade 304 is the most cost-effective solution for dry indoor environments, such as mall interiors, residential staircases, and corporate atriums.
AISI 316 Stainless Steel (The Marine-Grade Champion)
Infused with molybdenum (Mo), Grade 316 delivers exceptional resistance to chloride corrosion. It is mandatory for outdoor installations, coastal regions, swimming pool surrounds, or any high-humidity environment.
Pro Pro-Tip: For coastal or heavily polluted industrial areas, we highly recommend a Mirror Polished Finish even when using 316. The ultra-smooth, reflective surface prevents salt and contaminants from adhering, offering superior rust resistance compared to a standard satin finish.

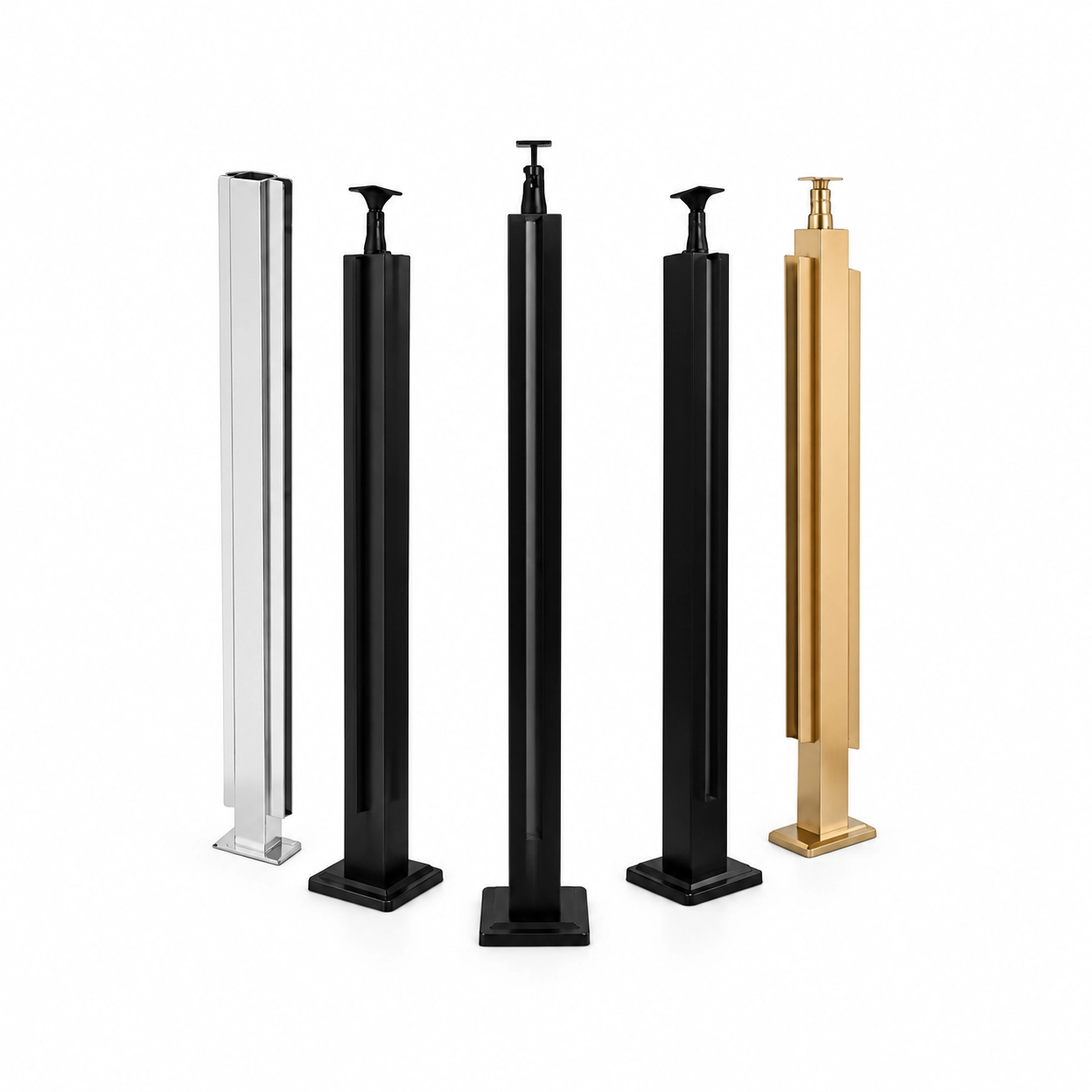

The geometric profile of a post shapes the visual dialogue of an environment. Modern designs typically fall into three distinct categories:
Standard Specifications: Diameters of ⌀38.1 mm, ⌀42.4 mm, and ⌀50.8 mm (with wall thicknesses ranging from 1.5 mm to 3.0 mm).
Design & Touch: Round profiles offer a timeless, organic look. Their smooth, radiused edges are gentle to the touch, making them an incredibly safe and versatile choice for high-traffic commercial hubs or homes with children and the elderly.
Standard Specifications: 40 X 40 mm and 50 X 50 mm (with wall thicknesses from 2.0 mm to 3.0 mm).
Design & Touch: Crisp lines and sharp geometries define this profile. If your project embraces industrial chic, high-end corporate style, or uncompromising minimalism, square posts deliver a powerful sense of structural order.
Standard Specifications: Single solid plates from 8 mm to 12 mm thick, or twin-plate configurations with an internal channel.
Design & Touch: The darling of contemporary architects. Viewed from the front, their razor-thin profile minimizes visual obstruction to unleash panoramic views; viewed from the side, the broad steel depth provides immense structural rigidity. Twin-plate options allow glass clamps to sit nested between the steel plates, achieving an ultra-premium, integrated look.
How a post grips the glass is a matter of both aesthetics and uncompromising safety. This connection is managed by precision-engineered glass clamps:
Friction Clamps (No-Drill Solution)
These rely on high-tenacity rubber gaskets to secure the glass via compression. Because they require no pre-drilled holes in the glass, they offer excellent on-site adjustability and reduce installation time. Ideal for low-level barriers or low-traffic interior applications.

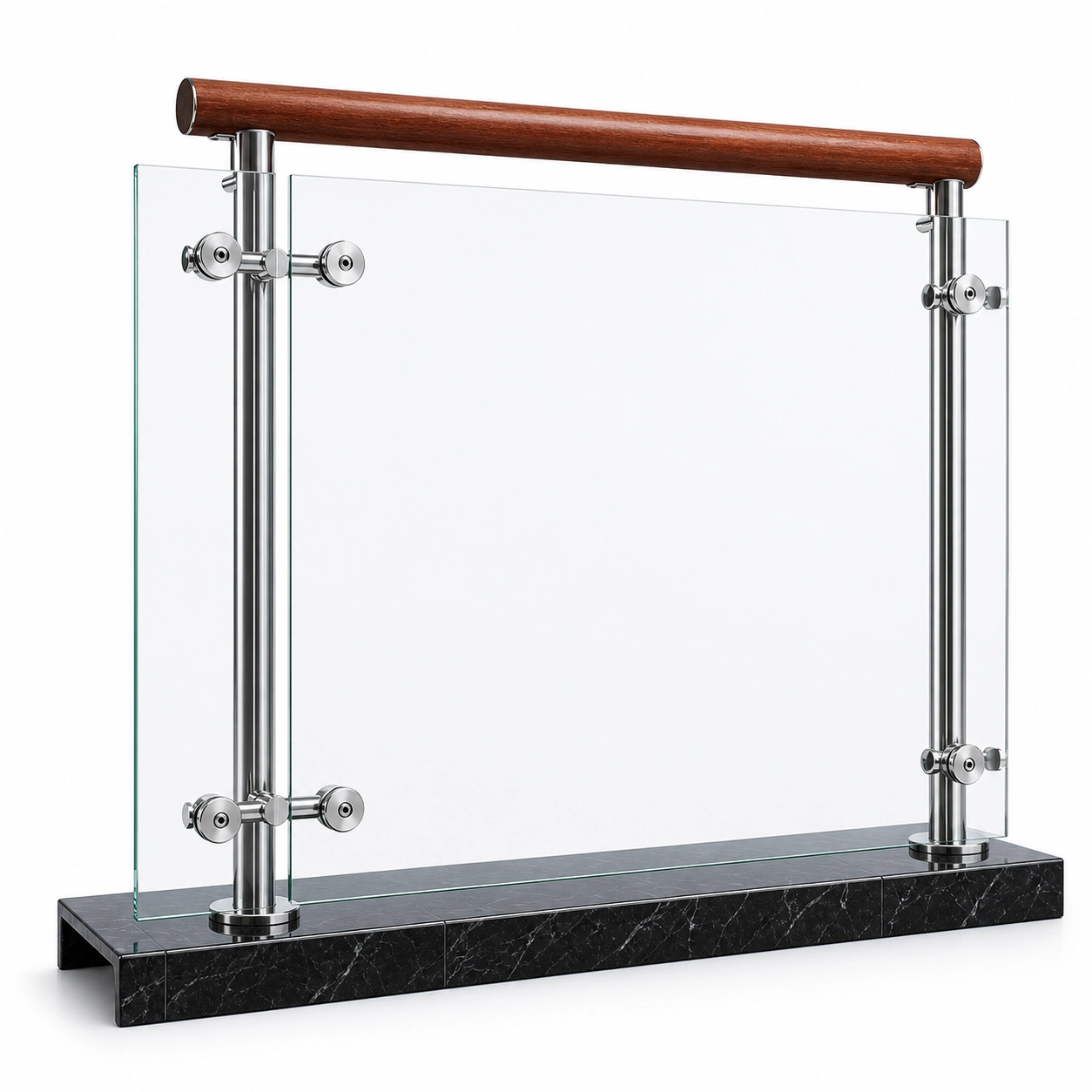

Pin Clamps (Secured Mechanical Lock)
Featuring a central steel security pin that passes directly through a pre-drilled hole in the glass, these clamps are strongly recommended—and often legally mandated—for public and commercial projects. Even under severe impact or in the rare event of gasket aging, the mechanical pin prevents the glass pane from slipping or falling.
Glass Compatibility: Our post systems are engineered to seamlessly accommodate 10 mm - 12 mm monolithic tempered glass, as well as premium 5+5 mm / 6+6 mm laminated tempered glass (PVB/SGP) for redundant safety.
A truly exceptional railing system must account for architectural nuances and ease of installation on-site:
Top Mount (Floor) vs. Fascia Mount (Side)
Where floor space is abundant, Top Mounting—utilizing a heavy-duty base plate concealed by a sleek dress cover—remains the standard. However, if you wish to maximize the usable width of a balcony or staircase, Fascia Mounting (fixing the posts to the outer vertical face of the slab or stringer) delivers a stunning, cantilevered visual effect.
Adjustable Saddles for Staircases
To accommodate raked angles on stairs or ramps, the top handrail supports must feature adjustable saddles. This ensures the handrail maintains a continuous, fluid line parallel to the architectural slope.
Scientific Engineering Spacing
To ensure structural rigidity and eliminate deflection under wind loads or crowd pressure, we recommend keeping post spacing between 1000 mm and 1200 mm. Standard interior heights typically range from 900 mm to 1000 mm, while outdoor or high-altitude edge protection requires 1050 mm to 1100 mm based on local building codes.
Whether you are designing a streamlined atrium for a modern commercial hub or capturing the perfect sunset from a private villa balcony, a precision-engineered glass railing post system adds the definitive finishing touch to your architecture.
We understand the rigorous demands of architectural projects. That is why we provide a complete, seamless ecosystem—from certified premium material grades (304/316) and masterfully crafted finishes (fine satin or mirror polished) to fully integrated components—ensuring every detail stands the test of time, weather, and safety.
Ready to transform your architectural vision into reality? Send us your architectural blueprints, project budget, or specification requirements. Our dedicated engineering consultants will deliver a tailored, cost-optimized post layout solution within 24 hours.
