Sub-150 ppm Iron Purity: Formulated through rigorous magnetic separation and acid-leaching, refining the iron content to under 150 ppm to permanently eliminate the greenish tint inherent in standard glass.
Maximum Light Transmittance: Engineered via precise redox balancing (Fe2+ to Fe3+), shifting chemical valency to eliminate red/infrared absorption and achieve a crystal-clear light transmission rate exceeding 91%.
Near-Zero Spontaneous Breakage: The hyper-purification process that extracts iron also eliminates nickel (Ni) and sulfur (S) trace impurities, mitigating Nickel Sulfide (NiS) inclusion risks to ensure near-zero tempering self-explosion.
Anti-Cross Contamination Melting: Manufactured in specialized melting furnaces lined with high-purity zirconium fused-cast refractories, preventing structural iron leaching during high-temperature (1500℃) processing.
The Definitive Structural Standard: The ideal glazing medium for multi-layer heavy laminated glass, structural skylights, high-end commercial curtain walls, museum display cases, and premium luxury interiors.
| Quantity: | |
|---|---|
Are you engineering a landmark high-rise facade, a heavy-duty structural glass canopy, or high-end retail storefronts where color distortion and safety liabilities are unacceptable? Shandong Weihua Glass supplies industrial-grade Premium Low-Iron Ultra-Clear Glass Panels—an optically pure safety glass engineered to satisfy strict architectural submittals, strict green building energy codes, and modern aesthetic benchmarks.
Standard float glass contains significant iron oxides that cast a dark green shadow over thick configurations, drastically reducing light quality and skewing interior color displays. Weihua solves this by applying a comprehensive, full-process purification methodology. From raw quartz sand selection to chemical valency manipulation inside our automated melting furnaces, we deliver a crystalline, brilliant medium that optimizes daylighting while drastically minimizing structural safety liabilities.
Technical Feature | Engineering Implementation & Metric Limits |
Iron Content Threshold | Strictly limited to ≤ 150 ppm via heavy-duty magnetic separators and chemical flotation. |
Visible Light Transmittance | ≥91% (Maintains high clarity and true-color neutrality even in multi-layer lamination). |
Redox Control Chemistry | Injection of oxidizing agents (CeO2 / NaNO3) to transition iron ions from green Fe2+ to nearly invisible Fe3+. |
Refractory Protection | Fused-cast high-zirconium furnace linings prevent iron cross-contamination at temperatures over 1500℃. |
Spontaneous Breakage Rate | Lowered to near-zero by effectively eliminating Nickel Sulfide (NiS) triggers during sand purification. |
Processing Profiles | Fully compatible with Monolithic Tempering, SGP/PVB Lamination, Multi-Cavity IGUs, Ceramic Fritting. |
CNC Fabrication Limits | Sizing up to jumbo architectural scales | Dimensional fabrication tolerances within tight ±0.5mm. |
Quality & Safety Compliance | Traceability markings fully compliant with SGCC (ANSI Z97.1), CE (EN12150 / EN14449), and ISO9001. |
Uncompromised Post-Tempering Safety: Because spontaneous breakage in overhead skylights or structural glass railings is a catastrophic liability, our low-iron glass provides the ultimate insurance. By purging NiS impurities at the raw material stage, we eliminate the root cause of sudden fracturing.

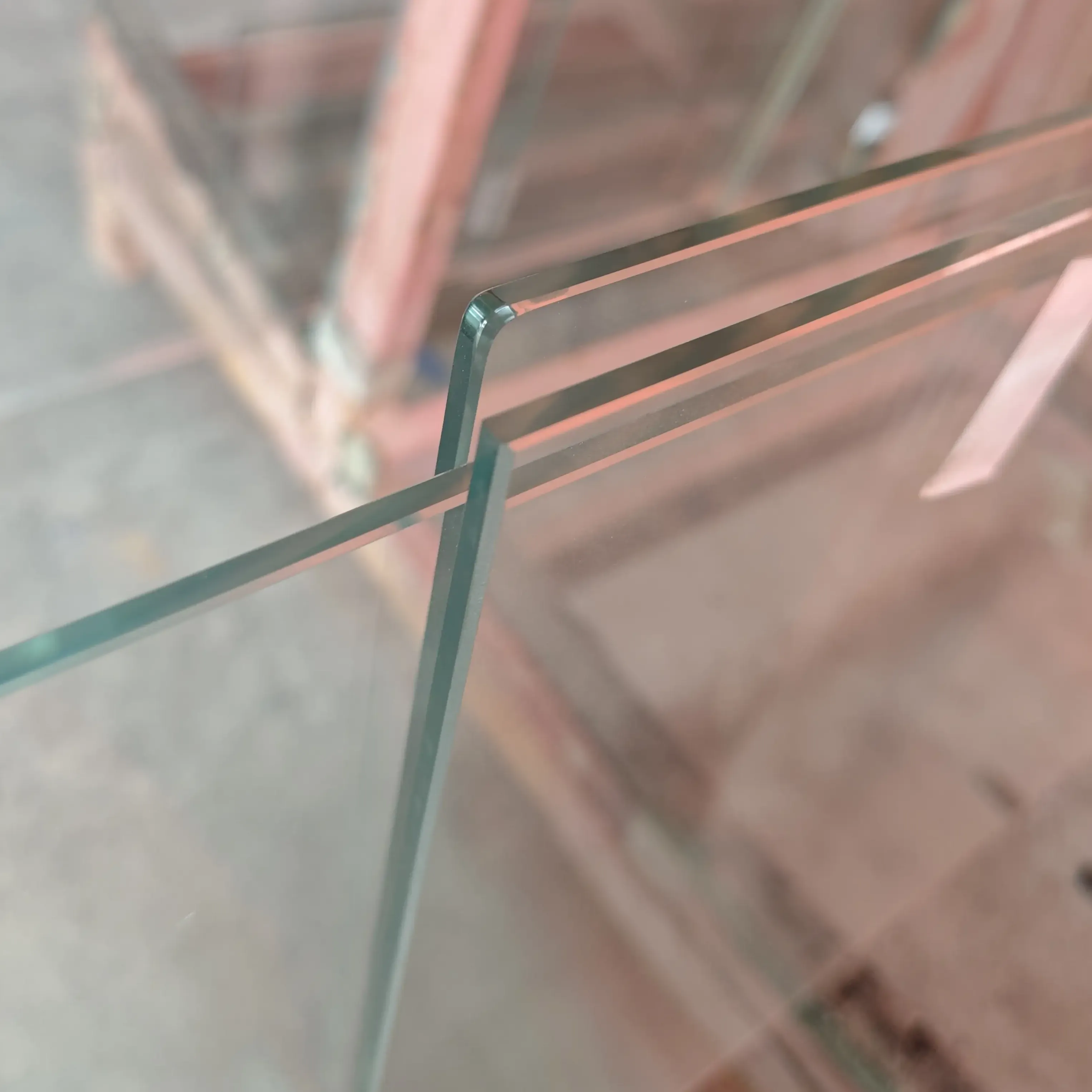

Flawless Multi-Layer Aesthetics: When standard glass is stacked into triple or quadruple layers for stairs or pool walls, the green tint multiplies into an opaque block. Weihua's low-iron panels retain their ice-blue, crystal-clear edge profiles, providing a luxury look coveted by world-class architects.

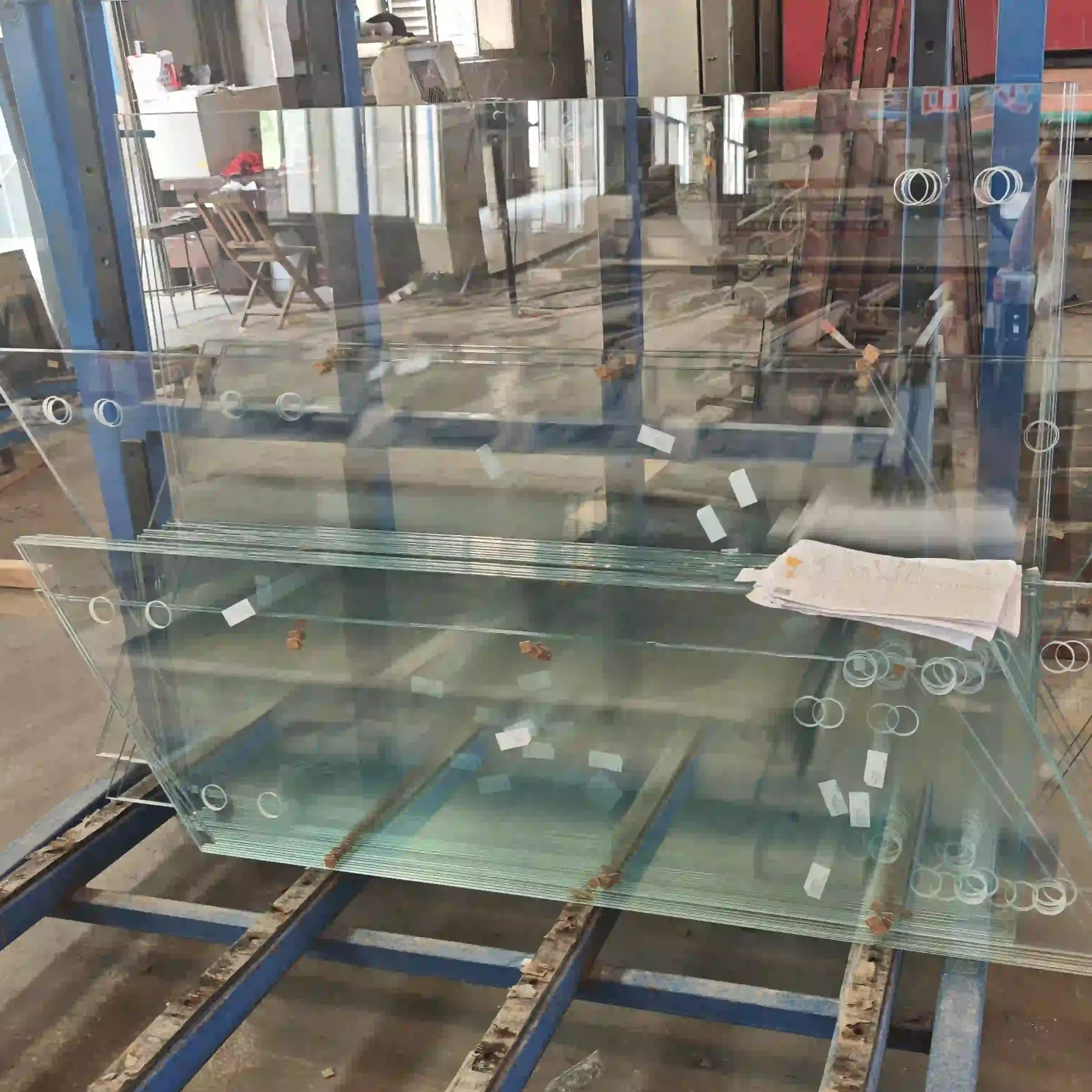

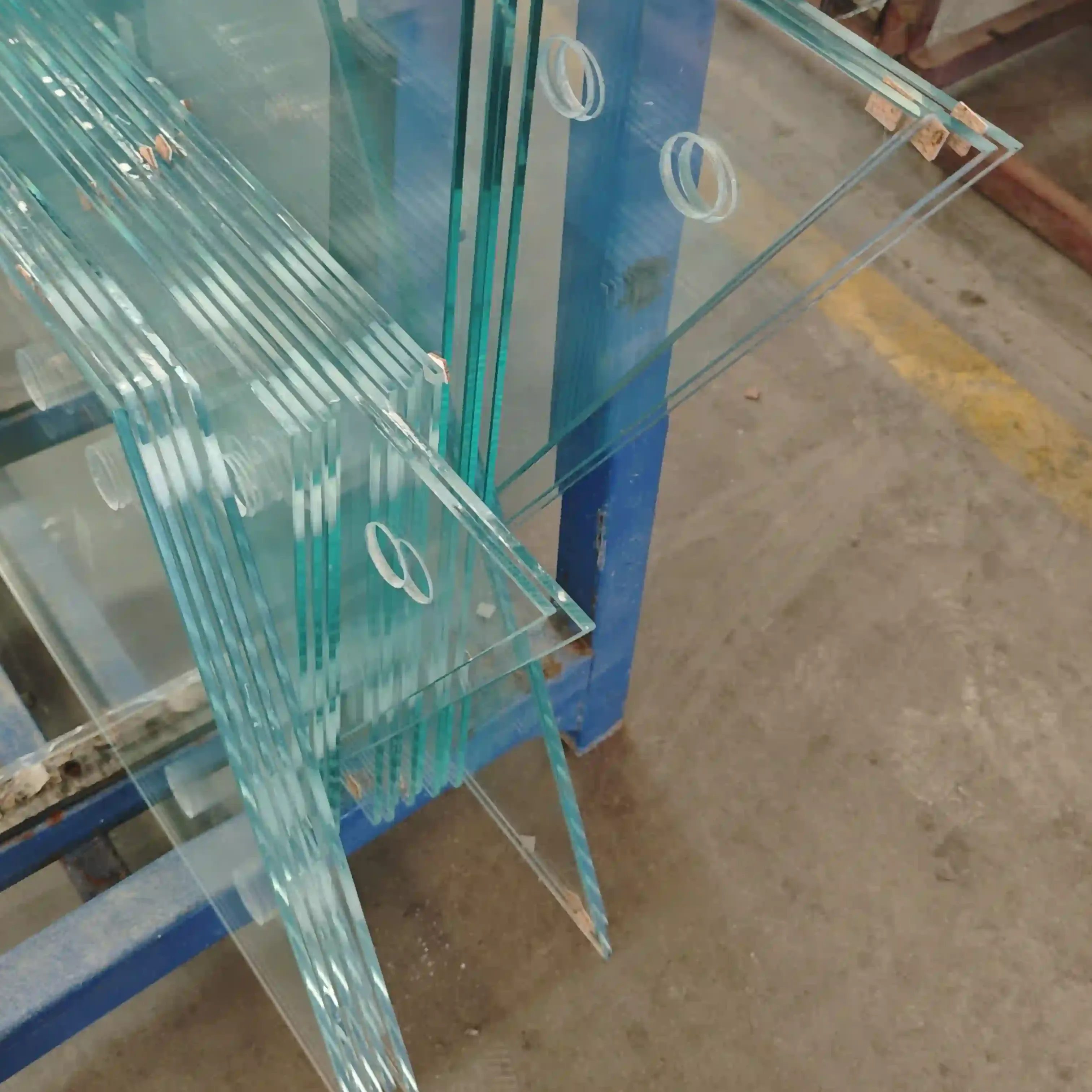

Precision CNC Hardware Integration: Our state-of-the-art processing facility executes custom mitered edges, water-jet hardware notches, and countersunk structural hole drillings with strict tolerance tracking, streamlining on-site installation schedules.
Submit Project Blueprint: Provide your sizing schedules, glass thickness demands, and specify whether the panels require secondary lamination or insulated gas-filling.
Verify Optical Targets: Our technical team matches your submittal requirements for light transmittance (VLT) and shading coefficients (SHGC).
Approve Engineering CADs: All custom edge-polishing parameters, safety corner radiuses, and structural fixings are mapped on CAD for your commercial signature.
Heavy-Duty Moisture-Sealed Packing: Finished batches are packed into customized, reinforced end-cap wooden crates with specialized desiccants and interlayer cushioning, engineered to survive long ocean voyages.
