When shopping for modern windows or designing a energy-efficient building, you will inevitably come across the term IGU. But what does IGU mean, and why has it become the gold standard in the construction and window industries?
In this comprehensive guide, we will break down the definition of IGU and take you behind the scenes to see exactly how is the IGU glass made.
Before diving into the manufacturing process, let’s clear up the terminology.
IGU stands for Insulated Glass Unit.
Simply put, an IGU is a combination of two or more pieces of glass separated by a spacer bar and sealed around the edges to create a single, energy-efficient window unit.
Many people mistakenly refer to it just as "double glazing" or "triple glazing." While that is technically true, the term unit is crucial. An IGU is not just two panes of glass slapped together; it is a highly engineered, hermetically sealed system designed to provide thermal insulation, soundproofing, and structural integrity.
The manufacturing of an Insulated Glass Unit is a high-tech, precise process that requires specialized machinery to ensure the unit lasts for decades without fogging or failing.

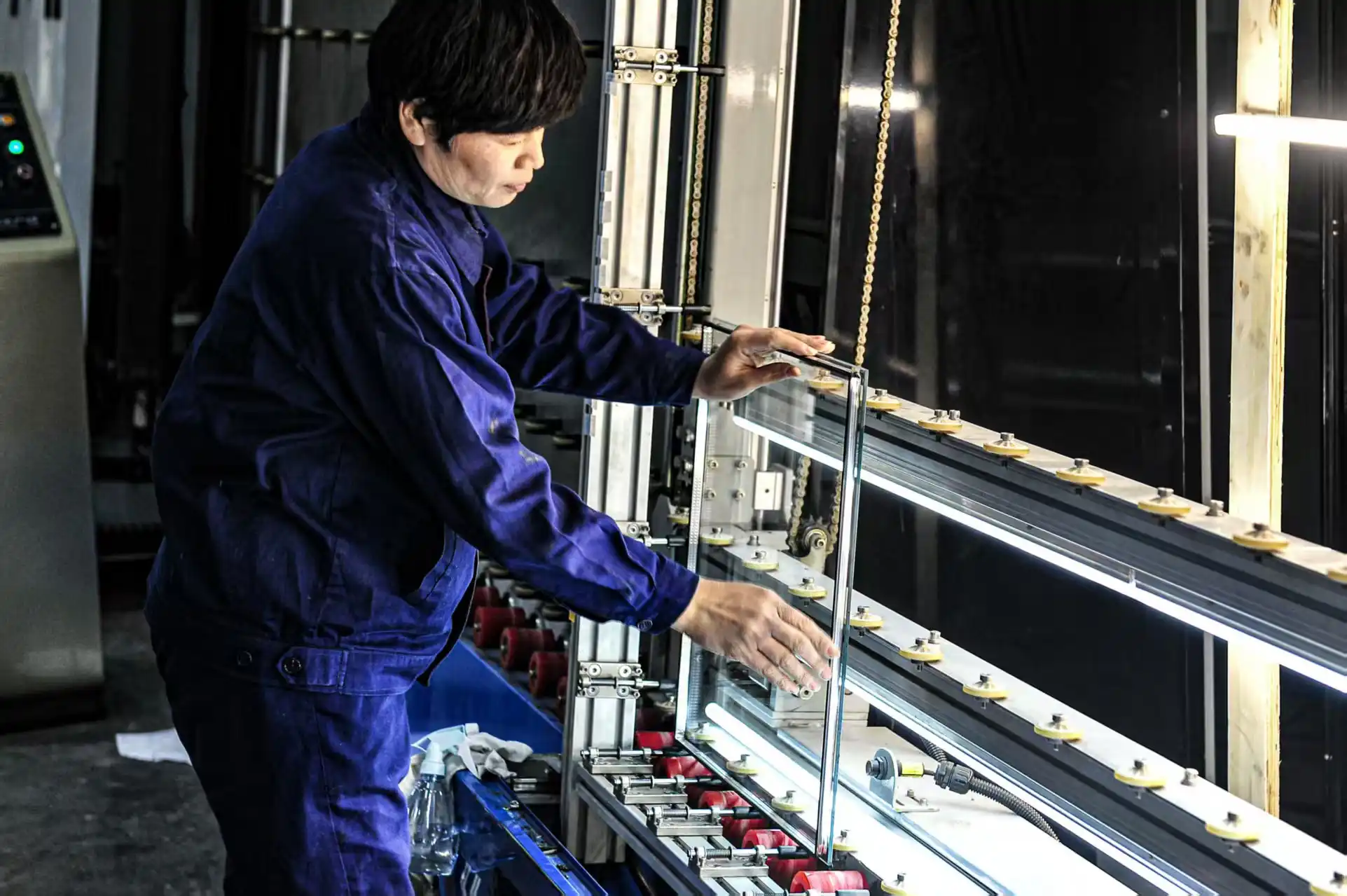

Here is exactly how is the IGU glass made in a modern production facility:
The process begins with large sheets of raw glass (which can be standard float glass, tempered glass, or Low-E glass).
Cutting: High-precision CNC machines cut the glass sheets to the exact dimensions required for the window frames.
Washing: The cut glass panes pass through an industrial washing machine using demineralized water. Any dust, oil, or fingerprints left on the inside surfaces would be trapped forever once sealed, so absolute cleanliness is mandatory.
The spacer bar is the frame that keeps the panes of glass at a fixed distance from each other.
Bending/Cutting: Spacer bars (usually made of aluminum or "warm-edge" structural foam) are cut or bent to match the size of the glass.
Desiccant Filling: Inside the hollow spacer bar, manufacturers fill it with desiccant (highly absorbent molecular sieve beads). This desiccant absorbs any residual moisture inside the air space to prevent internal condensation (fogging) later on.

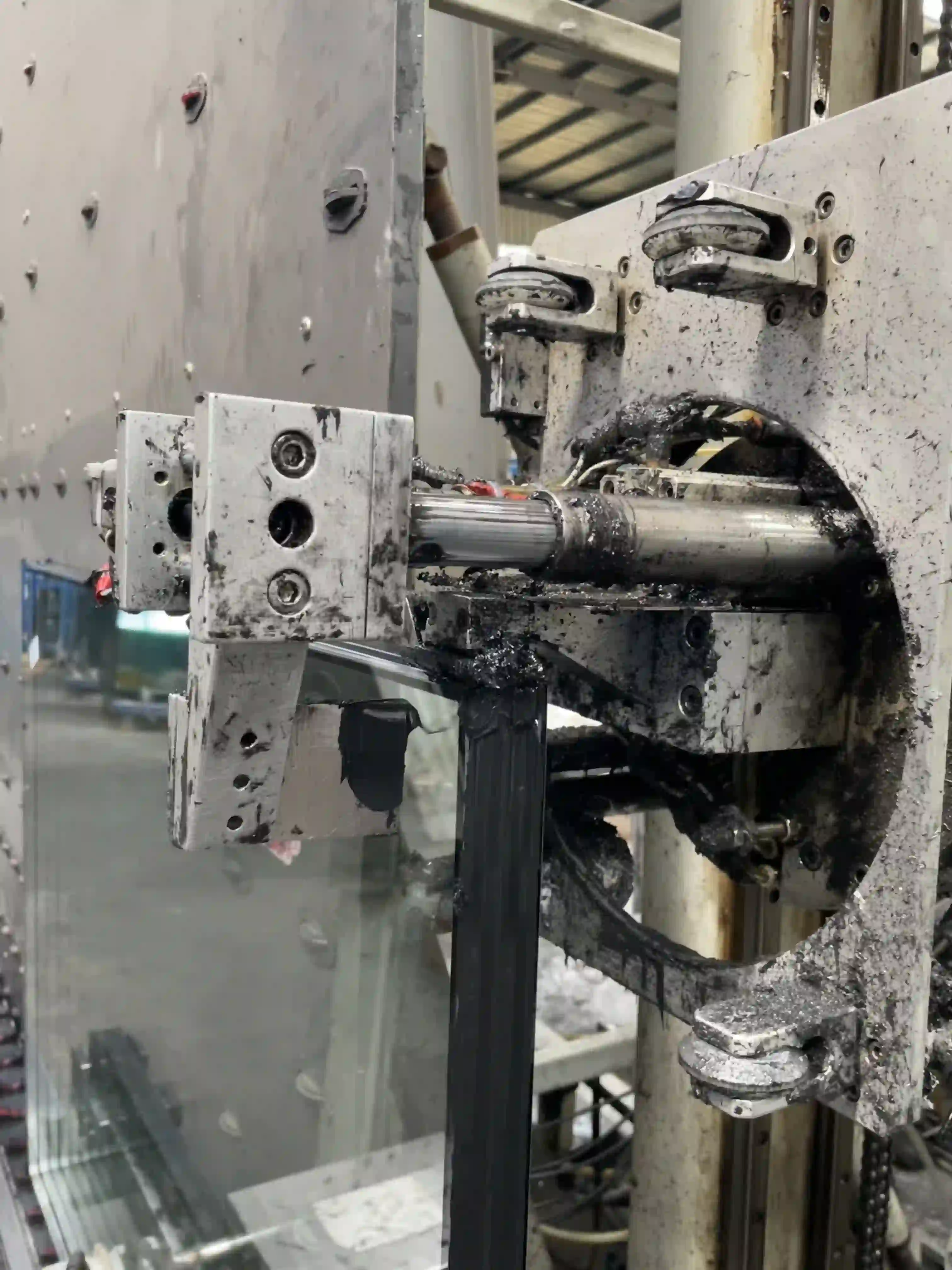

Once the spacer frame is ready, a primary sealant—usually Polyisobutylene (PIB)—is applied to both sides of the spacer bar. This creates the initial airtight and moisture-tight barrier.
The spacer bar is placed onto one pane of glass, and the second pane is aligned on top.
To boost energy efficiency, the air gap between the panes is often replaced with an inert gas like Argon or Krypton. These gases are denser than air and significantly reduce heat transfer.
The assembled "sandwich" goes into a specialized press machine that squeezes the components together to ensure the primary seal is completely airtight.
Finally, a heavy-duty secondary sealant (such as Silicone or Polyurethane) is applied around the entire outer edge of the unit. This structural sealant locks all the components together and protects the unit from outside weather elements.
The IGUs are placed on racks to cure (dry). Once cured, they undergo strict quality inspections to check for any scratches, dust inside the unit, or gaps in the sealant before being packed and shipped.
Now that you know what does IGU mean and how is the IGU glass made, it’s easy to see why these units are so effective. The combination of precision washing, moisture-absorbing desiccants, inert gas filling, and dual-seal protection is what keeps your home warm in the winter, cool in the summer, and quiet all year round.
If you are looking to upgrade your windows, always ensure your supplier follows these rigorous manufacturing standards to guarantee the longevity of your investment.
