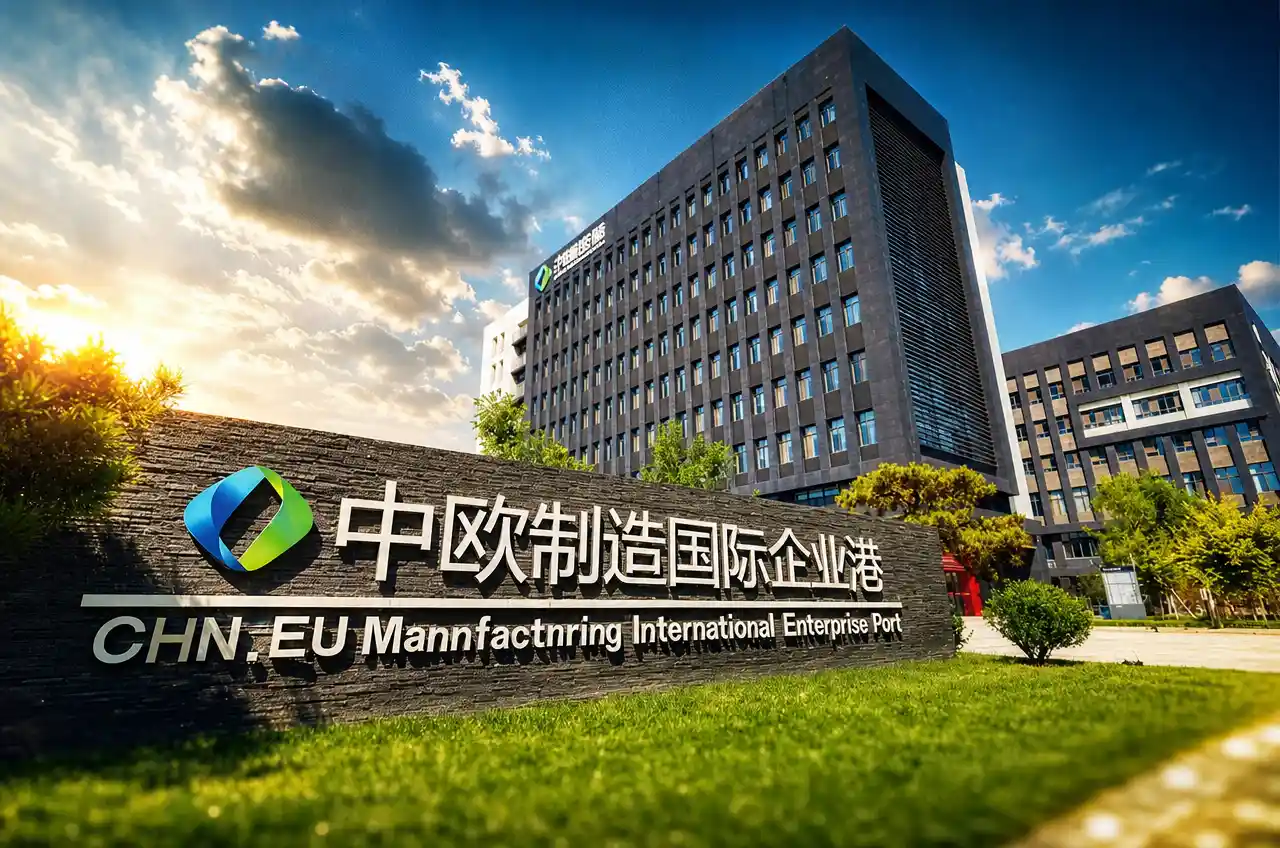

Project Name: Qingdao China-Europe Industrial Park
Project Location: Qingdao City, Shandong Province
Project Type: Modern Industrial Clusters, Corporate Headquarters & R&D Innovation Centers
Total Supply Area: 18,000 m²
Glass Supplier: Weihua Glass
Original Glass Supplier: China South Glass Group (CSG)
Structural Configuration: 6mm Low-E (CSG) + 12A + 6mm double-tempered insulated glass (6T + 6T)
Key Performance Metrics:
Visible Light Transmittance (VLT): ≈ 55–65%
U-value: ≤ 1.8 W/m²·K
Solar Heat Gain Coefficient (SHGC): ≤ 0.40
Large Panel Formats & Superior Flatness
Approximately 30% consists of large-format units (Width ≥ 1.8m, Height ≥ 3m), produced via dedicated lines and dual tempering furnaces.
Delivers uniform stress distribution, consistent break patterns, and exceptional flatness under heavy wind loads.
Precision Fabrication & Dual Sealing System
Strict Low-E coating orientation control during IGU assembly with Level I national anti-scratch protection.
Utilizes a dual-seal system (hot-melt butyl primary seal + polysulfide secondary seal) to ensure long-term air-tightness and low dew points.
Engineering Coordination & Strict Quality Control
Weihua’s engineering team actively collaborated on facade refinements, enabling modular mass production that minimized site delays.
Complete QC protocols (dew point, fragmentation, impact, and stress-wave testing) ensured consistent high quality across the 18,000 m² supply.
High Energy Efficiency & Acoustic Comfort
Reduces indoor temperature fluctuations by 20–28%, yielding estimated overall energy savings of 15–25%.
Significantly improves acoustic insulation to create a quiet workspace while establishing a modern, high-tech international park image.
