Views: 2433 Author: Site Editor Publish Time: 2026-08-03 Origin: Site
Choosing the right covering material is a pivotal decision in the construction of modern agricultural and high-tech greenhouses. The cover not only accounts for a substantial portion of the initial capital investment, but it also directly dictates indoor light intensity, heat accumulation, heating energy costs, and ultimately, crop yield and quality.
When evaluating the market's primary options—Insulated Glass, Polycarbonate (PC) Twin-Wall Sheets, and Single-Pane Tempered Glass—how should growers and greenhouse engineers choose? This guide breaks down the critical technical metrics and offers tailored material-pairing strategies for different crops.
Before diving into detailed analysis, the following matrix compares the core parameters of all three materials:
Performance Metric | Single Tempered Glass | Insulated Glass (5+9A+5) | PC Twin-Wall Sheet (8–10mm) |
Visible Light Transmittance | Highest (88% ~ 90%) | Moderate (75% ~ 82%) (Up to 88% with Ultra-Clear) | Good (75% ~ 80%) (Degrades over time) |
U-Value / Thermal Transmittance | Poor (≈ 5.8 W/m²·K) | Excellent (≈ 2.7 ~ 3.0 W/m²·K) | Good (≈ 3.0 ~ 3.5 W/m²·K) |
Hail & Impact Resistance | Moderate (High when tempered) | Exceptional (Double-tempered) | Maximum (200X stronger than standard glass) |
Weight per Area | Moderate (≈ 12.5 kg/m²) | Heavy (≈ 20 ~ 25 kg/m²) | Ultralight (≈ 1.5 ~ 2.0 kg/m²) |
Expected Lifespan | 25+ Years | 15–20 Years (Sealant lifespan) | ~10 Years (UV degradation) |
Total Greenhouse Cost | Moderate | Highest (Premium material + reinforced frame) | Lower (Lightweight frame + fast installation) |

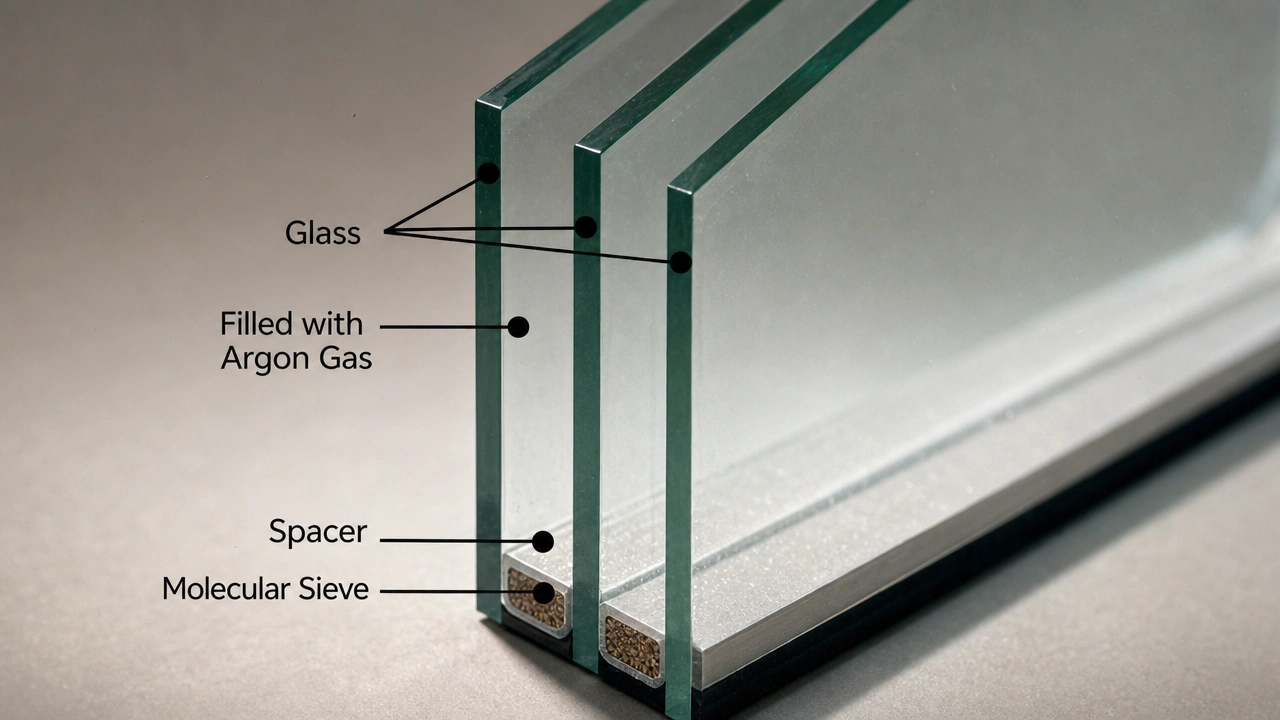

Insulated glass consists of two or more panes bonded along the perimeter with a high-durability sealant and aluminum spacer bars filled with desiccant, encapsulating a hermetically sealed gas gap (Air or Argon).
Superior Thermal Insulation: Compared to single-pane glass, insulated glass cuts thermal transmittance (U -value) by over 50%, saving 40% ~ 50% in winter heating costs in colder climates.
Exceptional Anti-Condensation: Internal desiccant maintains a dew point below -40℃ inside the gap. This prevents interior glass dripping during winter, drastically reducing fungal risks such as Botrytis cinerea (Gray Mold).
High Transmittance & Longevity: When paired with Ultra-Clear Anti-Reflective (AR) glass, light transmittance reaches 88% ~ 92%, with zero material degradation over time.
High Structural Load: Weighing 20 ~ 25 kg/m², it requires reinforced steel framing, increasing structural steel expenditure.
Polycarbonate twin-wall and multi-wall sheets are highly popular, lightweight glazing solutions for commercial production greenhouses.
Ultra-Lightweight & Frame Cost Savings: Weighing roughly 1/10th of glass, PC sheets reduce the steel required for the greenhouse framework by 20% ~ 30%.
Natural Light Diffusion: PC sheets naturally diffuse incoming sunlight. This distributes illumination evenly across the canopy and eliminates direct "hot spots" that cause foliage scorch.
Extreme Impact Safety: Highly resilient against severe windstorms and hail, virtually eliminating the risk of structural shatter.
UV Degradation: Prolonged outdoor exposure leads to yellowing and embrittlement over time. Light transmittance typically declines after 8–10 years, requiring panel replacement.
Single-pane tempered glass is a classic glazing material, still widely utilized in temperate regions or greenhouses demanding maximum direct sunlight.
Maximum Light Transmittance: Delivers up to 90% visible light transmission to maximize solar radiation intake.
Cost-Effective & Durable: Lower upfront material cost than insulated glass, with an operational lifespan exceeding 25 years.
Poor Insulation Value: With a high U -value around 5.8 W/m²·K, single-pane glass experiences rapid thermal loss in cold seasons, driving heating bills significantly higher.
To optimize both performance and capital efficiency, modern commercial greenhouses rarely use a single material throughout. Combining different materials across the roof and sidewalls based on crop physiology represents the industry best practice:
Roof Glazing: Ultra-Clear Anti-Reflective (AR) Diffuse Glass — Maximizes total solar radiation while diffusing light deep into the middle and lower canopy layers, improving fruit coloration, uniform ripening, and Brix levels.
Sidewall Glazing: Ultra-Clear Insulated Glass — Blocks cold perimeter drafts and heat loss, eliminating cold-zone yield penalties along wall edges.
Roof Glazing: PC Twin-Wall Sheets with Anti-Fog Coating — Provides soft, diffused light to prevent leaf and petal burn. The interior anti-fog layer prevents condensation droplets from spotting flowers.
Sidewall Glazing: Insulated Glass — Retains stable nocturnal temperatures, minimizing HVAC power consumption.
When specifying greenhouse covering materials, evaluate your project across three core dimensions:
Geographic Climate: For cold climate zones (Tout< -5℃), Insulated Glass on sidewalls or full structures is strongly recommended. Mild climates can prioritize Single-Pane Glass.
Return on Investment (ROI): Though insulated glass carries a higher initial price tag, reduced HVAC equipment sizing and ongoing natural gas/electricity savings typically yield a full payback within 1.5 ~ 2.5 years.
Crop Requirements: High-yield, light-hungry crops benefit most from AR diffuse glass; sensitive floriculture thrives under polycarbonate roof panels.
