A Technical Guide To Glass Base Channel Systems

In modern commercial spaces, high-end residential properties, and public infrastructure projects, minimalism and boundless vision have transitioned from design trends to mainstream requirements. To achieve the ultimate sense of transparency, architects frequently specify a frameless, "free-standing" visual effect where massive glass panels appear to rise seamlessly from the solid ground. Delivering this aesthetic flawlessly hinges on the selection and installation of a critical underlying structural component: the Glass Base Channel (U-Channel).

From the perspective of B2B engineering procurement and structural glass technology, this article provides an in-depth analysis of base channel classifications, mainstream installation systems, and essential pitfalls to avoid in project procurement.

I. Structural Material Classification and Engineering Selection

Under the dual constraints of structural mechanics and environmental durability, industrial-grade base channels are predominantly divided into aluminum alloy and stainless steel. Procurement must be strictly aligned with the project site's load requirements and environmental exposure:

II. Dimensions and Structural Mechanics Design

A glass base channel is far more than a simple "metal groove"; it is the primary load-bearing component that resists lateral wind loads, crowd pressure, and impact forces. Its dimensional chain must comply with rigorous engineering requirements:

• Wall Thickness: For standard non-load-bearing indoor partitions, aluminum profile thickness typically ranges from 2.0mm to 4.0mm. Conversely, for structural or load-bearing glass balustrades, the wall thickness must reach 5.0mm to 8.0mm or more to withstand intense lateral bending moments.

• Internal Width: Calculated using the formula: Internal Width = Nominal Glass Thickness + Dual-side Gasket/LED Space + Installation Tolerance. For example, a 12mm monolithic tempered glass panel usually pairs with a 20–25mm internal width channel, while a 21.5mm (10+1.52PVB+10) laminated glass panel requires a width of 35–40mm or more.

• Embedment Depth: The height of the channel determines the glass’s resistance to overturning. According to architectural standards, the embedment depth of the glass should not be less than 2/3 of the total channel height. Standard indoor profiles feature a height of 40mm–60mm, whereas heavy-duty outdoor balustrades or expansive facades require a channel height of 100mm to 120mm.

III. Installation Methodologies: Dry Mechanical Fastening vs. Wet Wet-Glazing

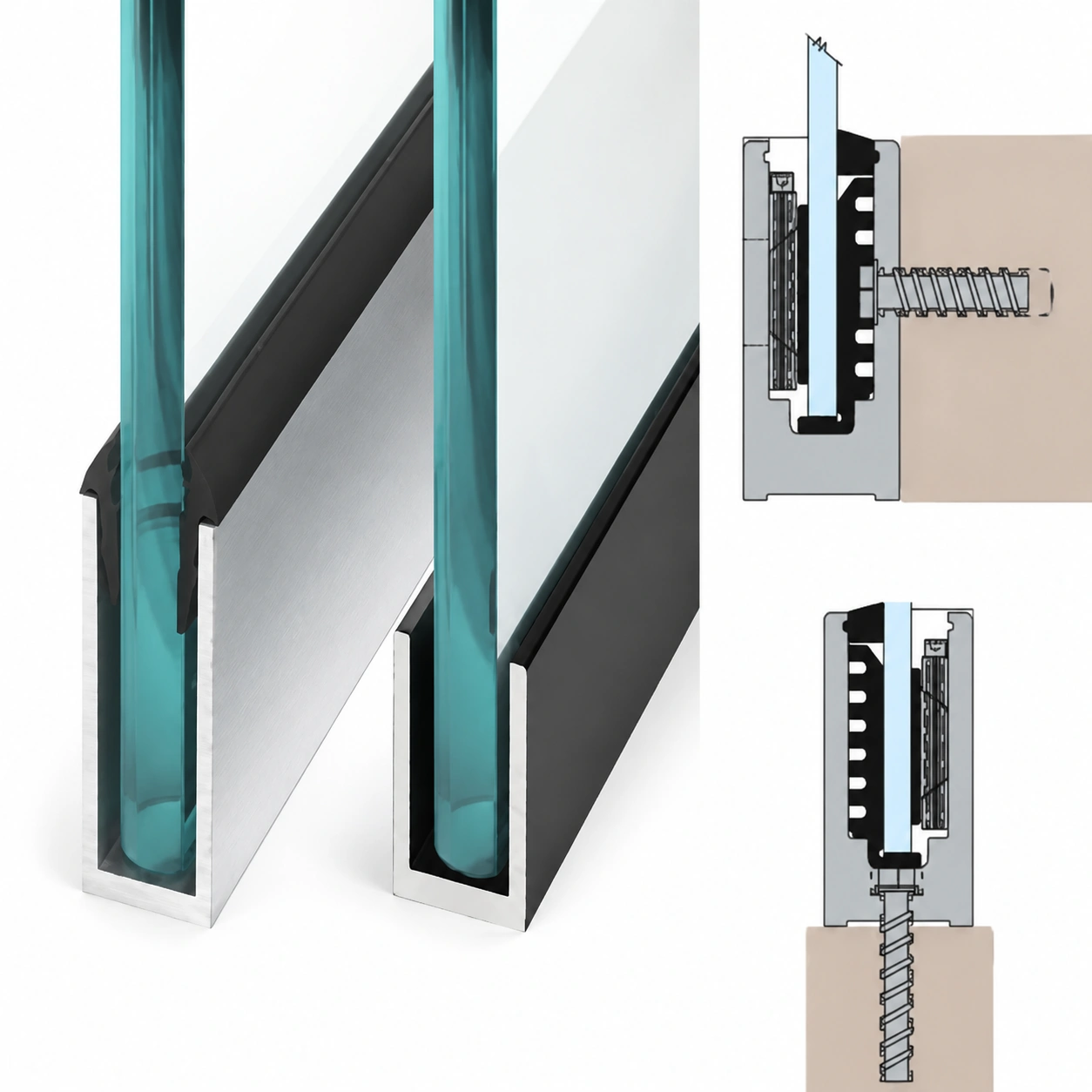

1. Adjustable Mechanical Fastening Systems ("Dry" Quick-Install)

This is the preferred choice for modern premium commercial projects and modular engineering. Designed with internal sloped tracks, the channel secures the glass panel post-positioning by driving in specialized high-strength engineering plastic wedges or using metal pressure plates with hex bolts. Its core advantage lies in adjustability—installers can fine-tune the plumb alignment ( ±1.5° ) directly via mechanical bolts. Furthermore, in the event of glass breakage, it allows for non-destructive removal and rapid replacement.

2. Grouted/Infilled Stabilization Systems ("Wet" Traditional Glazing)

Commonly utilized for bespoke stainless steel bent channels or ultra-heavy oversized glass facades. After placing hard rubber setting blocks at the bottom, backer rods are inserted around the glass, followed by the injection of high-elasticity structural silicone sealants or non-shrink high-strength grout. While this system offers superior watertightness and sealing, its fatal flaw is the complete lack of secondary adjustment. Replacing damaged glass down the line requires violent excavation of the cured layer, resulting in exorbitant labor costs.

IV. B2B Procurement & Project Delivery: The "Pitfall Avoidance" Guide

In international B2B engineering procurement, mis-specifications or information asymmetry frequently lead to costly project delays and structural liability claims. Procurement teams should scrutinize the following four risk areas during vendor evaluation:

Pitfall 1: Overlooking Plumb Adjustability, Resulting in Alignment Mismatch

• The Reality: Structural subfloors invariably suffer from leveling tolerances (+3mm to -5mm is common). If a procurement team opts for standard, non-adjustable wet U-channels simply to cut material costs, a microscopic tilt at the base will amplify exponentially on a 2-meter-plus glass panel. This leads to prominent offsets and unsightly "scissor gaps" between adjacent panels.

• Procurement Strategy: Prioritize profile systems engineered with mechanical wedge mechanisms, ensuring the field installation team retains the capability to handle structural tolerances seamlessly.

Pitfall 2: Insufficient Wall Thickness Leading to Structural Deflection ("Sponginess")

• The Reality: To win price wars, compromised suppliers may submit compliant samples but reduce the wall thickness during mass production. If the base channel lacks structural rigidity, the entire glass barrier will exhibit a distinct, unnerving sway when subjected to crowd load, failing stringent handover inspections (such as pendulum impact or top-rail pull-out tests).

• Procurement Strategy: Mandate that the manufacturer provides a certified Lateral Load Calculation Report mapped to your project's specific wind/crowd load requirements. Rigorously audit the batch thickness using calipers (≥ 5 mm for structural balustrades).

Pitfall 3: Deploying Suboptimal Material Grades in Coastal or Humid Zones

• The Reality: For sunken plazas, coastal developments, or indoor swimming pool facilities exposed to high humidity and chloride ions, specifying standard SUS304 or aluminum with inadequate anodization will backfire. Within 1 to 2 years post-handover, widespread pitting or tea-staining (intergranular corrosion) will manifest, triggering catastrophic warranty claims.

• Procurement Strategy: Enforcement is non-negotiable here: mandate SUS316, 2205 Duplex Stainless Steel, or aluminum profiles with an anodized coating thickness exceeding Class AA15, backed by official Salt Spray Test reports from certified laboratories.

Pitfall 4: Neglecting Maintenance and Heat Dissipation for LED Luminaire Integration

• The Reality: Minimalist briefs often require integrating linear LED strips within the channel to create a glowing base effect. If procurement signs off on a system without "opto-structural isolation" or a dedicated service cover, a blown driver or failed LED diode means the entire glass panel must be extracted just to replace a light strip. Furthermore, inadequate heat dissipation inside the cavity accelerates lumen depreciation.

• Procurement Strategy: Review the shop drawings meticulously before signing off. Select patented profile architectures where the LED track is isolated from the primary load-bearing chamber and features a service cap that allows strip replacement without disturbing the glass structural seal.

V. Conclusion and B2B Strategic Sourcing Advice

The flawless execution of premium architectural designs relies heavily on the precision engineering of underlying supply chain components. When sourcing glass base channel systems, procurement executives and general contractors must look beyond simple "hardware unit prices." Evaluations should holistically weigh environmental durability grades, structural embedment depth, field adjustment efficiency, and long-term maintenance overheads. Investing in industrialized channel systems backed by comprehensive structural testing reports (e.g., compliance with BS 6180 or ASTM standards) remains the most effective safeguard for successful project handover and risk mitigation against downstream structural claims.
