Selecting Glass Standoffs: Avoid These 3 Costly Mistakes

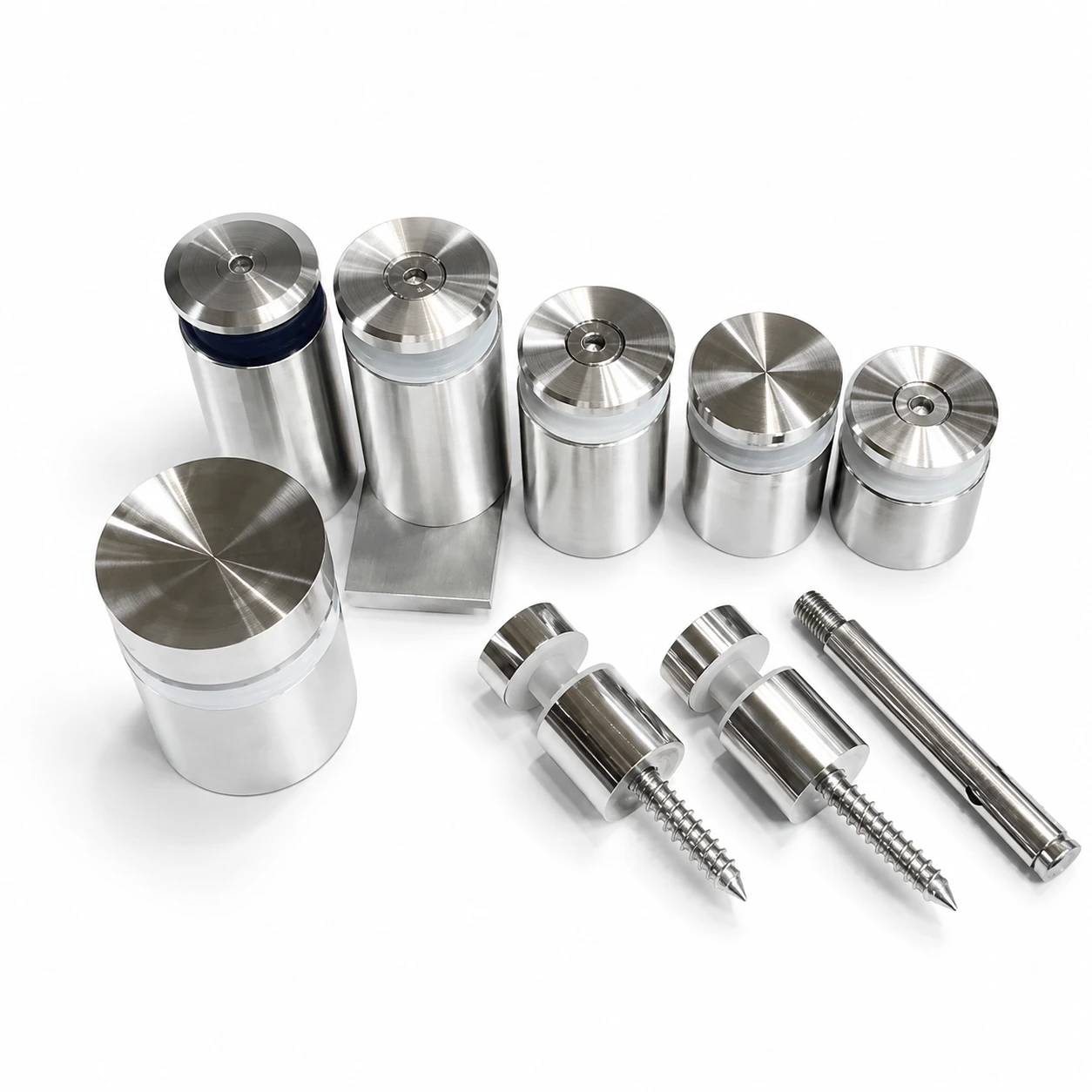

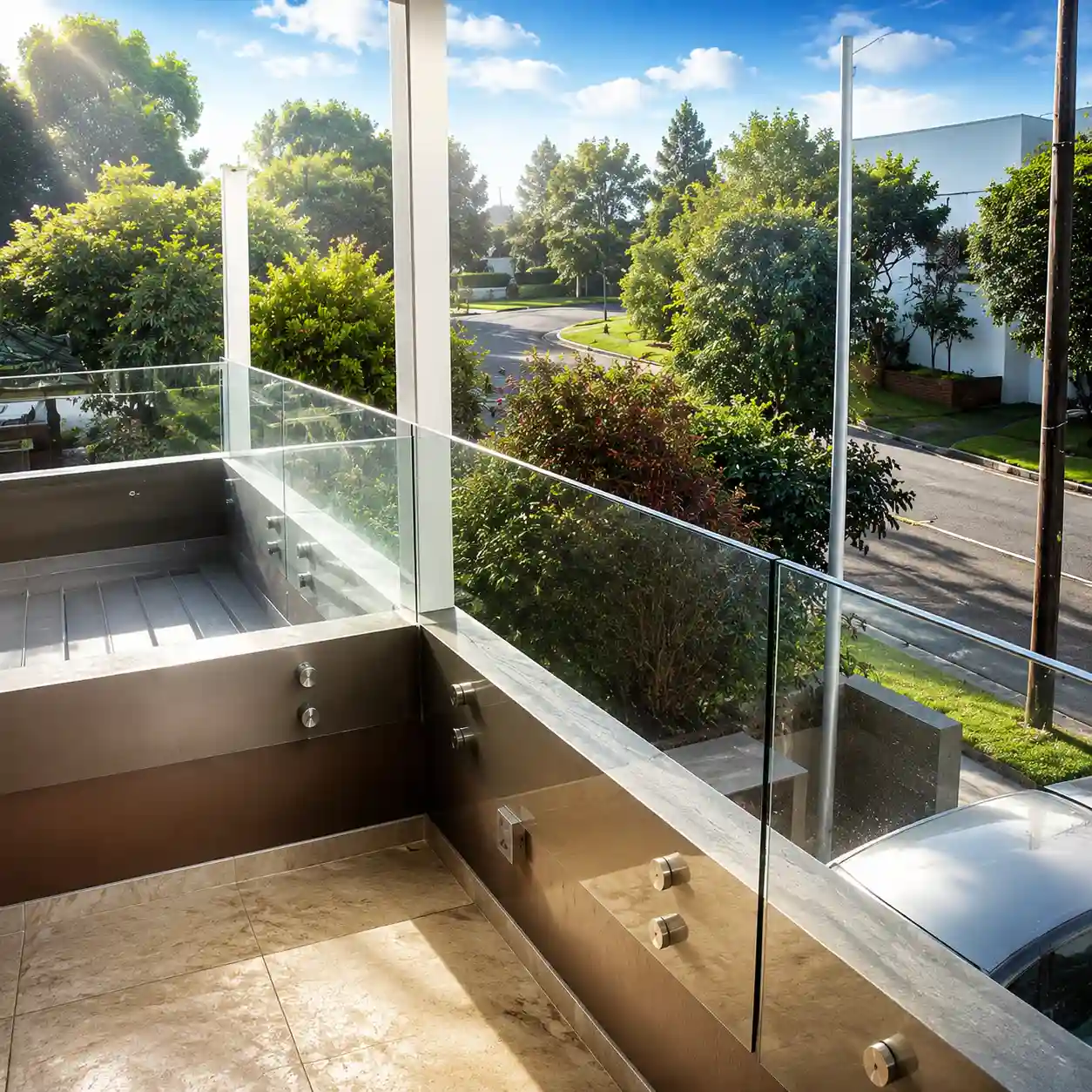

When it comes to modern architectural signage, interior design, and glass balustrades, glass standoffs (also known as sign standoff fasteners) play a critical role. They do more than just hold a panel in place; they create a sophisticated, 3D floating effect that elevates the aesthetic value of any commercial or residential space.

However, because they are relatively small components, they are frequently overlooked during the procurement phase. Choosing the wrong glass standoff can lead to rust stains ruining an expensive installation, or worse—spontaneous glass breakage. In this comprehensive buyer’s guide, we will break down the essential selection criteria and expose the top three pitfalls you must avoid.

1. Material Selection: Matching the Grade to the Environment

Material specification is the single most important factor determining the lifespan and safety of your hardware. Not all stainless steel is created equal. Below is a breakdown of the standard materials used in the industry:

2. Key Dimensions Every Buyer Must Verify

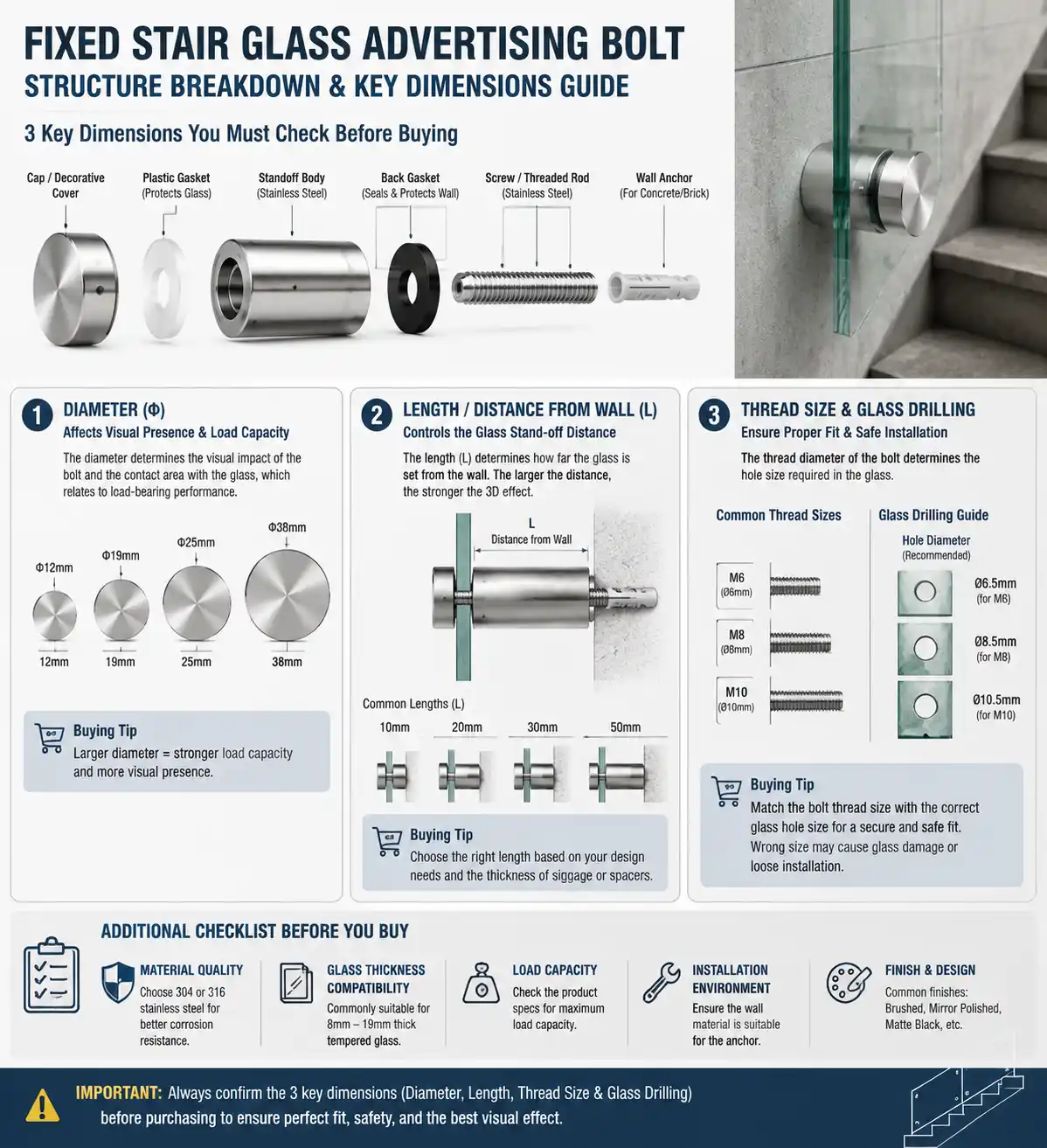

Before placing a bulk order, ensure your technical drawings align perfectly with these three key standoff dimensions:

• Diameter (Φ): Common sizes range from 12mm to 38mm. The diameter determines the face area supporting the glass weight and balancing structural force.

• Body Length / Distance from Wall (L): This defines how far the glass panel will protrude from the wall structure. Larger distances create a stronger shadow gap but increase leverage on the fixing anchor.

• Thread Size & Glass Hole Cutout: The standoff pin must pass safely through the glass. Always ensure the glass fabricator drills the holes slightly larger (typically 2mm larger) than the standoff thread diameter to allow for installation tolerances.

3. Critical Pitfalls to Avoid (The "Don'ts" of Procurement)

❌ Pitfall 1: Ignoring Gaskets Quality (The #1 Cause of Glass Shattering)

Glass is incredibly strong under compression but highly vulnerable to localized stress concentration. If a cheap standoff uses thin, rigid PVC washers, the metal thread or cap will make direct contact with the glass panel. When tightened or subjected to thermal expansion, this structural stress will cause the tempered glass to explode.

• The Fix: Always specify standoffs equipped with premium, high-elasticity Silicone or EPDM gaskets, including an integrated isolator sleeve that fully insulates the glass hole from the metal thread.

❌ Pitfall 2: Confusing Solid vs. Hollow Standoffs

To cut production costs, many suppliers sell hollow standoffs (made from thin-walled tubing with welded ends) without explicitly stating so. While hollow standoffs are perfectly fine for lightweight acrylic indoor nameplates, they lack the shear strength required for thick, heavy architectural tempered glass.

• The Fix: For balustrades, heavy-duty exterior signage, or public structural glass, always explicitly request Solid Bar-Stock Standoffs to guarantee absolute structural integrity.

❌ Pitfall 3: Failing to Match the Anchoring Substrate

A glass standoff is only as secure as the wall anchor holding it. Using a standard wood screw inside a concrete wall, or neglecting heavy-duty toggles behind hollow drywall, will inevitably cause the entire assembly to sag or fail over time.

• The Fix: Ensure your supplier provides or recommends the exact matching mounting hardware (lag screws for wood, expansion bolts for concrete, or threaded rods for steel structures) based on your target wall substrate.

Conclusion: Quality Hardware Protects Your Reputation

For contractors, architects, and sign builders, architectural hardware represents a minor fraction of the total project budget—but a failure can ruin your commercial reputation. Investing in verified grade 304/316 stainless steel standoffs with proper rubber isolators ensures your installations remain safe, beautiful, and rust-free for decades to come.
