High-Precision Radius Conformity: Processed via advanced horizontal bending roll-forming lines, strictly regulating radius (R ) tolerances to eliminate gaps and guarantee seamless on-site structural framework installation.
Minimization of Optical Distortion: Engineered with synchronized heating and cooling controls to reduce roller waves, local bow, and severe iridescence (strain patterns), ensuring crisp, distortion-free panoramic views.
Elimination of Spontaneous Breakage: Available with mandatory Heat Soak Testing (HST) inside certified ovens to force the premature failure of NiS-infected panes, eliminating spontaneous breakage liabilities for international projects.
Industrial-Grade Mechanical Strength: Delivers 4-5 times the mechanical impact and thermal shock resistance of standard annealed curved glass, fully compliant with global safety standards.
Bespoke Heavy Structural Integration: Fully compatible with custom CNC drilling, countersunk hole processing, and multi-layer structural lamination (PVB/SGP) for complex cantilevered or high-wind load facades.
| Quantity: | |
|---|---|
Are you engineering a curved glass curtain wall, a circular panoramic elevator shaft, or a luxury spiral staircase railing? Shandong Weihua Glass manufactures premium, industrial-grade Custom Curved Tempered Glass (Bent Safety Glass) designed specifically to solve the three most critical technical failure points in architectural glazing: radius deviation, visual distortion, and spontaneous explosion liabilities.

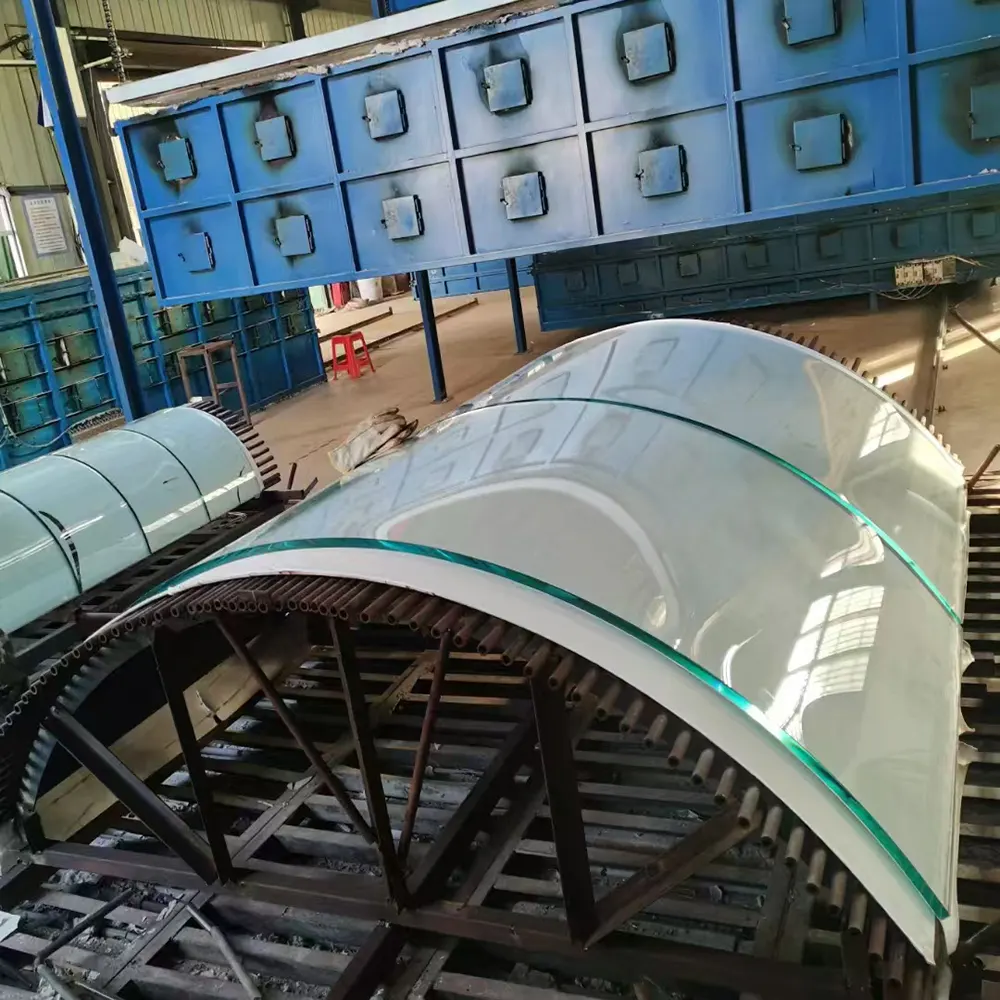

In high-profile commercial projects, curved glass is a highly sensitive submittal. A minor error in the radius or a wave in the optics can cause structural framing rejection and catastrophic project delays. Weihua's fully automated, state-of-the-art horizontal bending furnaces integrate real-time thermal monitoring with micro-adjustable tempering zones. We deliver a crystalline, geometrically exact medium that fits your steel sub-structures flawlessly on the first drop.
Technical Evaluation | Weihua Factory Specification Limits | Engineering Importance |
Radius Conformity | Deviation Limit: ≤ ±1.5 mm - ± 2.0 mm (Depending on chord depth and glass thickness) | Eliminates hardware friction or structural gaps. Ensures fast, airtight sealing with aluminum mullions or spider fittings. |
Optical Distortions | Roller Wave: ≤ 0.15 mm / 300 mm Local Bow: ≤ 0.2% | Minimized strain pattern anisotropy | Prevents ugly visual bending, funhouse-mirror reflections, or distorted silhouettes on commercial facades under direct sunlight. |
Shatter Risk Elimination | Full-Cycle Heat Soak Testing (HST) compliant with EN 14179 rules (Destructive NiS screening) | Destroys hazardous Nickel Sulfide (NiS) inclusions inside our testing chambers, protecting your brand from premium legal claims. |
Thickness Options: 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, 19 mm monolithic panels, or multi-layer custom laminations.
Glass Substrates: Standard Clear, Premium Low-Iron Ultra-Clear (Highly recommended for thick curved edges), Body-Tinted, or High-Performance Solar-Control Low-E.
Shape Capabilities: Cylindrical Curves, Single Bent Curves, J-Shape configurations, or Complex Laminated Bent IGUs.
CNC Secondary Processing: Water-jet notch cutouts, precision countersunk hole drilling for point-fixed balustrades, polished flat arris borders.
Certifications: Fully certified and stamped to CE (EN12150 / EN14179), SGCC (ANSI Z97.1), and ISO9001 tracking rules.
Zero-Fitting-Error Blueprints: Our technical center translates your structural DXF/CAD blueprints into precise heating and curving parameters, ensuring every single curved piece in a long architectural series matches perfectly with its adjacent panels.
Pristine Low-Iron Edges: For structural frameless glass balustrades where the top curved edge is completely bare, we utilize premium low-iron matrices. This eliminates the muddy green tint and reveals a brilliant, high-end ice-blue profile.

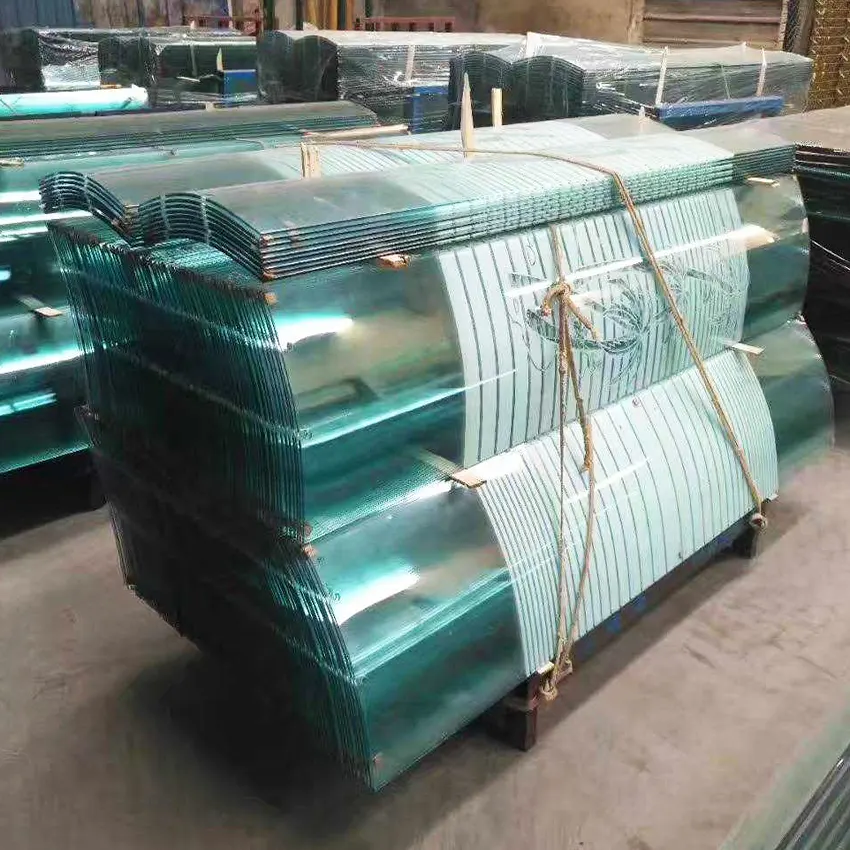

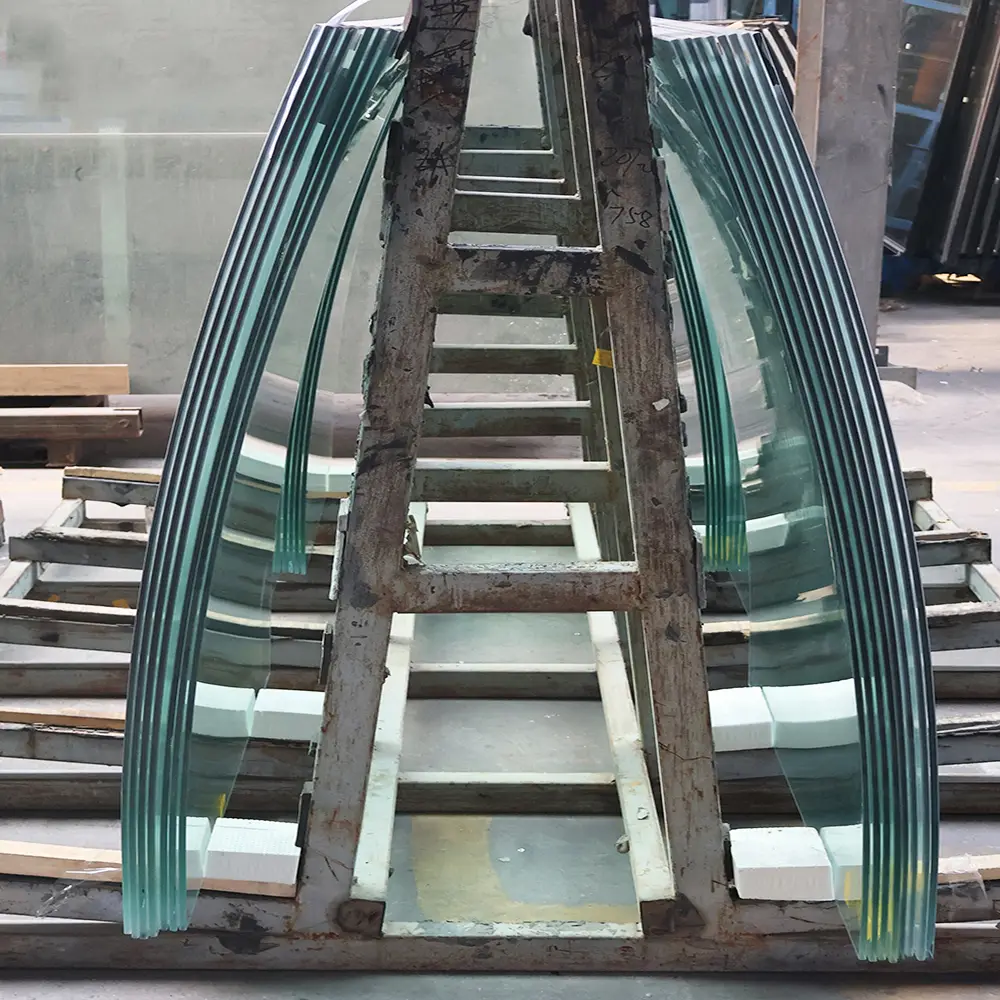

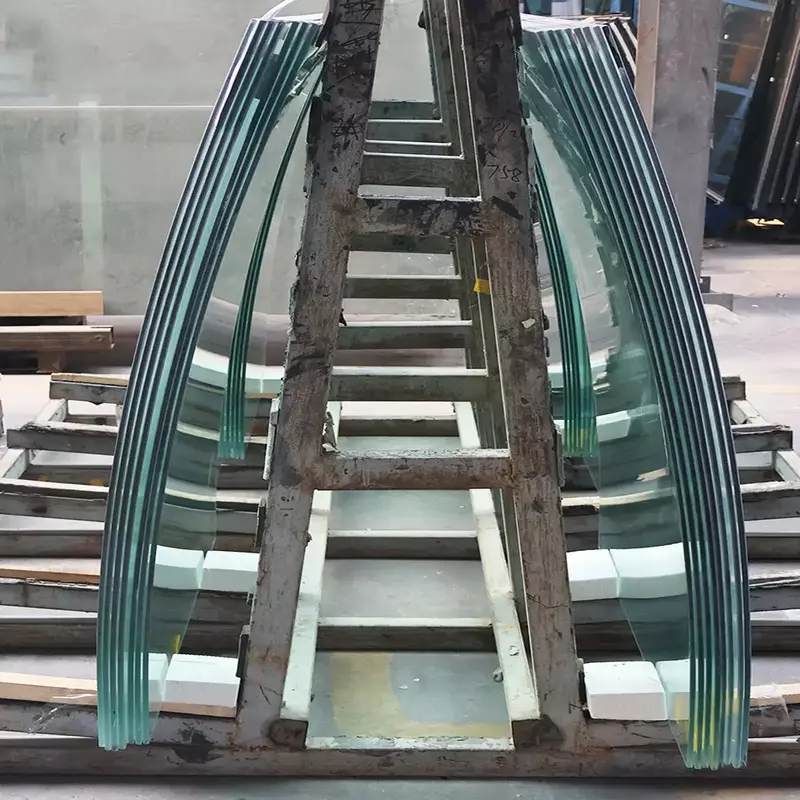

Certified Containerized Export Crating: Curved glass occupies substantial spatial volume and is highly sensitive to shifting. Our logistics yard designs custom, heavy-duty L-frame and A-frame timber racks fitted with thick shock-absorbing foam buffers to endure harsh sea transit.
