When choosing high-performance windows for a modern home or a sustainable architectural project, most people focus heavily on the glass layers or the frame material. However, there is a hidden hero inside the window that dictates whether your investment will last for 5 years or 25 years: the spacer bar.
For decades, the window industry relied on traditional aluminum spacers. Today, a technological shift is happening. TPS (Thermoplastic Spacer) and 4SG (Reactive Thermoplastic Spacer) systems are redefining the standards of energy efficiency, durability, and architectural aesthetics.
If you are looking for the ultimate glazing solution, here is why your next windows should feature 4SG or TPS warm edge technology.
In a standard double or triple-glazed window, the spacer bar keeps the panes of glass apart, creating an insulating cavity filled with argon gas.
Traditional spacers are made of aluminum. Because aluminum is a highly conductive metal, it acts as a "thermal bridge." Cold air from the outside travels directly through the aluminum edge to the inside glass, causing the edges of your windows to feel freezing cold. This leads to condensation, moisture buildup, and eventually mold.
Warm Edge Technology replaces highly conductive metals with advanced, low-conductivity materials. TPS and 4SG represent the absolute pinnacle of this technology—replacing rigid metal bars with flexible, thermoplastic insulating materials.
While both systems offer incredible thermal performance, 4SG (developed by Kömerling) takes durability to the next level:
TPS (Thermoplastic Spacer): A three-in-one thermoplastic elastomer integrated with desiccants (drying agents) and primary sealants. It is extruded directly onto the glass as a warm, flexible mass.

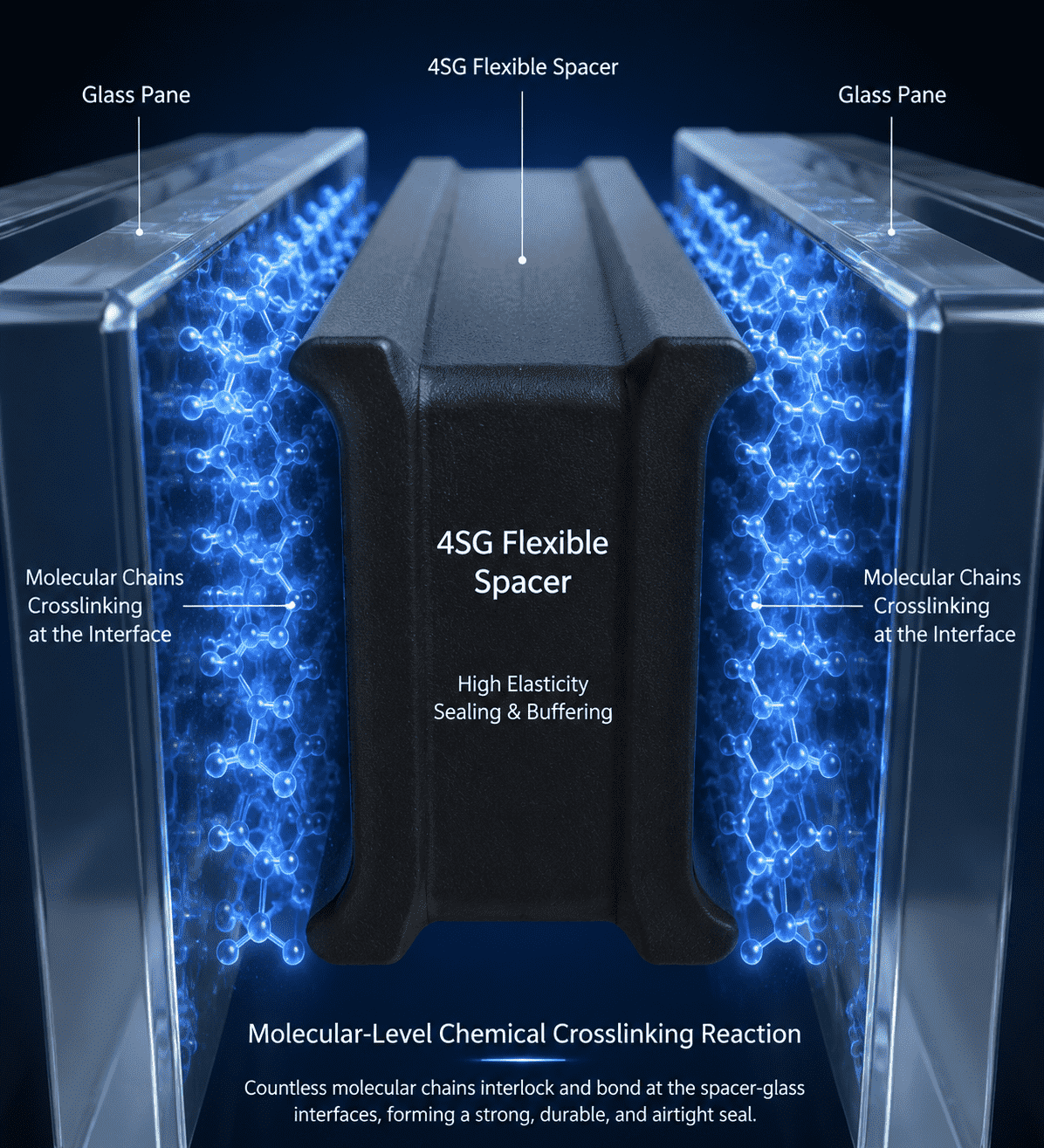

4SG (Reactive Warm Edge): 4SG enhances the TPS concept by forming a permanent chemical bond with both the glass surface and the secondary silicone sealant. Instead of just "sitting" between the glass panes, it structurally cross-links with the window components on a molecular level.
The biggest enemy of insulated glass units (IGUs) is gas leakage. Once the insulating argon gas escapes, the window loses its energy efficiency and begins to fog up inside.
Thanks to the seamless, robotic application of 4SG and the chemical bond it creates, the argon gas leakage rate is pushed down to less than 0.84% per year. This allows manufacturers to confidently offer a 25-year warranty on gas retention—far outlasting traditional windows.
By eliminating the aluminum thermal bridge, 4SG/TPS systems drastically raise the surface temperature around the edges of the indoor glass. The system can lower the window's overall U-value (thermal transmittance) by up to 0.15 $W/(m^2·K)$. This keeps your window edges dry, preventing the formation of unsightly and unhealthy black mold.
Have you ever seen an older window where the black glue (butyl) seems to be melting or squeezing out into the viewing area? This common defect is called "butyl migration," caused by solar heat and pressure.

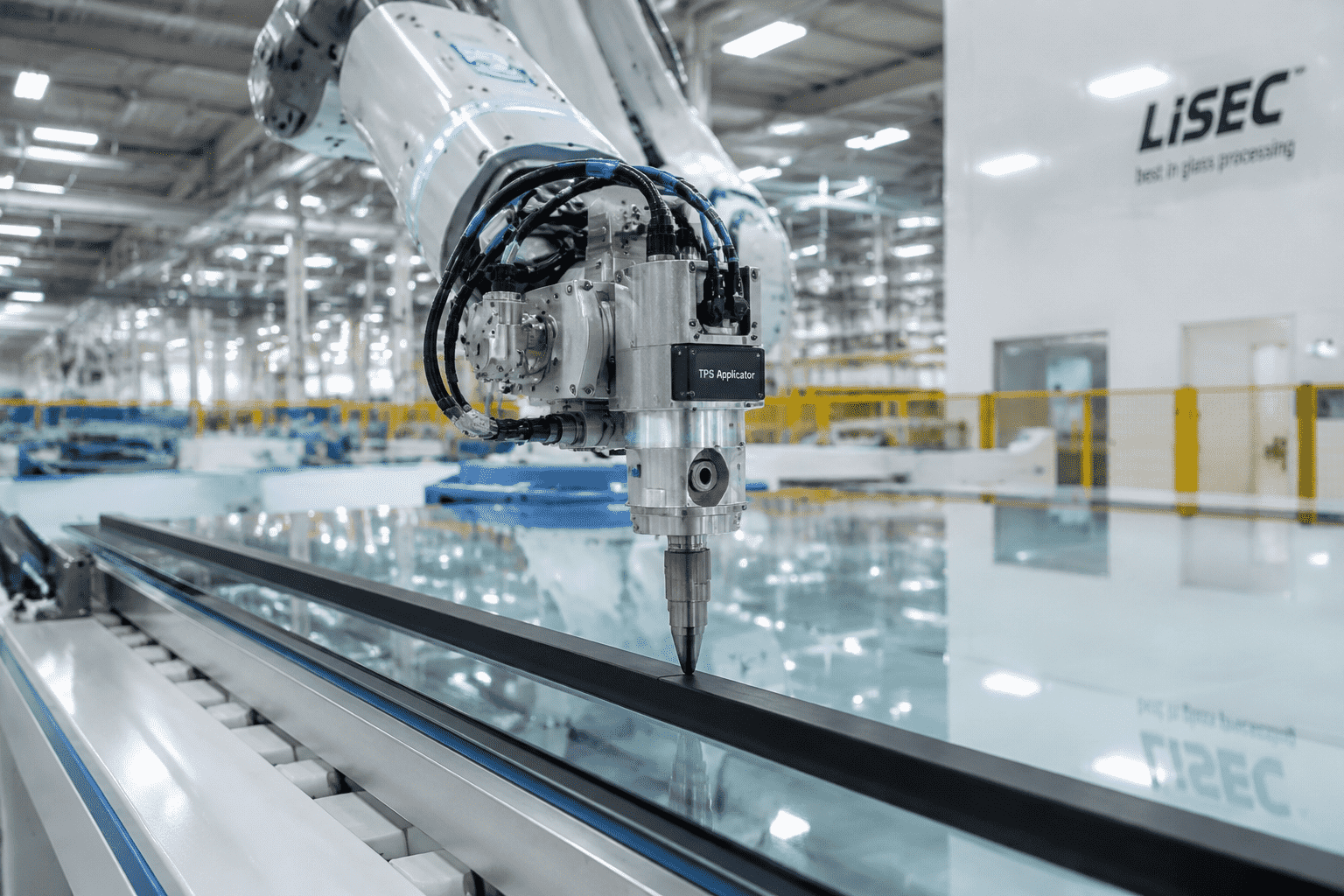

Because TPS and 4SG are applied via 100% automated robotic lines, they feature zero joints, zero bubbles, and absolute structural stability. They will never migrate or warp, leaving you with a perfectly clean, matte-black, minimalist edge that complements modern architecture.
The flexible, elastic nature of thermoplastic materials acts as a natural dampener for sound waves. When paired with asymmetric glass thicknesses (e.g., combining a 5mm pane with a 6mm pane), the 4SG system absorbs structural vibrations and shatters incoming sound waves, effectively blocking irritating low-frequency city traffic noise.
+-----------------------------------------------------------------+
| Traditional Aluminum vs. 4SG/TPS Warm Edge |
+------------------------+----------------------------------------+
| Feature | Aluminum Spacers | 4SG/TPS Warm Edge |
+------------------------+-------------------+--------------------+
| Condensation Risk | High | Near Zero |
| Gas Retention Warranty | 5–10 Years | 25+ Years |
| Visual Cleanliness | Prone to leaking | Flawless Matte-Blk |
| Production Precision | Manual/Semi-Auto | 100% Robotic |
+------------------------+-------------------+--------------------+
As architectural trends lean toward massive floor-to-ceiling glass walls, minimal frames, and BIPV (Building-Integrated Photovoltaics), the structural demands on glass edges have skyrocketed.
Traditional metal spacers cannot bend smoothly around complex shapes or handle the immense wind load pressure of giant structural glazing. 4SG and TPS, being applied robotically in a continuous, seamless loop, can adapt to any geometric shape—arcs, triangles, and oversized panoramic panes—without sacrificing a single millimeter of sealing integrity.
Windows are a long-term investment. Choosing 4SG or TPS warm edge technology ensures that your building remains energy-efficient, acoustically peaceful, and visually stunning for decades to come.
