Ballistic Certified Protection: Engineered using multi-layered premium glass bonded with high-toughness PVB/PU interlayers, effectively absorbing ballistic kinetic energy to prevent penetration.

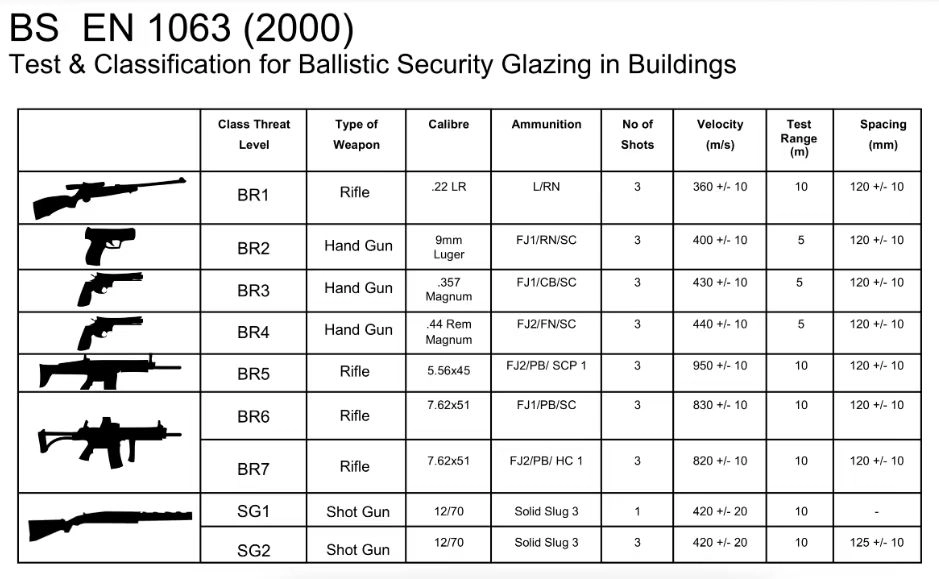

Customizable Armor Levels: Tailored to comply with various international ballistic standards, including EN 1063 (BR2 to BR7) and NIJ 0108.01 (Level I to Level IV).
Crystal Clear Visibility: Utilizes high-grade ultra-clear (low-iron) float glass to guarantee optimal light transmission and zero optical distortion for high-security observation.
Factory-Direct Supply: Manufactured by Shandong Weihua Glass. We provide reliable ballistic solutions with traceable testing, precise manufacturing, and global standard compliance.

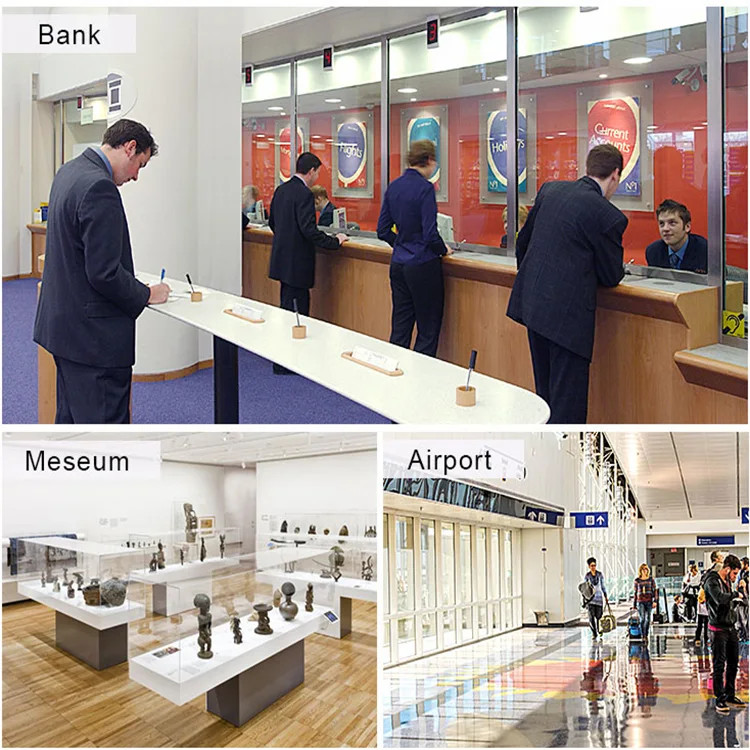

Versatile High-Security Use: The essential choice for bank counters, armored vehicles, government embassies, luxury villas, jewel stores, and military facilities.
| Quantity: | |
|---|---|
Are you seeking high-reliability ballistic glazing to fortify critical infrastructure against forced entry and ballistic threats? Shandong Weihua Glass offers premier, custom-manufactured bullet-resistant glass panels engineered to deliver ultimate heavy-duty defense while maintaining pristine visual clarity.
By laminating alternating layers of high-strength tempered glass and resilient poly-interlayers under intense heat and pressure, we construct an unbreakable barrier capable of neutralizing threats from handguns up to high-powered military rifles. Whether you are engineering specialized armored transport or securing financial institution counters, Weihua provides structural safety you can absolutely depend on.
Feature (特性) | Available Options (可选参数/规格) |
Glass Configuration | Multi-Layer Glass + PVB / PU / SGP Interlayers (Optional Polycarbonate Spall Shield) |
Protection Standards | EN 1063: BR2, BR3, BR4, BR5, BR6, BR7 | NIJ 0108.01: Level I, II, III-A, III, IV |

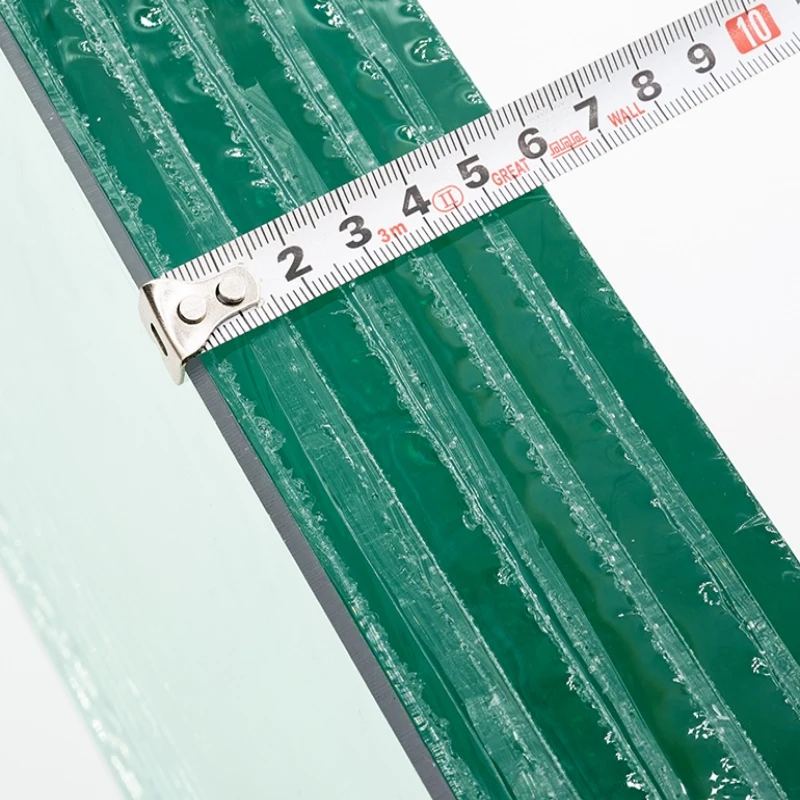

Thickness Range | 18 mm, 24 mm, 32 mm, 38 mm, 50 mm, 70 mm up to 100 mm+ (Determined by ballistic level) |
Glass Substrates | Clear, Ultra-Clear (Low-Iron) Glass for maximum visibility and safety |
Size Range | Min: 300 mm X 300 mm |
Edge Finish | Flat Polished Edges, Step Edges (for flush framing integration) |
Certifications | ISO9001, CCC, Ballistic Testing Laboratory Reports matching EN/NIJ standards |
No-Spall Safety Options: Available with advanced polycarbonate inner layers that prevent "spalling"—the dangerous spraying of fine glass splinters inward upon impact—ensuring maximum protection for personnel inside.
Exceptional Material Realism: Processed using premium interlayers and specialized autoclave cycles, ensuring superior resistance to delamination, UV aging, and severe weather exposure.

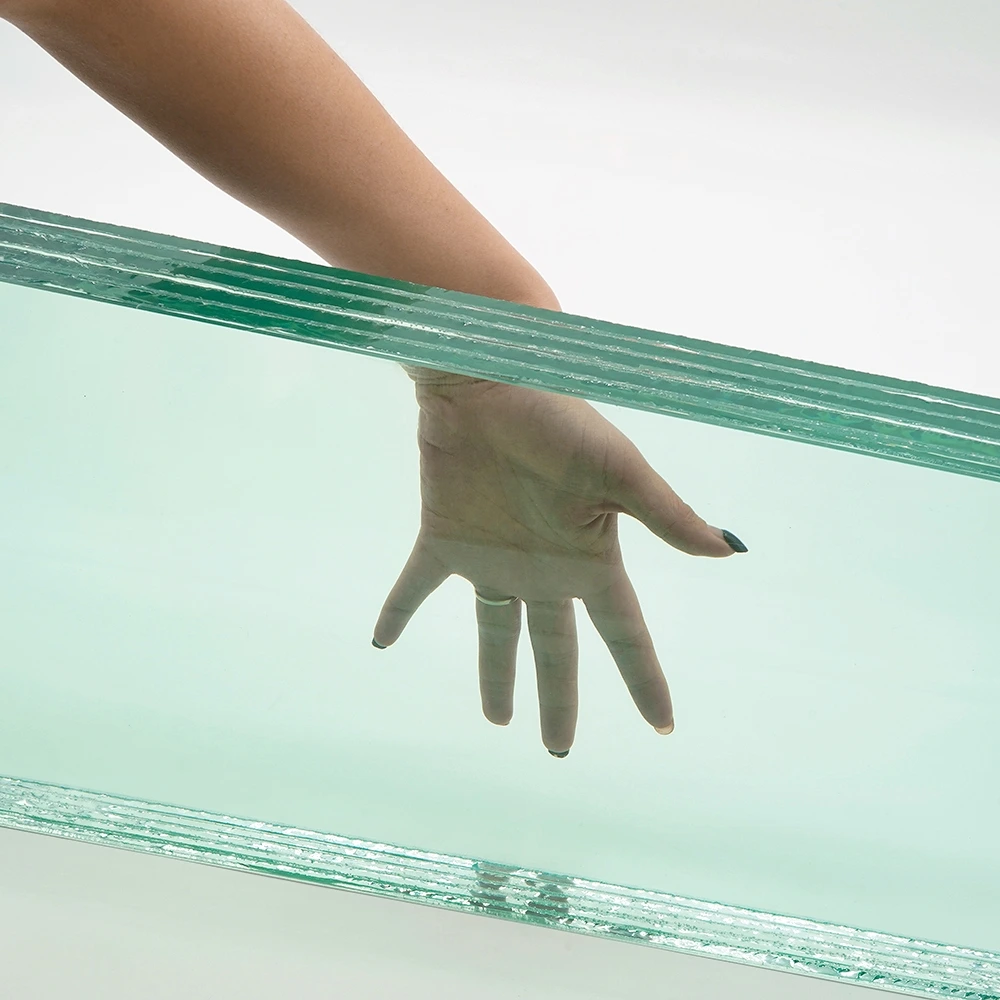

Optimized Light Transmittance: Even at extreme thicknesses, our optional low-iron formulation minimizes the traditional green tint of thick glass, allowing clean, undistorted security monitoring.
Specify Ballistic Level: Identify the exact protection rating required by your project (e.g., NIJ Level III for rifle protection or EN BR4 for handguns).
Provide Frame & Dimensions: Input the precise width, length, and frame pocket depth. Let us know if you require a stepped edge for flush installation.
Select Inner Layer Type: Choose between traditional all-glass laminated configurations or lightweight glass-clad polycarbonate options for anti-spall security.
Submit Blueprint for Review: For custom armored vehicles, security guard booths, or specialized architectural framing, upload your CAD files for an engineering review and quote.
